Hanwha - XNV-9083R - Outdoor Network AI IR Vandal Dome Camera with 4.4~9.3mm Lens

Product Overview

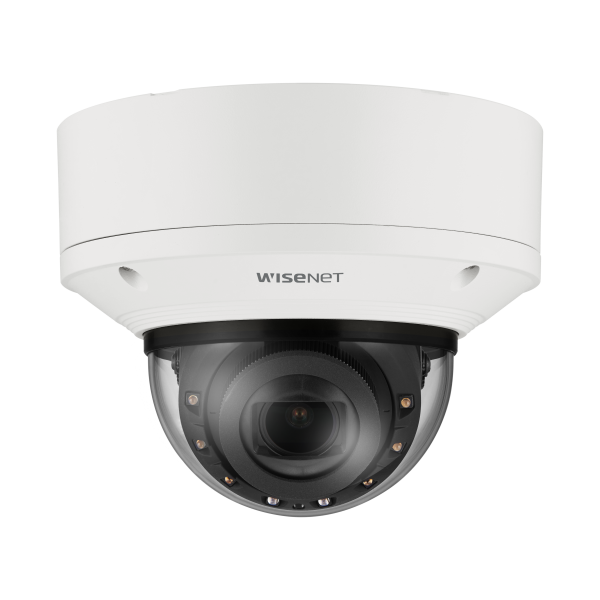

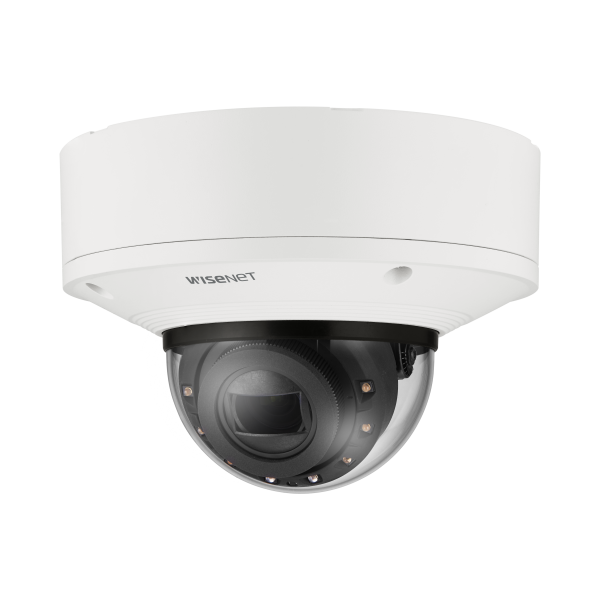

The Hanwha XNV-9083R is a 4K outdoor AI-powered vandal dome camera delivering up to 3840×2160 resolution at 30 fps. It uses a 2.1× motorized varifocal lens 4.4–9.3 mm with a horizontal field of view from 112.1° to 47.5°, allowing flexible scene coverage. It includes 120dB extreme WDR for challenging lighting conditions and up to 50 m WiseIR infrared illumination for night surveillance. Video processing uses H.265/H.264/MJPEG with WiseStream III and AI-based WiseNR II for intelligent compression and improved low-light noise reduction.

Key Configuration

• 4K (3840x2160) resolution at 30fps maximum frame rate (H.265/H.264); MJPEG limited to 15fps
• 4.4~9.3mm motorized vari-focal lens, 2.1x zoom, F1.3~F2.15 aperture, H: 112.1°~47.5° FOV
• PoE+ (IEEE802.3at, Class4) or 12VDC input; PoE+: max 22.5W / typical 17.9W; 12VDC: max 20W / typical 15.6W; power redundancy failover
• Dual micro SD/SDHC/SDXC slots supporting up to 1TB total (512GB x2) edge storage

Key Features

4K AI vandal dome camera 1/1.8" CMOS with 120dB extreme WDR, 50 m IR (WiseIR), and ultra-low-light performance down to 0.004 lux. It supports auto day/night (ICR), digital stabilization (gyro-based), defog, LDC, and hallway view. AI analytics include person/vehicle/plate detection plus intrusion, loitering, virtual line/area, motion (8 zones), tampering, and audio-based events. Business intelligence features add people/vehicle counting, queue management, and heatmaps. It supports WiseStream II/III smart codecs, up to 10 streaming profiles and 20 users, with CVBS and USB installation outputs. Security is enterprise-grade with TPM 2.0, secure boot, encryption, 802.1X, HTTPS, and signed firmware. ONVIF and SUNAPI are supported.

Technical Context

WN7 AI 4K dome camera with on-device analytics for person, face, vehicle, plate. WiseStream III and WiseNR II optimize bandwidth and low-light quality using AI. It includes gyro-based stabilization and AI shutter control. Supports up to 10 streams, 20 users, multicast, dual SD redundancy, and PoE+/12V failover. Security includes TPM 2.0 (FIPS 140-2). DORI ranges: 51.7–174.5 m detection, 5.2–17.5 m identification. Hard-coated dome for durability.

Installation Notes

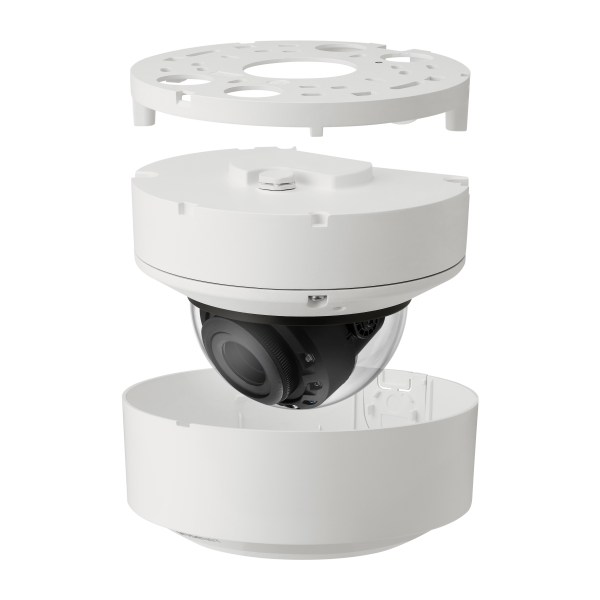

White aluminum dome camera with hard-coated bubble, Ø180 × 125 mm and 1.9 kg. It supports 3-axis adjustment (pan 0°–360°, tilt −45° to 85°, rotate 0°–355°) for flexible installation. Designed for extreme environments, it operates from −50°C to +55°C (up to +60°C intermittent) with IP66/IP67/IP6K9K, NEMA4X, and IK10+ protection, plus GORE vent humidity control. Powered by PoE+ or 12V DC, it includes EMI-shielded RJ-45 and CVBS/USB ports for on-site setup and alignment.
