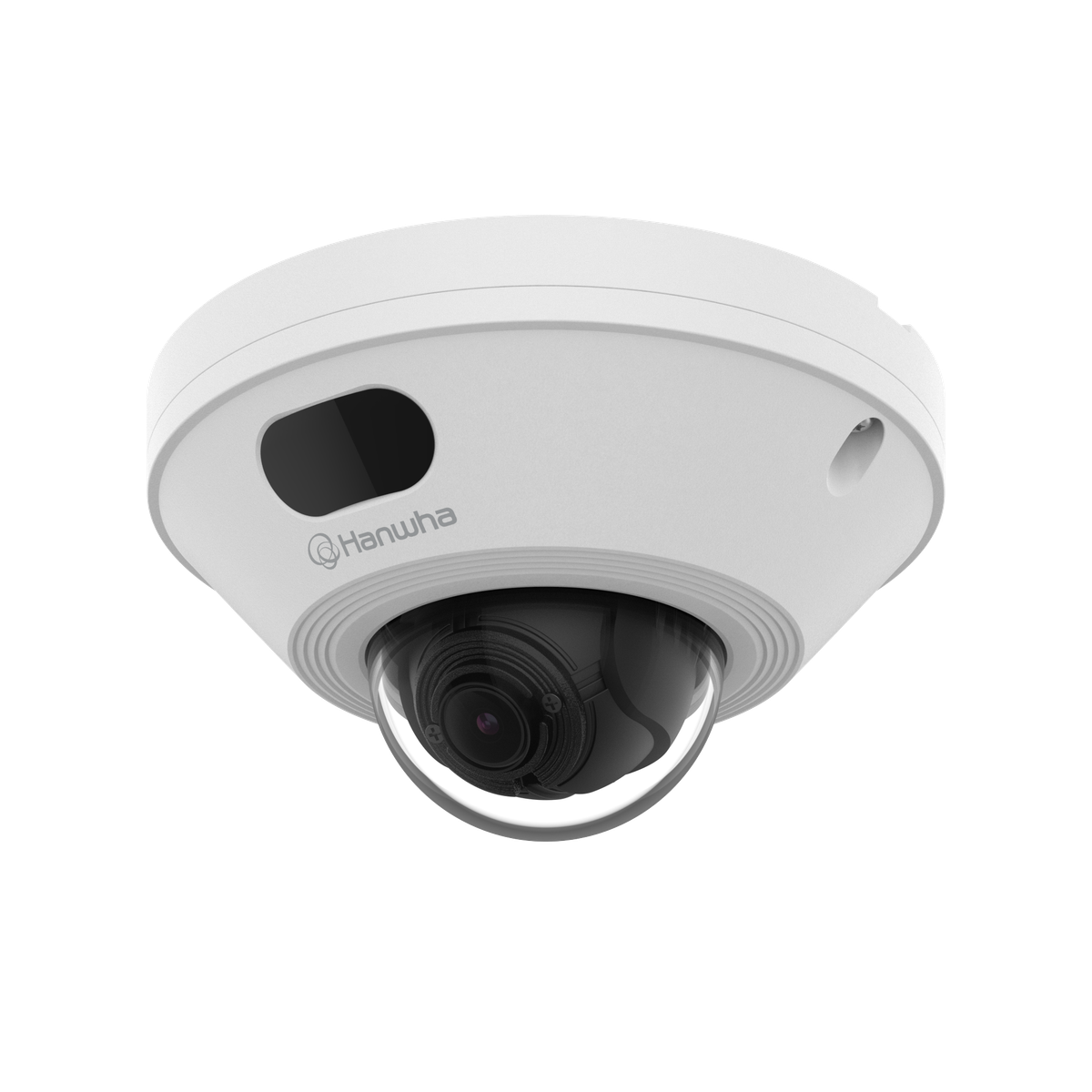

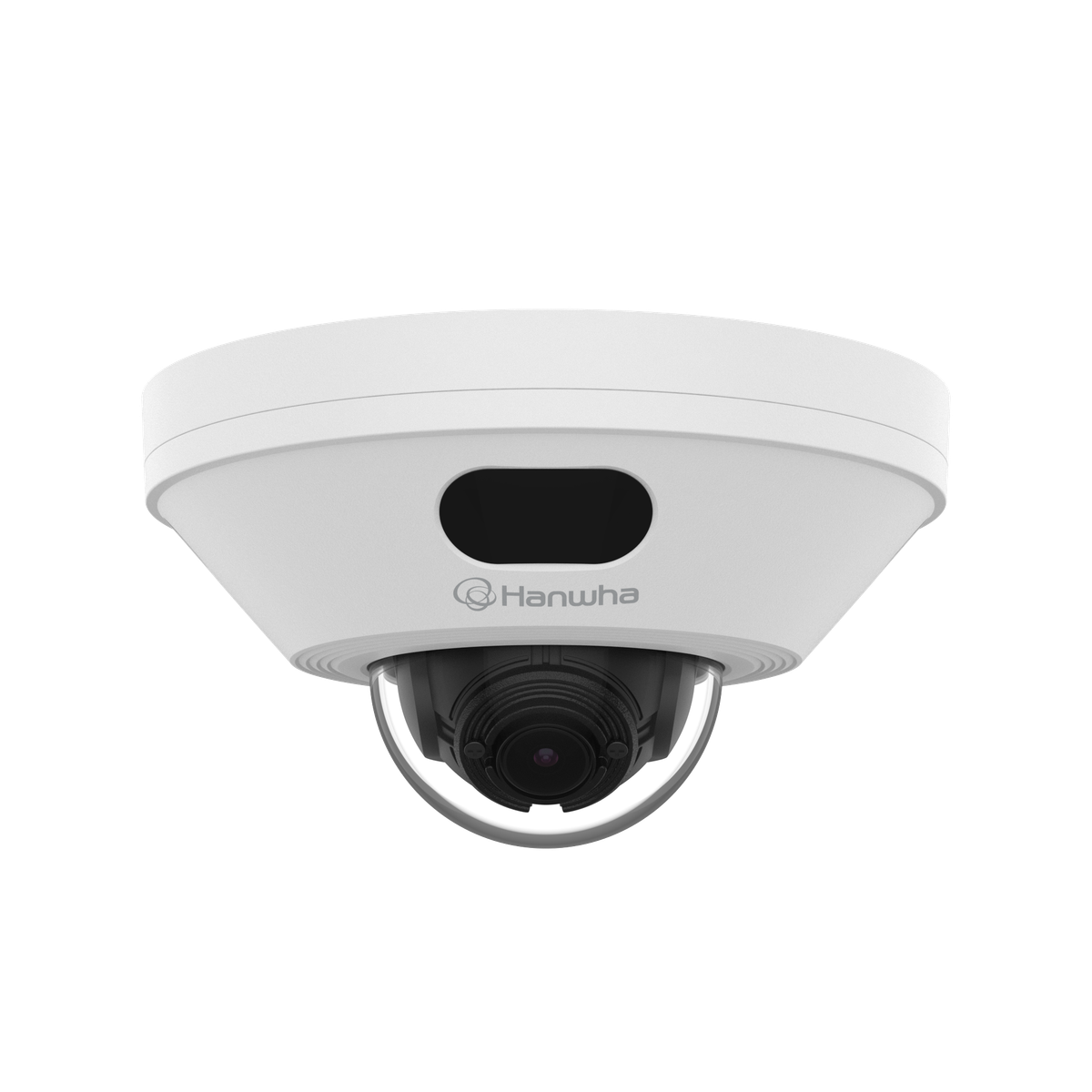

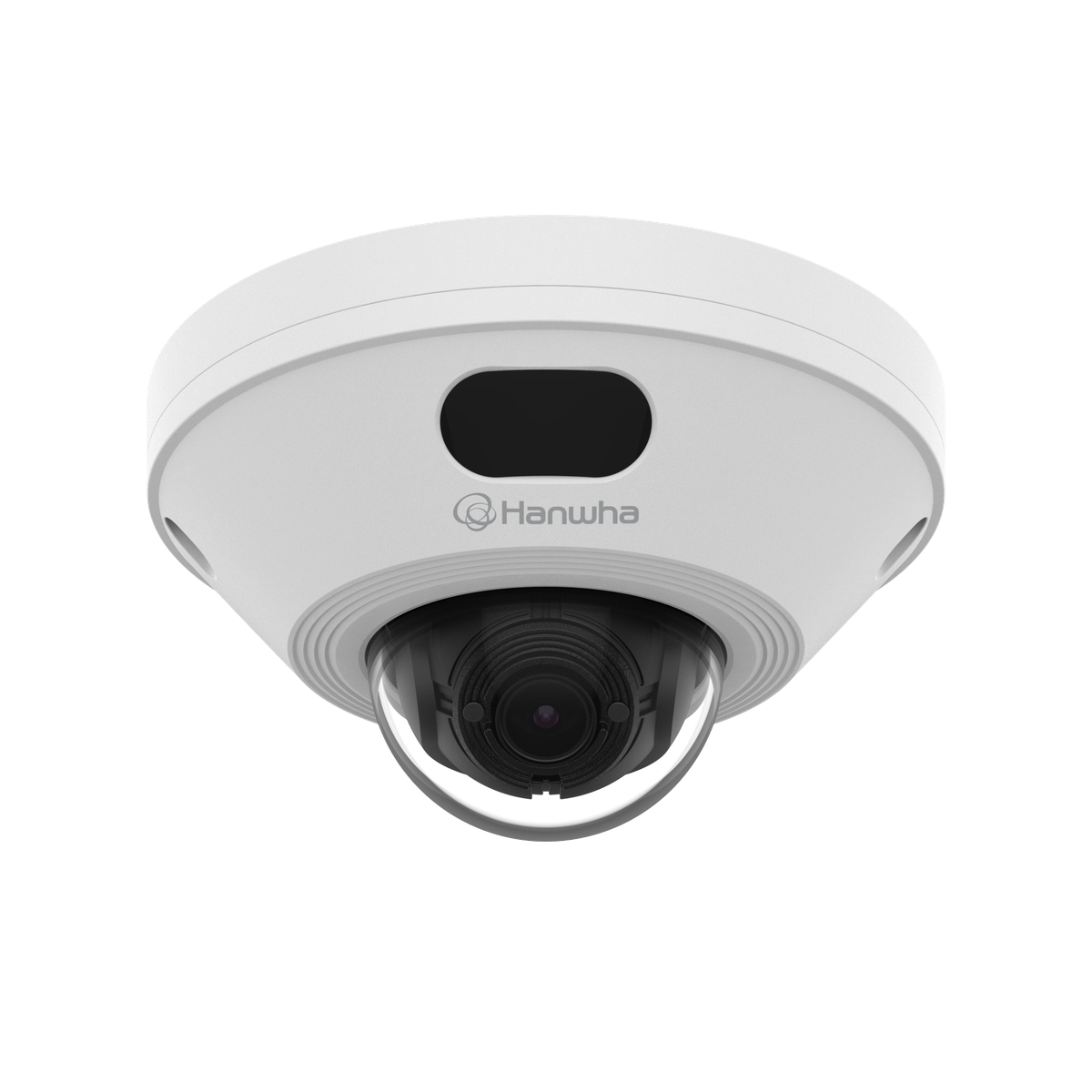

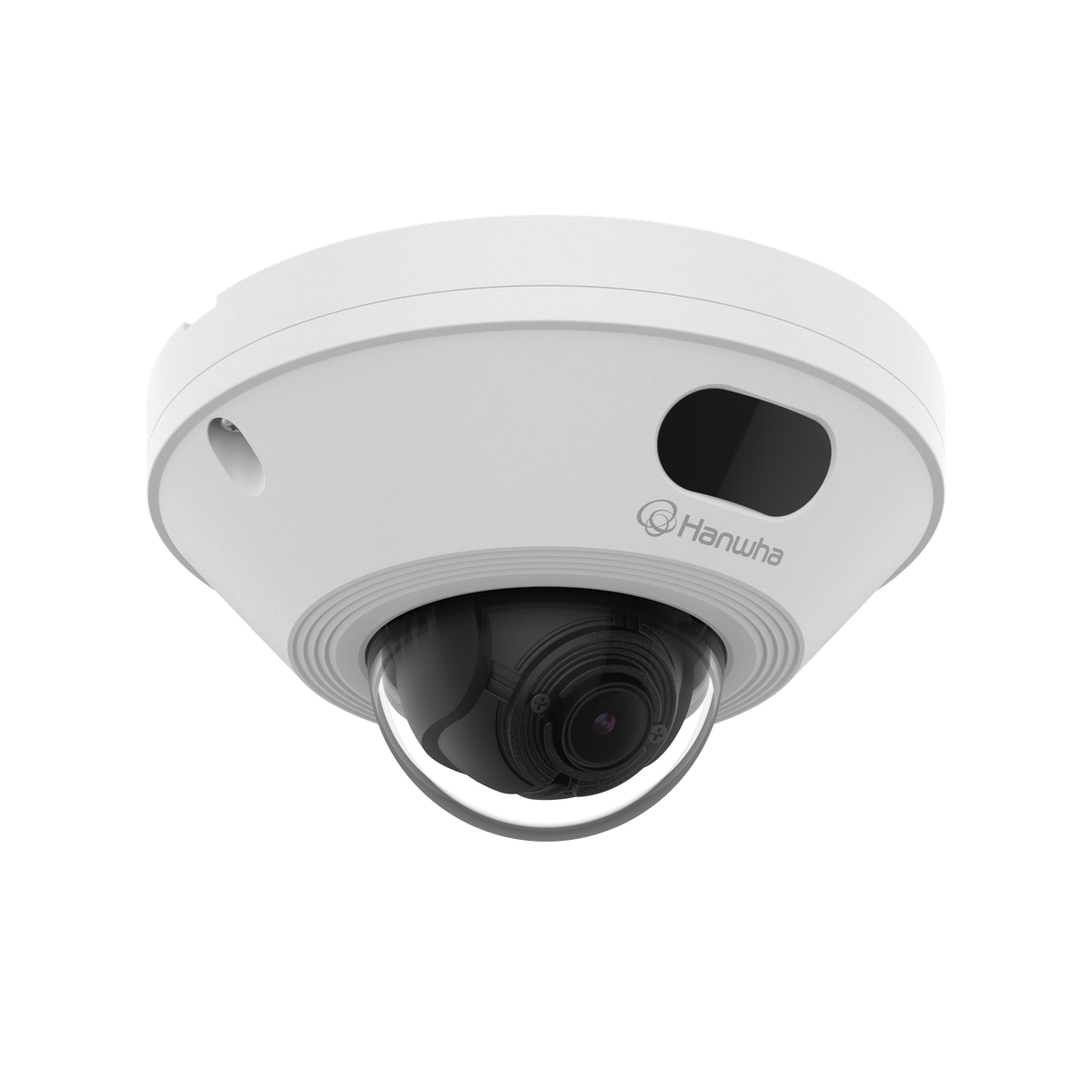

Hanwha - XNV-A6016R - 2MP Outdoor Compact IR Network Dome Camera with 3mm Lens

Product Overview

The Hanwha XNV-A6016R is a 2MP outdoor dome camera that delivers smooth 1080p video at 60 fps through a fixed 3mm lens with a wide 108° horizontal view. It handles harsh lighting with 150dB WDR and provides clear night vision via 25m IR illumination, utilizing H.265, H.264, and MJPEG compression optimized by AI-powered WiseStream technology.

Key Configuration

• Resolution: 2MP (1920 × 1080) at up to 60fps (H.265/H.264), MJPEG up to 30fps
• Lens: fixed 3mm, F1.6, 108° / 59° / 127° FOV
• Power: PoE IEEE802.3af Class 3; max 6.6W / typical 4.8W with WisePower Eco mode
• Storage: microSD/SDHC/SDXC up to 1TB with AES-256 encrypted partition support

Key Features

Built around a 1/2.8" CMOS sensor, this camera utilizes 150dB WDR, 25m IR, and AI noise reduction to capture clear video down to 0.027 lux in color. Its edge-based AI engine classifies people, faces, and vehicles—detecting specific attributes like clothing or masks—to trigger behavioral alerts (loitering, falls) and business metrics (people counting, heatmaps). The system supports ONVIF Profiles S/G/T/M with bandwidth-saving WiseStream compression, securing data via secure boot, hardware encryption, and an onboard FIPS 140-3 Level 3 secure element, all housed in a rugged IP66, IK10, and NEMA 4X-rated casing.

Technical Context

For high-speed environments, this model captures smooth motion at a fluid 60 fps frame rate. It incorporates WisePower technology for active power monitoring alongside an energy-saving Eco mode to maximize operational efficiency. Designed to maintain stable performance in high-moisture settings, the unit easily tolerates 0–100% condensing relative humidity and carries a official NEMA TS-2 certification, qualifying it for demanding traffic control and roadside installations.

Installation Notes

Features a lightweight 555g aluminum housing finished in a clean white. The mechanics allow complete positioning adjustments, supporting a 0°–351° pan, 0°–64° tilt, and 90° rotation for versatile targeting. Engineered for smooth deployment in deep-freeze or volatile conditions, it requires a startup temperature above -30°C before safely reaching its full operational scope.
