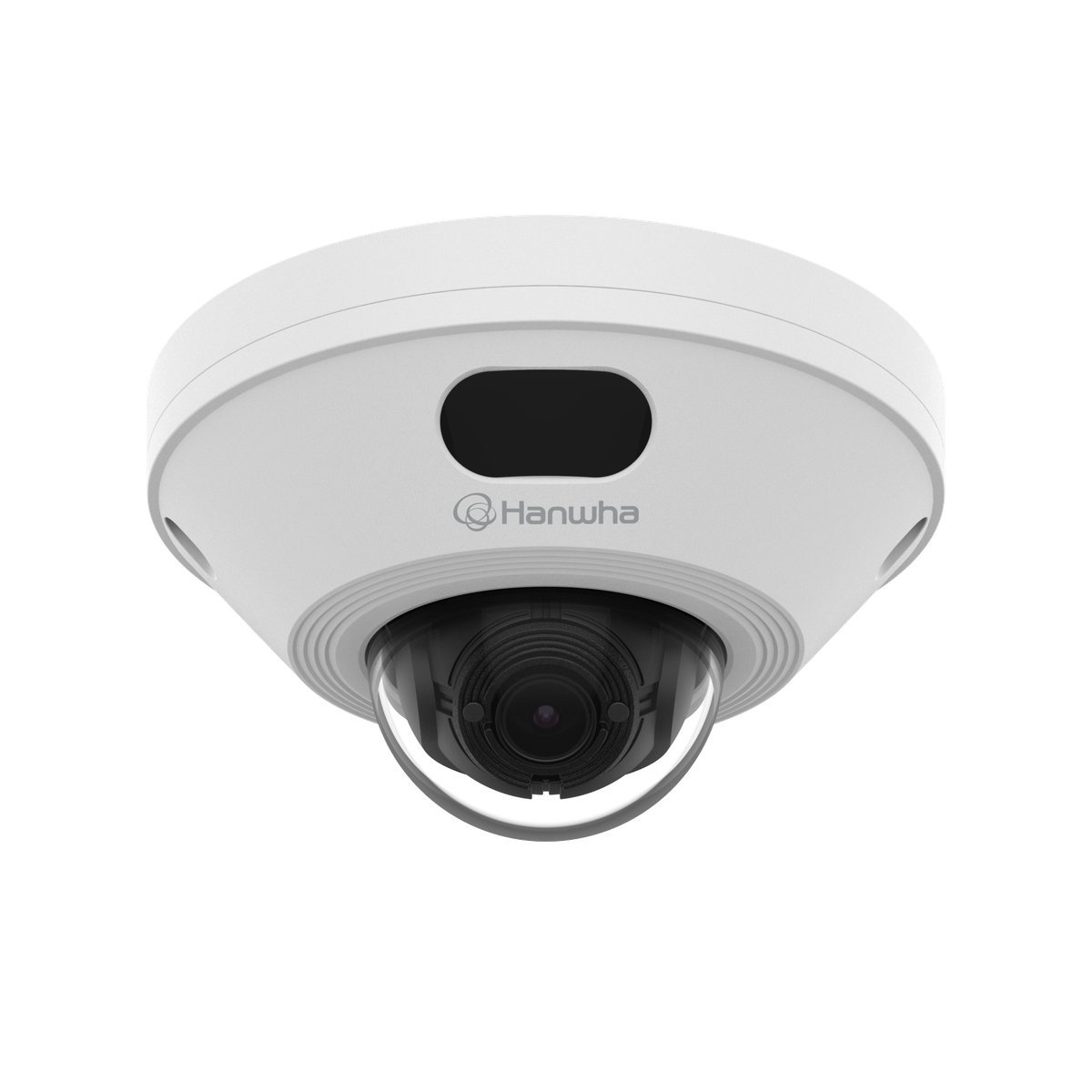

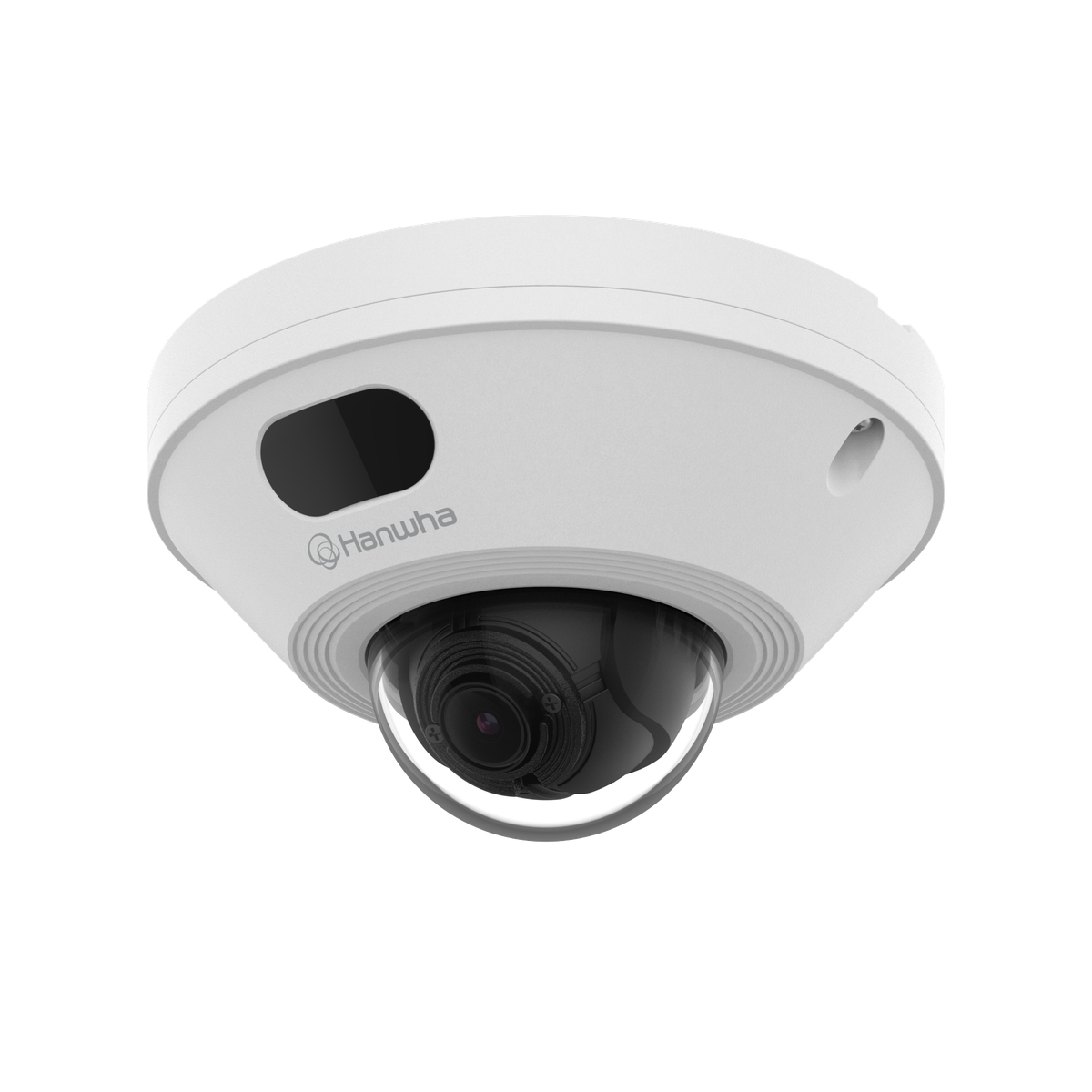

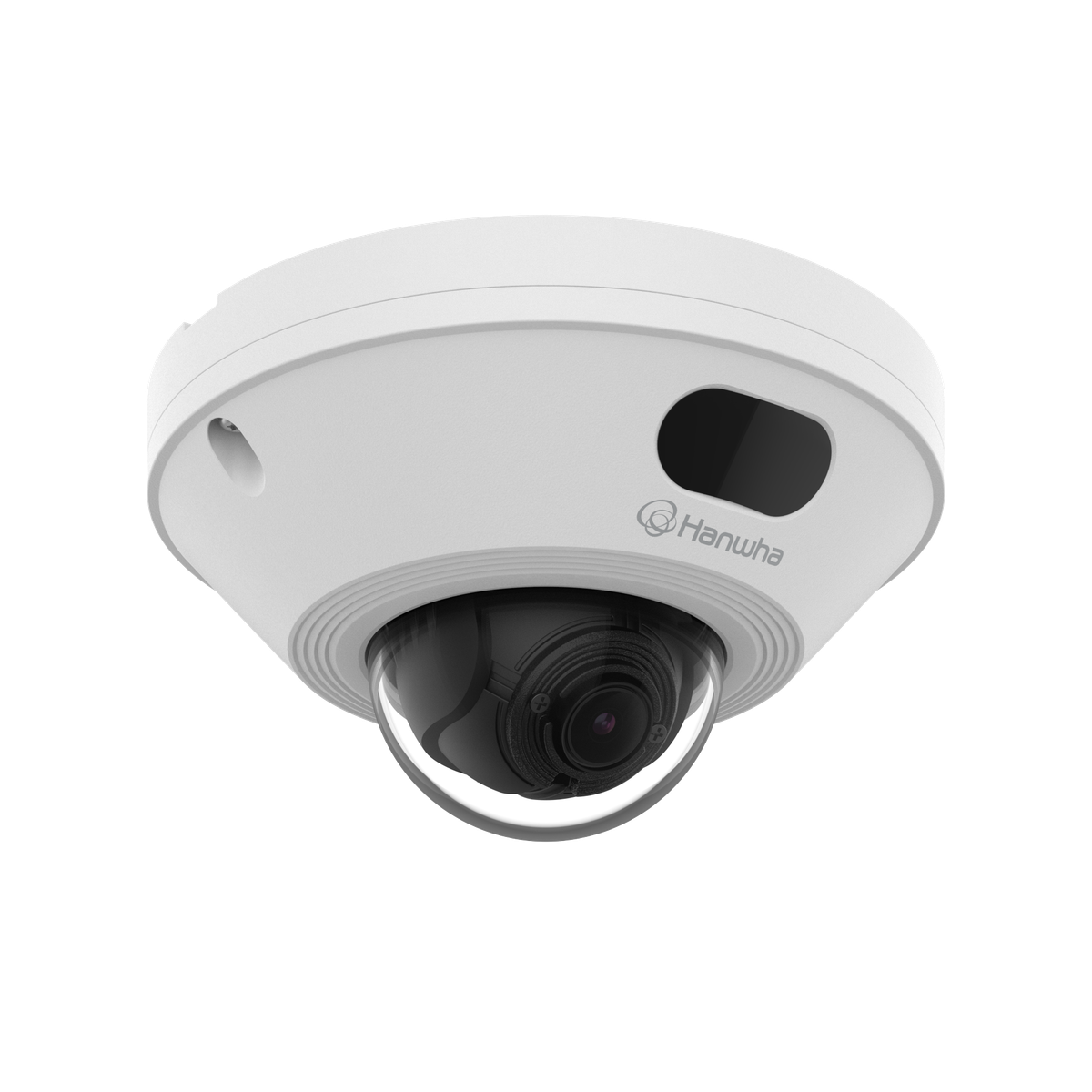

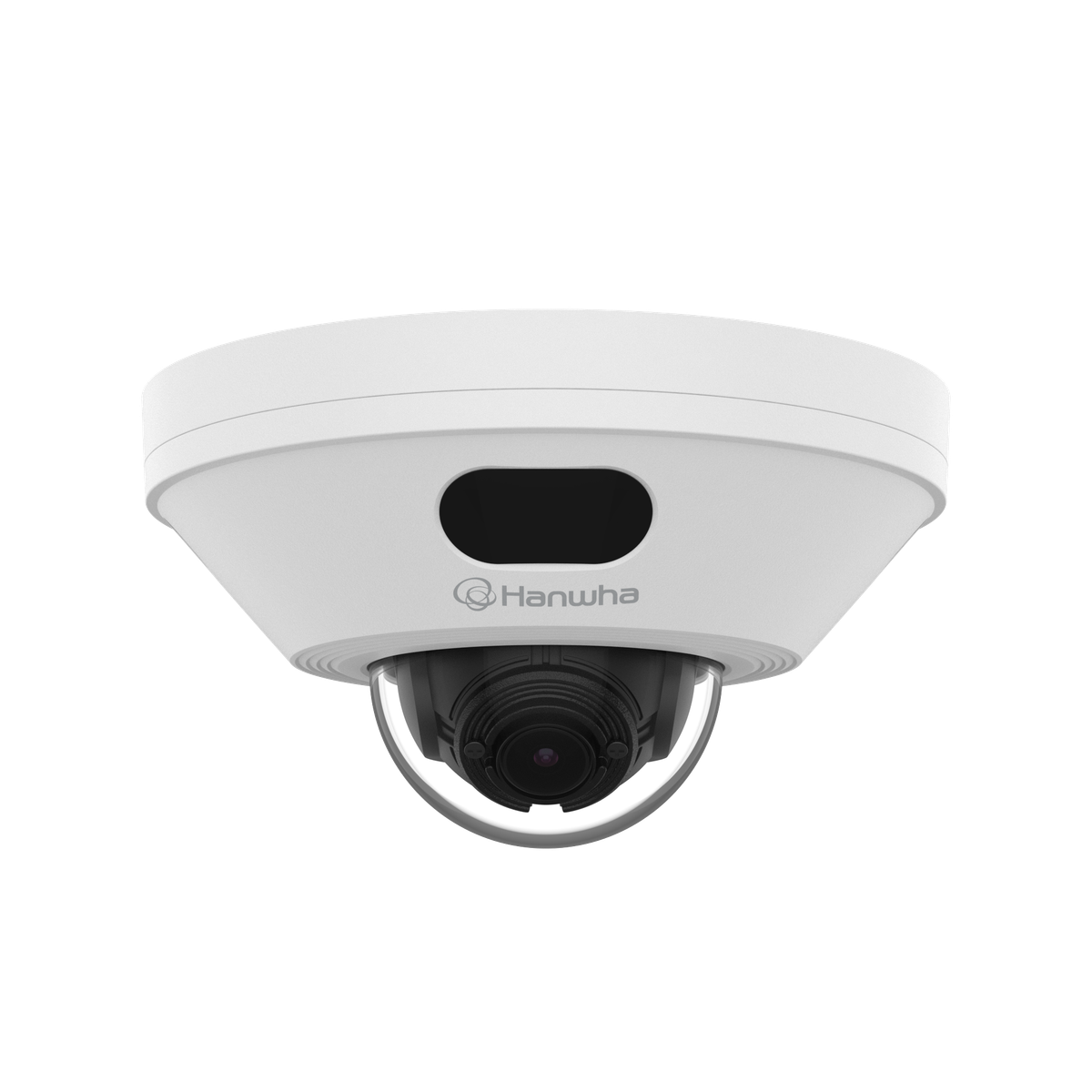

Hanwha - XNV-A8016R - 5MP Outdoor Compact IR Network Dome Camera with 3mm Lens

Product Overview

Hanwha XNV-A8016R is a 5MP outdoor compact IR dome camera delivering 2560 × 1920 resolution at up to 30fps. It features a fixed 3mm lens with 100° horizontal field of view, 120dB WDR, and IR illumination up to 25m. It supports H.265/H.264/MJPEG triple codec with AI-based WiseStream compression and is powered by the Wisenet 9 platform with dual NPU for on-device AI processing and image enhancement.

Key Configuration

• Resolution: 5MP (2560 × 1920) at up to 30fps (H.265/H.264), MJPEG up to 5fps at 5MP
• Lens: fixed 3mm, F1.6, 100° / 74° / 130° FOV
• Power: PoE IEEE802.3af Class 3; max 7.9W / typical 6.2W with WisePower Eco mode
• Storage: microSD/SDXC up to 1TB with AES-256 encrypted partition support

Key Features

1/2.8" CMOS sensor with 25m IR (850nm), 120dB WDR, AI-based noise reduction (WiseNR II), stabilization and defog support. AI analytics include person, face, vehicle, and license plate detection with attributes, plus behavior analytics (line crossing, intrusion, loitering, slip/fall, stopped vehicle). Business intelligence features support people/vehicle counting, queue and heatmap analysis. Supports digital PTZ, 32-zone privacy masking, and multiple rotation modes (flip, mirror, hallway). Security includes encrypted firmware, secure boot, HTTPS/SRTP, 802.1X, MACsec, AES-256 storage encryption, and a hardware secure element (FIPS 140-3 L3, CC EAL6+). Supports ONVIF S/G/T/M and WiseStream compression.

Technical Context

The XNV-A8016R is a compact dome camera with Wisenet 9 dual NPU for on-device AI analytics, including person, face, vehicle, and license plate detection. It supports advanced AI-based business intelligence such as people counting, queue management, and heatmaps, along with events like social distancing, slip and fall, and stopped vehicle detection. WisePower enables power monitoring and Eco mode for efficiency. The camera is designed for harsh environments with IP66, IK10, and NEMA 250 Type 4X certifications, and supports operation in 0–100% RH condensing conditions. Audio/alarm I/O requires an optional module, and USB Type-C preview requires a WiFi dongle. Internal memory includes 4GB RAM and 8GB eMMC flash.

Installation Notes

Compact dome camera with aluminum housing and hard-coated dome, designed for discreet installation. Supports full positioning pan 0°–351°, tilt 0°–64°, rotate ±90° in a lightweight design ø120 × 65.5mm, 555g. Operates in extreme environments -40°C to +55°C, up to +74°C intermittent with 0–100% RH condensing support and NEMA-TS 2 compliance. Powered via PoE IEEE802.3af Class 3. Fixed manual focus with 0.4m minimum object distance. USB-C available for installation/preview (WiFi dongle required), and an optional I/O box is needed for audio and alarm connections. Includes a defined DORI performance range up to 43.5m detection distance.
