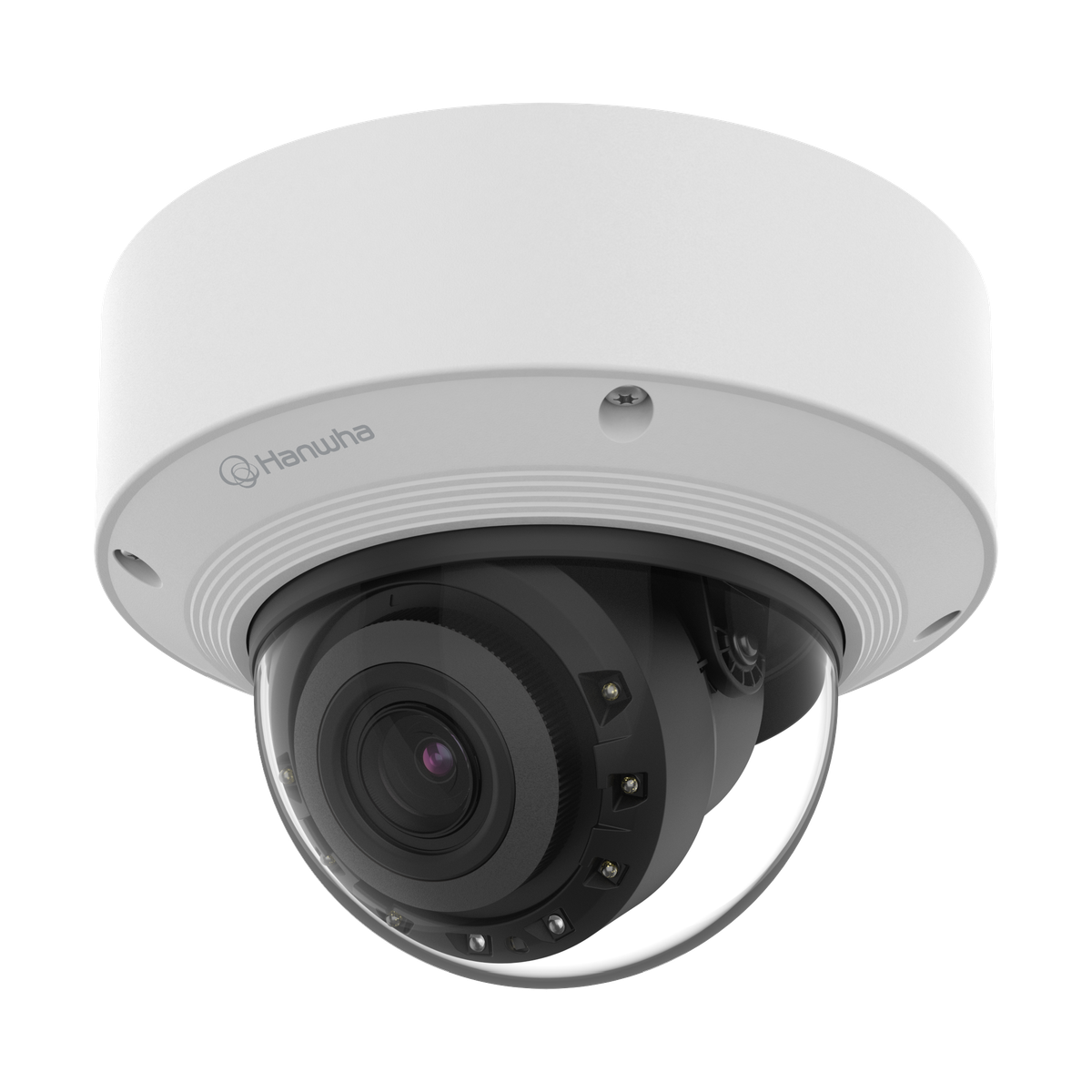

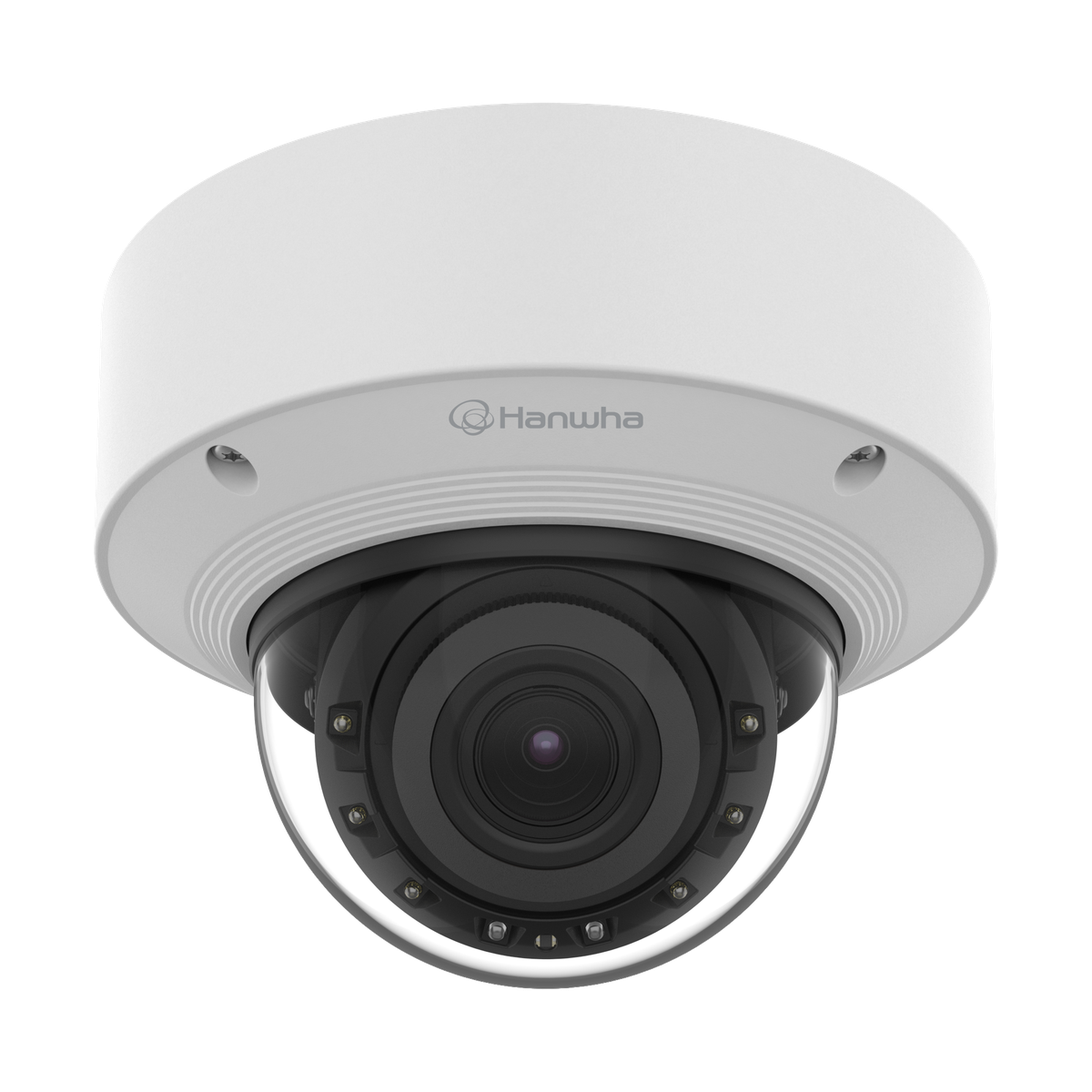

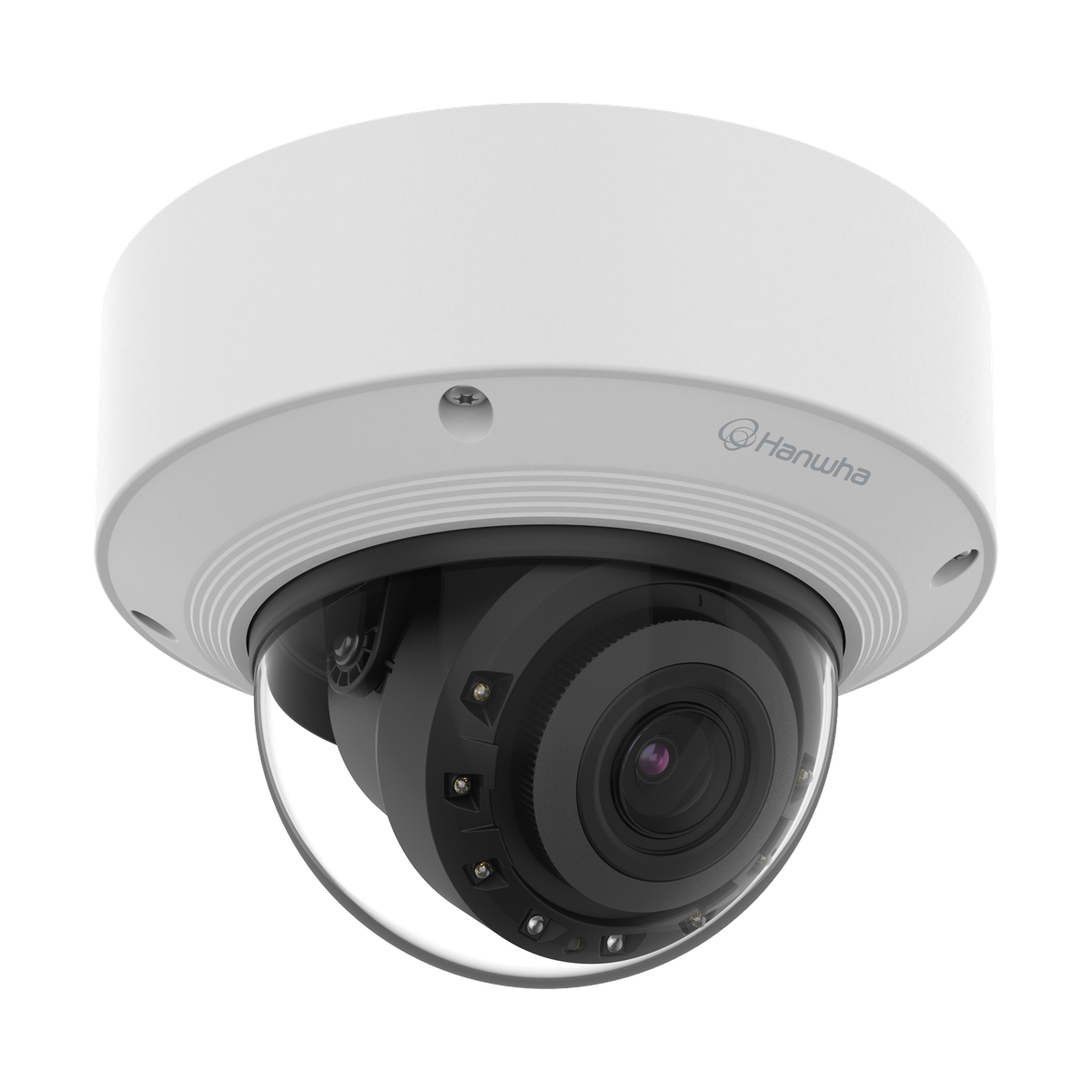

Hanwha - XNV-A8084R - 5MP Outdoor Network AI IR Vandal Dome Camera, 3.3-9.3mm

Product Overview

The Hanwha XNV-A8084R is a 5MP vandal-resistant outdoor dome camera featuring a dual NPU for AI-driven image optimization. Built with a 1/2.8" CMOS sensor, it utilizes a 3.3~9.3mm (2.8x) motorized varifocal P-iris lens that yields a 99°–31° horizontal field of view. The unit captures 5MP resolution (2560×1920) at up to 30 fps, employing WiseStream AI-based encoding alongside standard H.265, H.264, and MJPEG compression codecs, while managing harsh lighting through extremeWDR (120dB) technology.

Key Configuration

• • Imaging device: 1/2.8" CMOS; resolution: 2560×1920 (5MP) at up to 30 fps (H.265/H.264)
• • Lens: 3.3~9.3mm motorized varifocal (2.8x optical), P-iris (IR corrected); horizontal FOV: 99°(W)–31°(T)
• • IR: WiseIR 850nm, up to 40m (131 ft); minimum illumination: color 0.04 lux, B/W 0.004 lux
• • Power: PoE (IEEE 802.3af, Class 3); max 9.4W, typical 7.0W; Wisepower with power monitoring and ECO mode
• • Dimensions: Ø160 × 118 mm (6.30" × 4.65"); weight: 1,210g (2.67 lb)

Key Features

Driven by a dual NPU, this ONVIF Profiles S/G/T/M camera optimizes image quality using extremeWDR (120dB), WiseNRⅡ AI noise reduction, DIS, defog, and LDC. It features advanced edge analytics for object detection (person, face, vehicle, license plate), behavior alerts (slip-and-fall, loitering), BestShot attribute metadata extraction, and integrated business intelligence (counting, heatmaps). The unit includes 2 configurable I/O ports, a 1TB microSD slot for OnCloud edge recording, dynamic privacy masking, and selectable mic/line audio, all supported by 4GB RAM and 8GB eMMC flash. Cyber security is managed via an onboard Secure Element (FIPS 140-3 Level 3 / CC EAL6+), IEC 62443-4-1 certification, and SBOM supply chain validation.

Technical Context

Featuring a 0.5m minimum object distance and simple/manual focus control, this unit offers flexible electronic shutter options 2 to 1/30,000 sec driven by AI-based preference tuning. It supports comprehensive privacy masking across 32 multi-color, 8-point polygonal zones alongside dynamic masking capabilities. Operating over standard network protocols (including MQTT, SRTP, and SFTP), the hardware incorporates 4.52% recycled plastic, includes a 1/2" (M20) conduit interface, and mounts directly to single, double, square, or 4" octagon gang boxes.

Installation Notes

Measuring Ø160 × 118 mm and weighing 1,210g, this unit is constructed with 4.52% recycled plastic, features an EPA of 0.02㎡, and mounts with a micro USB Type C installation port. It carries IP66, IP67, NEMA 4X, and IK10 ratings, alongside NEMA TS-2 compliance (tolerating up to +74°C). Equipped with an AIR vent for 0–100% condensing humidity control, the system operates from -40°C to 55°C (cold starting above -30°C) using PoE Class 3 power. Onboard hardware includes audio/alarm I/O and a 1TB capacity microSD slot.
