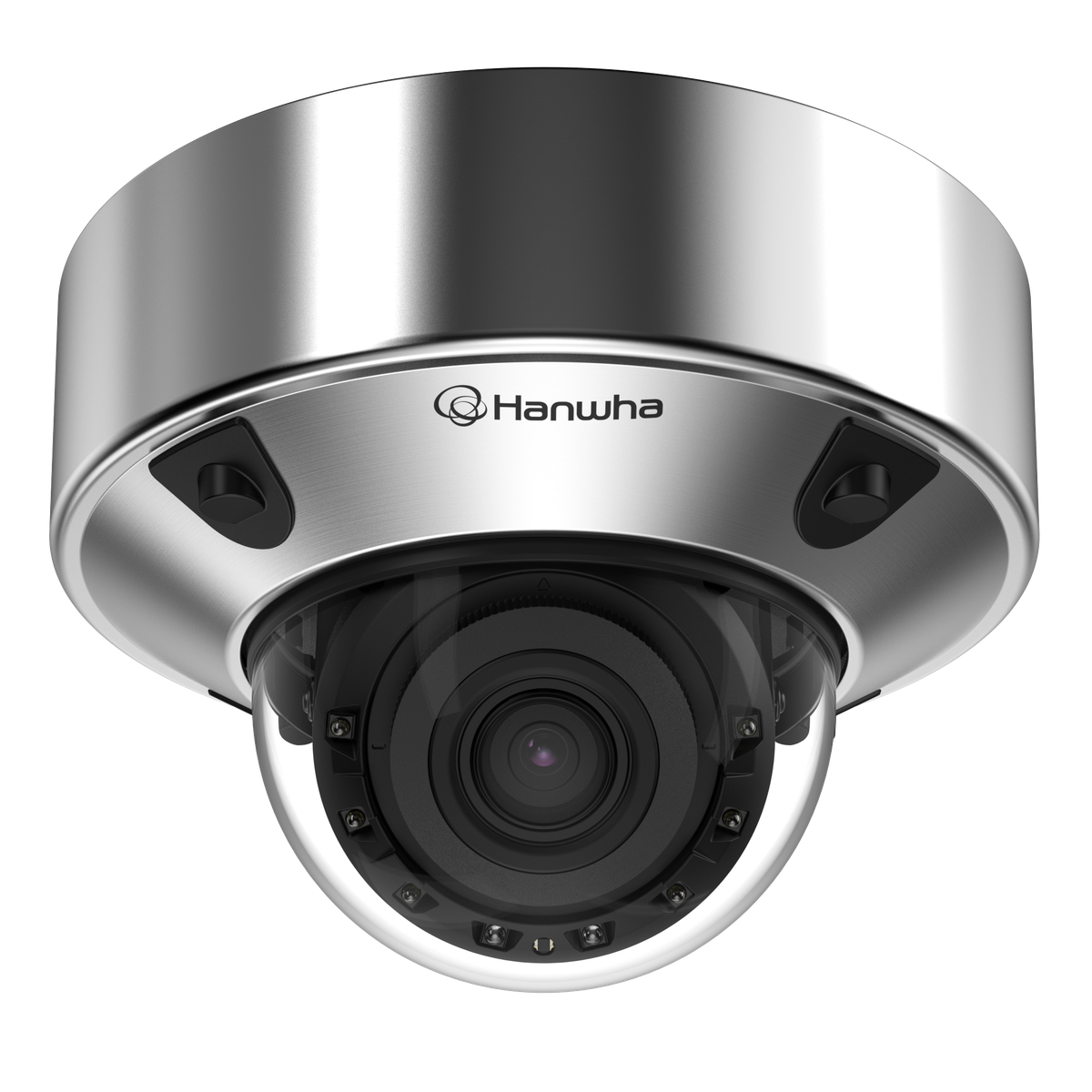

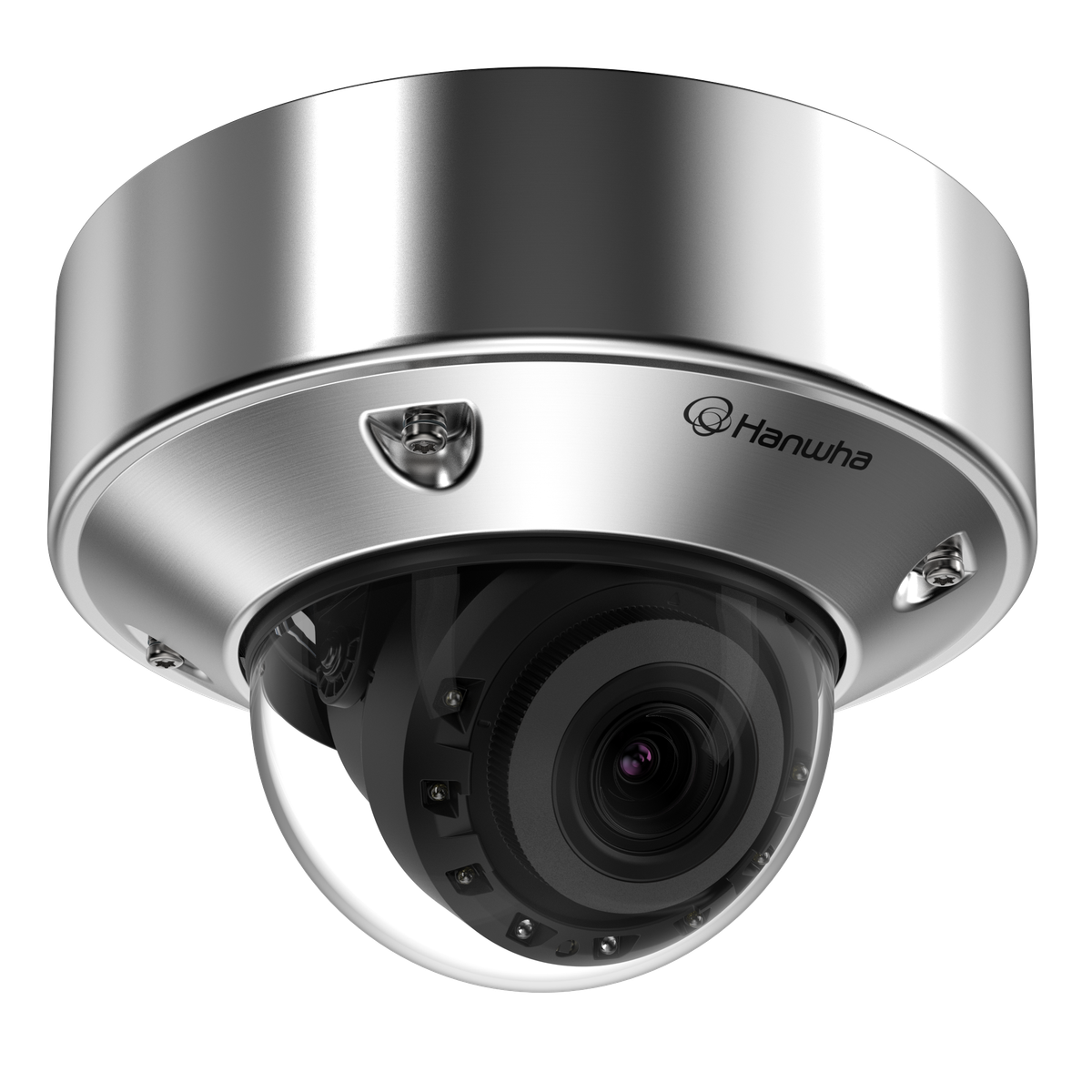

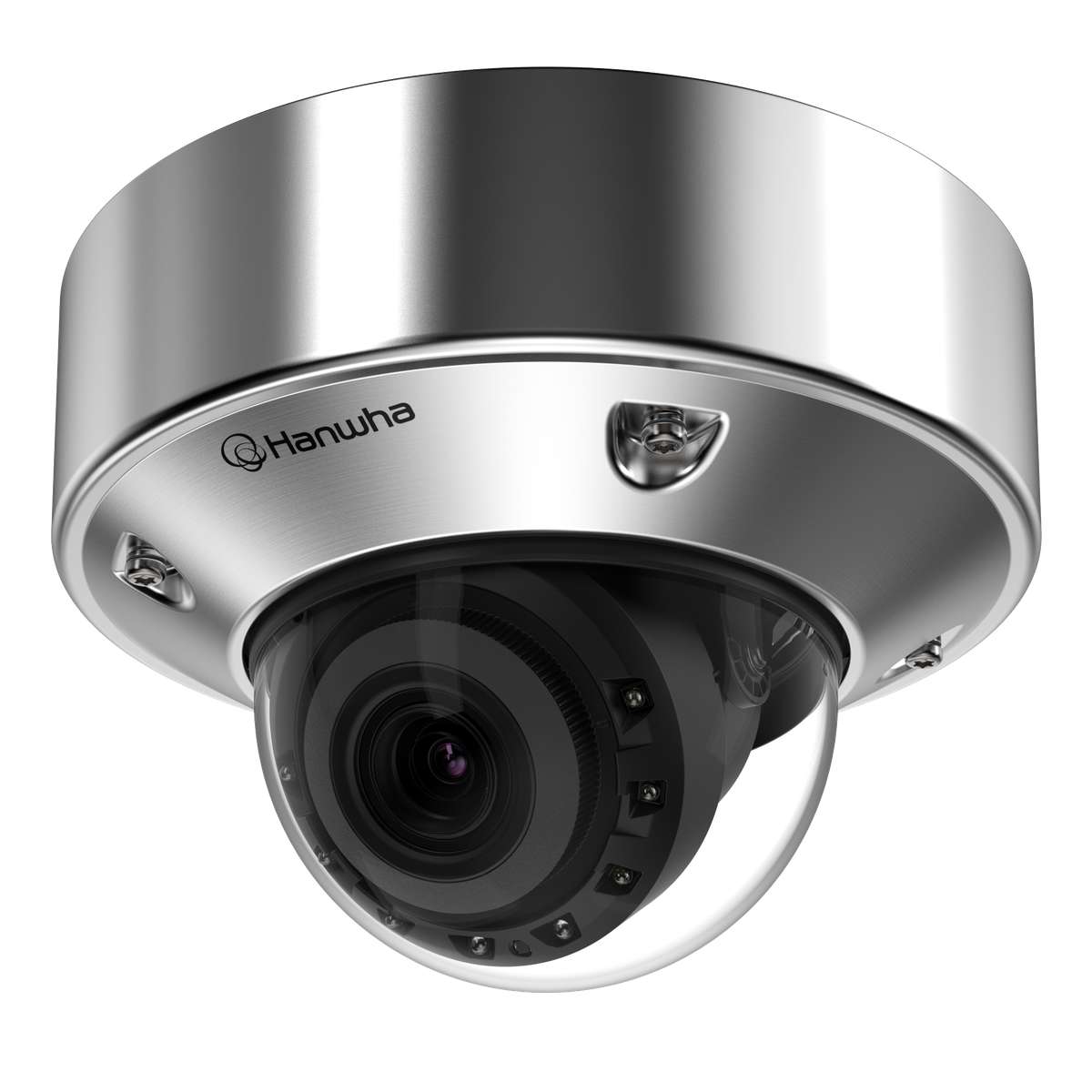

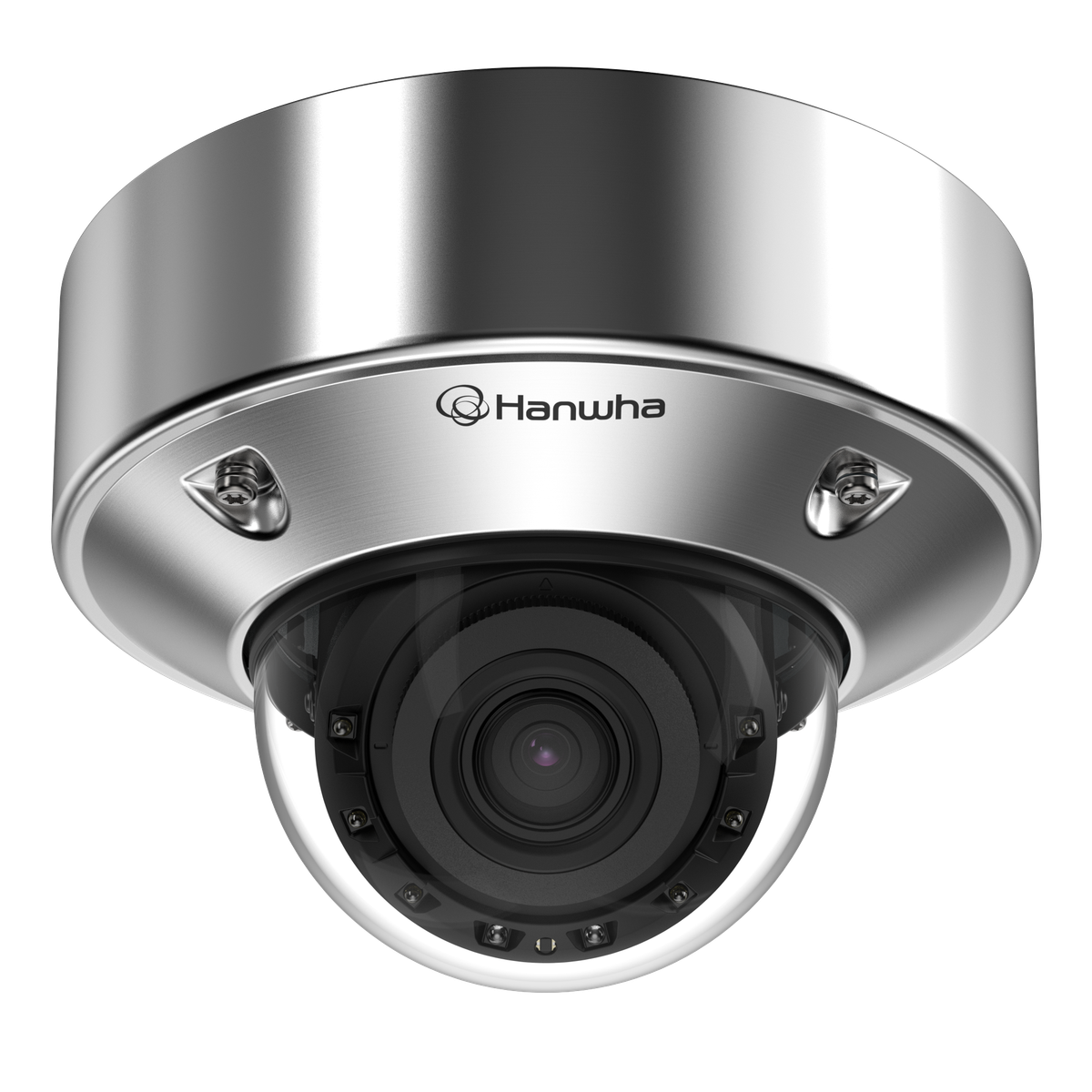

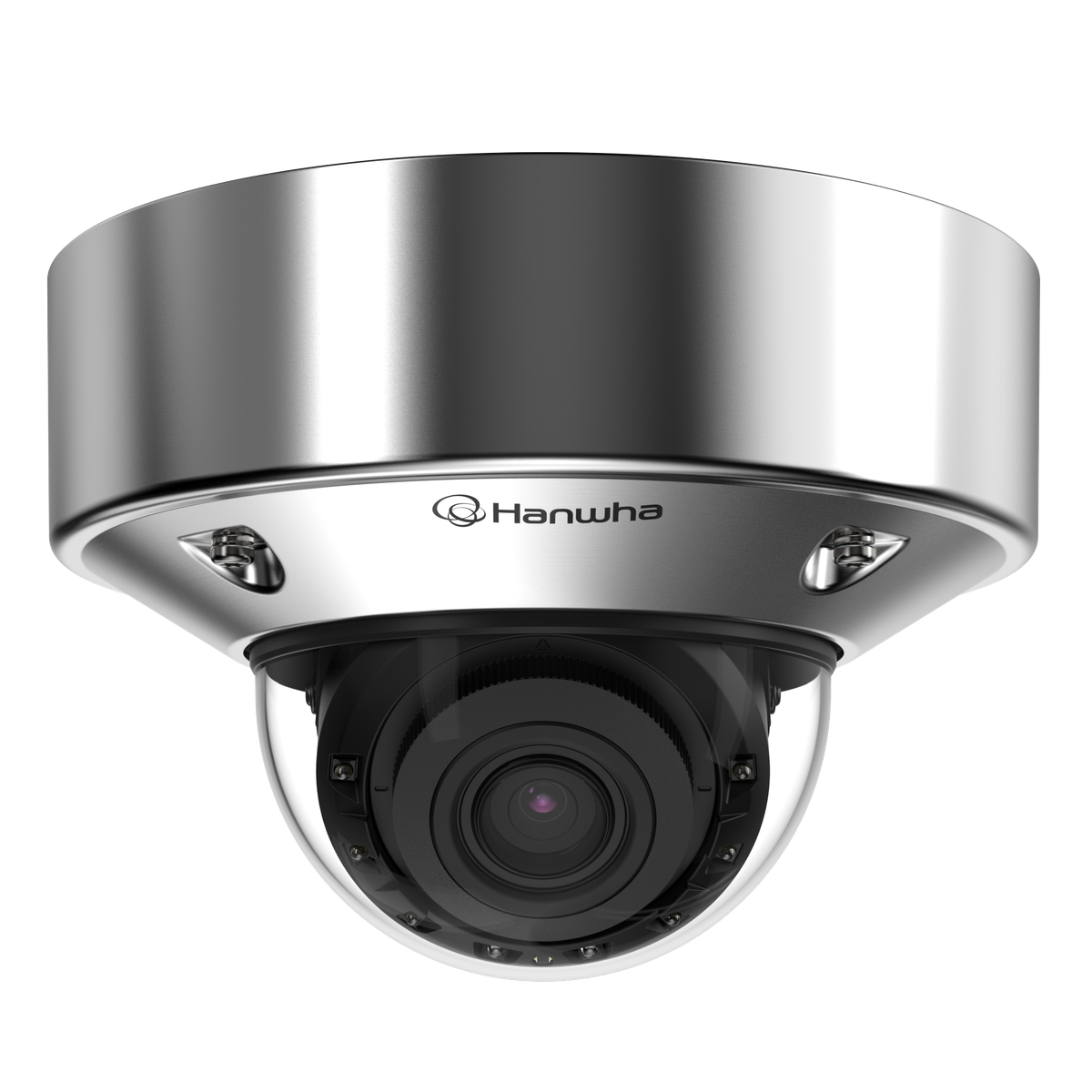

Hanwha - XNV-A8084RS - 5MP Stainless Steel AI IR Vandal Dome with 3.3~9.3mm Lens
Product Overview
The Hanwha XNV-A8084RS is a 5MP stainless steel AI vandal dome camera delivering 2560 × 1920 resolution at up to 30fps. It features a 3.3–9.3mm motorized varifocal lens with 2.8× optical zoom (99°–31° FOV), 120dB WDR, and 50m WiseIR illumination. Powered by the Wisenet 9 platform with dual NPUs, it supports on-device AI analytics, image enhancement, and H.265/H.264/MJPEG compression with WiseStream technology.
Key Configuration
- 5MP (2560x1920) resolution at 30fps (H.265/H.264); MJPEG limited to 5fps at 5MP
- 3.3~9.3mm motorized varifocal lens, 2.8x optical zoom, F1.3~F2.3 aperture, H: 99°~31° FOV
- PoE (IEEE802.3af Class3) input, max 11.2W / typical 8.4W with WisePower monitoring and Eco mode
- Micro SD/SDHC/SDXC slot supporting up to 1TB edge storage (SD card partition encrypt AES-256)
Key Features
Features a 1/2.8" CMOS sensor with 120dB WDR, WiseNR II noise reduction, digital stabilization, defog, and 50m WiseIR (850nm) night vision. Supports AI detection for person, face, vehicle, and license plate, plus analytics for intrusion, loitering, line crossing, social distancing, and business intelligence functions. Includes 2 configurable I/O ports, audio I/O, WiseStream compression, digital PTZ, and advanced cybersecurity (secure boot, encrypted firmware, 802.1X, TPM-level security, and AES-256 SD encryption). Built for harsh environments with IP66/67/68, IK11, NEMA 4X, and NEMA TS-2 certifications.
Technical Context
The XNV-A8084RS is a rugged stainless steel AI dome camera designed for extreme environments, with IP68 protection and NSF/ANSI 169 food-grade compliance. Powered by Wisenet 9 with dual NPUs, it supports on-device AI analytics (person, face, vehicle, license plate) without external servers. It features WiseStream compression, WiseNR II noise reduction, WisePower monitoring, and P-iris lens control for image precision. Security is reinforced with FIPS 140-3 Level 3 and CC EAL6+, and it is certified for NEMA TS-2 traffic applications and high-humidity operation.
Installation Notes
Rugged dome camera with STS316L stainless steel housing and nylon dome, offering 360° pan, 75° tilt, and near full rotation control. Measures Ø175 × 120 mm and weighs 2.01 kg, designed for extreme environments from -40°C to +50°C with 0–100% condensing humidity support and AIR vent system. Powered by PoE (IEEE 802.3af Class 3), with USB-C for setup only and full gang box compatibility. NSF/ANSI 169 certification ensures suitability for food-grade applications, with DORI range from 43.7m to 184.6m detection.
| Video | |
| Imaging Device Size | 1/2.8" |
| Type | CMOS |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate | H.265/H.264: 30fps/25fps (60Hz/50Hz) MJPEG: 30fps (@5MP Max. 5fps) |
| Min. Illumination (Lux) | Color: 0.04, BW: 0.004 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires a WiFi dongle. |
| Lens | |
| Focal Length (mm) | 3.3~9.3 |
| Zoom Ratio | Optical 2.8x |
| Max Aperture Ratio | Wide: F1.3, Tele: F2.3 |
| Angular Field of View | Horizontal: 99°~31°, Vertical: 71°~23°, Diagonal: 133°~39° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris (IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Pan: 0°~360°, Tilt: 0°~75°, Rotate: 0°~355° |
| Operational | |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRII, SSNRV |
| Digital Image Stabilization | Supported |
| Defog | Supported |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 8point polygonal zones |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Supported (Fill/stretch mode) |
| Electronic Shutter Speed | 2~1/30,000 sec |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Alarm | |
| Alarm Interface | In/Out 2 configurable I/O ports (extra via optional I/O box) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, schedule, MQTT, Day/Night, Storage disruption |
| Alarm Events | File upload (image/video): e-mail/FTP/SFTP, Notification: e-mail, Recording: SD/NAS, Alarm output, Handover, MQTT publication |
| Audio | |
| Audio In | Selectable (mic in/line in) |
| Audio Out | Line out |
| IR Illuminator | |
| Light Type | IR LED (850nm) |
| IR Viewable Length | IR WiseIR 50m (164.04ft) |
| Analytics | |
| Classified Object Types | Person, Face, Vehicle, License plate |
| Attributes | Person: clothes color, gender, bag; Vehicle: type, color; Face: age, gender, mask, glasses |
| AI-Based Analytics | Object detection, Virtual line, Motion detection, Face mask detection, Social distancing, Slip & fall, Virtual area |
| Standard Analytics | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100BASE-T) |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711, G.726, AAC-LC, OPUS |
| Smart Codec | WiseStream (AI-based) |
| Bitrate Control | CBR / VBR |
| Streaming | Unicast (20 users), Multicast, Multiple streams (5 profiles, 3 virtual channels) |
| Protocol | IPv4, IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTP, HTTPS, DHCP, FTP, SFTP, SMTP, SNMP, DNS, DDNS, QoS, UPnP, MQTT |
| API | ONVIF S/G/T/M, SUNAPI (HTTP API), Hanwha Vision Open Platform |
| Security | |
| Firmware Protection | Encrypted firmware, Secure boot, Signed firmware |
| Authentication | Digest authentication, 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS, SRTP |
| Access Control | IP-based, MAC-based, Auto logout |
| Data Protection | Encryption credentials, Encrypt live recording export |
| Secure Storage | SDcard AES-256 encryption, Secure element |
| General | |
| SoC Type | Wisenet 9 with Dual NPU |
| Memory | 4GB RAM, 8GB eMMC Flash |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 1 slot |
| Environmental & Electrical | |
| Operating Temperature | -40°C to +50°C (-40°F to +122°F) |
| Operating Humidity | 0~100% RH (condensing) |
| Storage Temperature | -50°C to +60°C (-58°F to +140°F) |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE Max 11.2W, typical 8.4W |
| Mechanical | |
| Color | Silver |
| Material | Stainless (STS316L), Nylon dome |
| Product Dimensions | ø175 x 120mm (6.89 x 4.72") |
| Product Weight | 2,010g (4.43lb) |
| Compatible Conduit Hole | 19.1mm (3/4") (M25) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| Certifications | |
| Protection Ratings | IP66, IP67, IP68, IP6K9K, IK11, NEMA 250 type 4X, NSF/ANSI 169 |
| EMC | FCC, CE, VCCI, RCM, KS |
| Safety | UL 62368-1, CSA C22.2, IEC 62471 |
| DORI (EN62676-4) | |
| Detect (25PPM/8PPF) | Wide: 43.7m (143.47ft), Tele: 184.6m (605.71ft) |
| Observe (63PPM/19PPF) | Wide: 17.5m (57.39ft), Tele: 73.8m (242.29ft) |
| Recognize (125PPM/38PPF) | Wide: 8.7m (28.69ft), Tele: 36.9m (121.14ft) |
| Identify (250PPM/76PPF) | Wide: 4.4m (14.35ft), Tele: 18.5m (60.57ft) |
