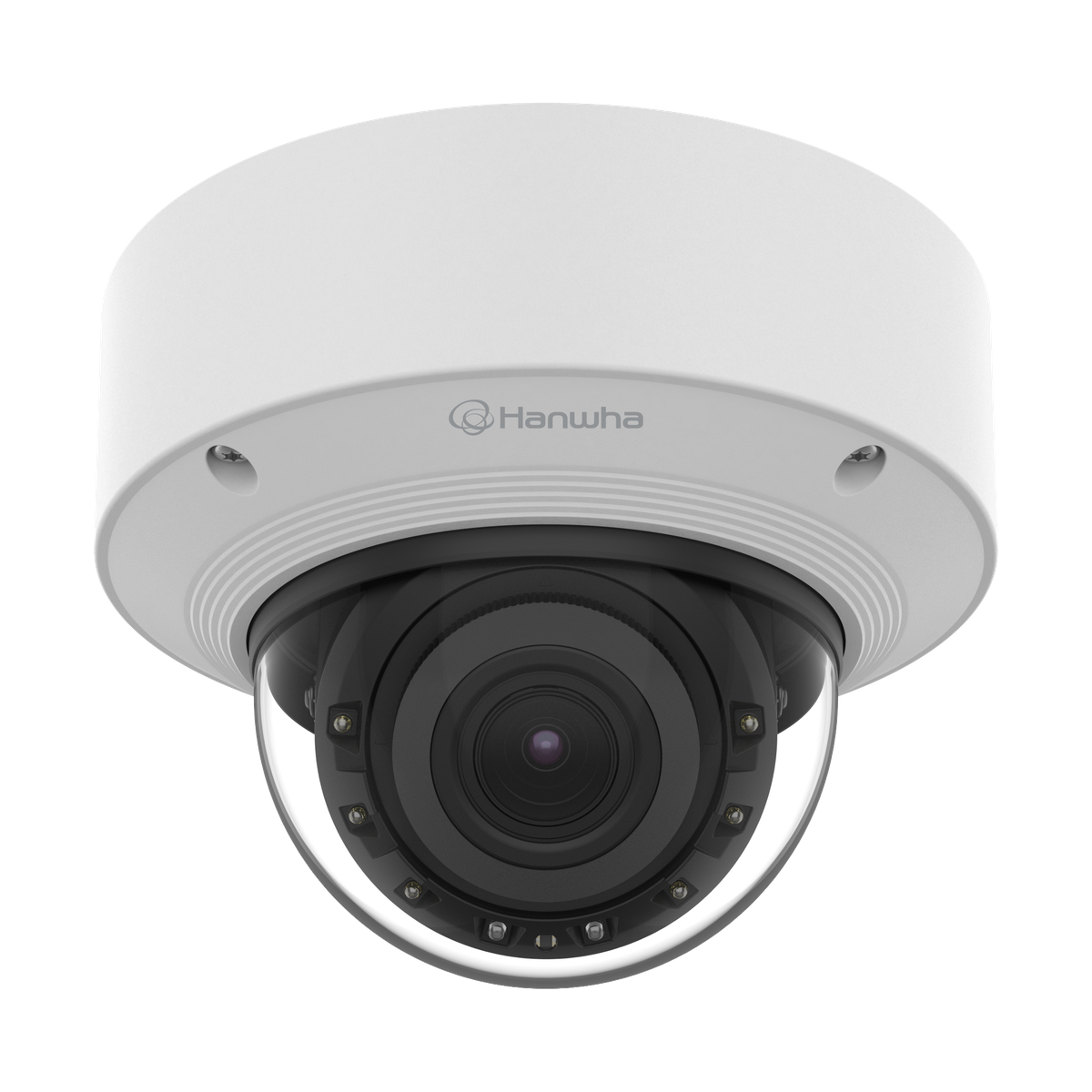

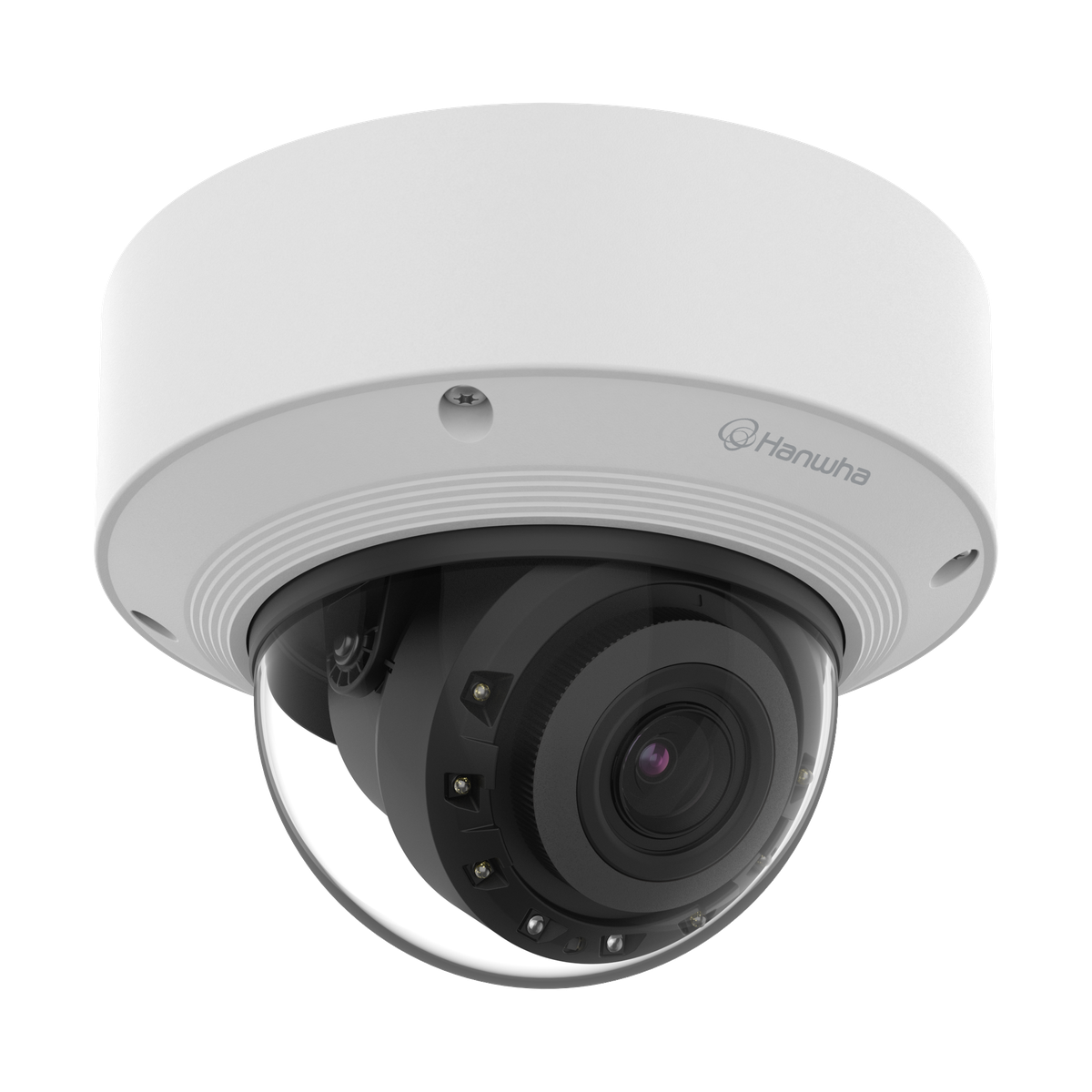

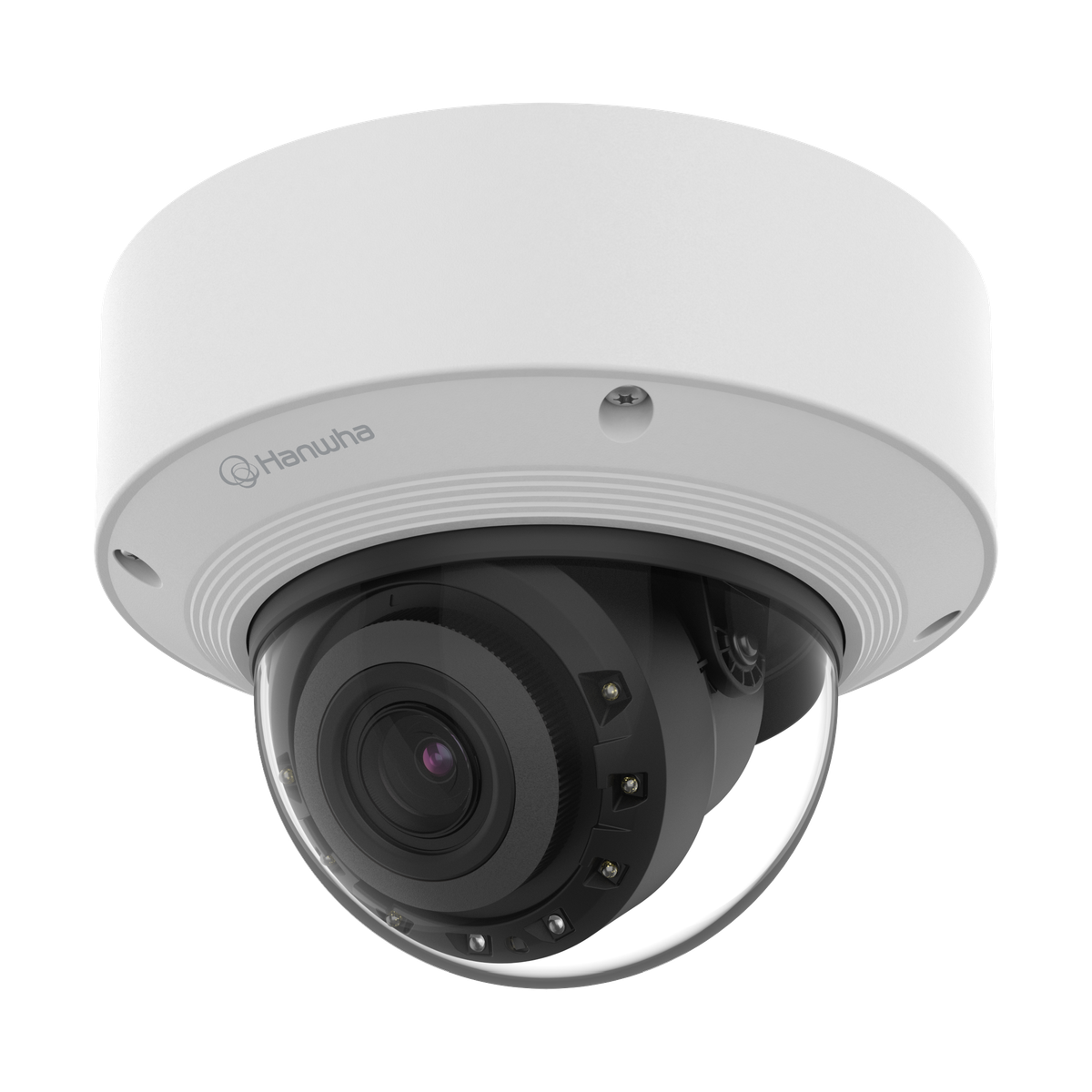

Hanwha - XNV-A9084R - 8MP AI IR Vandal Dome Camera with 4.4–9.3mm Lens
Product Overview
The Hanwha XNV-A9084R is an 8MP AI-powered IR vandal dome camera featuring a 1/1.8" CMOS sensor and a 2.1x motorized varifocal P-iris lens (4.4–9.3mm, F1.3–F2.15) with a 113°–47° horizontal field of view. It delivers 3840×2160 resolution at up to 30 fps using H.265/H.264/MJPEG compression with dual NPU-based AI image enhancement.
Key Configuration
• Imaging device: 1/1.8" CMOS; resolution: 3840×2160 (8MP) at up to 30 fps (H.265/H.264)
• Lens: 4.4~9.3mm motorized varifocal (2.1x), P-iris (IR corrected), F1.3(W)–F2.15(T); horizontal FOV: 113°(W)–47°(T)
• IR: WiseIR 850nm, up to 40m (131 ft); minimum illumination: color 0.04 lux, B/W 0.004 lux
• Power: PoE (IEEE 802.3af, Class 3); max 11.2W, typical 8.4W; Wisepower with power monitoring and ECO mode
• Dimensions: Ø160 × 118 mm (6.30" × 4.65"); weight: 1,220g (2.69 lb)
Key Features
Supports 120dB WDR, WiseNRⅡ and SSNRⅤ noise reduction, DIS stabilization, defog, LDC, and hallway view rotation. Dual NPU enables advanced AI analytics, including object detection, face and vehicle recognition, and BestShot attributes such as clothing, face, and vehicle details. Business intelligence features include people/vehicle counting, queue and crowd analysis, and heatmaps. It also supports dynamic privacy masking, two-way audio, alarm I/O expansion, microSD storage up to 1TB, ONVIF Profiles S/G/T/M, and high-level security with secure element protection (FIPS 140-3 Level 3, CC EAL6+) and IEC 62443-4-1 compliance.
Technical Context
Supports simple and manual focus with a minimum object distance of 0.5 m and electronic shutter speeds from 2 to 1/30,000 sec with AI-based shutter optimization. Privacy masking includes up to 32 polygonal zones with multiple color options and dynamic masking support. Networking covers IPv4/IPv6, RTSP, HTTPS, SNMP, QoS, MQTT, SRTP, and other standard protocols, including secure FTP/SFTP and encrypted SMTP (StartTLS) with full logging and device discovery support.
Installation Notes
Compact dome camera with Ø160 × 118 mm dimensions and 1.22 kg weight, built with a hard-coated dome and recycled plastic (4.49%). It is rated IP66/IP67, IK10, NEMA4X, and NEMA TS-2 for strong outdoor and vandal resistance, with operation from -40°C to +55°C and up to +74°C under TS-2 conditions, plus full humidity tolerance with AIR vent control. Powered via PoE (IEEE 802.3af Class 3), it supports microSD storage up to 1TB, USB-C installation interface, and optional audio/alarm I/O. Installation is flexible with multiple gang boxes and conduit compatibility options.
| Video | |
|---|---|
| Imaging Device Size | 1/1.8" |
| Imaging Device Type | CMOS |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate MJPEG | 30fps(@8MP Max. 5fps) |
| Min. Illumination (Lux) Color(1/30sec, 30IRE) | 0.04 |
| Min. Illumination (Lux) BW(1/30sec, 30IRE) | 0.004 |
| Video Out | USB: Micro USB Type C |
| Lens | |
| Focal Length (mm) | 4.4~9.3 |
| Zoom Ratio Optical | 2.1x |
| Max Aperture Ratio (F number) Wide | 1.3 |
| Max Aperture Ratio (F number) Tele | 2.15 |
| Angular Field of View Horizontal | 113°~47° |
| Angular Field of View Vertical | 58°~26° |
| Angular Field of View Diagonal | 138°~54° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris(IR corrected) |
| Pan | 0°~360° |
| Tilt | 0°~75° |
| Rotate Range Rotate | 0°~355° |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection Quantity | 8ea |
| Motion Detection Shape | 8point Polygonal zones |
| Privacy Masking Quantity | 32ea |
| Privacy Masking Shape | 8point Polygonal zones |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter Speed Range | 2~1/30,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length IR | WiseIR 40m(131.23ft) |
| IR Wavelength | 850nm |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes Person | Upper/Lower clothes color, Gender, Bag |
| Attributes Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Attributes Face | Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events Normal | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Unicast | Up to 20 users |
| Streaming Multicast | Support |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface ONVIF | S, G, T, M |
| Application Programming Interface Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
| General | |
| Memory RAM | 4GB |
| Memory Flash | 8GB eMMC |
| Edge Storage Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition Temperature | -40°C~+55°C(-40°F~+131°F) |
| Operating Condition Humidity | 0~100% RH(condensing) |
| Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent |
| Storage Condition Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition Humidity | 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | 0.02㎡ |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption PoE | Max. 11.2W, typical 8.4W |
| Wisepower | Power monitoring, ECO mode |
| Mechanical | |
| Color | White |
| Material | Aluminum, Hard-coated dome |
| Material Management Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| Material Management Recycle Rate | Recycled plastic: 4.49% |
| RAL Code | RAL9003 |
| Product Dimensions | ø160x118mm(6.30x4.65") |
| Product Weight | 1,220g(2.69lb) |
| Compatible Conduit Hole | 12.7mm(1/2")(M20) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) Wide | 50.8m(166.77ft) |
| Detect (25PPM/ 8PPF) Tele | 176.6m(579.49ft) |
| Observe (63PPM/ 19PPF) Wide | 20.3m(66.71ft) |
| Observe (63PPM/ 19PPF) Tele | 70.7m(231.80ft) |
| Recognize (125PPM/ 38PPF) Wide | 10.2m(33.35ft) |
| Recognize (125PPM/ 38PPF) Tele | 35.3m(115.90ft) |
| Identify (250PPM/ 76PPF) Wide | 5.1m(16.68ft) |
| Identify (250PPM/ 76PPF) Tele | 17.7m(57.95ft) |
