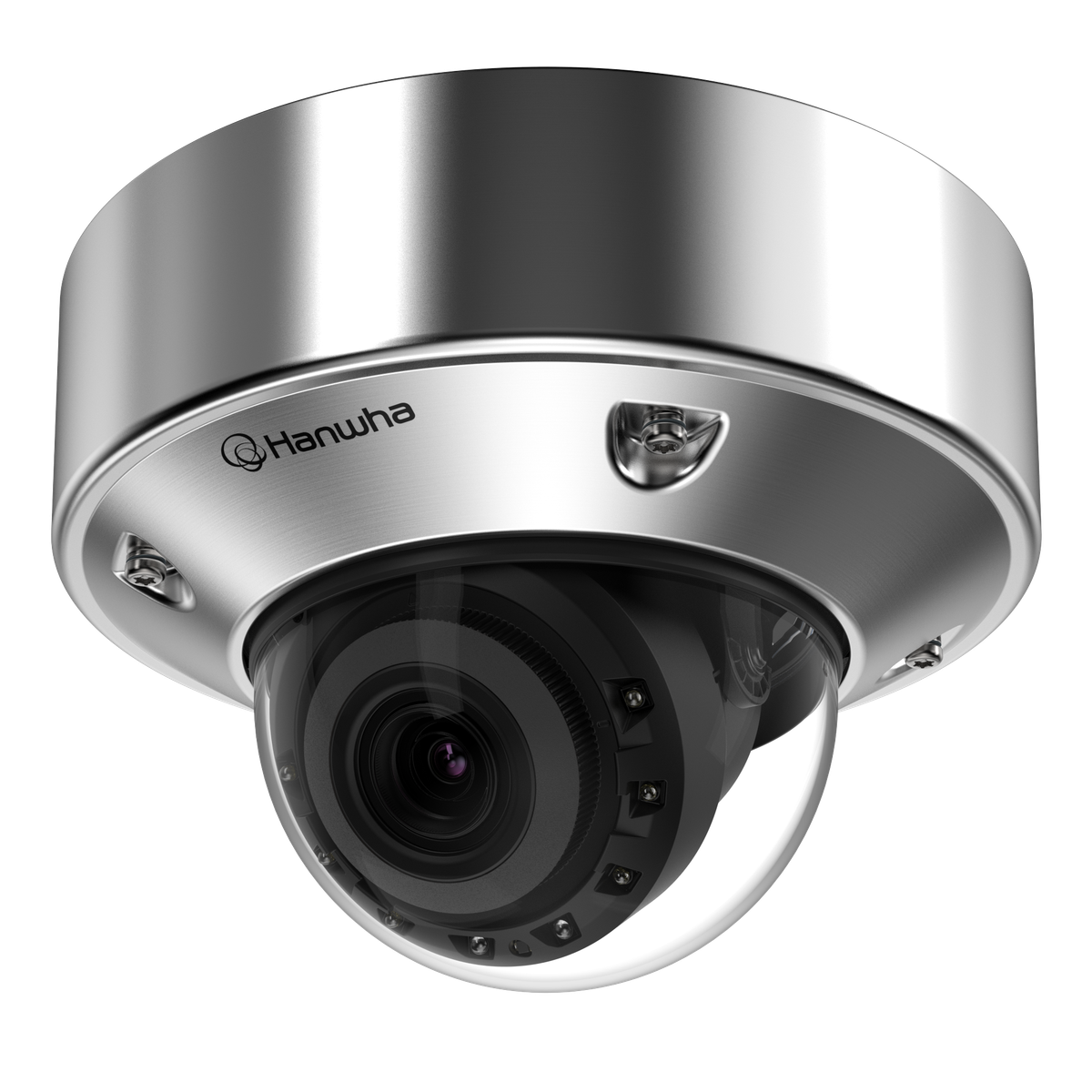

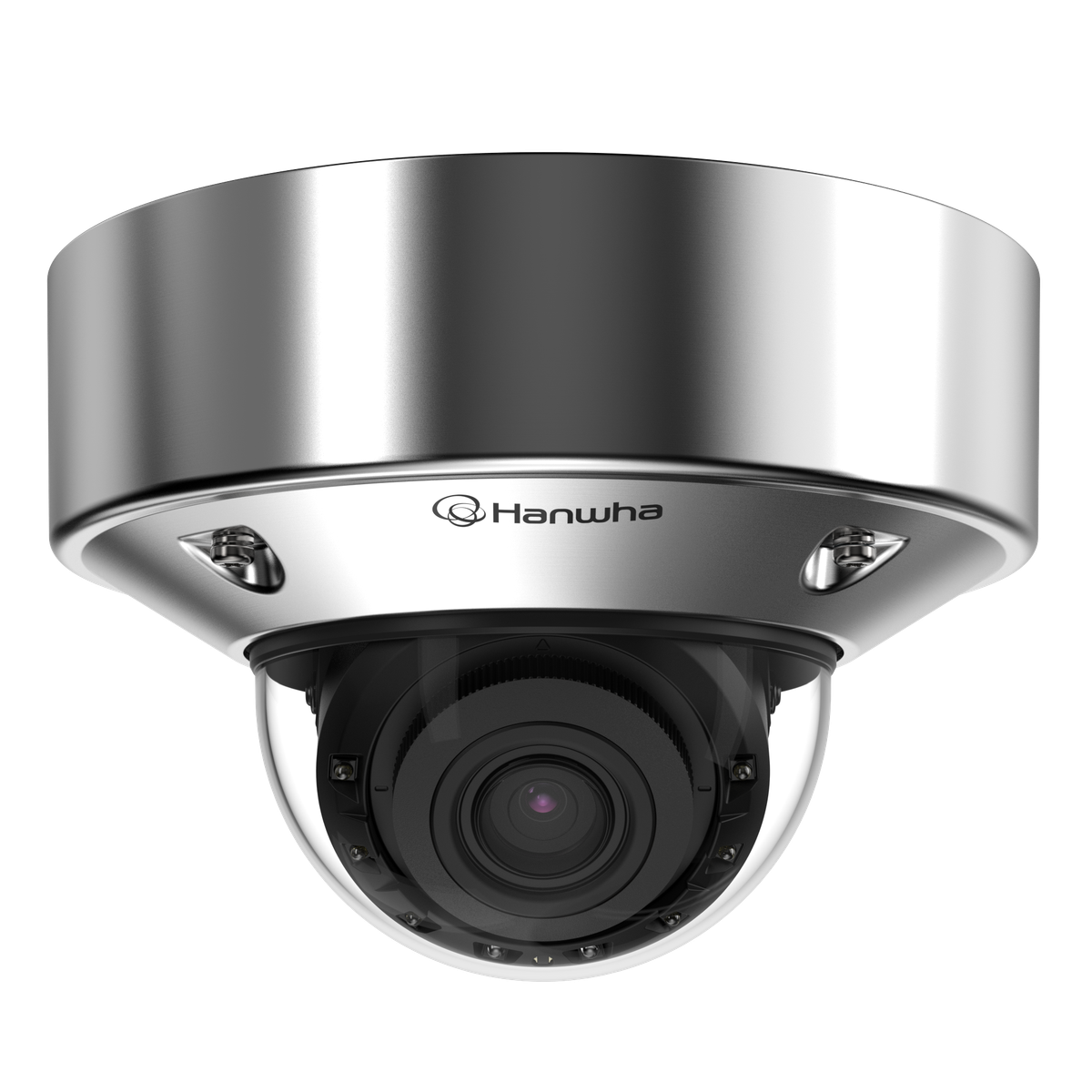

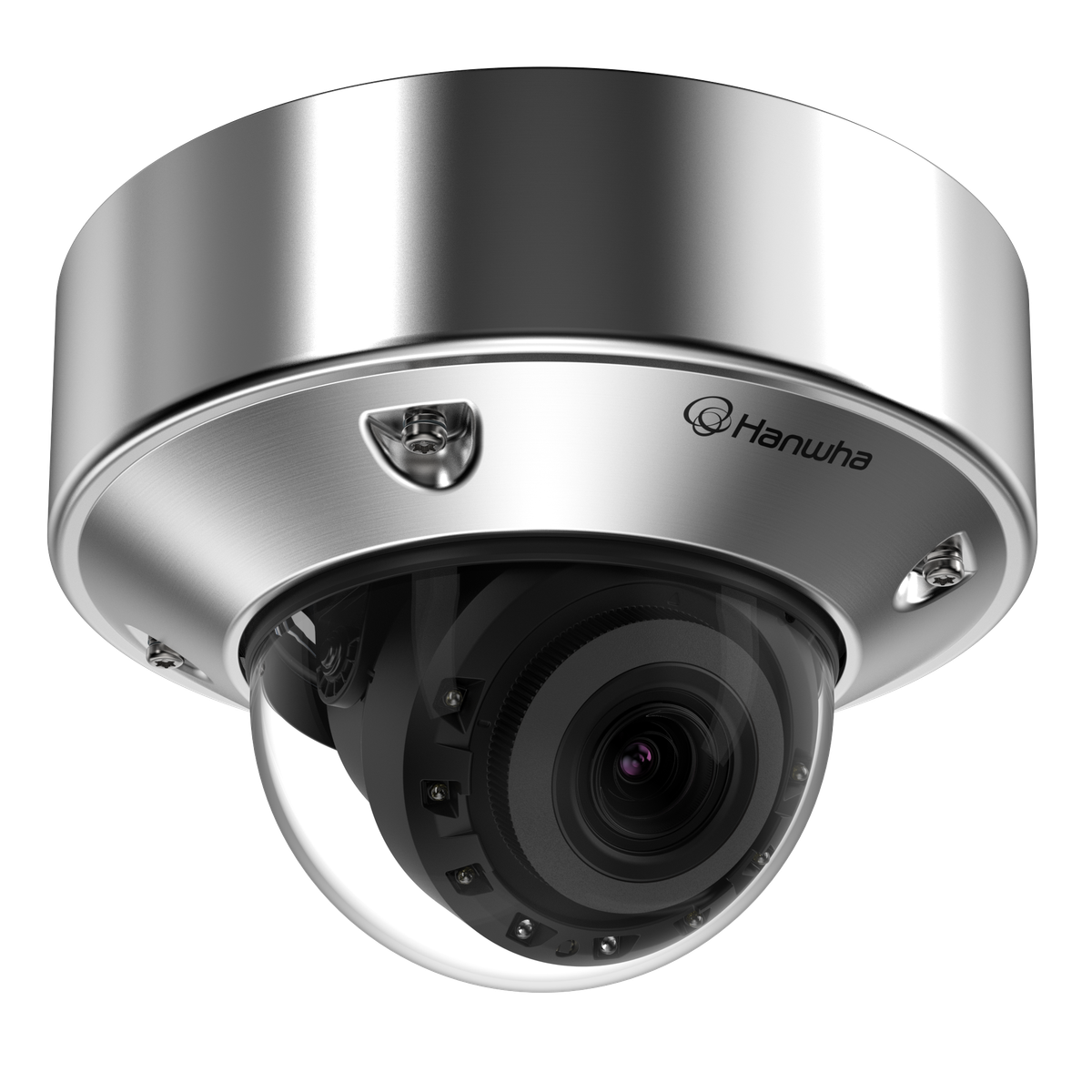

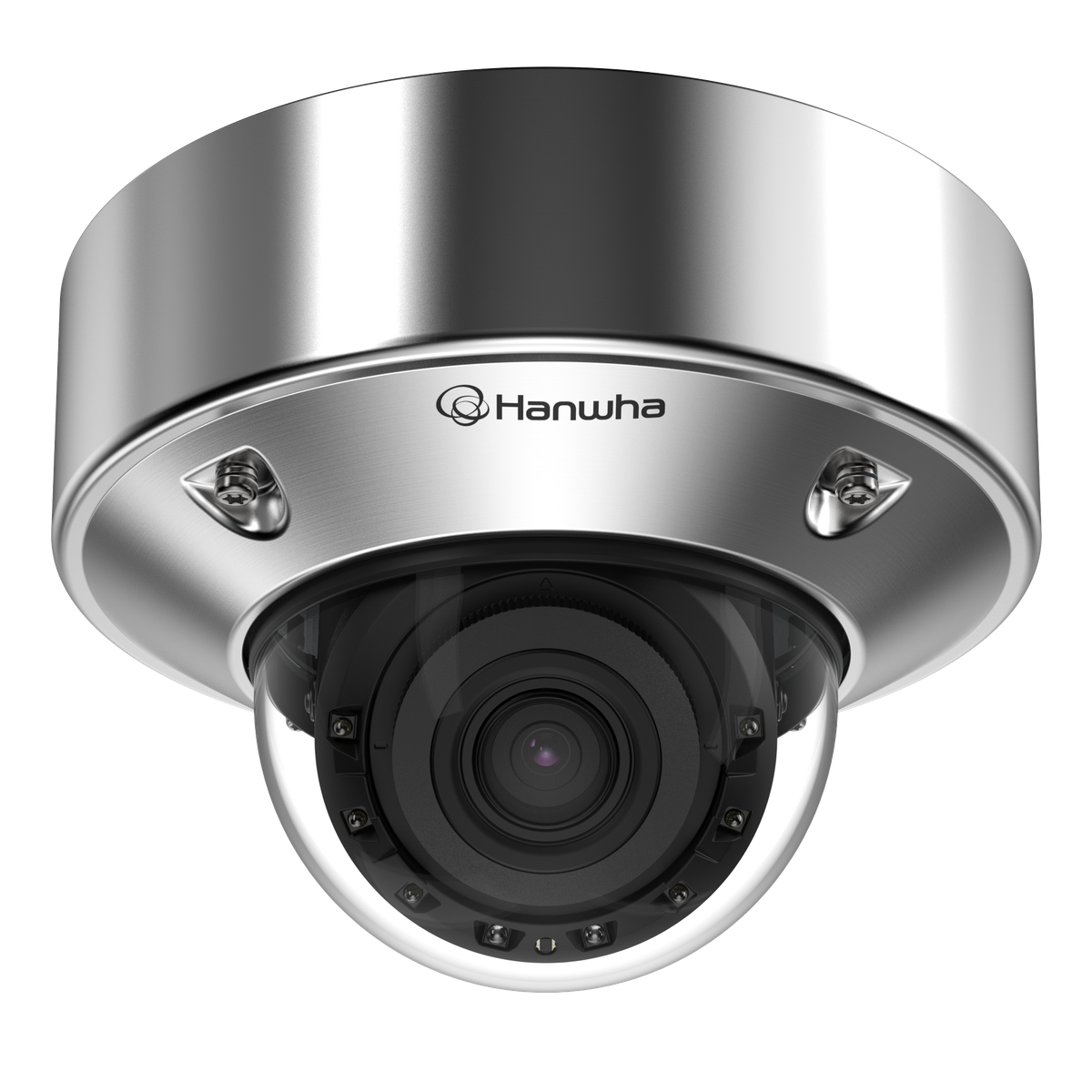

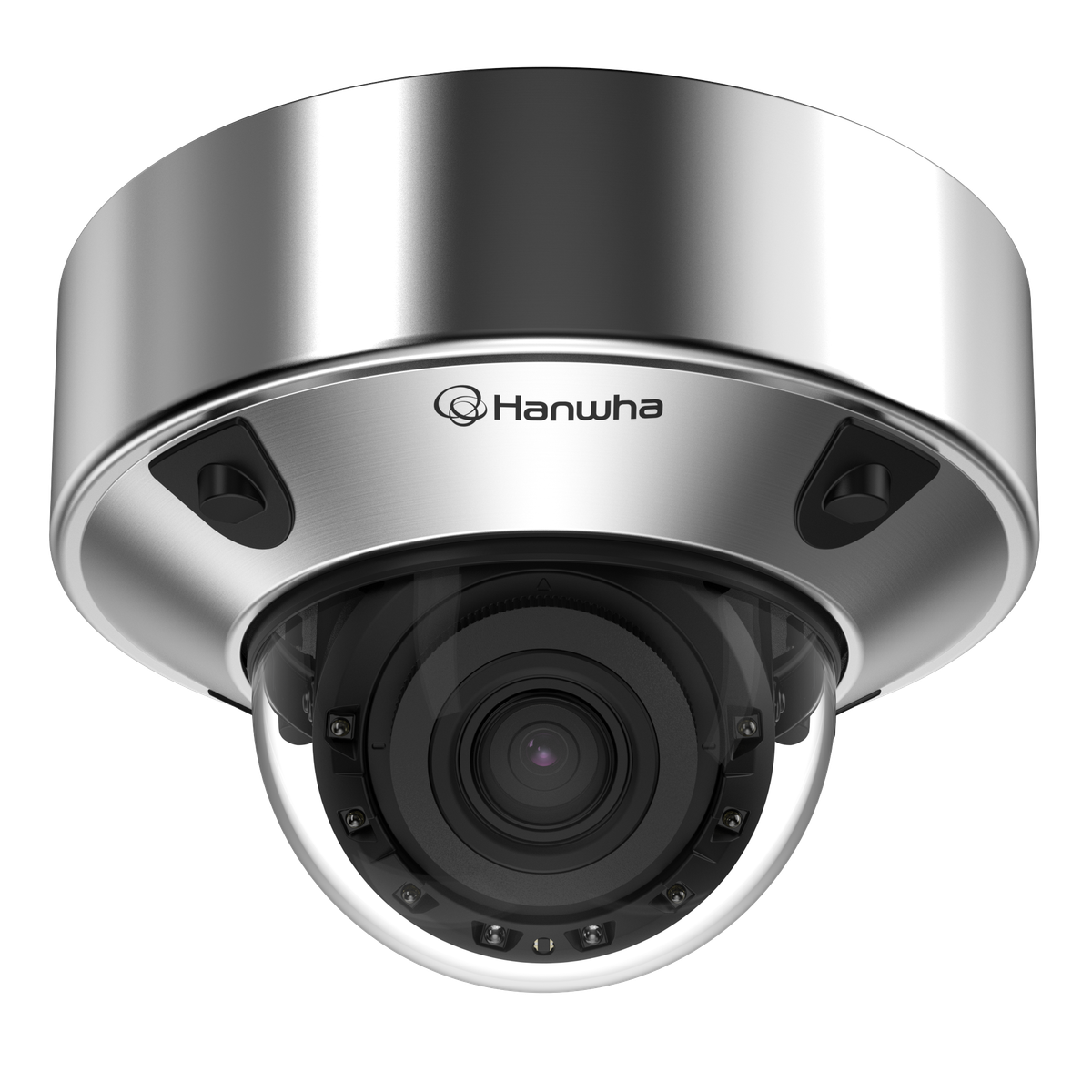

Hanwha - XNV-A9084RS - 8MP Stainless Steel AI IR Vandal Dome Camera with 4.4~9.3mm Lens
Product Overview
Hanwha XNV-A9084RS is an 8MP stainless steel AI IR vandal dome camera delivering 3840x2160 resolution at 30fps. This dome camera features a 4.4~9.3mm motorized varifocal lens with 2.1x optical zoom (113° to 47° horizontal FOV), extremeWDR, and 50m WiseIR illumination. Triple codec support (H.265/H.264/MJPEG) with AI-based WiseStream III compression, powered by Wisenet 9 with dual NPU for on-device AI analytics.
Key Configuration
• 8MP (3840 × 2160) resolution at 30fps (H.265/H.264), MJPEG up to 5fps at 8MP
• 4.4–9.3mm motorized varifocal lens, 2.1× zoom, F1.3–F2.15, 113°–47° FOV
• PoE (IEEE802.3af Class 3) power; max 11.2W / typical 8.4W with WisePower Eco mode
• MicroSD/SDXC support up to 1TB with AES-256 encrypted partition storage
Key Features
Imaging: 1/1.8" CMOS sensor with 50m IR range (WiseIR 850nm), 120dB WDR (BLC/HLC/SSDR), AI-based noise reduction, digital stabilization, and defog support. AI analytics: person, face, and vehicle detection with attributes, motion/line/area analytics, and business intelligence functions (people counting, heatmap, queue and crowd analysis). Security: encrypted firmware, secure boot, HTTPS, 802.1X, SRTP, AES-256 storage encryption, and IP/MAC access control. Audio and I/O: microphone/line audio input, line output, 2 alarm I/O ports. Network: RJ-45 10/100, WiseStream AI compression, ONVIF S/G/T/M support, and cloud connectivity. Protection: IP66/67/68, IK11, NEMA 4X, and industrial-grade environmental resistance with stainless steel housing.
Technical Context
The XNV-A9084RS is an industrial-grade camera designed for harsh and sanitary environments, featuring STS316L stainless steel construction, NSF/ANSI 169 compliance, and IP68 protection for full submersion resistance. It uses the Wisenet 9 platform with dual NPU for on-device AI analytics such as person, face, vehicle, and license plate detection. AI-based WiseStream compression and WiseNR II improve bandwidth efficiency and image quality. Security is reinforced with a hardware secure element (FIPS 140-3 Level 3, CC EAL6+). It also supports WisePower energy monitoring and operates reliably in high humidity and traffic control environments (NEMA TS-2 certified).
Installation Notes
Dome camera with STS316L stainless steel housing and nylon dome, designed for harsh and food-grade environments (NSF/ANSI 169). Supports full PTZ positioning (pan 0°–360°, tilt 0°–75°, rotate 0°–355°). Compact design (ø175 × 120mm, 2.01kg) with silver finish and multiple mounting compatibility options. Operates in extreme conditions (-40°C to +74°C, 0–100% RH condensing with AIR vent) and supports PoE IEEE802.3af power. Includes USB-C port for setup/preview and industrial conduit/gang box compatibility.
| Video | |
|---|---|
| Imaging Device Size | 1/1.8" |
| Type | CMOS |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate | H.265/H.264: 30fps/25fps (60Hz/50Hz) MJPEG: 30fps (@8MP Max. 5fps) |
| Min. Illumination (Lux) | Color (1/30sec, 30IRE): 0.04 BW (1/30sec, 30IRE): 0.004 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
| Lens | |
| Focal Length (mm) | 4.4~9.3 |
| Zoom Ratio | Optical 2.1x |
| Max Aperture Ratio (F number) - Wide | 1.3 |
| Max Aperture Ratio (F number) - Tele | 2.15 |
| Angular Field of View | Horizontal: 113°~47° Vertical: 58°~26° Diagonal: 138°~54° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris (IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Pan: 0°~360° Tilt: 0°~75° Rotate: 0°~355° |
| Operational | |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ (Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | Quantity: 8ea Shape: 8point Polygonal zones |
| Privacy Masking | Quantity: 32ea Shape: 8point Polygonal zones Color / Option: Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support (Fill/stretch mode) |
| Electronic Shutter Mode | Minimum, Maximum, Anti-flicker, Prefer shutter control (Based on AI engine) |
| Electronic Shutter Speed Range | 2 ~ 1/30,000 sec |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Alarm Interface | In/Out: 2 configurable I/O ports Others: Support extra alarm I/O via an optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events | File upload (image): e-mail/FTP/SFTP File upload (video clip): FTP/SFTP Notification: e-mail Recording: SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback MQTT: publication |
| Audio In | Selectable (mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length | IR WiseIR 50m (164.04ft) |
| IR Wavelength | 850nm |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes - Person | Upper/Lower clothes color, Gender, Bag |
| Attributes - Vehicle | Type (car, bus, truck, motorcycle, bicycle), Color |
| Attributes - Face | Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events Based on AI Engine | Object detection, Virtual line (Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area (Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Normal Analytics Events | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence Based on an AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 (PCM): 8kHz (64kbps) G.726 (ADPCM): 8kHz (16/24/32/40kbps) AAC-LC: 16kHz (48kbps) OPUS: 16kHz (64kbps) |
| Smart Codec | WiseStream (Based on an AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR MJPEG: VBR |
| Streaming - Unicast | Up to 20 users |
| Streaming - Multicast | Support |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface | ONVIF S, G, T, M Others: SUNAPI (HTTP API), Hanwha Vision Open Platform Direct Cloud Connection Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevents brute-force attacks |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, and auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt (AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element (FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
| General | |
| SoC Type | Wisenet 9 |
| Dual NPU | Support |
| Memory - RAM | 4GB |
| Memory - Flash | 8GB eMMC |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 1 slot |
| Edge Storage (OnCloud) | Micro SD/SDHC/SDXC Max. 1TB x 1 slot * Hanwha Vision-branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition Temperature | -40°C ~ +50°C (-40°F ~ +122°F) |
| Operating Condition Humidity | 0 ~ 100% RH (condensing) |
| Operating Condition Others | +74°C (+165°F) (Max) based on NEMA-TS 2 (2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent |
| Storage Condition Temperature | -50°C ~ +60°C (-58°F ~ +140°F) |
| Storage Condition Humidity | 0 ~ 90% RH (non-condensing) |
| EPA (Effective Projected Area) | 0.015㎡ |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE Max. 11.2W, typical 8.4W |
| WisePower | Power monitoring, Eco mode |
| Mechanical | |
| Color | Silver |
| Material | Stainless (STS316L), Nylon dome |
| Material Management Declaration | RoHS (EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH (Regulation (EC) No. 1907/2006), Conflict mineral policy (Section 1502 of the US Dodd Frank Act) |
| Product Dimensions | ø175 x 120mm (6.89 x 4.72") |
| Product Weight | 2,010g (4.43lb) |
| Compatible Conduit Hole | 19.1mm (3/4") (M25) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 60529 IP68, ISO 20653 IP6K9K, IEC 62262 IK11, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, NSF/ANSI Standard 169, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/8PPF) - Wide | 50.8m (166.77ft) |
| Detect (25PPM/8PPF) - Tele | 176.6m (579.49ft) |
| Observe (63PPM/19PPF) - Wide | 20.3m (66.71ft) |
| Observe (63PPM/19PPF) - Tele | 70.7m (231.80ft) |
| Recognize (125PPM/38PPF) - Wide | 10.2m (33.35ft) |
| Recognize (125PPM/38PPF) - Tele | 35.3m (115.90ft) |
| Identify (250PPM/76PPF) - Wide | 5.1m (16.68ft) |
| Identify (250PPM/76PPF) - Tele | 17.7m (57.95ft) |
