Hanwha - XRN-1620B2-2TB - 8K Network Video Record, 2TB RAW, 8 Fixed Internal SATA HDDs

Product Overview

The Hanwha XRN-1620B2-2TB is an 8K-capable network video recorder with 16 channels and 2TB RAW storage, supporting up to 32MP camera resolution. It uses H.265/H.264/MJPEG compression with 140 Mbps recording and 32 Mbps playback bandwidth, plus WiseStream for bandwidth optimization. It includes 8 internal SATA HDD bays supporting up to 10TB per drive (80TB max total), HDMI/VGA dual display outputs (HDMI up to 4K), ARB backup recovery, Failover (N+1), plugin-free web UI 2.0, and AI search support when used with Wisenet AI cameras.

Key Configuration

• • Channels: up to 16 IP camera inputs
• • HDD bays: 8 × fixed internal SATA, up to 10TB per HDD (max 80TB); 2TB RAW pre-installed
• • Recording bandwidth: 140 Mbps; playback bandwidth: 32 Mbps
• • Video outputs: HDMI (4K/3840×2160 @30Hz) and VGA (1920×1080 @60Hz) dual monitor
• • Dimensions: 440 × 89.8 × 428.4 mm (17.32" × 3.54" × 16.87"); weight: 5.71 kg (12.59 lb)

Key Features

Supports high-performance decoding up to 32MP at 15 fps (H.265) with multiple display modes including FHD clone, UHD single, and expanded FHD views for flexible monitoring. It allows up to 64-channel simultaneous playback, advanced recording modes (normal, schedule, event, dual stream), and full event handling such as motion, video loss, analytics, audio, and user-defined triggers with actions like alerts, PTZ control, FTP backup, and shutdown. Additional features include fisheye dewarping via CMS, 16-channel audio with two-way communication, alarm I/O, dual Gigabit LAN, ARB and Failover support, plugin-free web UI 2.0, and P2P QR mobile access.

Technical Context

Runs on embedded Linux with support for IPv4/IPv6, RTSP, HTTPS, ONVIF Profile-S, SUNAPI, SNMP, and standard network protocols such as DNS, DDNS, and UPnP. Security features include IP filtering, 802.1X authentication, encrypted communication, device certificates (Hanwha Techwin Root CA), access logs, and signed firmware. Web viewing is supported on Windows 10 and macOS 10.13 via Chrome, Edge, and Safari. The system uses 100–240V AC input with 130W power consumption.

Installation Notes

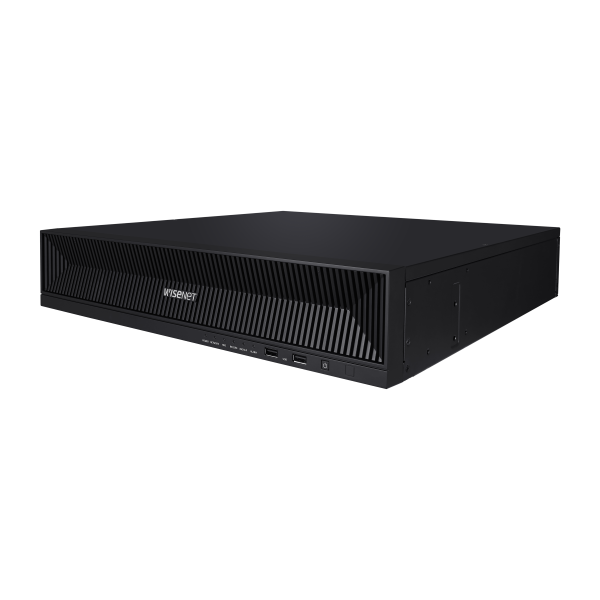

Large black metal 16-channel NVR measuring 440 × 89.8 × 428.4 mm and weighing 5.71 kg, operating at 0°C to 40°C with 20–85% humidity range. It includes 8 internal SATA HDD bays (up to 10TB per drive, 2TB pre-installed), HDMI and VGA dual outputs, and no built-in PoE ports (requires external PoE switches). Additional features include ARB and Failover (N+1), plugin-free web UI 2.0, P2P QR mobile setup, and AI search support when used with compatible Wisenet AI cameras.
