Hanwha - XRN-1620B2 - 16 Channel 8K Network Video Record, No HDD, 8 Fixed Internal SATA HDDs
Product Overview
The Hanwha XRN-1620B2 is an 8K Intel-based 16-channel NVR supporting up to 32MP camera resolution with 140 Mbps recording and 32 Mbps playback bandwidth. It uses H.265/H.264/MJPEG compression with WiseStream technology for efficient storage management. The system includes 8 internal SATA HDD bays (up to 10TB each, 80TB max, HDDs not included), dual display outputs (HDMI up to 4K and VGA), and AI search capabilities for compatible Wisenet AI cameras.
Key Configuration
• Channels: up to 16 IP camera inputs; supports resolution up to 32MP
• Recording bandwidth: max 140 Mbps; playback bandwidth: max 32 Mbps
• HDD bays: 8 fixed internal SATA, up to 10TB per HDD (max 80TB total); no HDD pre-installed
• Video outputs: HDMI (3840x2160 @30Hz) and VGA (1920x1080 @60Hz) dual monitor
• Network: 2 × RJ-45 1Gbps (LAN/WAN)
Key Features
8K 16-channel NVR with embedded Linux, supporting up to 32MP decoding and flexible multi-mode playback. It handles event-based recording with alarm I/O and analytics triggers, and can respond with actions like email alerts, FTP transfer, PTZ control, or shutdown. It supports up to 64-channel playback, fisheye dewarping, 16-channel two-way audio, USB connectivity, plugin-free web access, and P2P mobile connection. ARB and N+1 failover improve reliability, with AI search available for compatible Wisenet cameras.
Technical Context
Supports IPv4/IPv6 and standard network protocols including RTSP, HTTPS, SNMP, ONVIF Profile S, and SUNAPI for integration. Security features include IP filtering, 802.1X authentication, encrypted communication, signed firmware, and device certificates (Hanwha root CA). PTZ control is available via GUI, web viewer, or SPC-2000 controller with up to 300 presets. Compatible with Windows 10 and macOS through Chrome, Edge, and Safari.
Installation Notes

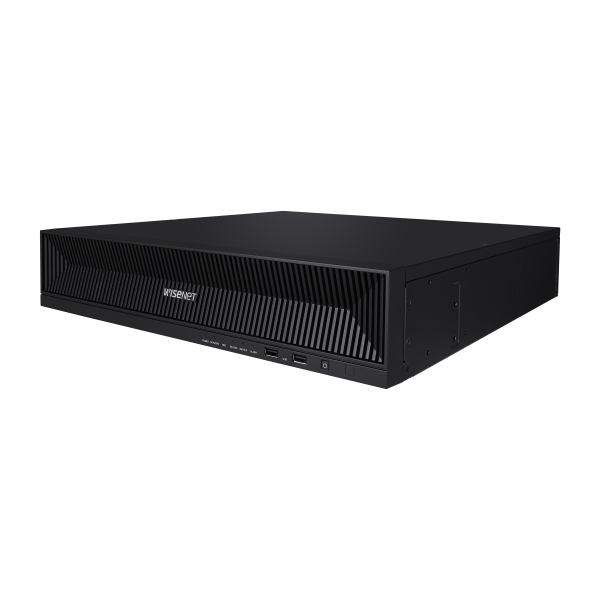

Black metal 16-channel NVR 440 × 89.8 × 428.4 mm, 5.71 kg, designed for rack installation, operating from 0°C to 40°C with 20–85% humidity tolerance. It is powered by 100–240 VAC with a 130W consumption. The front panel provides status indicators for system activity, such as HDD, alarm, power, recording, backup, and network status. Internally, it supports 8 SATA drive bays, though no HDDs are pre-installed, and drives are non-hot-swappable. The system does not include built-in PoE, so cameras require external PoE switching.
| Network camera | |
|---|---|
| Inputs | Max. 16CH |
| Resolution | 32MP ~ CIF |
| Protocols | SUNAPI, ONVIF |
| Decoding | |
| Local Display | FHD: HDMI & VGA Dual monitor UHD: HDMI Single monitor |
| Multi Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone mode: Up to 16 Division - Expand mode: Up to 9 Division [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Resolution (Local Monitor) | FHD Clone mode: 32MP (15fps, H.265 Only), 12MP (30fps, H.265 Only), 8.3MP (50fps), 1080p (240fps), D1 (480fps) UHD Single mode: 32MP (15fps, H.265 Only), 12MP (30fps, H.265 Only), 8.3MP (50fps), 1080p (240fps), D1 (270fps) FHD Expand mode: 32MP (12fps, H.265 Only), 12MP (25fps, H.265 Only), 8.3MP (30fps), 1080p (90fps), D1 (200fps) Clone/Single mode: Up to 25fps when displaying more than 10CH |
| Operating System | Embedded Linux |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 140Mbps |
| Resolution | 32MP ~ CIF |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Event Trigger | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps |
| Max. Users | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous Playback | Max. 64CH (Local 16CH, Remote 16CH per user) |
| Fisheye Dewarping | CMS |
| Search Mode | Date & Time (Calendar), Event list, Text Search, Smart Search |
| Playback Resolution | CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP) |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| HDD Slots | SATA 8ea (Max. 80TB) |
| Backup | |
| File Backup Format | BU/Exe/AVI (GUI), JPG/AVI (Network) |
| Backup Function | Multi channel (Up to 16CH) Play, Date-Time/Title display |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 140Mbps |
| Audio | |
| GUI (Input/Output) | 16CH (network) |
| Web (Compression) | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-Way |
| Max. Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | |
| Security Features | IP address filtering, User access Log, 802.1x, Encryption Device certificate (Hanwha Techwin Root CA), Signed firmware |
| Web Viewer | |
| Supported OS | Windows 10, macOS 10.13 |
| Supported Browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | |
| Supported Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI (SUNAPI) for integration to 3rd party VMS |
| Camera Setup | |
| Register | Auto, Manual |
| Setup Items | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets |
| Smartphone | |
| Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Control | Live 16CH (Multi-Profile Support), Playback 4CH |
| Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy | |
| Failover | N+1 |
| Easy Configuration | P2P (QR code) |

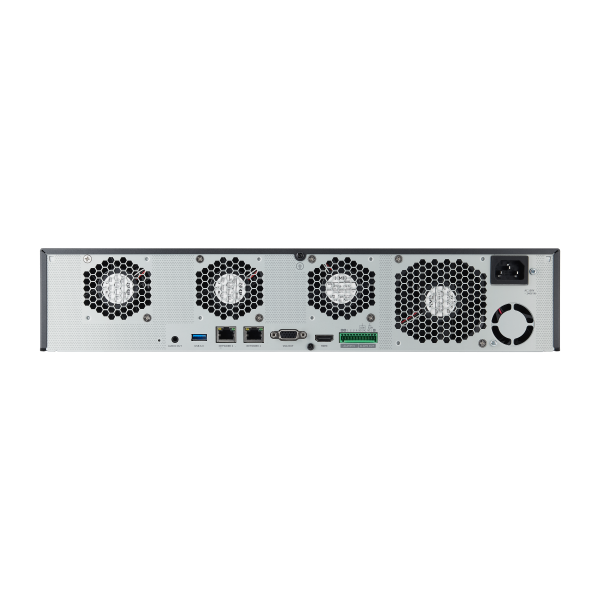

| Interface | |

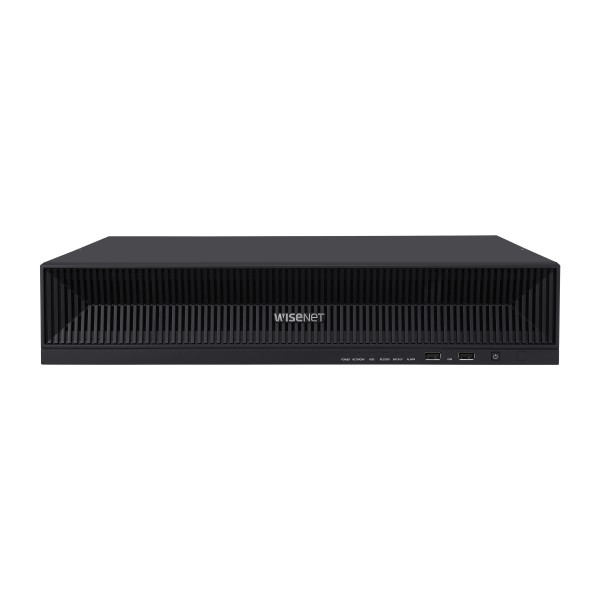

| Front Indicators | HDD, Alarm, Power, Record, Backup, Network |
| Front Storage | OK |
| HDMI | 1EA 3840x2160 30Hz |
| VGA | 1EA 1920x1080 60Hz |
| Audio | Out 1EA (3.5mm Audio Jack) |
| Ethernet | RJ-45 2EA (LAN/WAN, 1Gbps) |
| Alarm | In 4EA, Out 2EA |
| USB | 3EA (Front 2 x USB 2.0, Rear 1 x USB 3.0) |
| Power Inlet | AC 1EA |
| System | |
| Log List | Max. 100,000 (System Log, Event Log each) |
| Environmental | |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | 130W |
| Mechanical | |
| Color / Material | Black / Metal |
| Weight | 5.71kg (12.59lb) |
| AI Search | |
| Object Attribute | Compatible for Wisenet AI Camera |
