Hanwha - XRN-1620SB1-12TB - 16 Channels 8K Network Video Record with 16 PoE/PoE+ Ports, 12TB RAW
Product Overview

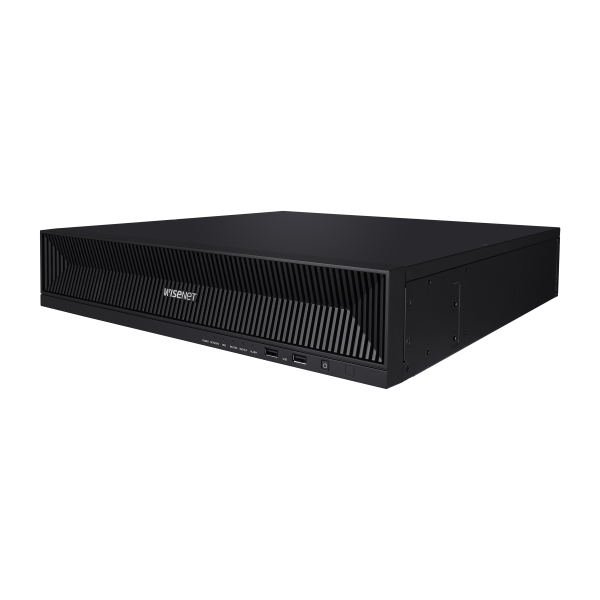

The XRN-1620SB1-12TB is an Intel-based 16-channel 8K network video recorder preconfigured with 12 TB of raw storage. It supports up to 32MP camera resolution, a maximum recording bandwidth of 140 Mbps, and a 32 Mbps playback bandwidth.
Key Configuration
- • Channels: up to 16 IP camera inputs; PoE ports: 16 × RJ45 PoE/PoE+ (10/100 Mbps), 200W total PoE budget
- • Storage: 12TB raw included; HDD bays: 4 × fixed internal SATA, up to 6TB per HDD (max 24TB total)
- • Recording bandwidth: 140 Mbps; playback bandwidth: 32 Mbps
- • Video outputs: HDMI (4K/3840×2160 @30Hz) and VGA (1920×1080 @60Hz) dual monitor; support clone mode (up to 16 division) and expand mode (up to 9 division)
- • Dimensions: 440 × 89.8 × 428.4 mm (17.32" × 3.54" × 16.87"); weight: 5.76 kg (12.70 lb)
Key Features
The NVR supports decoding up to 32MP and provides dual-stream, scheduled, event, and bookmark recording. It manages 16 channels of local playback, features 16-channel network audio with two-way support, and includes 4 alarm inputs and 2 outputs. System actions (emails, PTZ presets, buzzer alerts, and SUNAPI commands) are triggered by video loss, camera analytics, or sensor inputs, with deployment streamlined via ARB redundancy, N+1 failover, plugin-free Web UI 2.0, QR-code P2P setup, and Wisenet AI metadata search.
Technical Context
Built on an embedded Linux architecture, the NVR provides two 1Gbps RJ-45 LAN/WAN ports and 16 10/100 Mbps PoE+ ports to support broad network protocols, ONVIF Profile-S, and SUNAPI. Physical I/O includes two front USB 2.0 ports, one rear USB 3.0 port, and a 3.5mm audio output. It tracks up to 100,000 system and 100,000 event log entries for diagnostics, allowing cross-platform management via Chrome, Edge, or Safari on Windows 10 and macOS 10.13.
Installation Notes
Measuring 440 × 89.8 × 428.4 mm and weighing 5.76 kg, this black metal NVR features 16 PoE/PoE+ ports with a 200W total power budget (310W max system draw). It houses 4 fixed internal SATA HDD bays and outputs video via dual HDMI and VGA connections. Operating between 0°C and 40°C under 20–85% RH, the unit supports Wisenet AI camera search integration and QR-code P2P mobile setup.
| Display | ||
| Network camera | Inputs | Max. 16CH |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor |
| Multi Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone mode : Up to 16 Division - Expand mode : Up to 9 Division [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | [Local Monitior] FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps) FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps) Clone/Single mode : Up to 25fps when displaying more than 10CH | |
| Performance | ||
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 140Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 64CH(Local 16CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 4ea(Max. 24TB) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 140Mbps | |
| Audio | Input/Output | 16 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||

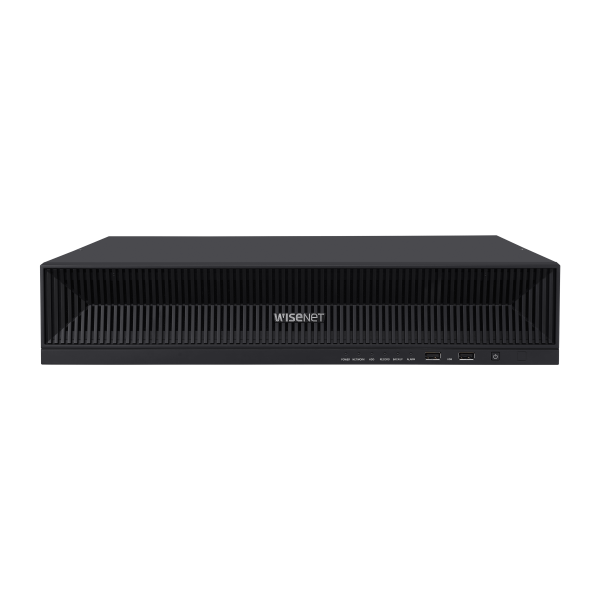

| Front | Indicator | HDD, Alarm, Power, Record, Backup, Network |
| Storage | OK | |
| HDMI | 1EA 3840x2160 30Hz | |
| VGA | 1EA 1920x1080 60Hz | |
| Audio | Out 1EA (3.5mm Audio Jack) | |

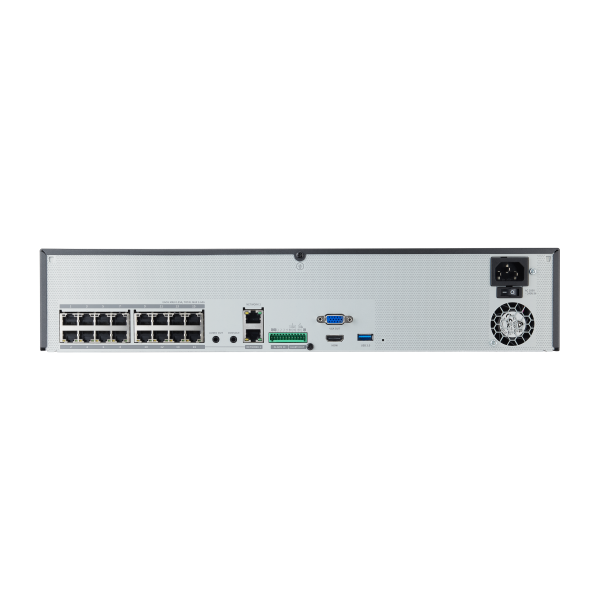

| Ethernet | PoE+ RJ-45 16EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | Max. 310W | |
| PoE Budget | 200W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 89.8 x 428.4 mm (17.32 x 3.54 x16.87 inch) | |
| Weight | 5.76Kg (12.70lb) | |
| Intelligent Analysis | ||
| AI Search | Object Attribute | Compatible for Wisenet AI Camera |
