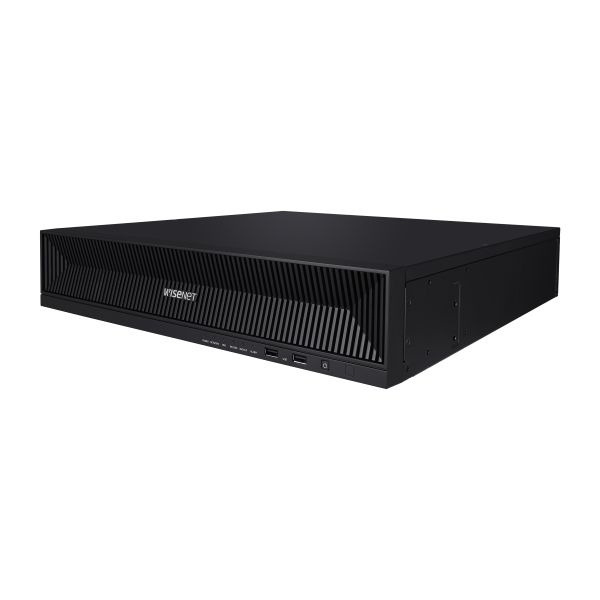

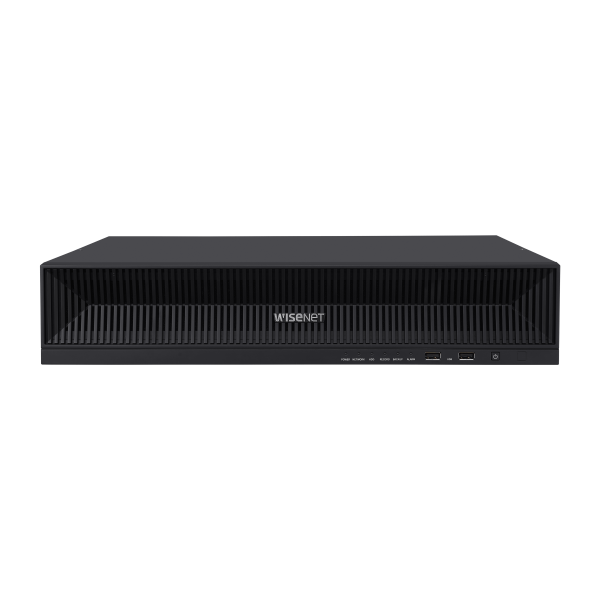

Hanwha - XRN-1620SB1 - 8K Network Video Record, 16 channels with 16 PoE/PoE+ Ports, 4 Fixed Internal SATA HDDs

Product Overview

The Hanwha XRN-1620SB1 is an 8K-capable Intel-based network video recorder with 16 channels and 16 built-in PoE/PoE+ ports (200W total PoE budget). It supports up to 32MP camera resolution and uses H.265/H.264/MJPEG compression for efficient recording and storage management. It includes 4 internal SATA HDD bays supporting up to 6TB per drive (24TB total, HDDs not included).

Key Configuration

• • Channels: up to 16 IP camera inputs; PoE ports: 16 × RJ45 (10/100 Mbps), 200W total PoE budget
• • HDD bays: 4 × fixed internal SATA, up to 6TB per HDD (max 24TB total); no HDD included
• • Recording bandwidth: 140 Mbps; playback bandwidth: 32 Mbps

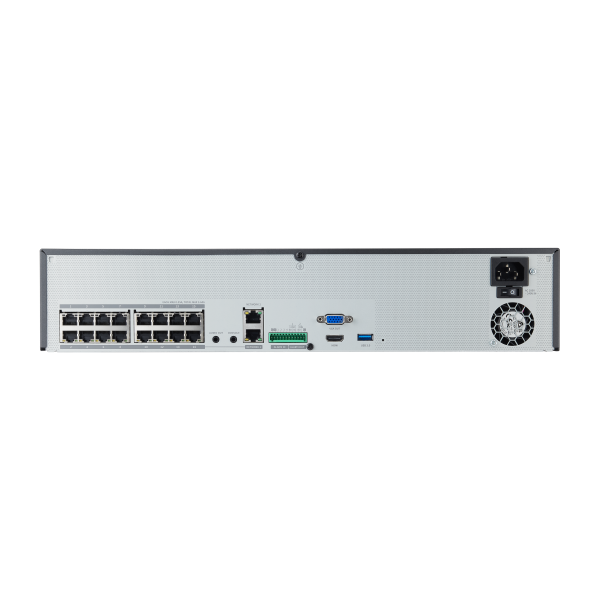

• • Video outputs: HDMI (4K/3840×2160 @30Hz) and VGA (1920×1080 @60Hz) dual monitor
• • Dimensions: 440 × 89.8 × 428.4 mm (17.32" × 3.54" × 16.87"); weight: 5.76 kg (12.70 lb)

Key Features

Supports multiple decoding modes, including up to 32MP at 15 fps (H.265), 12MP at 30 fps, and lower-resolution streams with higher frame rates for smooth multi-view display across local and remote monitors. It supports up to 64-channel simultaneous playback, flexible recording modes (normal, event, schedule, dual stream), and advanced event handling, including motion, video loss, analytics, audio, and user-defined triggers with actions like alerts, PTZ control, FTP, and system shutdown. Additional features include fisheye dewarping, 16-channel audio with two-way communication, alarm I/O, dual LAN plus 16 PoE ports, ARB and Failover support, plugin-free web interface, and P2P QR mobile setup.

Technical Context

Runs on embedded Linux with support for IPv4/IPv6, RTSP, HTTPS, ONVIF Profile-S, SUNAPI, SNMP, and standard networking protocols including DNS, DDNS, and UPnP. Security features include IP filtering, 802.1X authentication, encrypted communication, device certificates (Hanwha Techwin Root CA), access logs, and signed firmware. Web viewing is supported on Windows 10 and macOS 10.13 via Chrome, Edge, and Safari. The system uses 100–240V AC input with up to 310W total power consumption (including PoE) and a 200W PoE budget, housed in a black metal chassis.

Installation Notes

Large 1U black metal NVR measuring 440 × 89.8 × 428.4 mm and weighing 5.76 kg, operating at 0°C to 40°C with 20–85% humidity range. It includes 16 PoE/PoE+ ports (200W total budget), 4 internal SATA HDD bays supporting up to 6TB each, and HDMI + VGA outputs for dual-display monitoring. Additional features include ARB and Failover (N+1) reliability, plugin-free web UI 2.0, P2P QR mobile setup, and AI search support when used with compatible Wisenet AI cameras.
