Hanwha - XRN-3210B2-30TB - 32 Channel 8K 400Mbps H.265 Network Video Record
Product Overview
The Hanwha XRN-3210B2 is a 32-channel NVR designed for high-resolution surveillance, supporting cameras up to 32MP (8K). It provides 400 Mbps recording throughput, accommodates up to 80TB of storage across 8 SATA drive bays, and supports H.265/H.264/MJPEG compression. Key features include dual HDMI outputs 4K and Full HD, AI-powered search with compatible Wisenet AI cameras, Dynamic Event management, bookmark functionality, and ARB failover support.
Key Configuration
• Channels: Up to 32 IP camera inputs, supporting resolutions up to 32MP
• Recording bandwidth: Up to 400 Mbps (distributed mode), 150 Mbps (normal mode); playback up to 32 Mbps
• Storage: 8 SATA HDD bays, up to 10TB per drive (80TB max), with external iSCSI support
• Network: 3 × 1GbE RJ-45 ports (LAN/WAN)
• Video outputs: 2 × HDMI (HDMI1: 4K @30Hz, HDMI2: FHD @60Hz) dual display
Key Features
Supports decoding up to 32MP video, multi-monitor display layouts, and simultaneous playback of up to 80 channels. Features event-based recording and automation, two-way audio, fisheye dewarping, ARB backup, N+1 failover, Dynamic Event support, and AI attribute search with compatible Wisenet AI cameras. Includes advanced security, P2P mobile connectivity, bookmark management, and ONVIF/SUNAPI integration.
Technical Context
Designed for enterprise deployments, the XRN-3210B2 supports up to 32MP recording with 400 Mbps throughput. It features three 1GbE network ports, up to 80TB internal storage with iSCSI expansion support, dual HDMI outputs, Dynamic Event compatibility, and flexible PTZ control with up to 300 presets.
Installation Notes

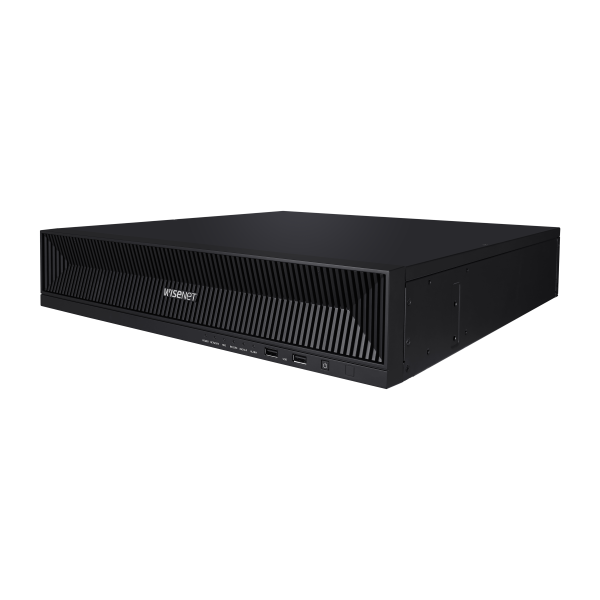

19-inch rack NVR with black metal chassis, measuring 438 × 86 × 434.9 mm and weighing 7.5 kg, without HDDs. Operates from 0°C to 40°C with 20–85% RH, powered by 100–240 VAC. Supports up to 8 HDDs with a maximum 138W power draw with drives installed. Includes front status indicators, HDD keylock, and reset button, and requires external PoE switches (no built-in PoE).
| Display | |
| Network camera Inputs | Max. 32CH |
| Resolution | 32MP ~ CIF |
| Protocols | SUNAPI, ONVIF |
| Decoding | |
| Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz), HDMI 2: 1920x1080 (60Hz) |
| Multi-Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode: Up to 64 Division - Expand Mode: HDMI1 up to 32 Div., HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Resolution (Local Monitor) | 32MP (15fps, H.265 Only), 12MP (30fps, H.265 Only), 8.3MP (120fps), 1080p (480fps), 720P (960fps), D1 (1920fps) |
| Performance | |
| Operating System | Embedded Linux |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Distributed mode: Up to 400 Mbps Normal mode: Up to 150 Mbps |
| Resolution | 32MP ~ CIF |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps |
| Max. Users | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous playback | Max. 80CH (Local 32CH, Remote 16CH per user) |
| Fisheye Dewarping | Support (Local 1CH), CMS |
| Search Mode | Date & Time (Calendar), Event list, Text Search, Smart Search |
| Playback Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Supported HDD | Up to 10TB |
| HDD Slots | SATA 8ea (Max. 80TB) |
| External Storage | iSCSI storage |
| Backup | |
| File backup | BU/Exe (GUI), JPG/AVI (Network) |
| Function | Multi-channel (Up to 16CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 400Mbps |
| Audio | |
| Input/Output | 32CH (network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-Way |
| Max Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | |
| Security Features | IP address filtering, User access Log, 802.1x, Encryption, Device certificate (Hanwha Techwin Root CA), Signed firmware |
| Web viewer | |
| Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile, Support CGI (SUNAPI) for integration to 3rd party VMS |
| Functions | |
| Camera Setup - Register | Auto, Manual |
| Camera Setup - Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon), Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets |
| Smart phone | |
| Support Model | iOS, Android |
| Protocol Support | |
| Control | Live 16CH (Multi-Profile Support), Playback 4CH |
| Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy | |
| Failover | N+1 |
| ARB | Support |
| Easy configuration | P2P (QR code) |

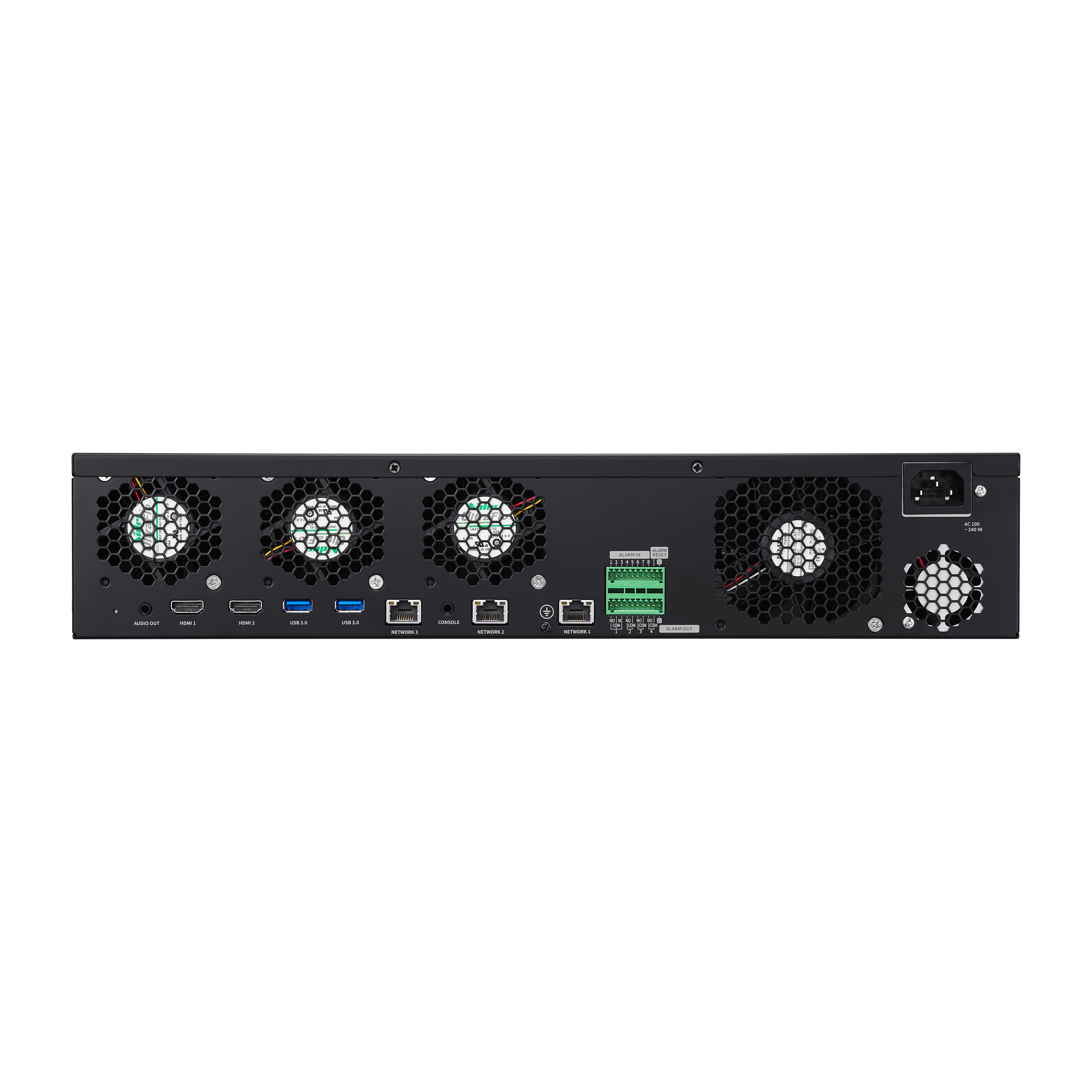

| Interface | |

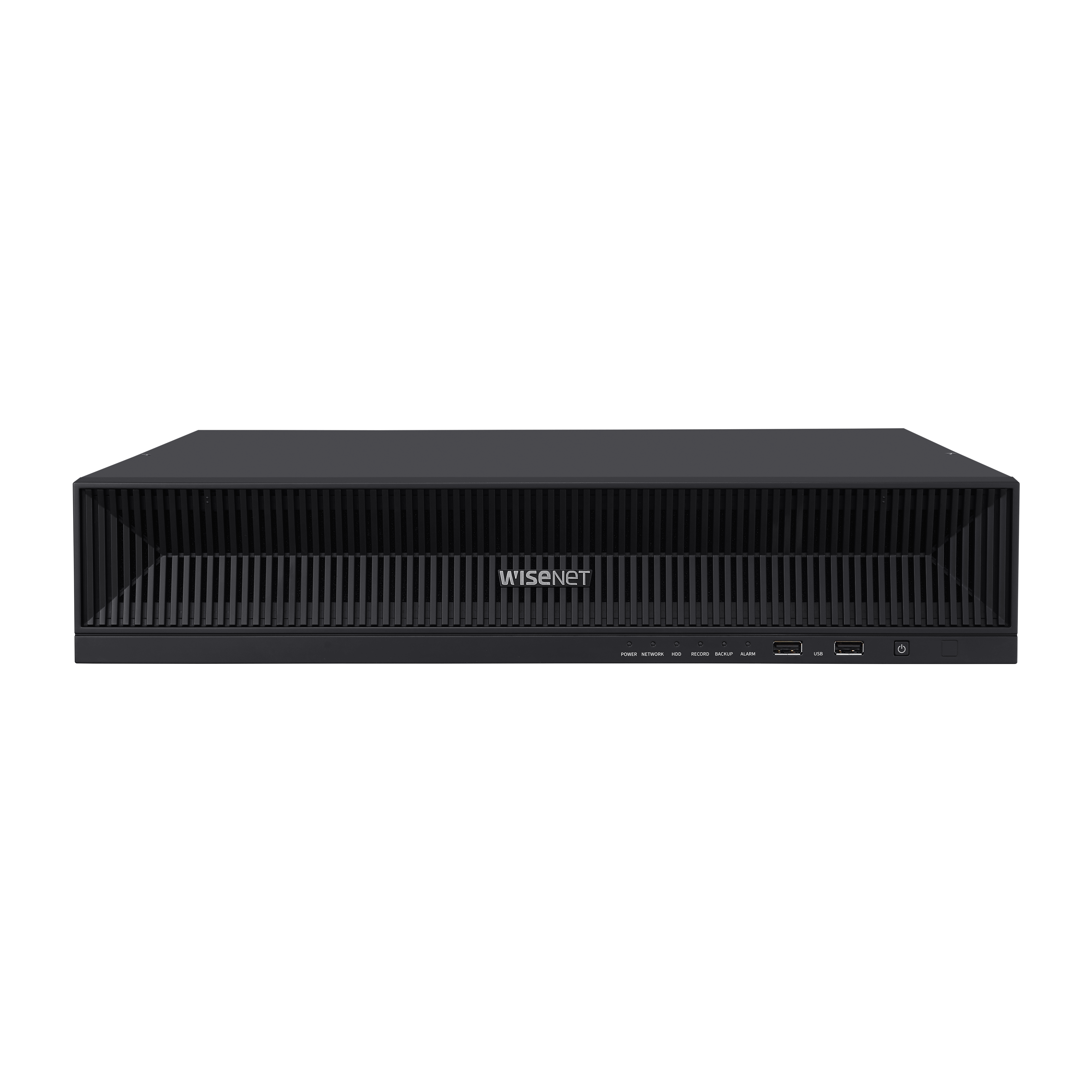

| Front Indicator | HDD, Alarm, Power, Record, Backup, Network |
| Storage | OK |
| Reset | OK |
| HDD Keylock | OK |
| HDMI | 2EA (Playback/Setup → HDMI1) HDMI1: 3840x2160 30Hz HDMI2: 1920x1080 60Hz |
| Audio Out | 1EA |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) |
| Alarm | In 8EA, Out 4EA |
| USB | 4EA (Front 2 x USB 2.0 + Rear 2 x USB 3.0) |
| Power inlet | AC 1EA |
| System | |
| Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Web, Controller (SPC-2000) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60Hz, 1.5A (Single SMPS) |
| Power Consumption | Max. 138W (with 10TB HDD 8EA) |
| Mechanical | |
| Dimension (W x H x D) | 438.0 x 86.0 x 434.9 mm (17.47 x 3.39 x 17.12 inch) |
| Weight | 7.5kg (16.5lb, except HDD) |
| Intelligent Analysis | |
| AI Search / Object Attribute | Compatible with Hanwha AI Cameras |
