Hanwha - XRN-3220B2-16TB - 32 Channel Network Video Record with 12th Gen. Intel Processor, 16TB RAW

Product Overview

The Hanwha XRN-3220B2-16TB is an 8K Intel-based NVR supporting up to 32 channels with a maximum 32MP recording and display resolution. It features 8 SATA HDD bays providing 16TB of pre-installed RAW storage (expandable to 80TB max) and delivers a 520 Mbps recording bandwidth alongside a 200 Mbps playback bandwidth using H.265, H.264, MJPEG, and WiseStream technology. System reliability and performance are enhanced by dual-stream recording, iSCSI storage expansion, ARB, N+1 failover redundancy, and camera-driven AI search, with monitoring handled via dual HDMI outputs (HDMI1 at 4K/30Hz, HDMI2 at 1080p/60Hz).

Key Configuration

• • Channels: up to 32 IP camera inputs; resolution support: 32MP to CIF
• • HDD bays: 8 × SATA, up to 10TB per HDD (max 80TB); 16TB RAW pre-installed
• • Recording bandwidth: distributed mode up to 520 Mbps; normal mode up to 300 Mbps
• • Playback bandwidth: up to 200 Mbps (32 channels simultaneously)
• • Dimensions: 438 × 86 × 434.9 mm; weight: 7.3 kg (16.1 lb without HDD)

Key Features

This NVR features 8 alarm inputs, 4 alarm outputs, 4 USB ports (2 front USB 2.0, 2 rear USB 3.0), and 3 Gigabit Ethernet RJ-45 ports with iSCSI external storage and TPM hardware security. It supports dual-stream recording across continuous, scheduled, event-based, and bookmarked modes, triggered by video loss, physical inputs, or camera analytics, which prompt actions such as email alerts, push notifications, and PTZ presets. Local 1-channel fisheye dewarping is included alongside multi-channel playback up to 80 channels simultaneously (32 local, 16 remote per user), searchable via time, text, bookmarks, ARB, or smart search. Decoding performance reaches up to 32MP in H.265 (9MP in H.264), backed by G.711, G.726, and AAC two-way audio, with system uptime secured by ARB and N+1 failover redundancy.

Technical Context

Running on embedded Linux, this NVR supports standard network protocols alongside ONVIF Profile S and SUNAPI integration. Cybersecurity is maintained through IP address filtering, user access logging, 802.1x, TLS encryption, signed firmware, TPM hardware security, and Hanwha Techwin Root CA certificates. Web monitoring is compatible with Windows 10+ and macOS 13.5.2+ using Google Chrome, Microsoft Edge, and Apple Safari.

Installation Notes

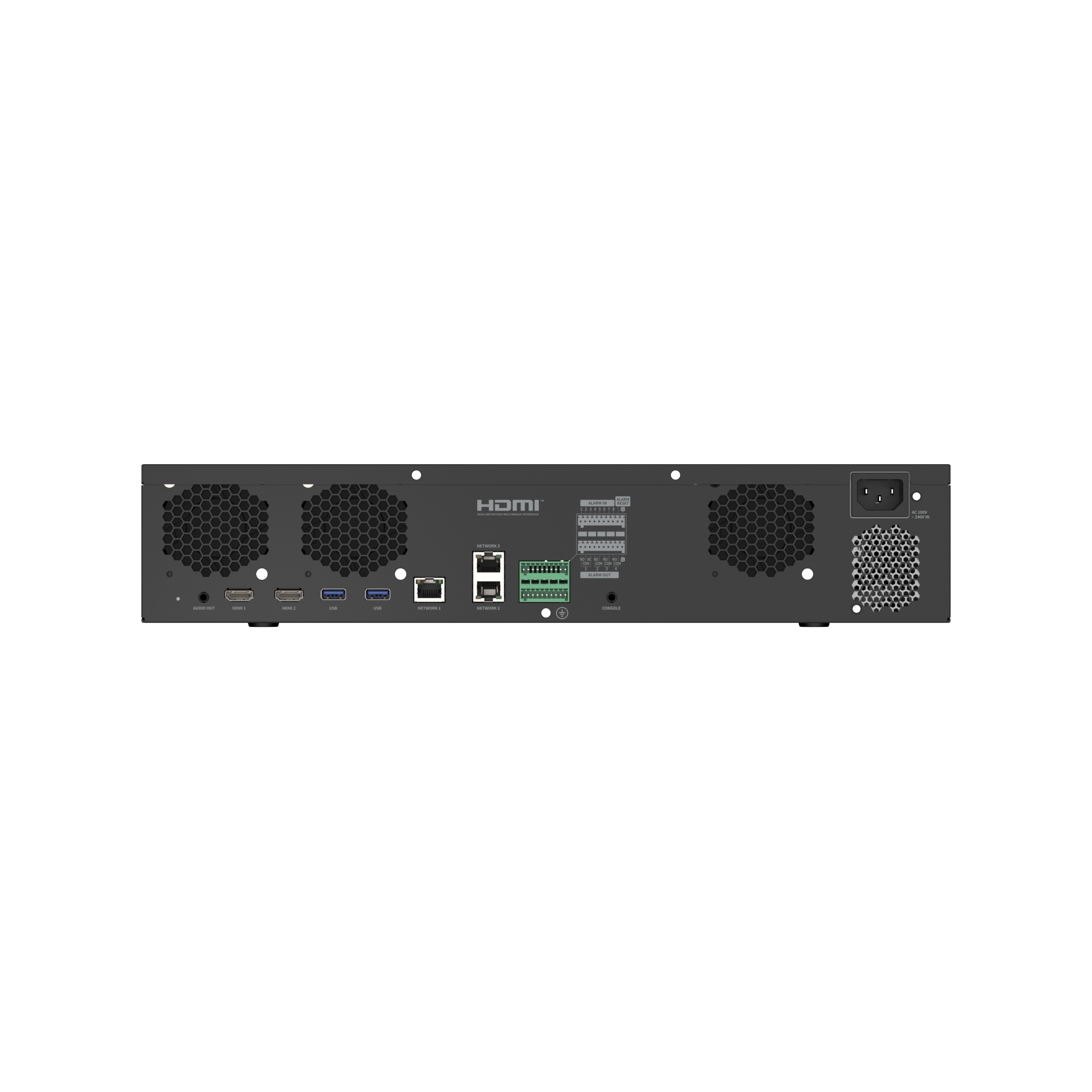

Measuring 438 × 86 × 434.9 mm and weighing 7.3 kg (without drives), this black metal 2U NVR houses 8 SATA HDD bays supporting up to 10TB per drive. It operates between 0°C and 40°C (20–85% RH) via a 100–240 VAC power input, with a maximum consumption of 143W. The unit features dual HDMI display outputs (4K and 1080p), a P2P QR code for mobile connectivity, and TPM hardware security.
