Hanwha - XRN-3220B2 - 32 Channel Network Video Record with 12th Gen. Intel Processor, Up To 10TB

Product Overview

The Hanwha XRN-3220B2 is an 8K Intel-based network video recorder (NVR) that supports up to 32 camera channels with up to 32MP recording and display resolution. It features 8 internal SATA HDD bays supporting up to 10TB per drive for a maximum storage capacity of 80TB (HDDs not included). Video processing is managed via H.265, H.264, and MJPEG compression codecs, supporting up to 520 Mbps recording bandwidth in distributed mode and 200 Mbps playback bandwidth. Additionally, the unit features dual-stream recording and iSCSI storage expansion support.

Key Configuration

• • Channels: up to 32 IP camera inputs; resolution support: 32MP to CIF
• • HDD bays: 8 × SATA, up to 10TB per HDD (max 80TB); no HDD included
• • Recording bandwidth: distributed mode up to 520 Mbps; normal mode up to 300 Mbps
• • Playback bandwidth: up to 200 Mbps (32 channels simultaneously)
• • Dimensions: 438 × 86 × 434.9 mm; weight: 7.3 kg (16.1 lb without HDD)

Key Features

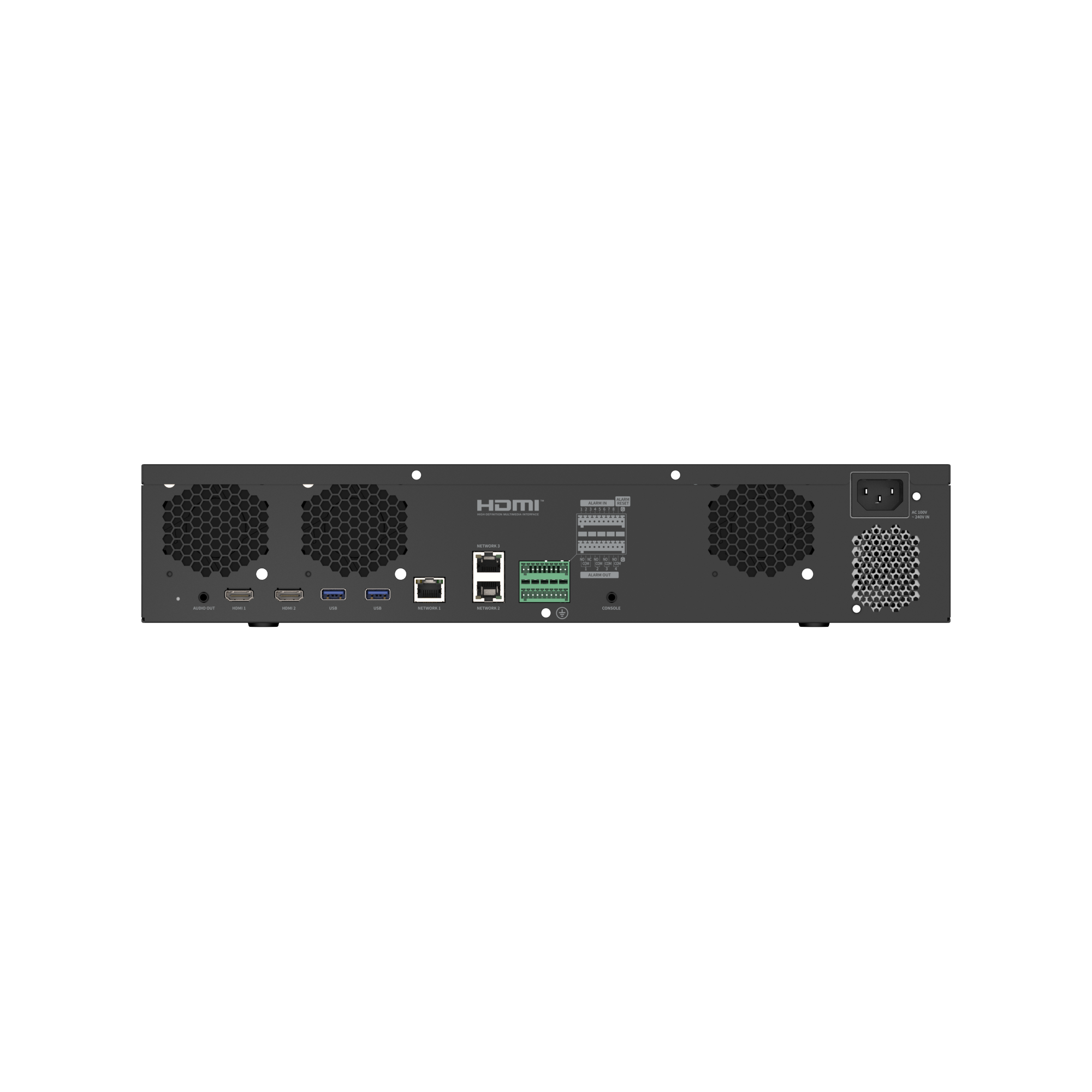

This NVR supports local 1-channel and CMS fisheye dewarping, normal/scheduled/event/bookmark recording, and simultaneous playback up to 80 channels (32 local, 16 remote per user) via smart, time, and event search. It decodes H.265 up to 32MP and H.264 up to 9MP, offering two-way audio (G.711, G.726, AAC), 8 alarm inputs, and 4 outputs. System reliability and security are maintained via TPM, ARB, and N+1 failover. Interfaces include 3 Gigabit RJ-45 ports, 2 front USB 2.0 ports, and 2 rear USB 3.0 ports. Comprehensive event triggers (video loss, alarm input, camera analytics) automate actions like email, push notifications, PTZ presets, alarm/monitor outputs, buzzer, FTP, SUNAPI commands, or system shutdown.

Technical Context

Running on embedded Linux, this NVR features robust security, including IP filtering, user access logs, 802.1x, TLS, Hanwha Techwin Root CA device certificates, signed firmware, and TPM hardware security. It supports standard network protocols alongside ONVIF Profile S and SUNAPI (server/client) compatibility. Web viewing is supported on Windows 10+ and macOS 13.5.2+ via Chrome, Edge, and Safari. The unit operates on a 100–240 VAC (±10%, 50/60 Hz, 1.5A) power input, with a maximum consumption of 143W (488 BTU with 8 HDDs).

Installation Notes

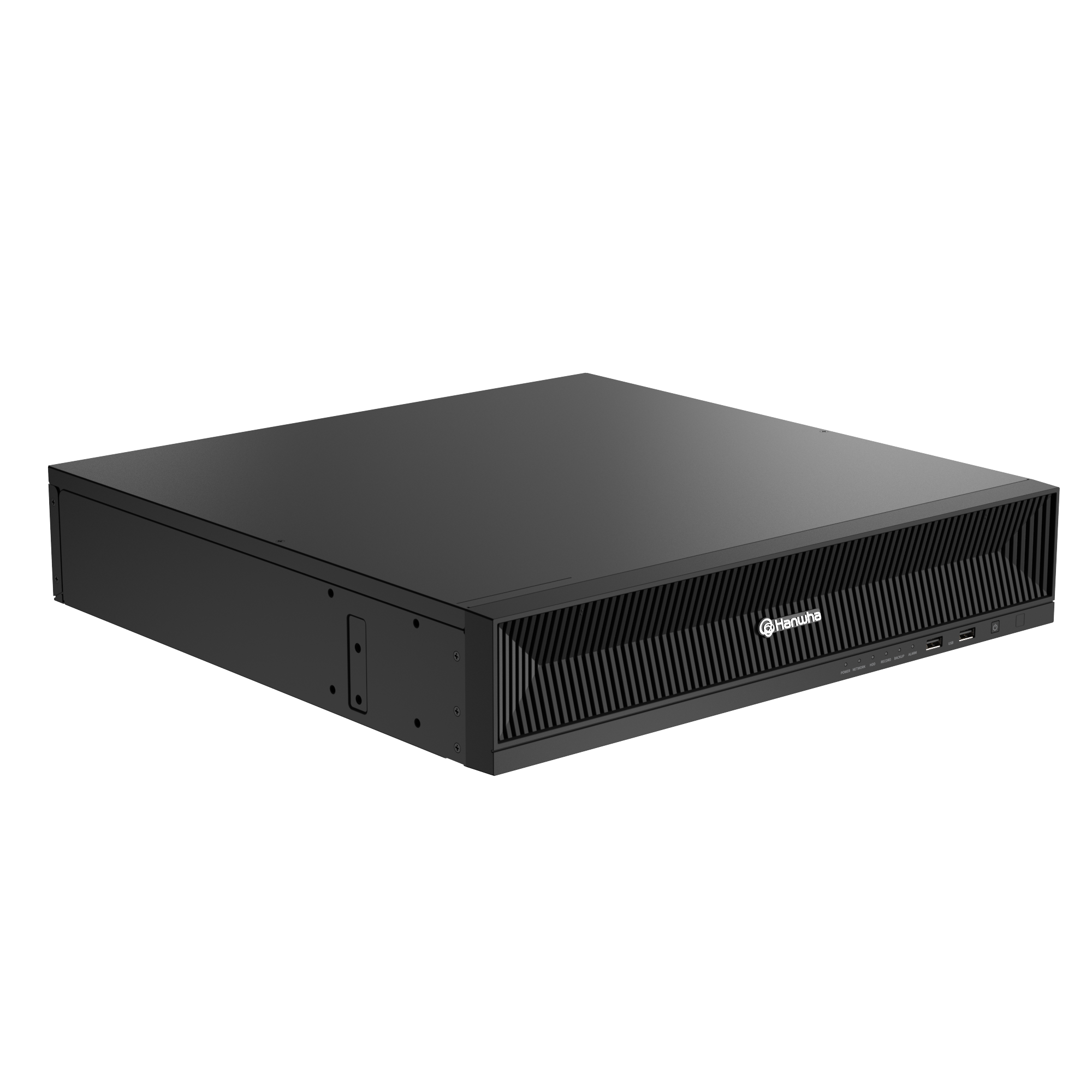

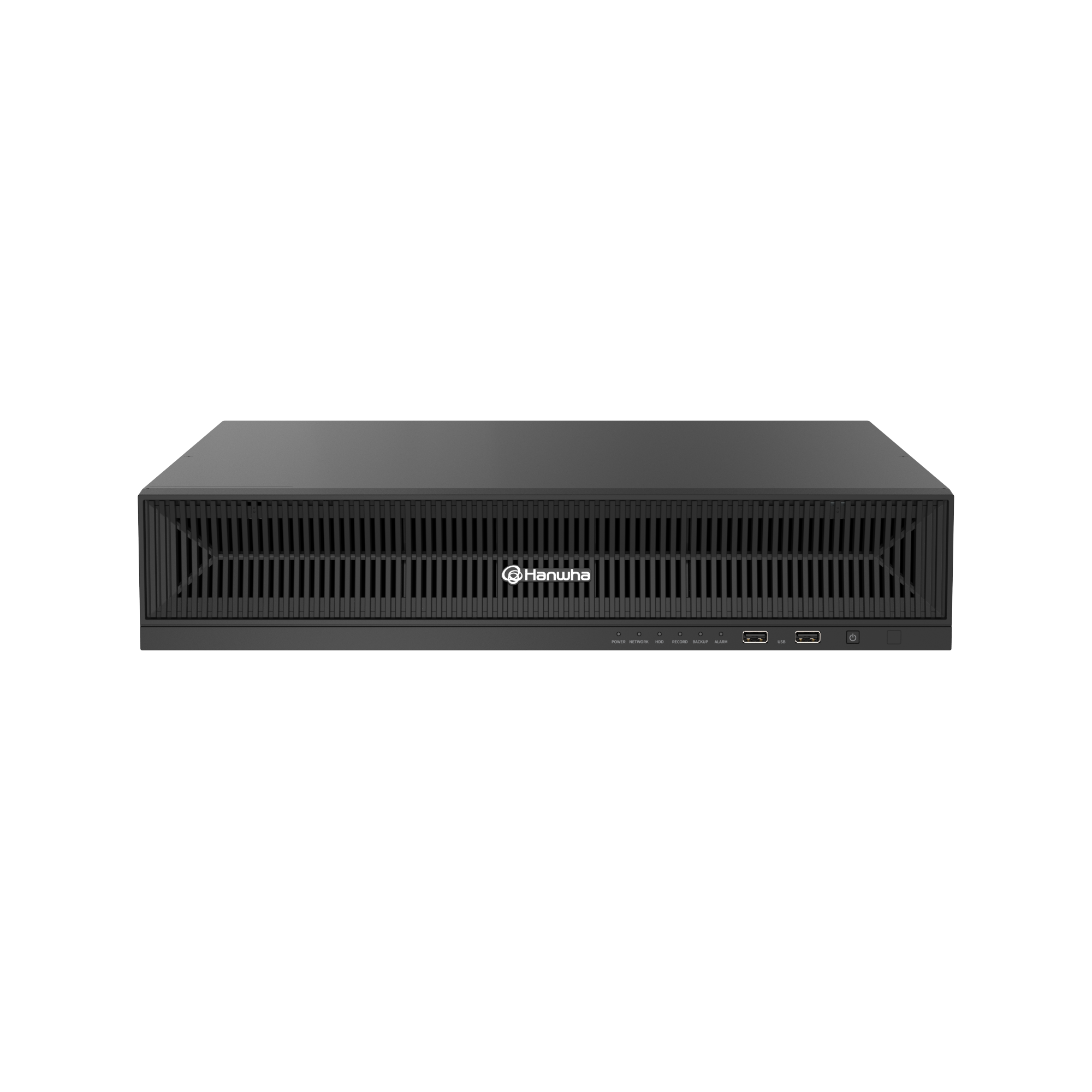

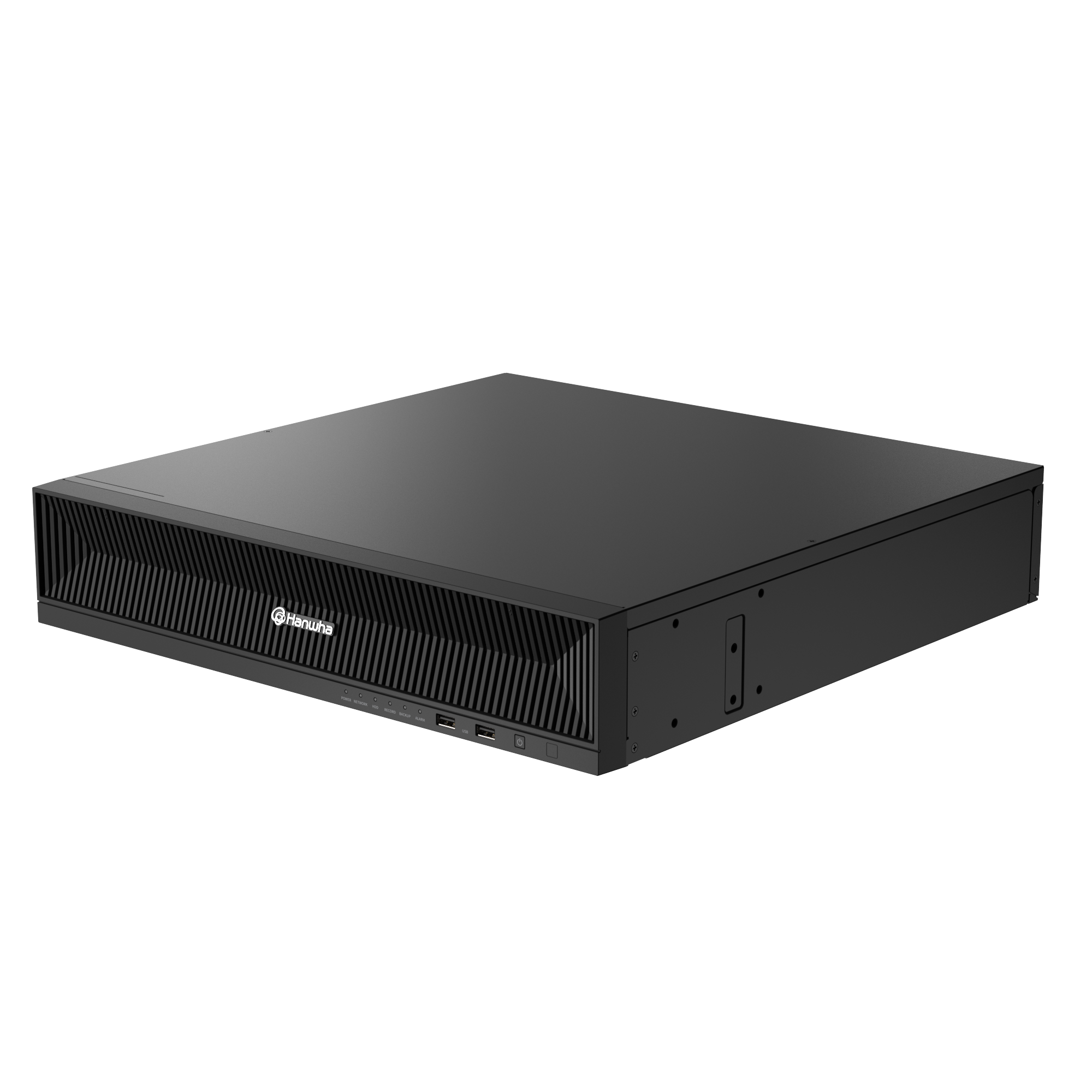

Measuring 438 × 86 × 434.9 mm and weighing 7.3 kg, this black metal NVR features 8 SATA HDD bays supporting up to 10TB per drive. It provides dual HDMI outputs for simultaneous 4K and 1080p display, and operates from 0°C to 40°C under 20–85% relative humidity. Designed for reliable enterprise deployment, the unit includes iSCSI external storage compatibility, ARB, N+1 failover redundancy, and TPM hardware security, with a P2P QR code for simplified mobile application pairing.
