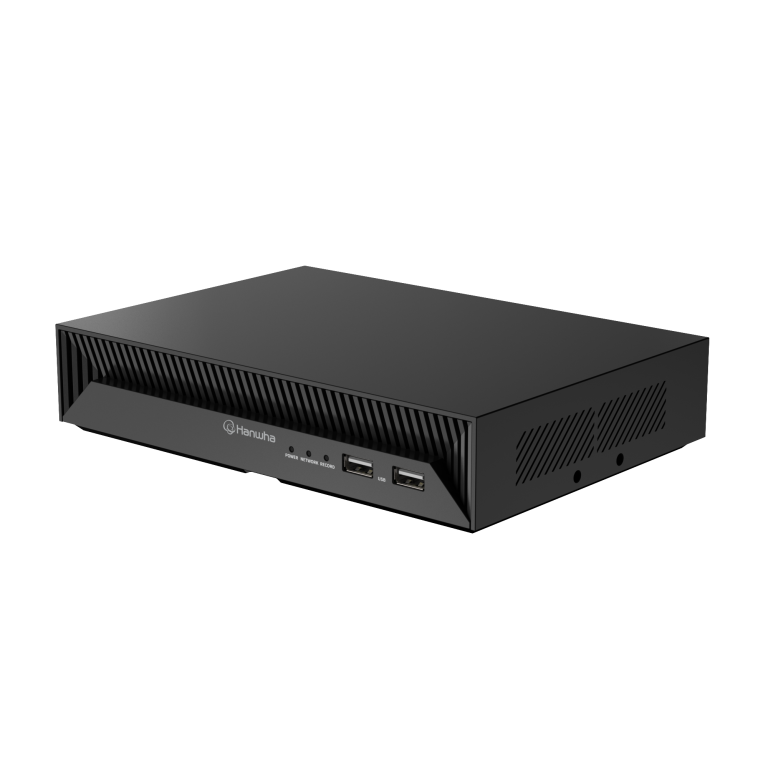

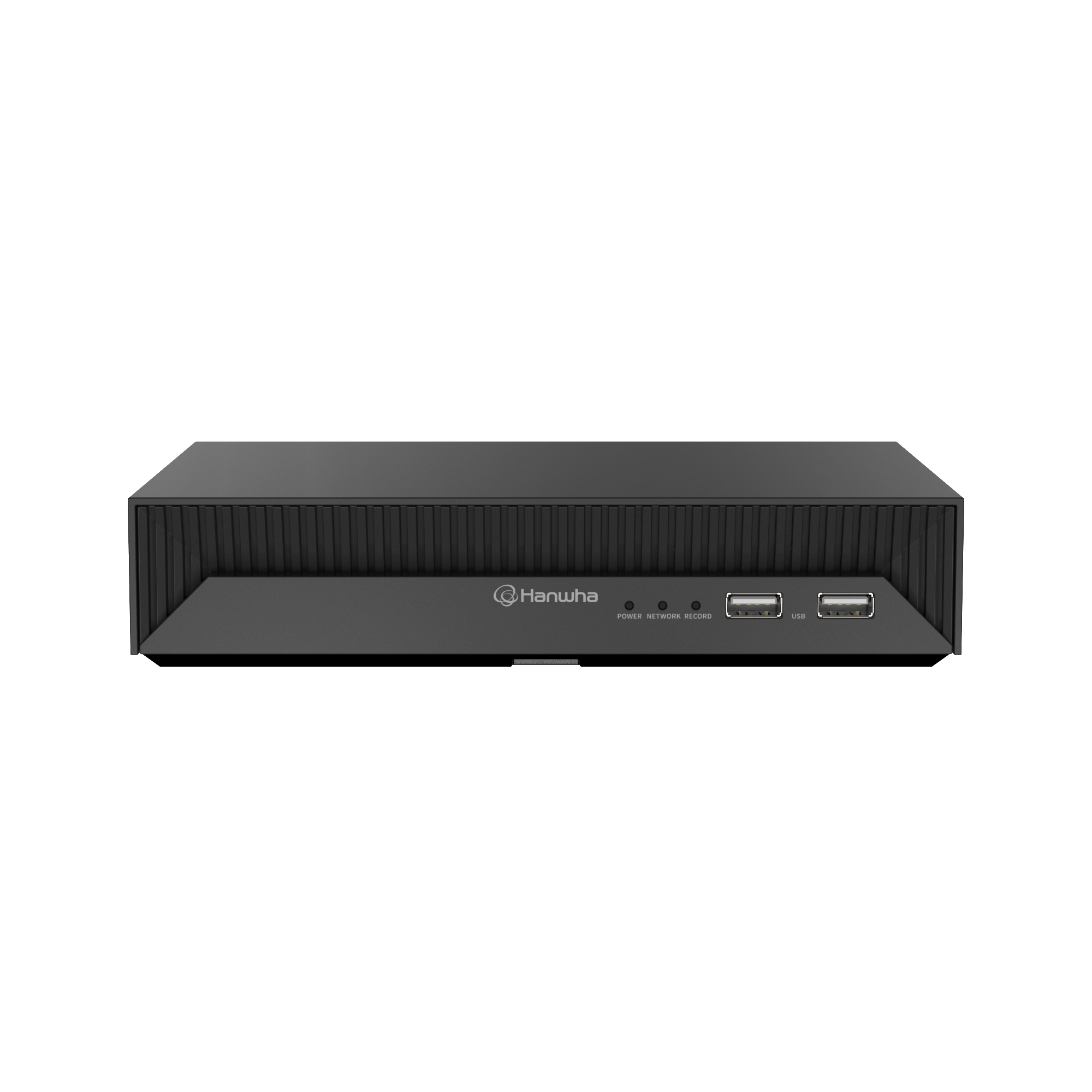

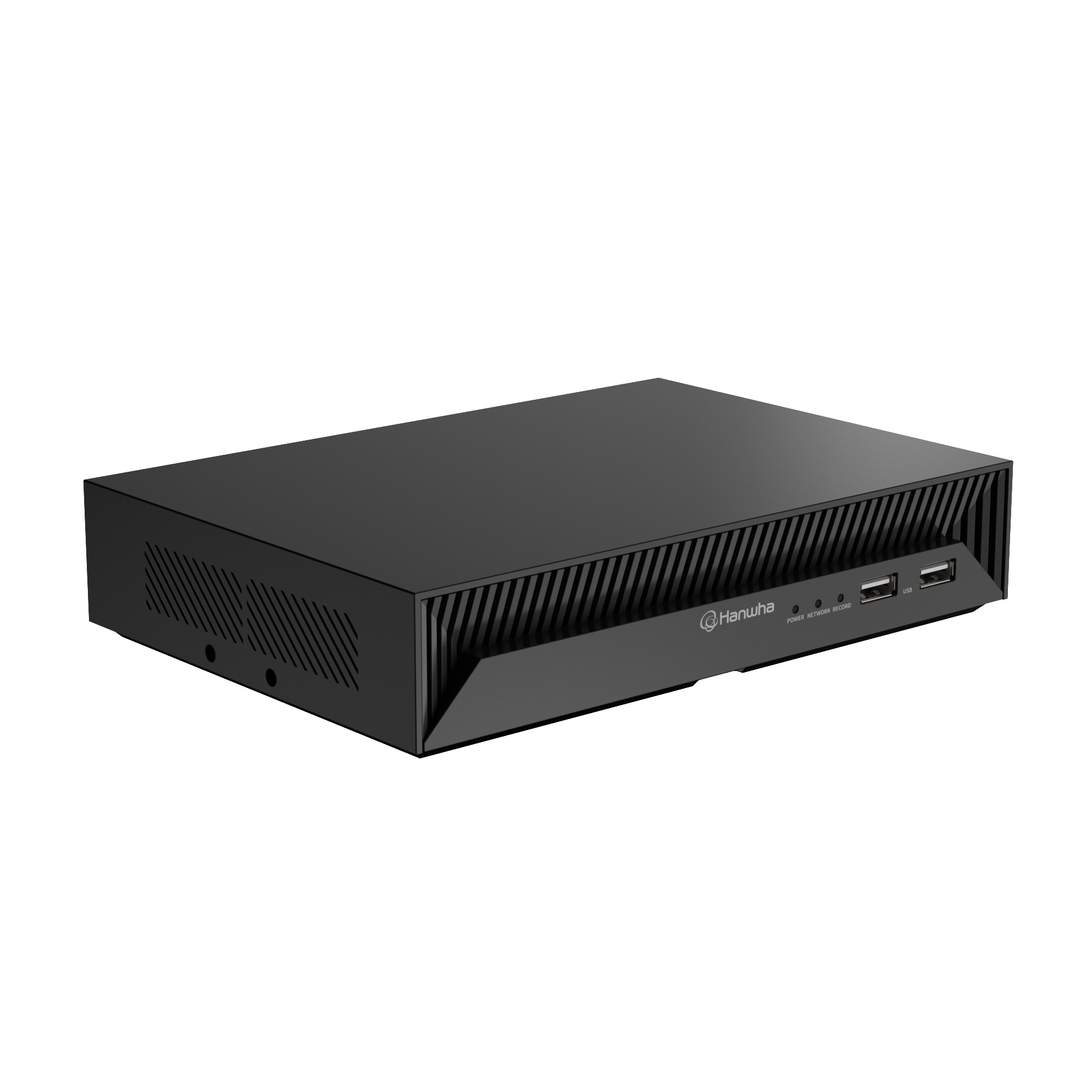

Hanwha - XRN-426S-1T - 4K Network Video Recorder 4 channel with PoE/PoE+ Ports, 1TB SSD

Product Overview

The Hanwha XRN-426S-1T is a 4-channel, Intel-based 4K network video recorder equipped with four built-in PoE/PoE+ ports sharing a 50W power budget. This NVR features a pre-installed 1TB SSD, supports H.265, H.264, and MJPEG compression methods, and provides 40 Mbps recording bandwidth alongside 32 Mbps playback bandwidth. It enhances efficiency via dual-stream recording and WiseStream support, while delivering high-resolution video through a 4K at 30Hz HDMI output. For system reliability, it integrates Automatic Recovery Backup (ARB) and N+1 failover capabilities, alongside dedicated AI search functionality when paired with Wisenet AI cameras.

Key Configuration

• • Channels: up to 4 IP camera inputs; PoE ports: 4 × RJ45 (10/100 Mbps), 50W total PoE budget
• • Storage: 1TB SSD pre-installed (M.2 SSD slot)
• • Recording bandwidth: 40 Mbps; playback bandwidth: 32 Mbps
• • Video output: HDMI (4K/3840×2160 @30Hz); display modes: dynamic layout, virtual channel view, up to 4 divisions
• • Dimensions: 200 × 140 × 42 mm (7.8" × 5.5" × 1.7"); weight: 660g (1.45 lb)

Key Features

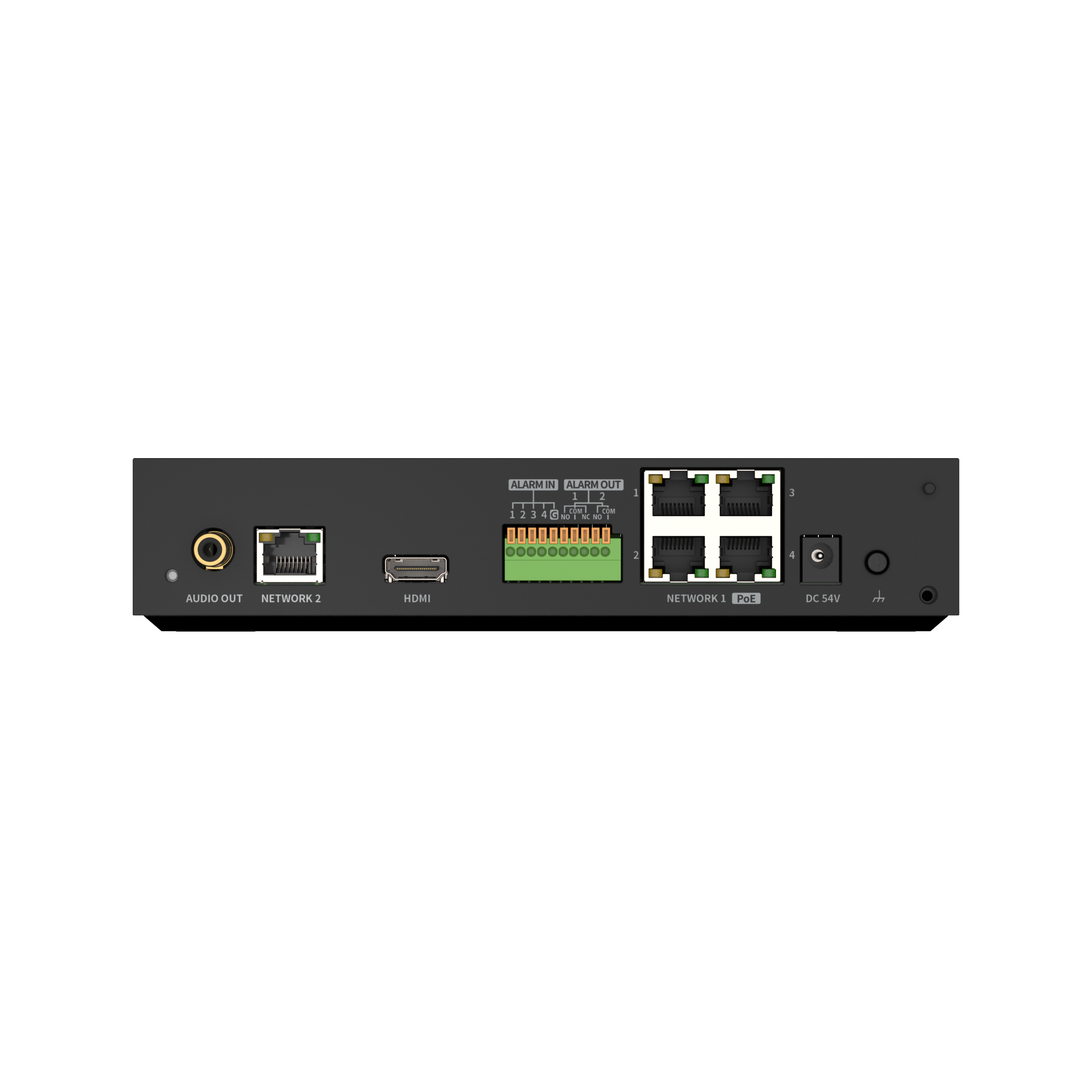

Delivering a decoding performance of 8MP at 30 fps or 1080p across four channels, this system supports simultaneous 16-channel playback and diverse recording and search modes. Events triggered by video loss, analytics, or sensors initiate actions like emails, PTZ presets, and alarms across its 4 inputs and 2 outputs. Network interfaces consist of 4 PoE ports, a Gigabit WAN port, and front USB 2.0 ports that accept an installation Wi-Fi dongle. Featuring two-way audio, P2P QR code mobile pairing, a password-reset switch, and VESA mounting, the unit integrates with Hanwha AI cameras for advanced AI searching.

Technical Context

Running on an embedded Linux operating system, this black metal unit operates between 0°C to 40°C (32°F to 104°F) with 20–85% RH humidity, drawing a maximum of 68W via a 54VDC/1.67A input while providing a 50W PoE budget. It supports standard IPv4/IPv6 networking, ONVIF Profile-S, and SUNAPI protocols, with web viewer compatibility across Windows 10+ and macOS 13.5.2+ via Chrome, Edge, and Safari. Enterprise security is managed through IP filtering, user access logs, 802.1x authentication, TLS encryption, a Hanwha Techwin Root CA device certificate, and signed firmware.

Installation Notes

Measuring 200 × 140 × 42 mm (7.8" × 5.5" × 1.7") and weighing 660g (1.45 lb), this hardware features a pre-installed 1TB M.2 SSD, local 4K HDMI monitoring, and 4 PoE/PoE+ ports backed by a 50W budget. It supports standard or wireless USB keyboards and mice, a setup Wi-Fi dongle, P2P QR code mobile pairing, and VESA desktop, wall, or pole mounting. For enhanced reliability and intelligence, the device incorporates ARB, N+1 failover, and compatibility with Hanwha AI cameras for dedicated AI searches.
