Hanwha - XRN-6410B2-80TB - 64 Channel 8K 400Mbps H.265 Network Video Record, 80TB
Product Overview
The Hanwha XRN-6410B2 is a 64-channel NVR capable of handling up to 32MP (8K) recording, with 400 Mbps throughput and support for up to 80TB storage across 8 internal SATA bays. It offers H.265/H.264/MJPEG compression, dual HDMI outputs (4K and FHD), AI-powered search with Wisenet AI cameras, Dynamic Event functionality, bookmark management, and ARB failover protection.
Key Configuration
• Channels: Up to 64 IP camera inputs, supporting up to 32MP resolution
• Recording bandwidth: Up to 400 Mbps (distributed), 150 Mbps (normal); playback up to 32 Mbps
• Storage: 8 SATA bays, up to 10TB per HDD (80TB total), with external iSCSI support
• Network: 3 × 1GbE RJ-45 ports (LAN/WAN)
• Video outputs: 2 × HDMI (HDMI1: 4K @30Hz, HDMI2: FHD @60Hz) dual display
Key Features
Supports decoding up to 32MP and multiple high-frame-rate streams, with flexible multi-screen display up to 64 divisions. Includes event-based recording, advanced alarm handling, two-way audio, and fisheye dewarping. Supports up to 112-channel playback, ARB backup, N+1 failover, P2P mobile access, and AI search with Wisenet AI cameras. Features broad protocol support and advanced security with encryption, 802.1X, and signed firmware.
Technical Context
The XRN-6410B2 is a 64-channel enterprise NVR supporting up to 32MP recording with 400 Mbps bandwidth. It includes 3 × 1GbE ports for network separation, 8 SATA bays with up to 80TB storage plus iSCSI expansion, and dual HDMI outputs with multi-screen layouts up to 32 divisions. It also supports Dynamic Events, advanced PTZ control up to 300 presets, and flexible management via GUI, web viewer, or controller.
Installation Notes

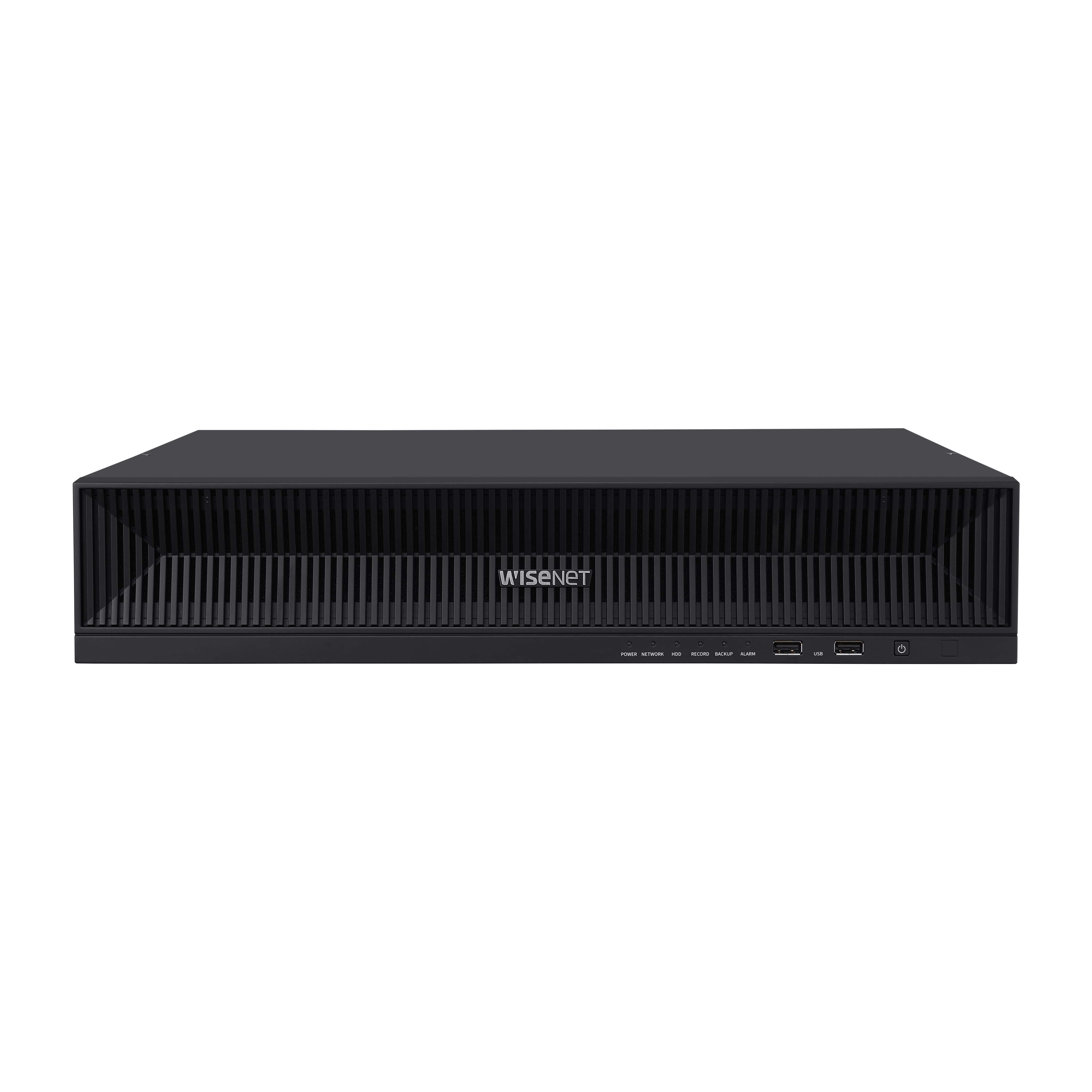

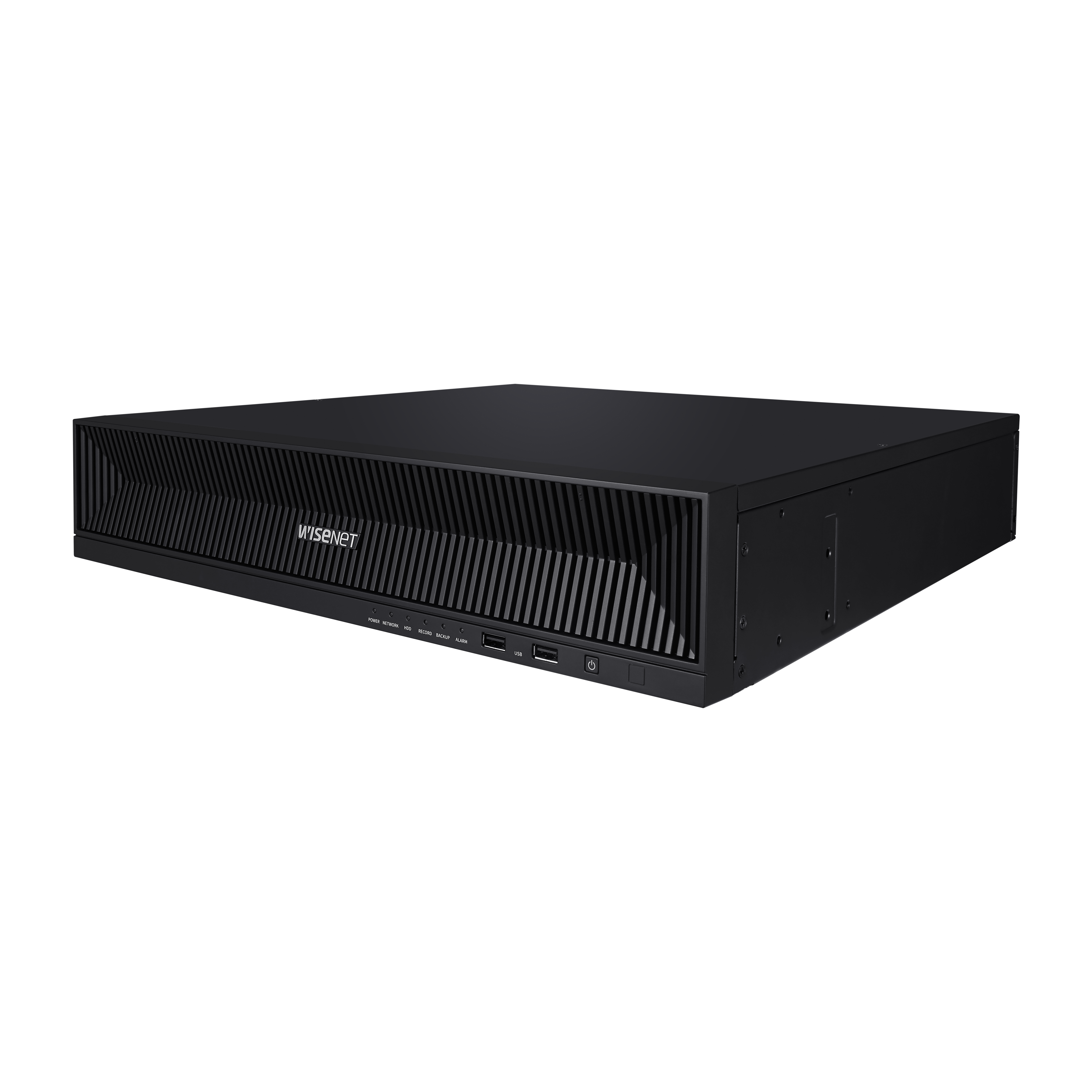

Compact 19" rack NVR with black metal chassis measuring 438 × 86 × 434.9 mm and weighing 7.5 kg, without HDDs. Operates from 0°C to 40°C with 20–85% RH, powered by 100–240 VAC. Max power consumption is 138W with 8 HDDs installed. Includes front status LEDs, HDD keylock, reset button, and 3.5mm audio output. No built-in PoE; external PoE switches required.
| Display | |
| Network camera Inputs | Max. 64CH |
| Resolution | 32MP ~ CIF |
| Protocols | SUNAPI, ONVIF |
| Decoding | |
| Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz), HDMI 2: 1920x1080 (60Hz) |
| Multi-Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode: Up to 64 Division - Expand Mode: HDMI1 up to 32 Div., HDMI2 up to 32 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Resolution (Local Monitor) | 32MP (15fps, H.265 Only), 12MP (30fps, H.265 Only), 8.3MP (120fps), 1080p (480fps), 720P (960fps), D1 (1920fps) |
| Performance | |
| Operating System | Embedded Linux |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Distributed mode: Up to 400 Mbps Normal mode: Up to 150 Mbps |
| Resolution | 32MP ~ CIF |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps |
| Max. Users | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous playback | Max. 112CH (Local 64CH, Remote 16CH per user) |
| Fisheye Dewarping | Support (Local 1CH), CMS |
| Search Mode | Date & Time (Calendar), Event list, Text Search, Smart Search |
| Playback Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Supported HDD | Up to 10TB |
| HDD Slots | SATA 8ea (Max. 80TB) |
| External Storage | iSCSI storage |
| Backup | |
| File backup | BU/Exe/AVI (GUI), JPG/AVI (Network) |
| Function | Multi-channel (Up to 16CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 400Mbps |
| Audio | |
| Input/Output | 64CH (network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-Way |
| Max Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | |
| Security Features | IP address filtering, User access Log, 802.1x, Encryption, Device certificate (Hanwha Techwin Root CA), Signed firmware |
| Web viewer | |
| Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, and Mac Safari |
| Viewer Software | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile, Support CGI (SUNAPI) for integration to 3rd party VMS |
| Functions | |
| Camera Setup - Register | Auto, Manual |
| Camera Setup - Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon), Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets |
| Smart phone | |
| Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Control | Live 16CH (Multi-Profile Support), Playback 4CH |
| Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy | |
| Failover | N+1 |
| ARB | Support |
| Easy configuration | P2P (QR code) |

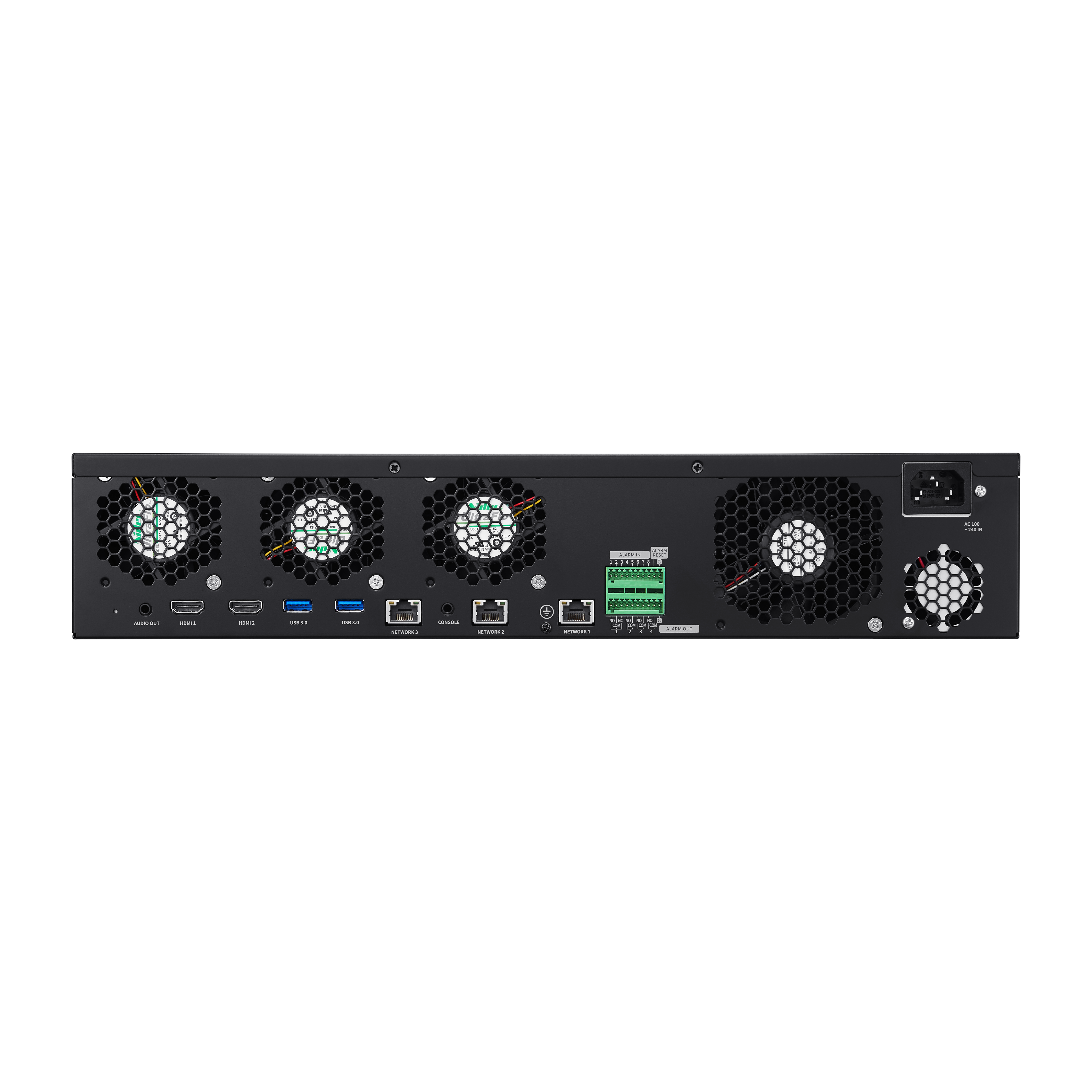

| Interface | |
| Front Indicator | HDD, Alarm, Power, Record, Backup, Network |
| Storage | OK |
| Reset | OK |
| HDD Keylock | OK |
| HDMI | 2EA (Playback/Setup → HDMI1) HDMI1: 3840x2160 30Hz HDMI2: 1920x1080 60Hz |
| Audio Out | 1EA (3.5mm Audio Jack) |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) |
| Alarm | In 8EA, Out 4EA |
| USB | 4EA (Front 2 x USB 2.0 + Rear 2 x USB 3.0) |
| Power inlet | AC 1EA |
| System | |
| Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60Hz, 1.5A (Single SMPS) |
| Power Consumption | Max. 138W (with 10TB HDD 8EA) |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (W x H x D) | 438.0 x 86.0 x 434.9 mm (17.47 x 3.39 x 17.12 inch) |
| Weight | 7.5kg (16.5lb, except HDD) |
| Intelligent Analysis | |
| AI Search / Object Attribute | Compatible with Hanwha AI Cameras |
