Hanwha - XRN-815S - 8 Channel Network Video Record Up To 12MP with 8 PoE/PoE+ Ports
Product Overview
The Hanwha XRN-815S is an 8-channel NVR with 8 integrated PoE/PoE+ ports (100W budget), supporting up to 12MP camera resolution. This NVR features H.265/H.264/MJPEG compression, up to 20TB RAW storage across 2 internal SATA HDD bays (up to 10TB each), 100 Mbps recording bandwidth, 32 Mbps playback bandwidth, and WiseStream technology. Dual HDMI outputs provide 4K and FHD display support.
Key Configuration
- • Channels: up to 8 IP camera inputs; supports resolution up to 12MP
- • Recording bandwidth: max 100 Mbps; playback bandwidth: max 32 Mbps
- • HDD bays: 2 SATA ports, up to 10TB per HDD (max 20TB total); HDDs not included
- • PoE ports: 8 × RJ-45 (10/100 Mbps) with PoE/PoE+, 100W total PoE budget
- • Network: 1 × RJ-45 (1 Gbps) WAN port
- • Video outputs: 2 × HDMI (HDMI1: 3840x2160 @30Hz, HDMI2: 1920x1080 @60Hz)
Key Features
Supports decoding up to 12MP@30fps or 8MP@60fps, with simultaneous playback of up to 32 channels. Features scheduled and event-based recording, alarm handling (4 inputs / 2 outputs), two-way audio, ARB backup, and N+1 failover. Includes plugin-free web access, P2P mobile connection via QR code, fisheye dewarping, and AI attribute search when used with compatible Wisenet AI cameras. Security features include IP filtering, 802.1X authentication, encrypted communications, signed firmware, and device certificates.
Technical Context
Features 8 integrated PoE/PoE+ ports with a 100W power budget for direct camera connectivity and simplified deployment. Supports plug-and-play setup with Hanwha cameras and dual HDMI outputs in clone or extended display modes. Compatible with Windows, macOS, Chrome, Edge, and Safari, and supports WAVE, SSM, Webviewer, Smart Viewer, and Wisenet Mobile applications.
Installation Notes

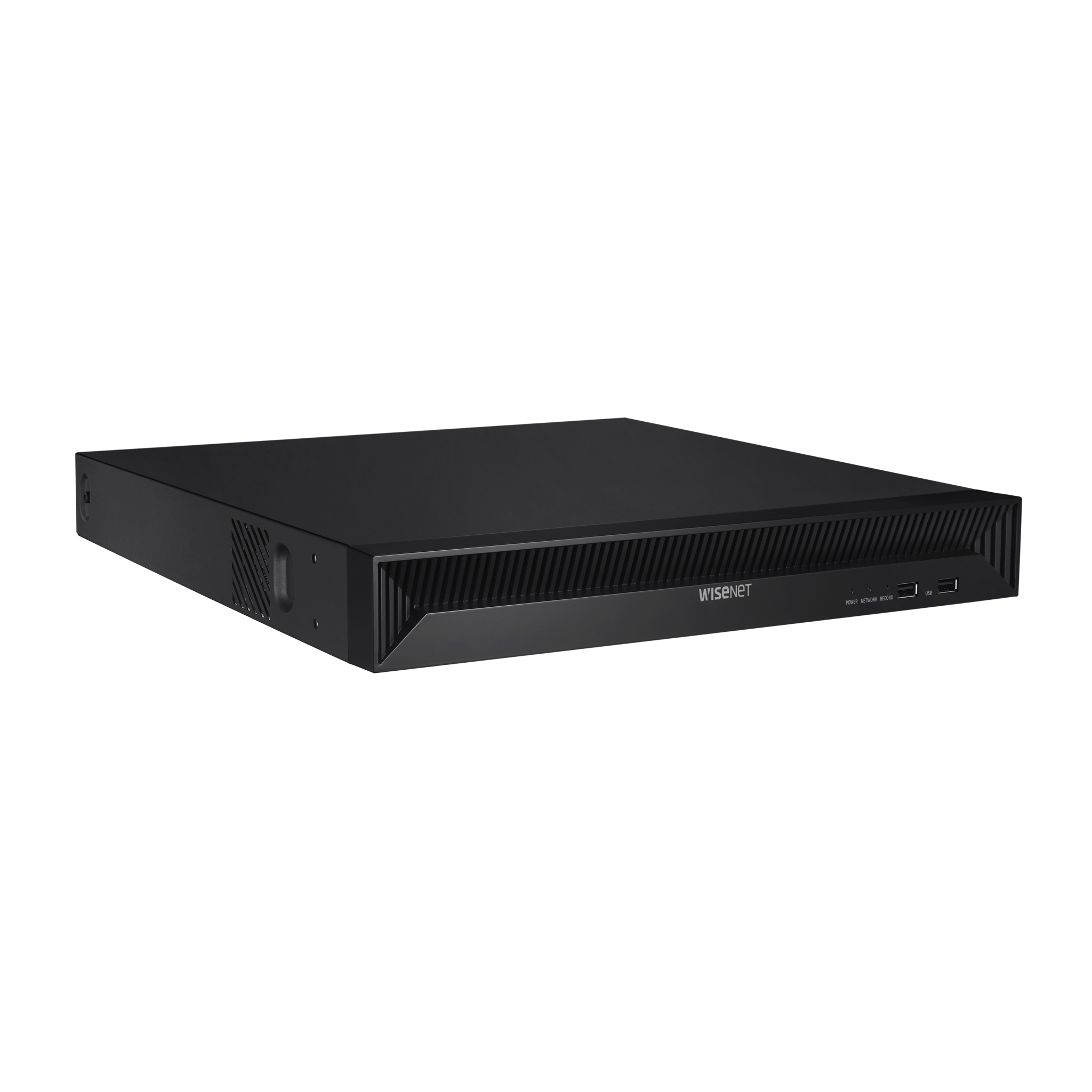

Metal NVR chassis measuring 370 × 50.7 × 320 mm (14.57 × 2.00 × 12.60 in.) and weighing 2.86 kg (6.31 lb). Operates from 0°C to 40°C with 20–85% RH. Powered by 100–240 VAC, with up to 165W consumption and a 100W PoE budget. Features front-panel power, record, and network indicators plus a reset button. Supports SATA drives up to 10TB each (HDDs not included).
| Display | |
| Network camera Inputs | Max. 8CH |
| Resolution | 12MP ~ CIF |
| Protocols | SUNAPI, ONVIF |
| Decoding | |
| Local Display | HDMI1: 3840x2160 (30Hz), HDMI2: 1920x1080 (60Hz) |
| Multi Screen Display | Clone Mode: Dynamic layout Expand Mode: HDMI1 Dynamic layout, HDMI2 up to 9 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Resolution [Local Monitor] | 12MP (30fps), 8MP (60fps), 1080p (240fps), 720P (240fps), D1 (480fps) |
| Performance | |
| Operating System | Embedded Linux |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 100Mbps |
| Resolution | 8MP ~ CIF |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous playback | Max. 32CH (Local 8CH, Remote 8CH per user) |
| Fisheye Dewarping | CMS |
| Search Mode | Date & Time (Calendar), Event list, Text Search, Smart Search |
| Playback Resolution | CIF ~ 12MP |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Supported HDD | Up to 10TB |
| HDD Slot | SATA 2ea (Max. 20TB) |
| Backup | |
| File backup | BU/Exe/AVI (GUI), JPG/AVI (Network) |
| Function | Multi channel (Up to 8CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 120Mbps |
| Audio | |
| Input/Output | 8CH (network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-Way |
| Max Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | |
| Security Features | IP address filtering, User access Log, 802.1x, Encryption, Device certificate (Hanwha Techwin Root CA), Signed firmware |
| Web viewer | |
| Supported OS | Windows 10, macOS 11 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile, Support CGI (SUNAPI) for integration to 3rd party VMS |
| Functions | |
| Camera Setup - Register | Auto, Manual |
| Camera Setup - Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon), Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| Control | Via GUI, Webviewer |
| Preset | 300 Presets |
| Smart phone | |
| Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Control | Live: Multi-Profile Support, Multi Channel Playback |
| Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy | |
| Failover | N+1 |
| ARB | Support |
| Easy configuration | P2P (QR code) |

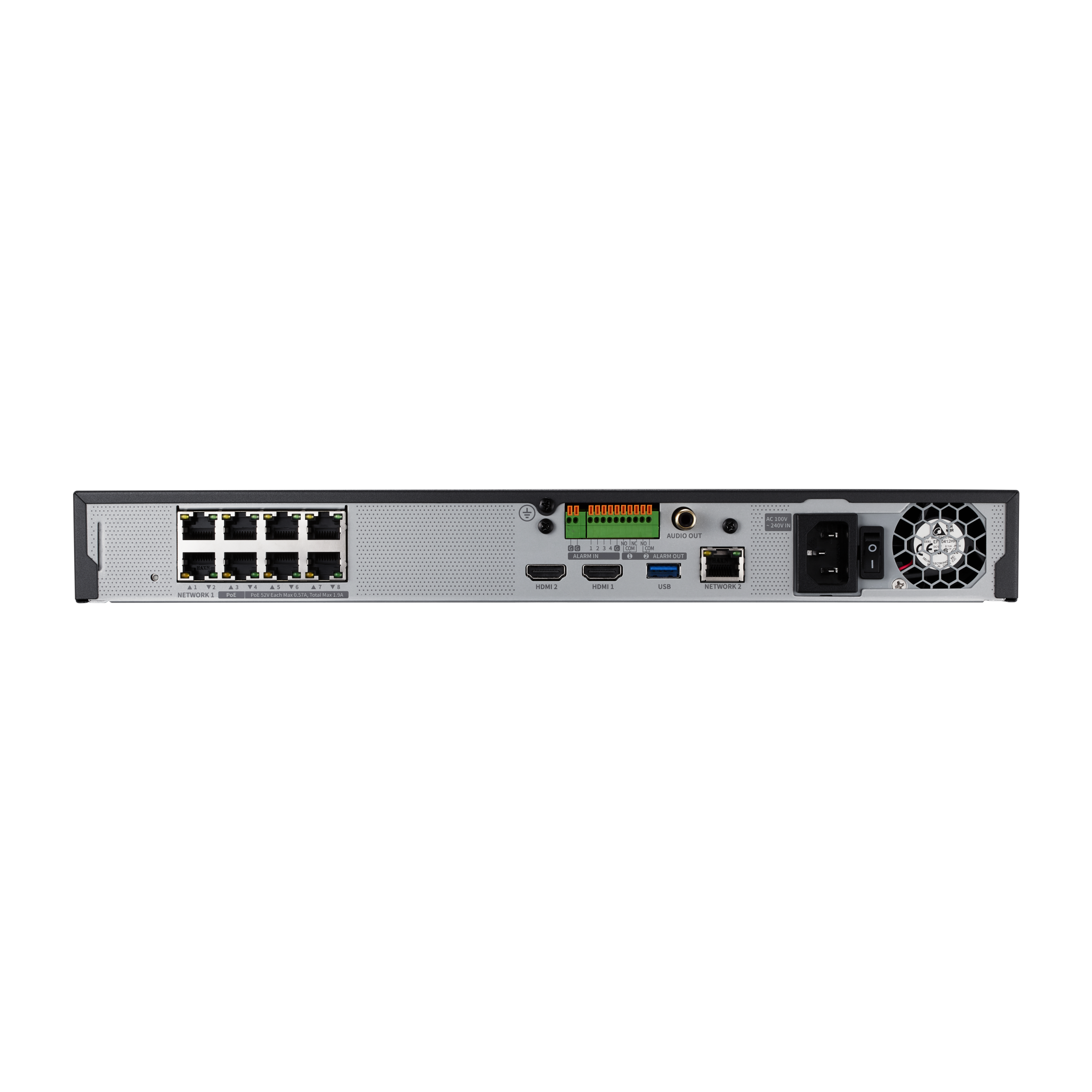

| Interface | |

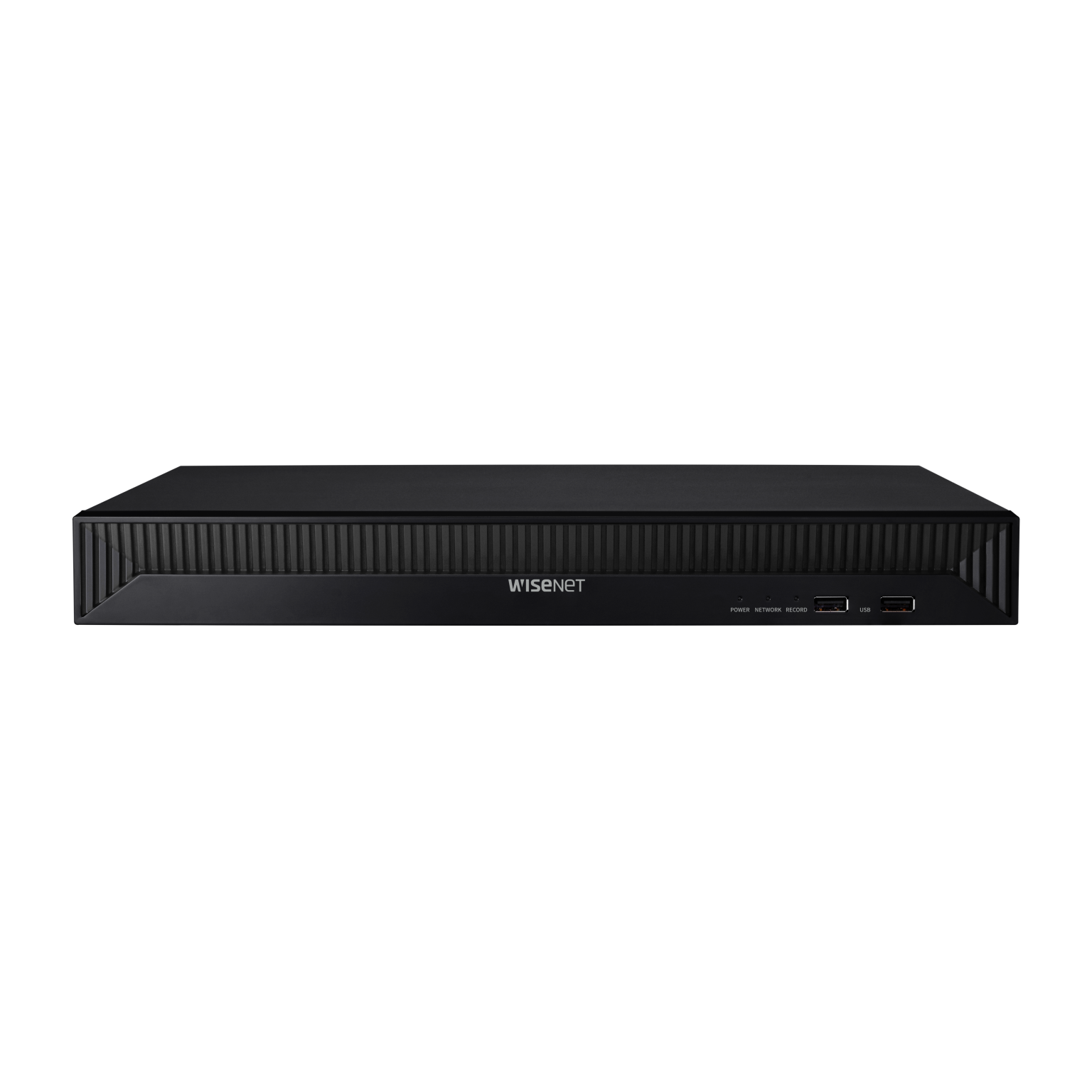

| Front Indicator | Power, Record, Network |
| Storage | OK |
| Reset | Support |
| HDMI | 2EA |
| Audio Out | 1EA (RCA output) |
| Ethernet | PoE+ RJ-45 (LAN, 10/100) 8ea, RJ-45 1ea (WAN, 1Gbps) |
| Alarm | In 4EA, Out 2EA |
| USB | 3EA (Front 2 x USB 2.0, Rear 1 x USB 3.0) |
| Power inlet | AC 1EA |
| System | |
| Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%, 50/60Hz |
| Power Consumption | Max. 165W (563 BTU with 2HDD, PoE On) |
| Power Consumption w/o PoE | 35W |
| PoE Budget | 100W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (W x H x D) | 370.0 x 50.7 x 320.0 mm (14.57 x 2.00 x 12.60 inch) |
| Weight | 2.86kg (6.31lb) |
| Intelligent Analysis | |
| AI Search / Object Attribute | Compatible with Hanwha AI Cameras |
