Hanwha - XRN-820S - 8 Channel Network Video Record with 8 PoE/PoE+ ports

Product Overview

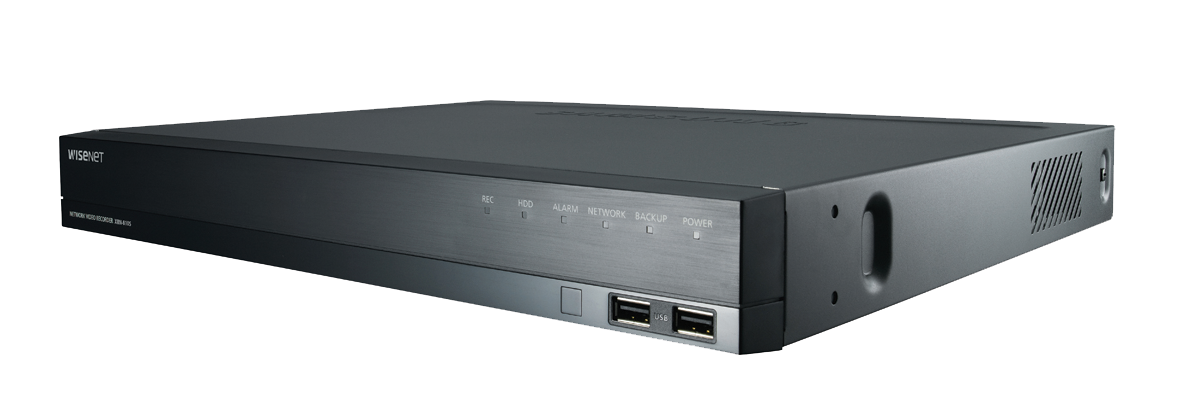

The Hanwha XRN-820S is an 8K Intel-based network video recorder (NVR) supporting up to 8 camera channels via 8 built-in PoE/PoE+ ports backed by a 100W total PoE budget. It features 2 fixed internal SATA HDD bays supporting up to 6TB per drive for a maximum storage capacity of 12TB (HDDs not included). Video processing is managed through H.265, H.264, and MJPEG compression codecs, delivering a recording bandwidth of 100 Mbps and a playback bandwidth of 32 Mbps while supporting dual-stream recording.,

Key Configuration

• • Channels: up to 8 IP camera inputs; PoE ports: 8 × RJ45 (10/100 Mbps), 100W total PoE budget
• • HDD bays: 2 × fixed internal SATA, up to 6TB per HDD (max 12TB); no HDD included
• • Recording bandwidth: 100 Mbps; playback bandwidth: 32 Mbps
• • Video outputs: HDMI (4K/3840×2160 @30Hz) and VGA (1920×1080 @60Hz) dual monitor
• • Dimensions: 370 × 50.7 × 324.3 mm (14.57" × 2" × 12.77"); weight: 2.7 kg (5.95 lb)

Key Features

Local decoding supports up to 32MP at 15 fps (H.265) or 1080p at 240 fps, while simultaneous playback handles 32 channels (8 local, 8 remote) via smart, calendar, or bookmark modes. It includes 8-channel network audio with two-way support, CMS fisheye dewarping, and a plugin-free Web UI 2.0. Reliability features include ARB and N+1 failover redundancy. Physical interfaces provide 2 Gigabit routing ports, 8 PoE (10/100 Mbps) network ports, 3 USB ports, 4 alarm inputs, and 2 outputs. System, camera, or dynamic events trigger automated actions such as email, push notifications, PTZ presets, alarm/monitor outputs, buzzer alerts, FTP uploads, or SUNAPI commands.

Technical Context

Running on embedded Linux, this NVR features security protections including IP filtering, user access logs, 802.1x, encryption, signed firmware, and Hanwha Techwin Root CA device certificates. It supports standard networking protocols alongside ONVIF Profile S and SUNAPI (server/client) compatibility. Web viewing is supported on Windows 10 and macOS 10.13+ via Chrome, Edge, and Safari. The black metal unit operates on a 100–240 VAC (±10%, 50/60 Hz) power input, featuring a maximum power consumption of 160W with a dedicated 100W PoE power budget.

Installation Notes

Measuring 370 × 50.7 × 324.3 mm and weighing 2.7 kg, this NVR features 8 built-in PoE/PoE+ ports backed by a 100W power budget and includes 2 fixed, non-hot-swappable internal SATA HDD bays. It operates from 0°C to 40°C under 20–85% RH and provides dual HDMI and VGA video outputs. System capabilities include a plugin-free Web UI 2.0, ARB, and N+1 failover redundancy. It supports a P2P QR code for mobile application pairing and enables specialized AI search features exclusively when deployed with Wisenet AI cameras.
