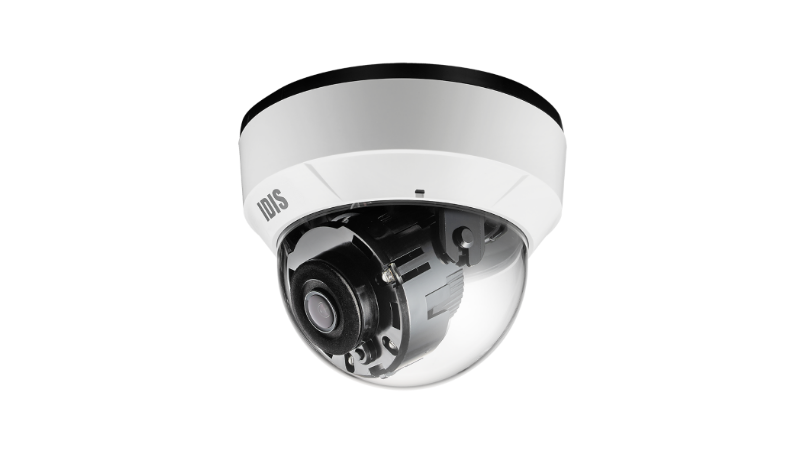

IDIS - DC-D4216RX - Full HD IR Dome Camera with 2.8mm Lens
Product Overview
IDIS DC-D4216RX 2.8mm is a Full HD (1080p) IR dome camera delivering 1920x1080 resolution. This dome camera features a fixed 2.8mm lens with 111.6° horizontal field of view, True WDR (120dB), and 30m IR illumination. H.265/H.264/M-JPEG compression with Intelligent Codec support provides efficient bandwidth management, with DirectIP 2.0 and ONVIF protocol compatibility.
Key Configuration
• 2MP (1920×1080) resolution at up to 30 fps with WDR enabled
• Fixed 2.8 mm F2.0 lens with 111.6° (H) / 61.45° (V) / 127.3° (D) field of view
• Power: PoE IEEE 802.3af Class 2, 4.6W consumption
• Storage: microSD/SDHC/SDXC slot supporting up to 256GB with Smart Failover edge recording
Key Features
2MP outdoor IR bullet camera with a 1/2.8" CMOS sensor, 120dB True WDR, and 30 m IR illumination for clear day/night surveillance. It supports H.265/H.264/MJPEG compression with intelligent codec, quad streaming, and two-way audio with multiple audio formats (G.711, G.726, ADPCM). The camera includes motion detection, tampering, trip-zone analytics, privacy masking (8 zones), and event triggers with email/image notifications. It supports SSL encryption, 802.1X authentication, IP filtering, and HTTPS security, with remote access via DirectIP NVR, web interface, and mobile apps.
Technical Context
Designed for DirectIP NVR integration via DirectIP 2.0 with ONVIF support for third-party VMS compatibility. It features Intelligent Codec for bandwidth optimization and Smart Failover, allowing microSD edge recording during network loss. A 3-axis mounting design (pan −170°~170°, tilt −5°~67.5°, rotate −109°~109°) enables flexible installation and precise positioning, with fixed iris lens control for stable image exposure.
Installation Notes
Compact dome camera Ø110 × 88 mm, 0.26 kg, with 3-axis mechanical adjustment for flexible installation and positioning. It operates from −10°C to +50°C (startup above 0°C) with 0–90% RH humidity tolerance and is powered via PoE IEEE 802.3af Class 2 with low 4.6W consumption. The device is FCC, CE, and KC certified.
| VIDEO | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 (f = 2.8 mm) |
| Iris Control | Fixed IRIS |
| Angular Field of View | 111.6º (H), 61.45º (V), 127.3º (D) |
| Pan / Tilt Range | Pan: -170° ~ 170°, Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109° |
| Min. Illumination | Color : 0.1 Lux @ F2.0 B/W : 0 Lux (IR LED On) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR Cut Filter with Auto Switch |
| IR Distance (LEDs) | 30 m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode Sharpness, Contrast, Colors, Brightness Control |
| Backlight Compensation | On / Off |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| NETWORK | |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - VBR / CBR H.264 - VBR / CBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920 x 1080, 1280 x 720, 640 x 360, 352 x 240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD / SDHC / SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (With Image) |
| Audio In / Out | 1(Built MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| ENVIRONMENTAL | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting Up at Above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| ELECTRICAL | |
| Power Source | PoE (IEEE 802.3af Class 2) |
| Power Consumption | PoE, IEEE 802.3af (Class 2), 4.6W |
| Approvals | FCC, CE, KC |
| MECHANICAL | |
| Dimensions | Ø110 x 88 mm (Ø4.33” x 3.46”) |
| Weight | 0.26 kg (0.57 lb) |
