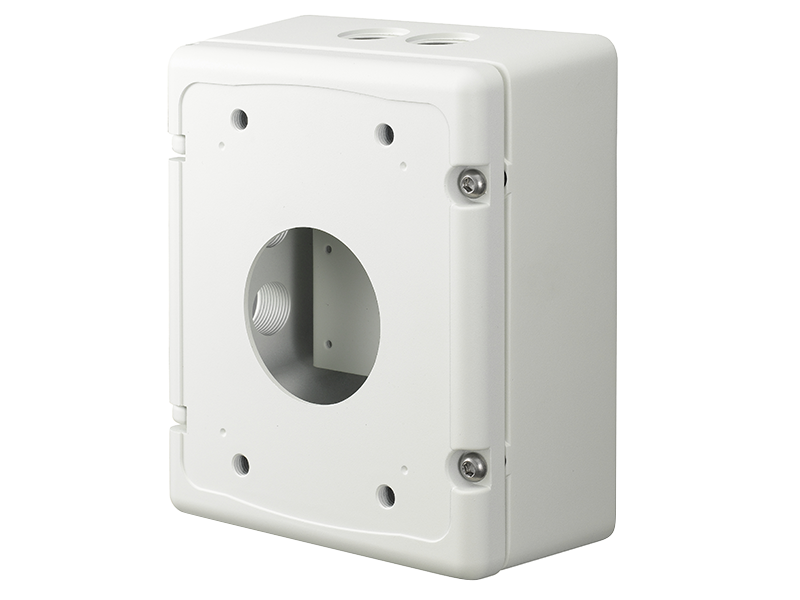

Hanwha - SBP-300NBW - Installation Back Box
Part number:
SBP-300NBW
Price:

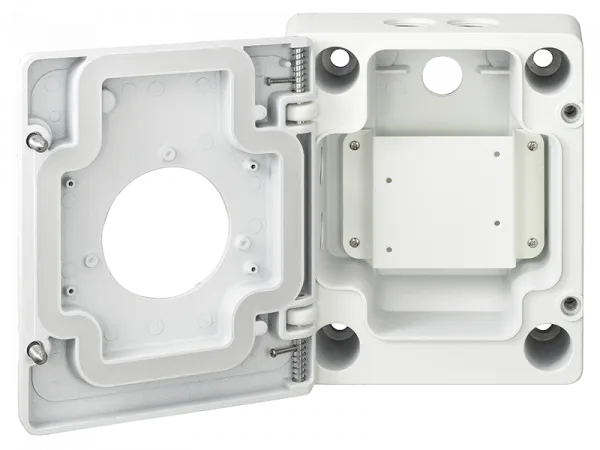

The Hanwha SBP-300NBW is a specialized, industrial-grade aluminum installation back box. While it provides the standard cabling depth and surface conduit entry points of a typical junction box, its primary engineering purpose is to house power supply accessories, such as a PoE injector or a compact power transformer, safely inside its weather-sealed cavity.
Key Features:
- • Material: Steel, Aluminum, Silicon
- • Dimension (W * H * D) 185 x 221 x 94.3mm
- • Weight: 3.4kg
- • Color: White
- • Ingress Protection: IP66
• Installation Back box compatible with (SBP-300WMW, SBP-300WMW1, SBP-300KMW, SBP-300PMW)
| Materials | Steel / Aluminum |
| Dimensions (WxHxD) | 185.0 x 221.0 x 94.3mm (7.28 x 8.7 x 3.71”) |
| Applicable Model | SBP- 300WM / 300WM1 / 300KM / 300PM SBP-300WMW / 300WMW1 / 300KMW / 300PMW |
| Weight | 3.4Kg (7.49 lb) |
| Color | White |
| Ingress Protection | IP66 |
