Jonard Tools - CF-200 - WiSpy - Multipurpose Wireless Inspection Camera & Cable Pulling Tool

Product Overview

Jonard Tools CF-200 WiSpy is a multipurpose wireless inspection camera and cable pulling tool with 720p HD resolution. This contractor-grade inspection camera features app-controlled variable focus for clear viewing as close as 2.5" (6cm), 50' wireless range via 2.4 GHz frequency.

Key Configuration

• Camera resolution: 720p HD with digital zoom via WiSpy App
• Wireless range: up to 50' (15 m) line of sight on 2.4 GHz frequency
• Battery: rechargeable up to 90 minutes of operating time (medium LED brightness)
• Camera dimensions: 3.25" × 1.25" × 1.25" (8.26 × 3.18 × 3.18 cm), camera weight: 0.1 lbs (45.4 g)

Key Features

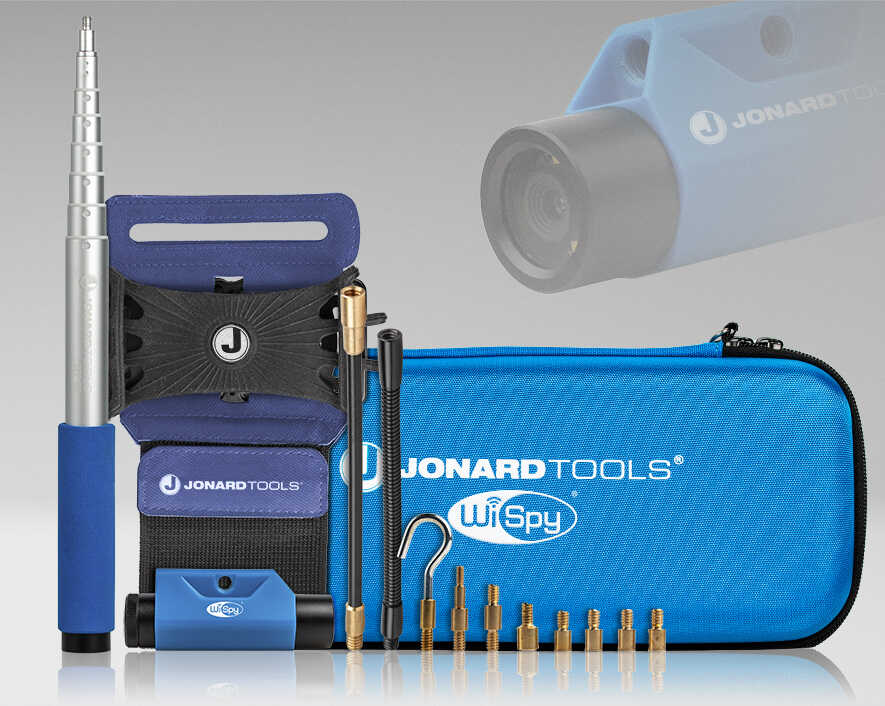

This device features an app-controlled variable focus lens for close-up inspection down to 2.5" (6 cm), plus “Always Up” mode to maintain correct image orientation and “Periscope Mode” for viewing over obstacles without adapters. Settings like resolution and Wi-Fi channel can be adjusted via the app. The kit includes a telescoping pole, wrist band, adapters, USB charger, extensions, hook and magnet, spare parts, and a carrying case.

Technical Context

The WiSpy CF-200 combines an inspection camera and cable pulling tool. Gooseneck and rigid extensions support access to tight spaces, while hook and magnet tools help retrieve items. Everything is stored in a protective EVA carrying case. It is IP67 rated for water resistance.

Installation Notes

Complete kit measures 11" × 5" × 2" (27.94 × 12.7 × 5.08 cm) and weighs 1.4 lbs (635 g). It operates from 0°C to 35°C, with a storage range from −20°C to 45°C, and runs on 5V DC via USB rechargeable battery (charger included). A free app is required for camera operation and control on iOS and Android.
