Jonard Tools - CP-475 - Pulley Set for Low Voltage Electrical, Network & COAX Cables (Pack of 2)
Part number:
CP-475
Price:

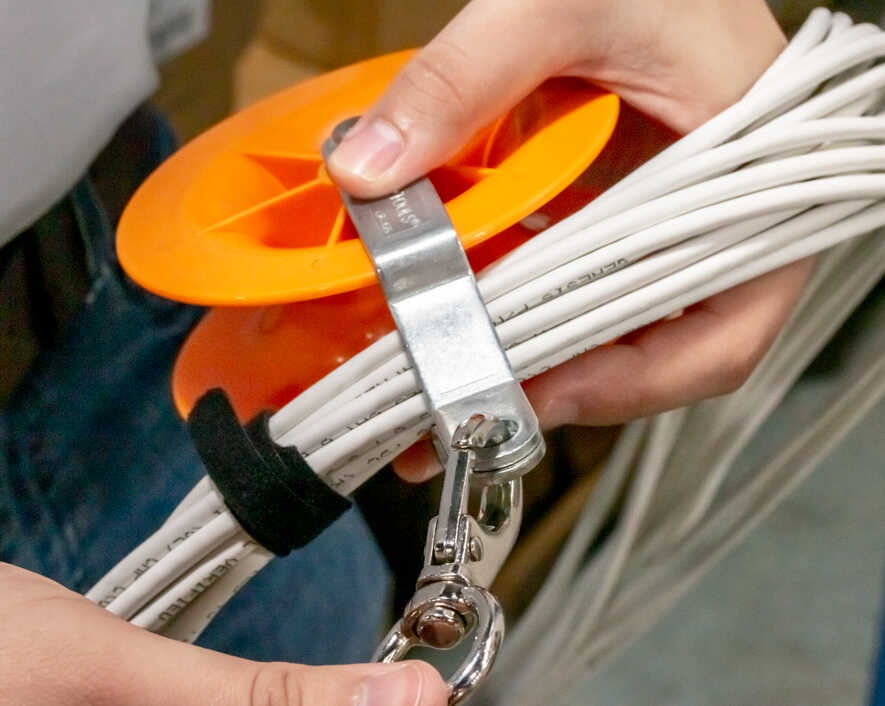

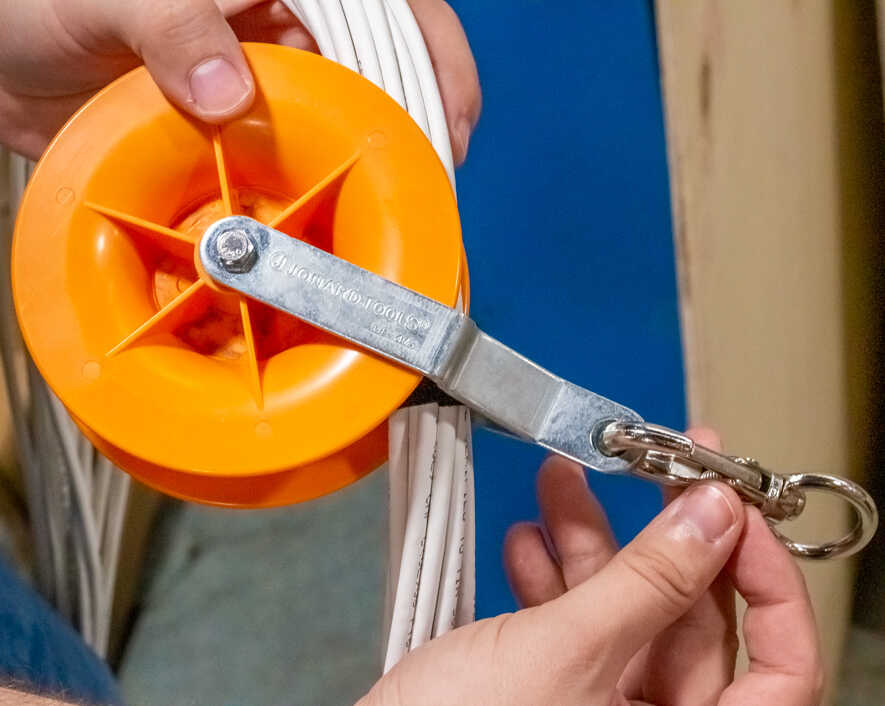

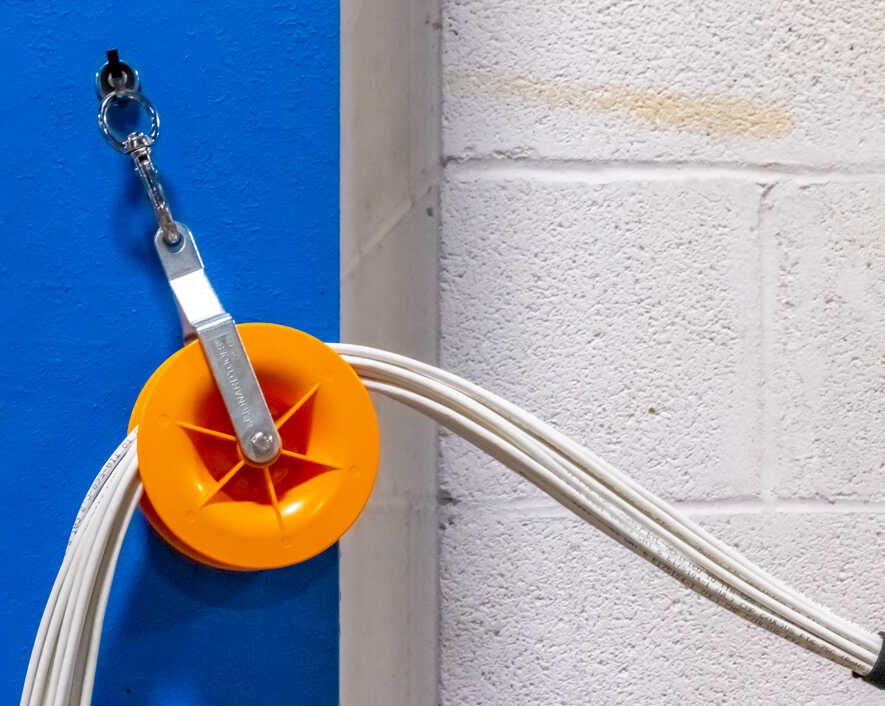

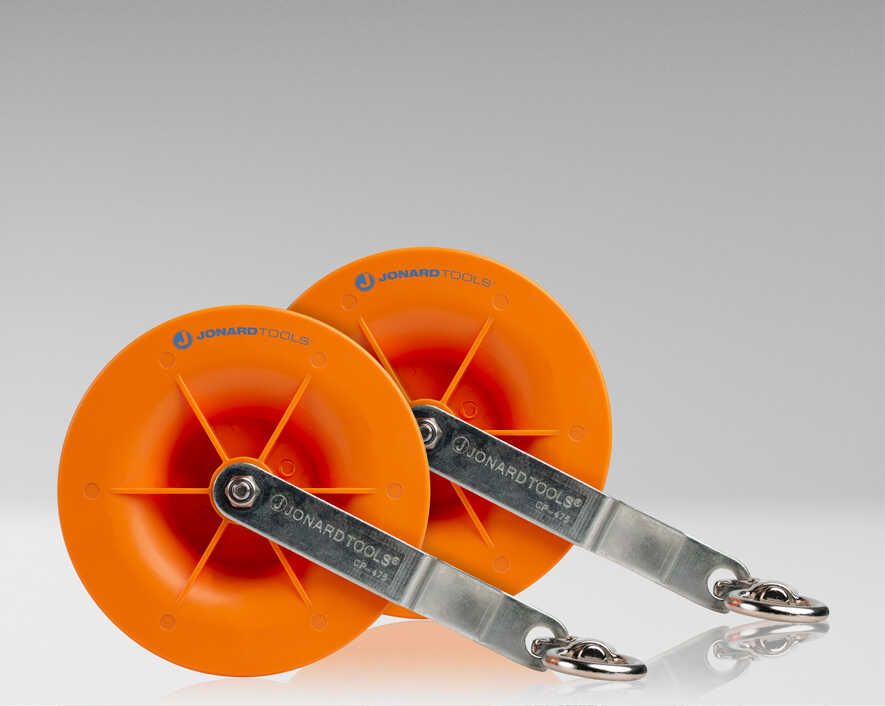

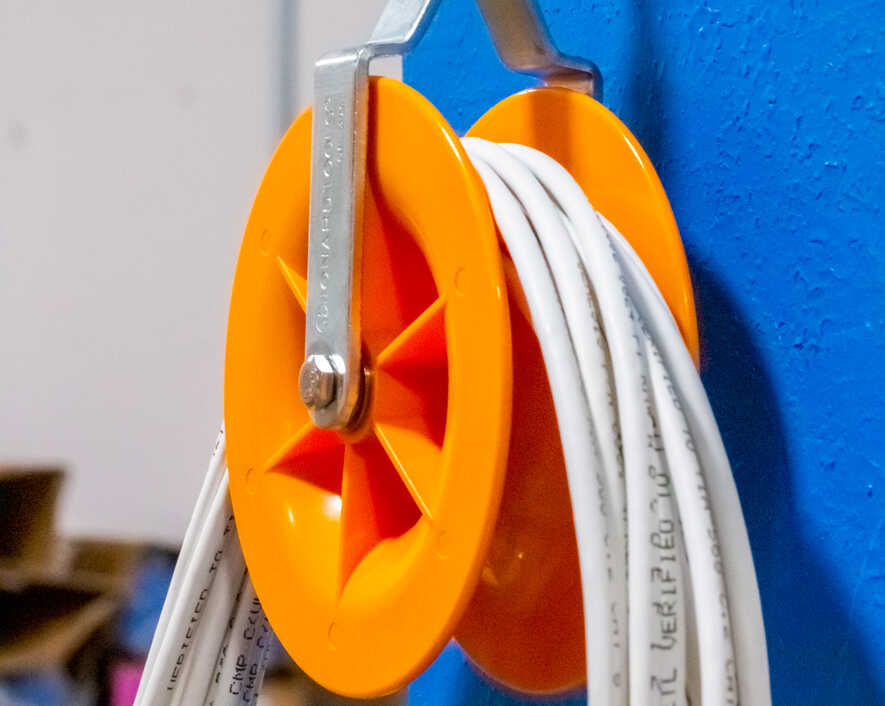

The CP-475 is a pair of cable pulleys designed to assist in pulling electrical, coaxial, network, and other low-voltage cables. Swivel snap hooks, deep grooves, and anti-friction bearings help keep cables properly aligned during installation, reducing snags and preventing kinks.
Key Features:
• Holds up to 20 CAT5/6 network cables
• Swivel snap hook installs easily and keeps pulley aligned with direction of pull to prevent kinks
• Anti-friction roller bearings and deep grooves allow smooth cable pulling
• Made from high-strength ABS plastic and zinc-coated steel for durability and long life
• Easy to remove after cable installation
• Includes 2 pulleys
| Number of cables | Up to 20 |
| Maximum weight capacity | 120 lb (54.43 kg) |
| Channel width | 1.43" (36.41 mm) |
| Diameter | 4.75" (12.07 cm) |
| Pulley weight (each) | 0.63 lb (287.58 g) |
| Total weight | 1.27 lb (576.06 g) |
