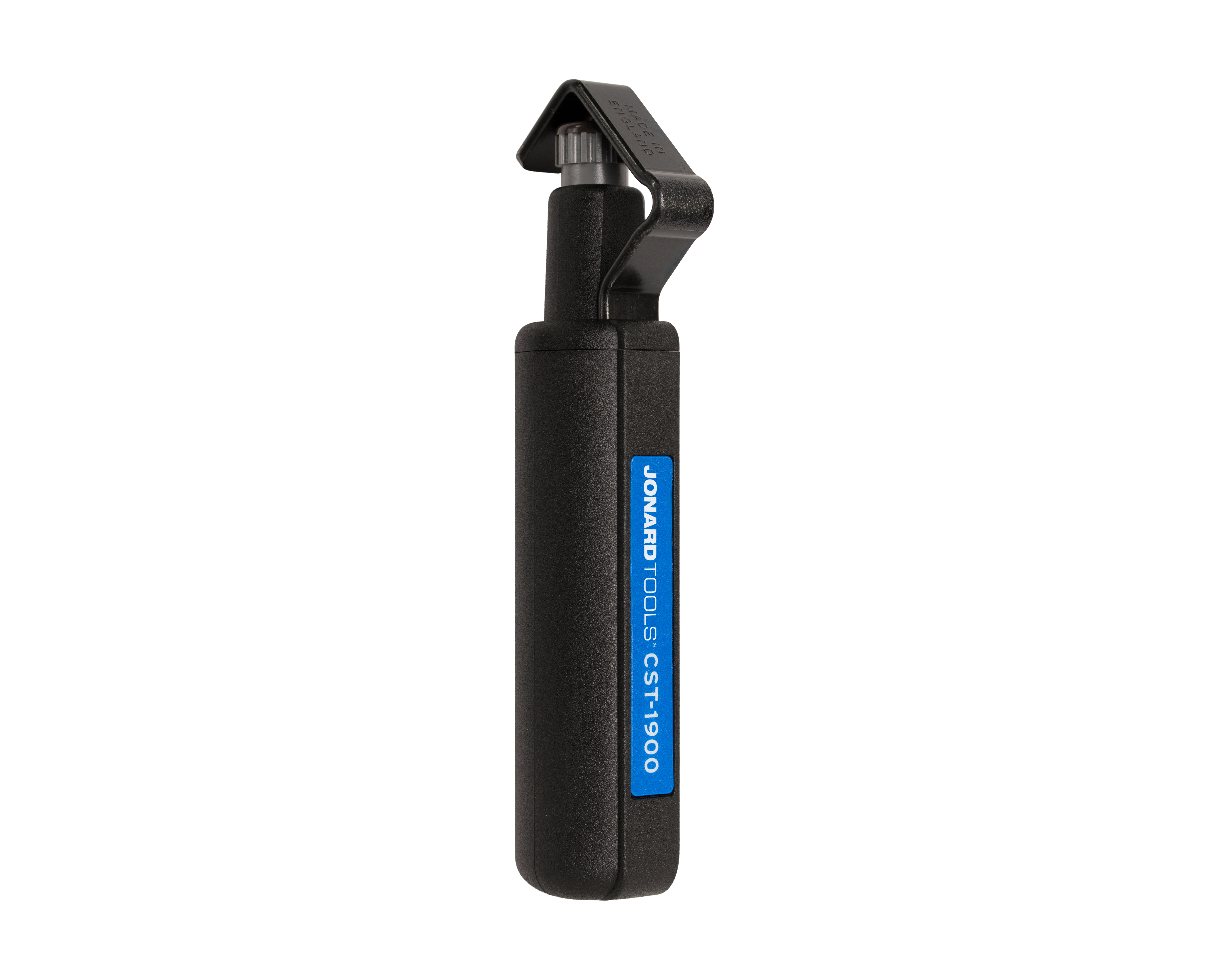

Jonard - CST-1900 - Round Cable Strip & Ring Tool

Part number:
CST-1900
Price:

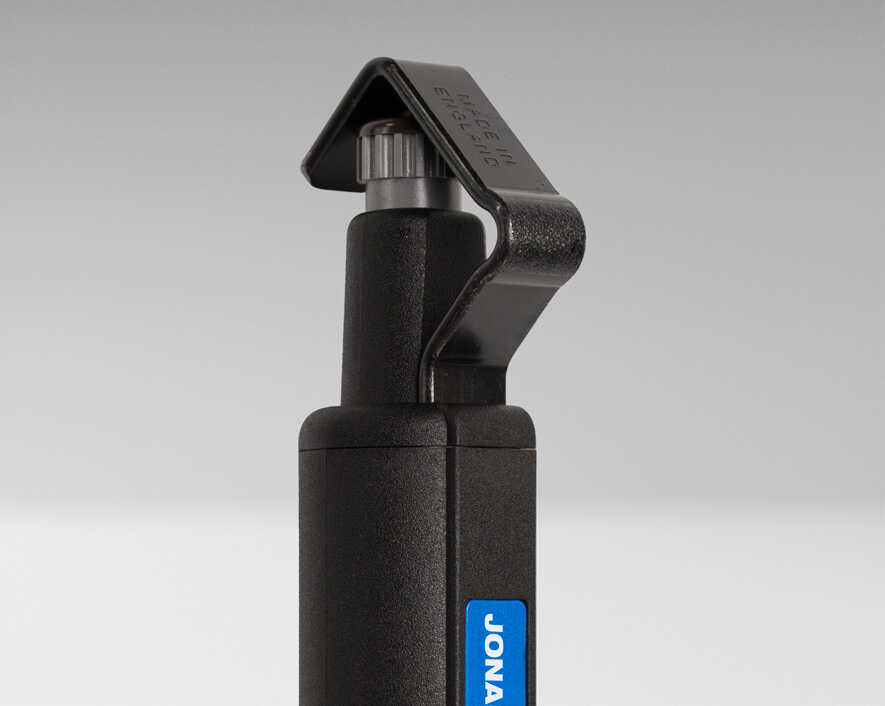

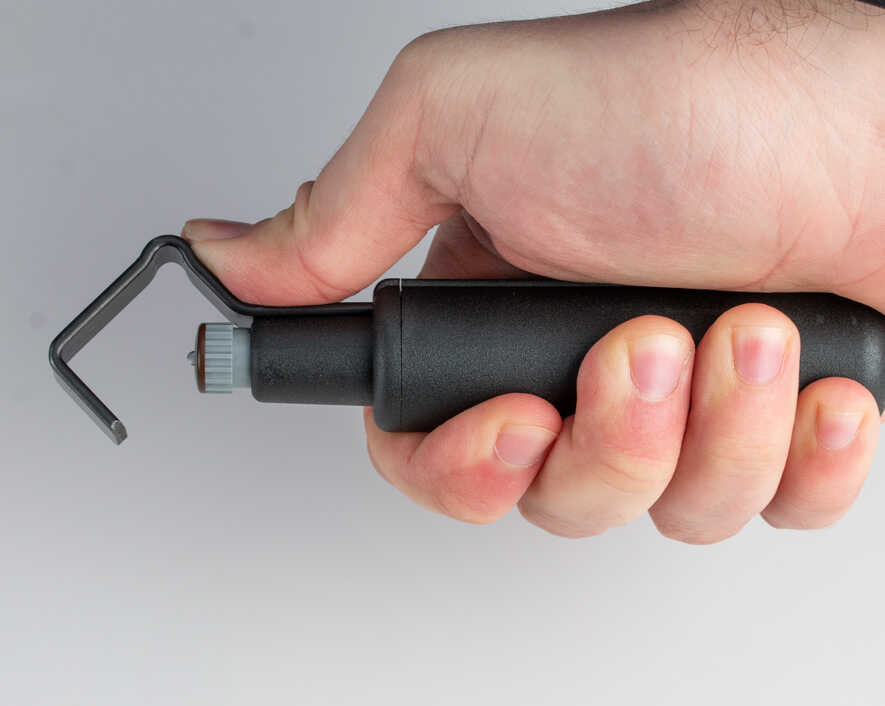

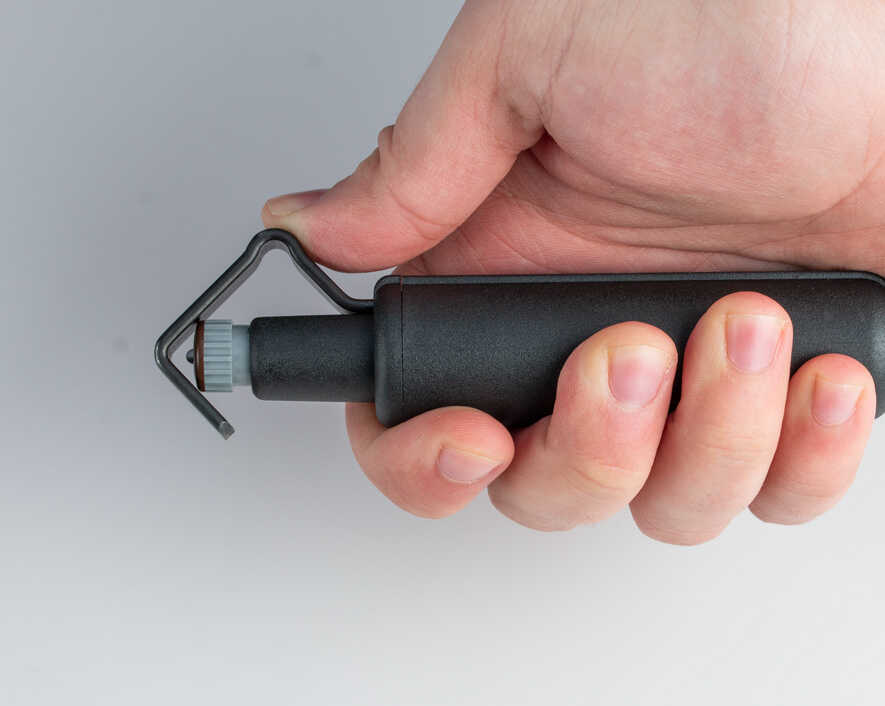

The Jonard Tools CST-1900 is a patented, professional-grade round cable stripping and ringing tool engineered for rapid, precise removal of outer insulation jackets from heavy-duty round cables spanning 3/16” to 1 1/8” (4.5 mm to 29 mm) in diameter.



Key Features:
• Patented stripping mechanism provides spiral stripping mode for removing tough insulation
• Cuts a variety of jacket materials, including PVC, rubber, PE, and more

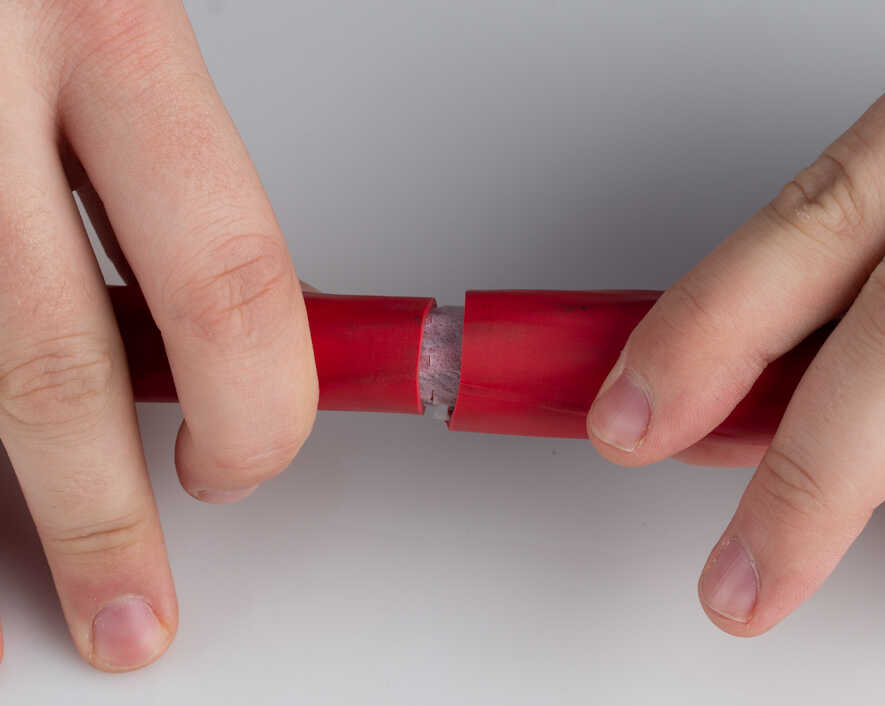

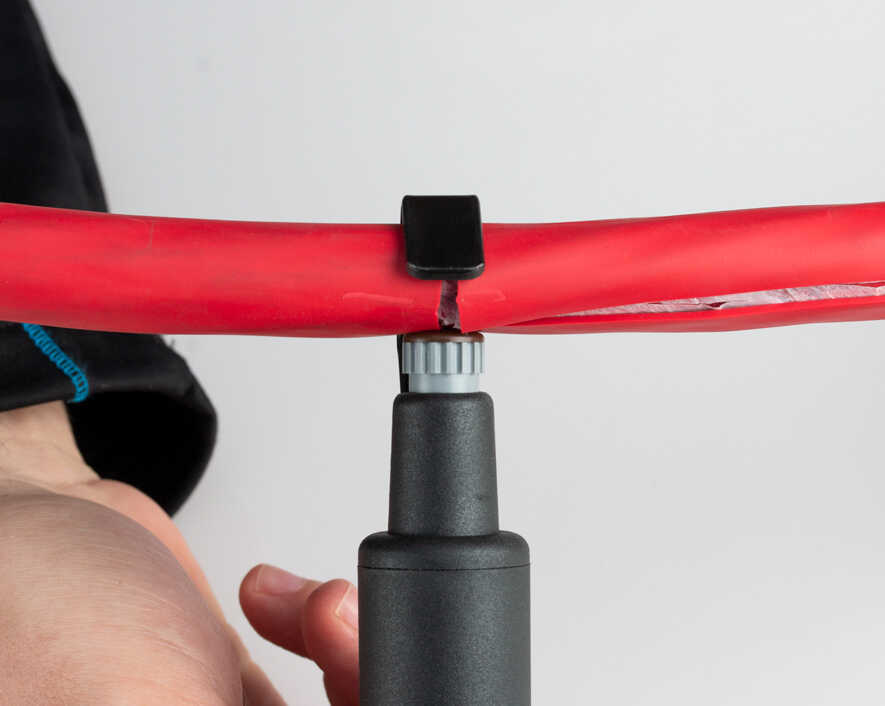

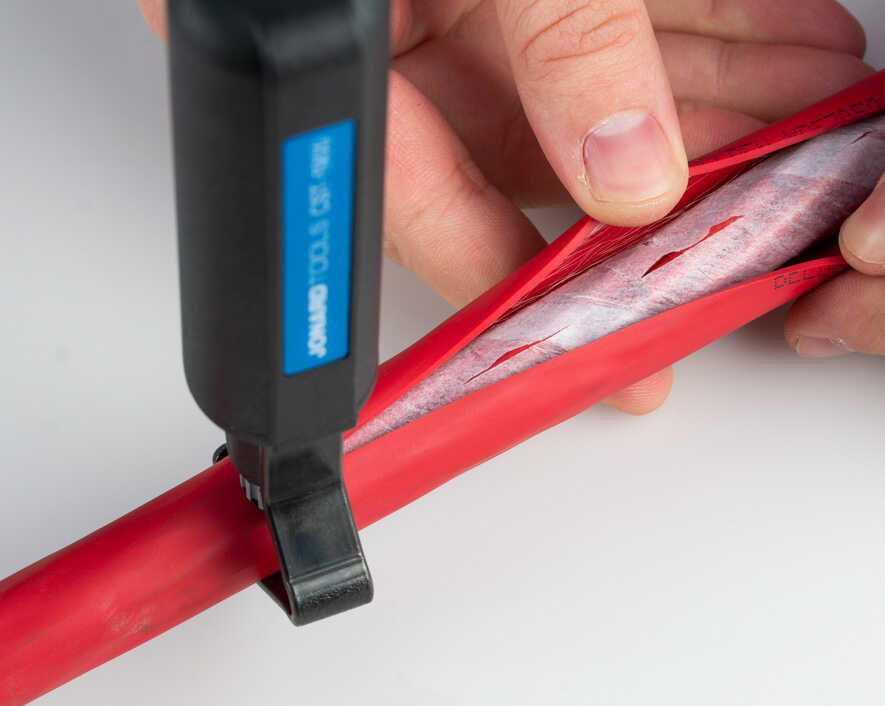

• Triple-action design supports longitudinal cuts, spiral cuts, and circular jacket removal
• Spring-loaded blade rotates 90° for versatile slitting and adjusts for cables 3/16" to 1 1/8" (4.5–29 mm) diameter

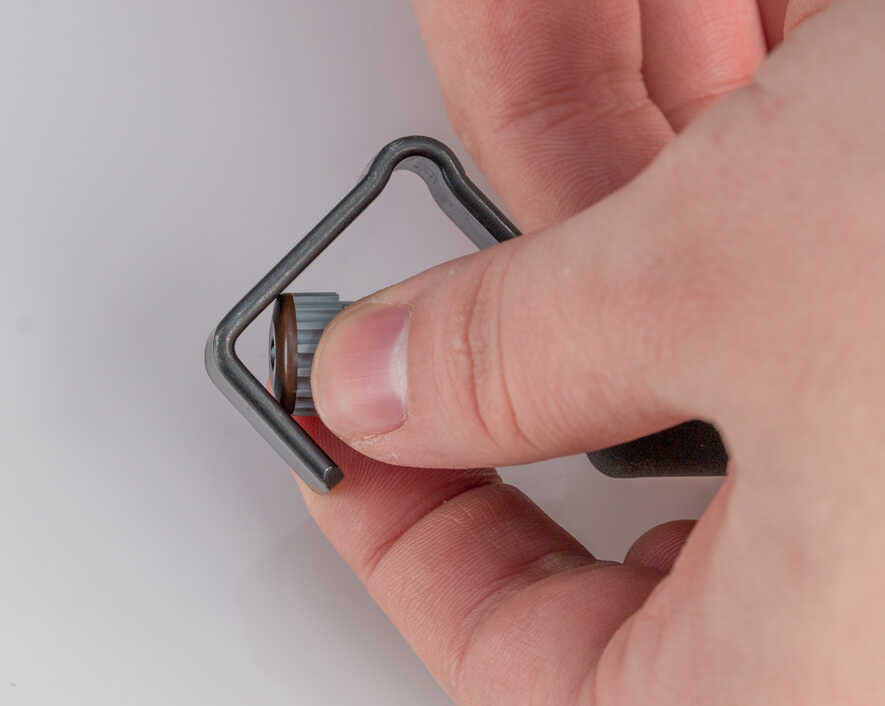

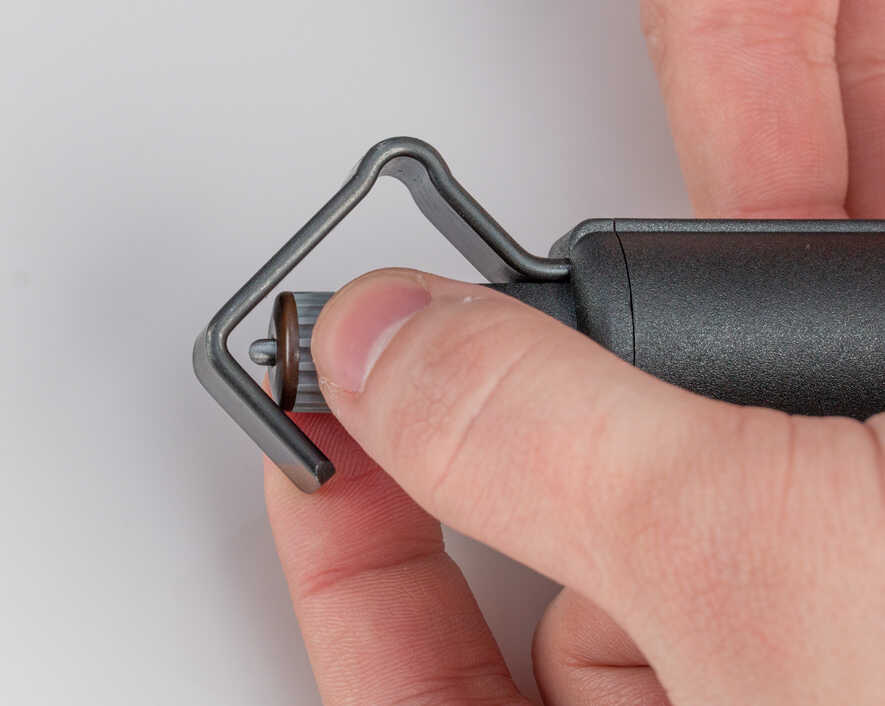

• Blade depth adjustable from 0–3 mm
• Replacement blade available (part #: CST-7915)

Cut TypeSlit, Ring
Cable TypeJacket, Round Distribution
Cable Diameter3/16"-1 1/8" (4.5 mm-29 mm)
Blade Depth0 mm-3 mm
Overall Length5 1/4" (133 mm)
Dimensions5.4 in x 1.49 in x 1.2 in (13.7 cm x 3.78 cm x 3.04 cm)
Weight0.21 lb (95.34 g)
UPC #811490011977
