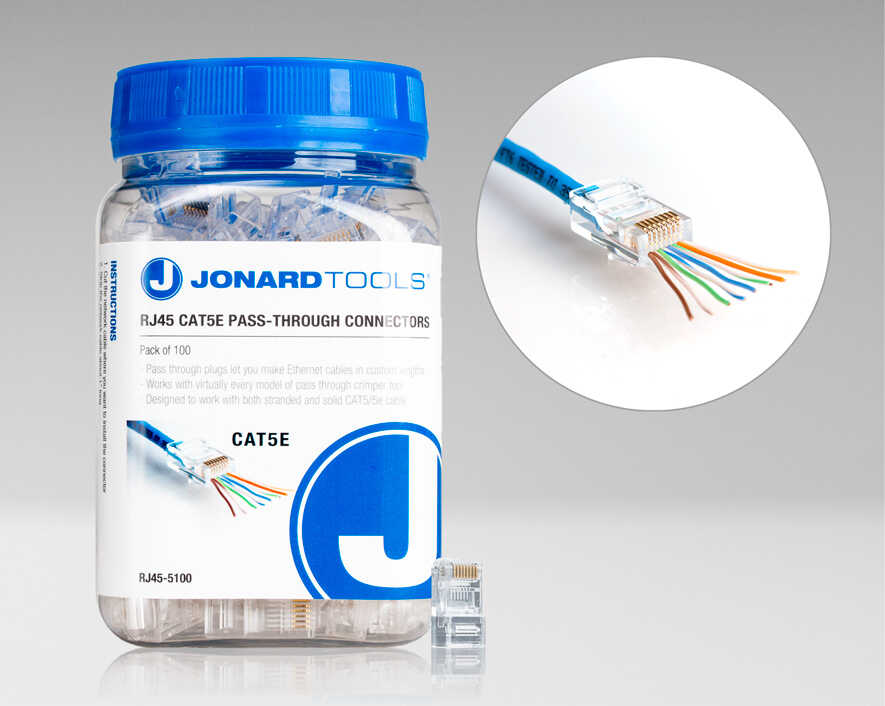

Jonard Tools - RJ45-5100 - RJ45 Cat5/5e Pass-Through Connectors, 100 Pcs In Jar

Part number:
RJ45-5100
Price:

The Jonard Tools CAT5e RJ45 Pass-Through Connectors are designed for network installers and technicians to terminate CAT5e cables using a pass-through crimping tool. They are suitable for residential and commercial use and can be used to terminate round network cables or replace existing connectors.



Key Features:
• 50-pin gold-plated contact surfaces provide improved signal quality
• Tripoint-type prongs support both stranded and solid CAT5/CAT5e cables

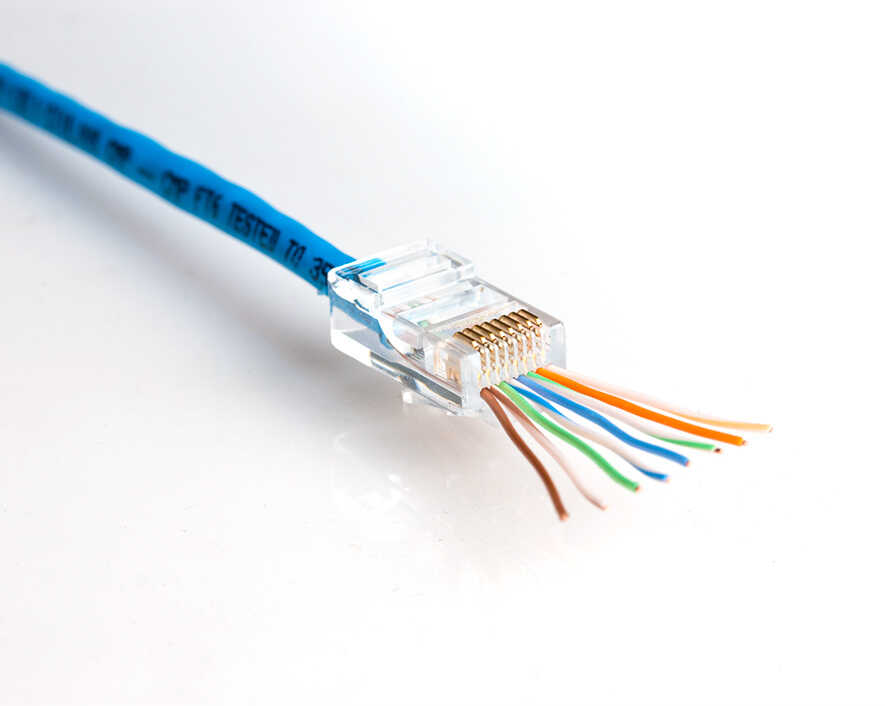

• Pass-through design simplifies twisted pair termination by allowing wires to pass through the connector
• Eliminates the need to measure and cut wires beforehand, reducing risk of poor connection and signal loss
• Clear housing allows easy visibility of wire pairs during installation
• Packaged in a jar for convenient storage

ModelRJ45-5100
Cable typeCAT5, CAT5e Network Cables
Connector typeThree-prong RJ45
Plating thickness50 micro-inches
Housing materialPolycarbonate
StandardsUL 94V-2, RoHS Compliant
Operating temperature-10° to 60°C
