Jonard Tools - WSC-826 - Wire Stripper And Crimper For 8-26 Awg

Part number:
WSC-826
Price:

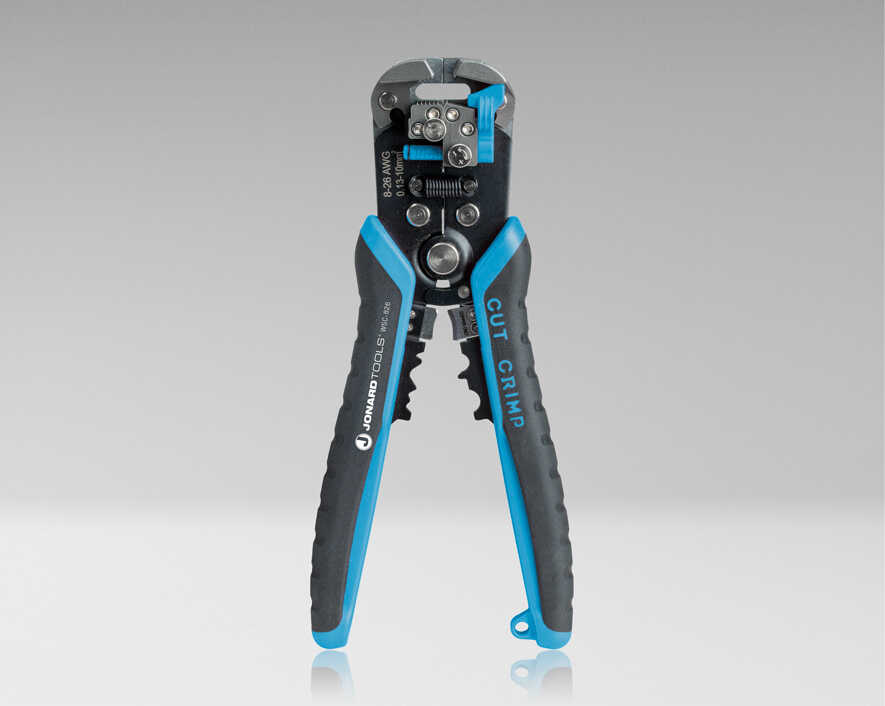

The Jonard Tools WSC-826 is a multi-function wire stripper designed to cut and strip wires from 8–26 AWG (0.40–3.26 mm) without requiring any adjustments.

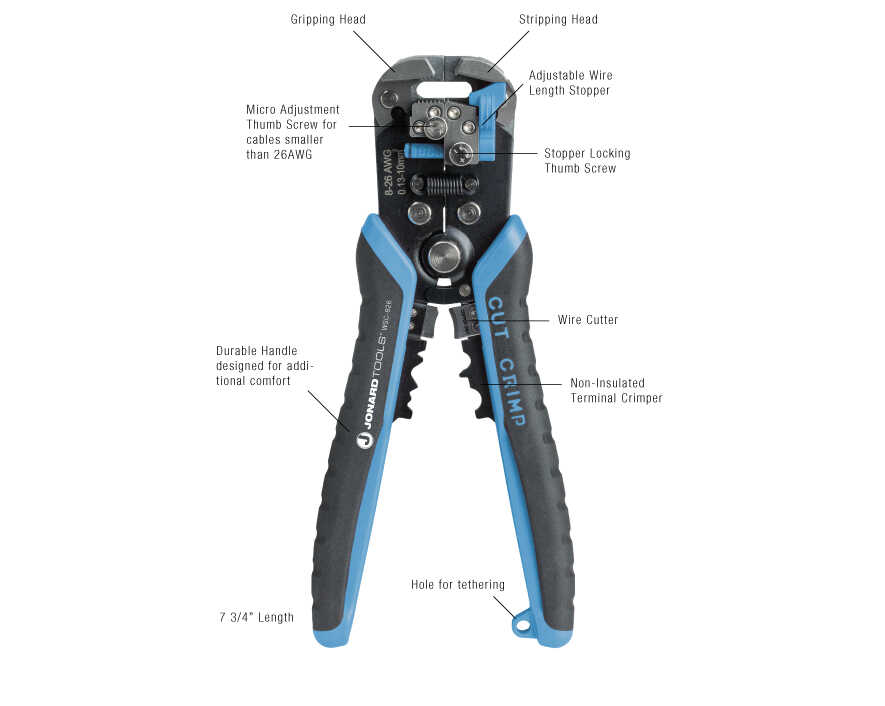

Key Features:
• Perfect for stripping Romex 12 AWG and 14 AWG cables and most stranded or solid conductors
• Functions as a wire stripper, cutter, and crimper for non-insulated terminals

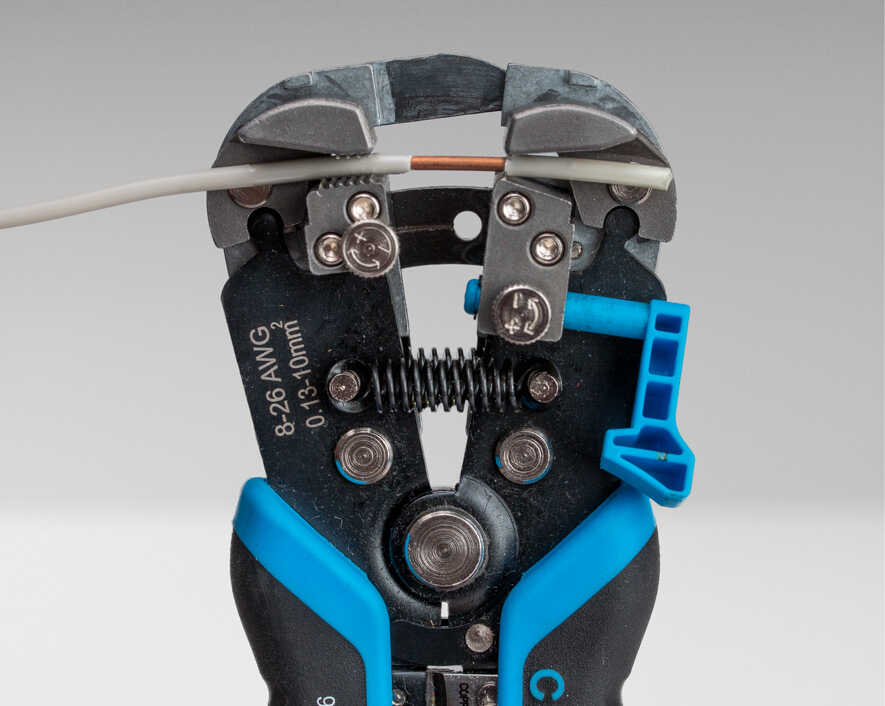

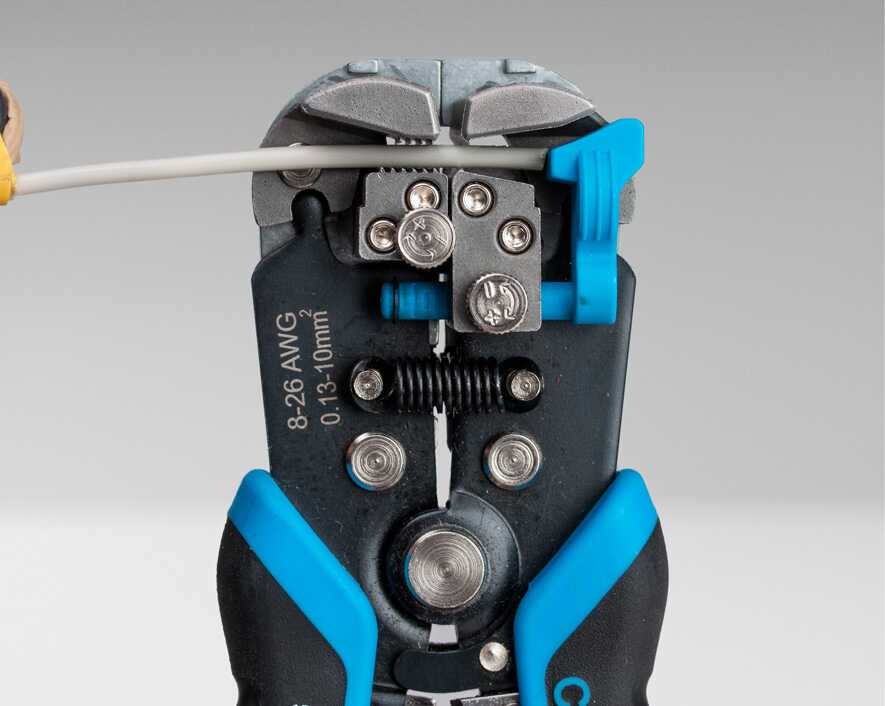

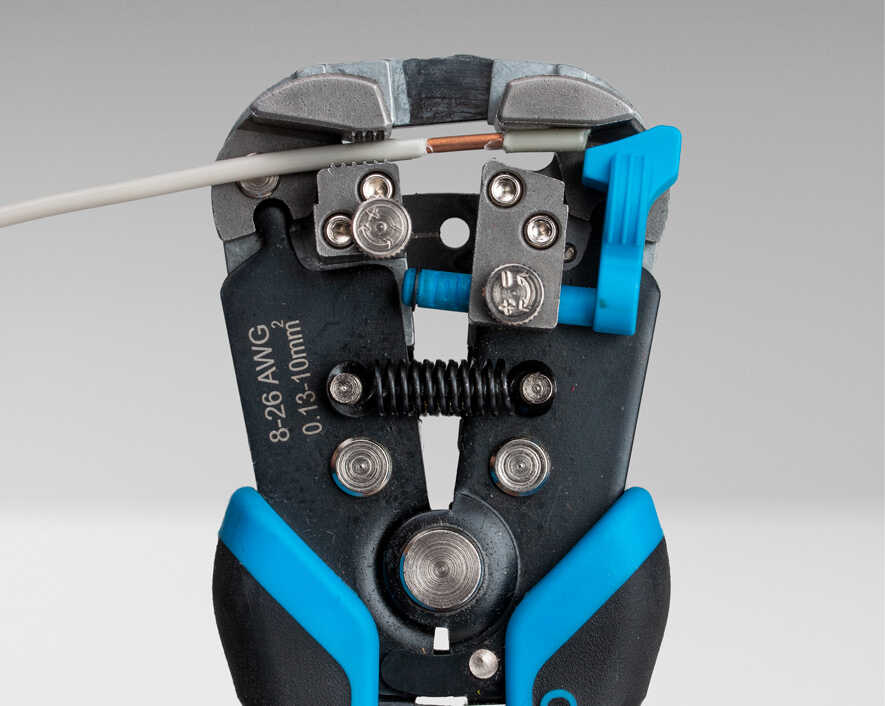

• Built-in adjustable wire stop ensures precise and consistent stripping results
• Micro-adjustment knob supports cables from 30 AWG up to 8 AWG
• Crimper supports non-insulated terminals from 22–10 AWG
• Separate crimper designed for 7–8 mm ignition wires

Wire gauge8 AWG - 26 AWG (0.40 mm - 3.26 mm)
Overall length7 3/4" (19.7 cm)
Dimensions8.06 in x 3.63 in x 1.2 in (20.48 cm x 9.22 cm x 3.05 cm)
Weight0.78 lb (355.936 g)
UPC #811490017771
