PDK - RDRKP - Key Pad Proximity Reader, 26 bit, Compatible, Wiegand

Product Overview

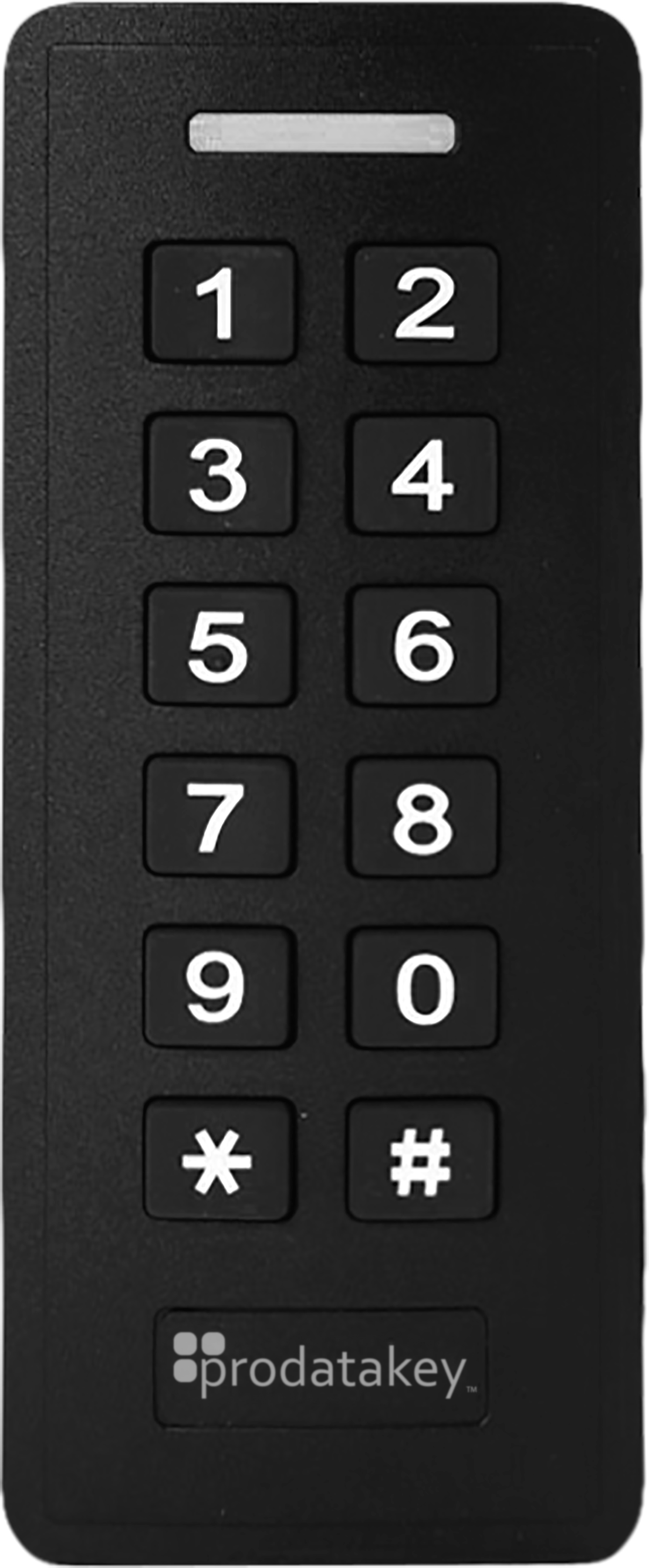

The PDK Prox & PIN Keypad Reader is a 125 kHz proximity reader with an integrated keypad for indoor/outdoor applications, supporting proximity credentials, PIN entry, or two-factor authentication (credential + PIN). Output is a 26-bit Wiegand protocol. Includes one to five-year warranty.

Key Configuration

• Frequency: 125 kHz (proximity)
• Output protocol: 26-bit Wiegand
• Authentication modes: Proximity only, PIN only, or two-factor (credential + PIN)
• Power: 9-18 VDC; max amperage 35 mA
• Dimensions: 1.9" W x 4.8" H x 0.875" D
• Weight: 0.33 lbs (5.3 oz / 150 g)

Key Features

The Prox & PIN Keypad Reader supports 125 kHz proximity cards with an integrated keypad for PIN entry, enabling two-factor authentication (card + PIN) or PIN-only access for flexible security control. It outputs 26-bit Wiegand for compatibility with most access control systems and is designed for indoor or outdoor use in a compact 1.9" W × 4.8" H × 0.875" D enclosure. The device operates from -35°C to +60°C, supports 0–95% non-condensing humidity, runs on 9–18 VDC with low power consumption, and includes a 1–5 year warranty.
