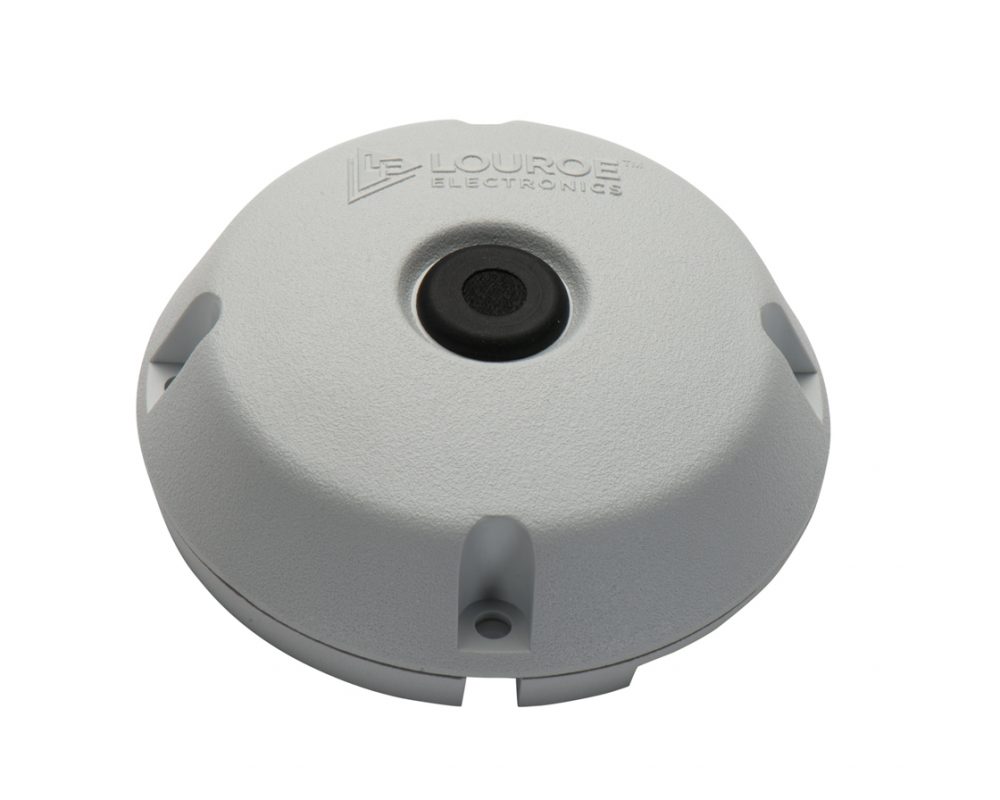

LOUROE - LE-070 - Ceiling Mount Microphone

Product Overview

The Louroe Electronics LE-070 (Verifact Model A) is an omni-directional electret condenser microphone with a built-in preamp for line-level audio output. It is designed for ceiling or wall mounting and provides a pickup radius of approximately 15 ft (30 ft diameter). The microphone offers a frequency response of 50 Hz to 15 kHz and a sensitivity of -45 dBV/Pa. Its high-impact antistatic ABS dome housing ensures durability and compatibility with Louroe Base Stations.


Key Configuration

• Sensitivity: -45 dBV/Pa (1 Pa = 94 dB SPL)
• Frequency response: 50 Hz to 15 kHz
• Output: Line level (0 dBV, 600Ω @ 1 kHz)
• Supply voltage: 12 Vdc; current draw: 10 mA
• Pickup pattern: approximately 15 ft radius (30 ft diameter circle)

Key Features

Omni-directional electret condenser microphone with built-in preamp and selectable gain (Normal/Low). Designed for wall or ceiling mounting in a durable anti-static ABS housing. Supports installation distances up to 1000 ft from the Louroe Base Station and is powered directly by the base station with no external power required. Fully compatible with all Louroe Base Stations.

Technical Context

Produces line-level audio (0 dBV @ 600Ω) for direct connection to Louroe Base Stations without external amplification. Built-in preamp removes the need for separate microphone preamplifiers. Omni-directional pickup captures sound within an approximate 15 ft radius. Two-position gain switch (Normal/Low) allows adjustment for different acoustic environments, and the ABS dome housing helps reduce static discharge interference.

Installation Notes

Ceiling or wall mount design with compact 4" diameter × 1.5" height housing. Model A weighs 3.5 oz (approx. 99 g), with 1 lb shipping weight. Constructed from high-impact anti-static ABS material. Can be installed up to 1000 ft from the Louroe Base Station and is powered directly by it (12 Vdc, 10 mA draw). Note: Model B includes an extension cable for positioning the microphone 3'–10' from the dome housing for high-ceiling installations.
