Luminys - K54-4D1A2 - 4 Channel 4 x 5MP LumiDeterrent IP Bundle Cameras
Product Overview

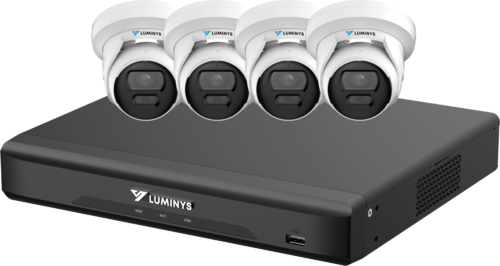

The Luminys K54-4D1A2 is a complete security kit featuring a 4K network video recorder and four 5MP turret cameras with wide-angle 2.8mm fixed lenses. The NVR simplifies installation via four built-in plug-and-play PoE ports, manages an 80 Mbps bandwidth using efficient H.265 compression, and includes a 2TB pre-installed hard drive expandable up to 20TB.
Key Configuration
• PoE Ports: 4 channels, 36W total budget (25.5W max per port).
• Storage: 1 SATA bay, 2TB pre-installed (supports up to 20TB).
• Bandwidth: 80 Mbps incoming, 60 Mbps outgoing.
• Decoding (AI On): 1CH @12MP, 1CH @8MP, or 3CH @4MP (all 30 fps).
• Decoding (AI Off): 1CH @12MP, 2CH @8MP, or 4CH @4MP (all 30 fps).

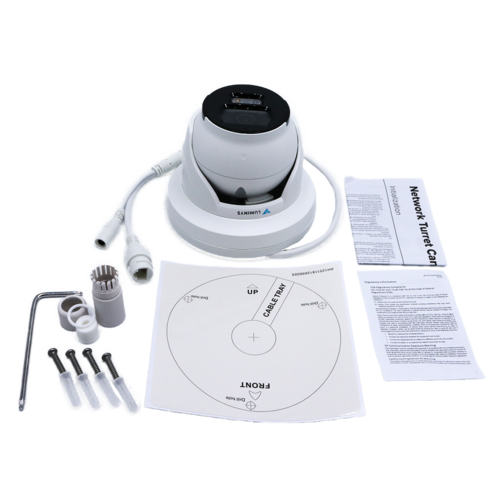

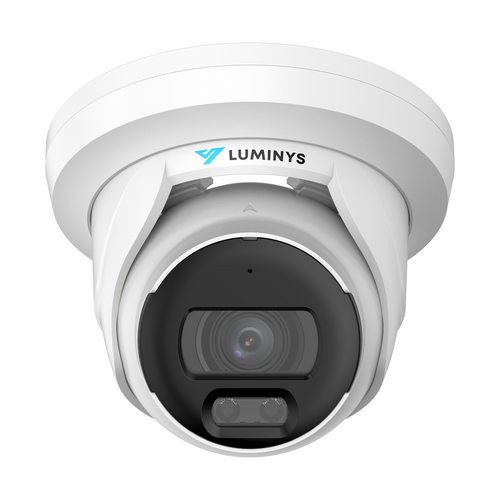

• Cameras: 5MP turret, 2.8mm fixed lens, flashing lights, and speaker.
Key Features
Supporting video resolutions from 12MP down to standard quality, this recorder outputs local video through VGA and 4K HDMI ports with 1- or 4-channel simultaneous playback. It supports ONVIF and RTSP protocols for easy network setup, and allows remote monitoring via LumiViewer desktop and mobile apps. To streamline footage review, the system features dual RCA audio connections and four channels of smart detection, letting you quickly search recordings specifically for people or vehicles. The matching cameras use this AI to eliminate false alarms, combining full-color video with flashing white lights and loud audio alerts to actively scare off intruders.
Technical Context
This NDAA and FCC-compliant NVR supports standard network protocols, including HTTPS, IPv6, RTSP, and DDNS, and features a Gigabit WAN port alongside four PoE ports. Running on a 53V DC power supply with a low consumption under 10W without drives, it includes front and rear USB 2.0 ports. For video processing, the unit handles recording, live view, and playback resolutions ranging from ultra-HD 12MP down to CIF using efficient H.265, H.264, and MJPEG decoding formats.
Installation Notes
Measuring 260 × 233.2 × 43.7 mm (10.2" × 9.2" × 1.7") and weighing 1.9 kg (4.1 lb) without a drive, this compact unit comes with a 2TB HDD pre-installed and operates between -10°C to 55°C (14°F to 131°F). Its four built-in PoE ports supply network and power to the matching 5MP, 2.8mm turret cameras within a 36W total power budget, ensuring seamless integration within the Luminys ecosystem.
| Video | |
|---|---|
| Video Input | Four (4) Channels |
| Recording Resolutions | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Live View/Playback Resolutions | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | H.265, H.264, H.264H, H.264B, MJPEG |
| Synchronous Playback View | 1, 4 Views |
| HDMI Output | 4K (3840 × 2160), 1920 × 1080, 1280 × 1024 |
| VGA Output | 1920 × 1080, 1280 × 1024 |
| Decoding Capability (AI On) | • 1CH at 12MP (30 fps) • 1CH at 8MP (30 fps) • 3CH at 4MP (30 fps) |
| Decoding Capability (AI Off) | • 1CH at 12MP (30 fps) • 2CH at 8MP (30 fps) • 4CH at 4MP (30 fps) |
| Audio | |
| Audio Input | One (1) RCA Channel |
| Audio Output | One (1) RCA Channel |
| Intelligent Analytics | |
| Supported Analytics by NVR | Intelligent Motion Detection (Four (4) Channels) |
| Smart Search Function | Search by Target Classification and Event Type |
| Network | |
| Bandwidth (AI On) | Incoming/Recording: 80 Mbps | Outgoing: 60 Mbps |
| Bandwidth (AI Off) | Incoming/Recording: 80 Mbps | Outgoing: 60 Mbps |
| Network Protocols | |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability Standard | ONVIF, RTSP |
| Management Client Software | LumiViewer, LumiViewer Mobile App |
| Hardware Interfaces | |
| SATA Interface | One (1) Port |
| Hard Drive Support | 2 TB Pre-Installed HDD (Up to Max. 20 TB per HDD) |
| Network Uplink Port | One (1) RJ-45 Self-Adaptive Ethernet Port (10/100/1000 Mbps) |
| PoE Camera Ports | Four (4) RJ-45 Self-Adaptive Ethernet Ports (10/100 Mbps) |
| USB Interfaces | Front Panel: One (1) USB 2.0 Port | Rear Panel: One (1) USB 2.0 Port |
| Electrical | |
| Power Supply Input | 53 VDC, 1.22 A |
| NVR Power Consumption | Less than 10 W (Without HDD Installed) |
| PoE Power Standard | IEEE 802.3 af/at |
| PoE Power Output Budget | Total Budget: 36 W (Max. Output for a Single Port: 25.5 W) |
| Mechanical | |
| Housing Form Factor | Mini 1U |
| Product Dimensions (W x L x H) | 260.0 mm × 233.2 mm × 43.7 mm (10.2 in. × 9.2 in. × 1.7 in.) |
| Weight | 1.9 kg (4.1 lb) Without HDD Installed |
| Operating Temperature | -10 °C to 55 °C (10 °F to 131 °F) |
| Operating Humidity | 10% to 93% |
| Regulatory Certification | FCC Certified |
| Legal Compliance | NDAA Compliant |
