Luminys - K54-4L1A2 - 4 Channel 5MP LumiLuxLite IP Bundle

Product Overview

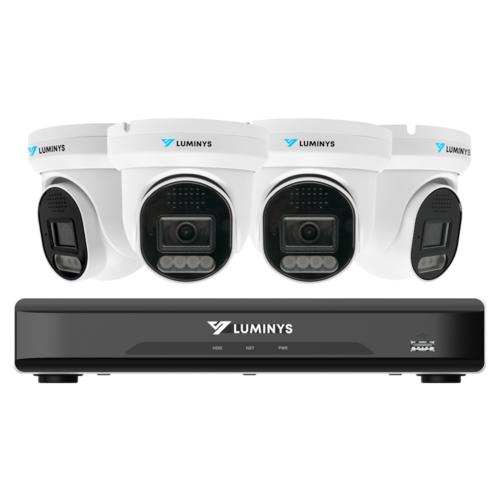

The Luminys K54-4L1A2 is a complete security kit that includes one 4K R3 Series NVR and four 5MP turret cameras with 2.8 mm fixed lenses. The system features 4 PoE plug-and-play ports, a pre-installed 2TB HDD expandable up to 10TB, HDMI/VGA outputs, and H.265/H.264/MJPEG support with up to 80 Mbps recording bandwidth. The cameras use LumiLuxLite technology for full-color day/night video and include Intelligent Motion Detection (iMD). The kit is FCC and NDAA compliant, with cameras compatible exclusively with R3 recorders.

Key Configuration

• NVR channels: 4 IP camera inputs.
• PoE ports: 4 × RJ45 (10/100 Mbps, IEEE 802.3af/at), 36W total PoE budget (25.5W max per port).
• HDD: 1 × SATA bay, 2TB pre-installed (up to 10TB max per HDD).
• Recording bandwidth: 80 Mbps incoming/recording, 60 Mbps outgoing.
• Decoding capability: 2 channels at 8MP (30 fps) or 4 channels at 1080p (30 fps).
• Cameras: 4 × 5MP turret housing, 2.8 mm fixed lens, LumiLuxLite (IR and white-light LEDs).


Key Features

The NVR supports recording resolutions from 8MP to CIF, with HDMI output up to 4K and VGA output, plus synchronous playback in 1 or 4 views. It supports ONVIF and RTSP interoperability and works with the LumiViewer desktop and mobile app. The cameras feature LumiLuxLite technology, automatically switching from IR to white-light LEDs for full-color video when motion is detected, then returning to IR mode afterward. Intelligent Motion Detection (iMD) accurately filters humans and vehicles to reduce false alarms, while Smart Search enables quick playback searches by target type and time. Audio connectivity includes 1 RCA input and 1 RCA output.

Technical Context

Supports major network protocols including HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, SNMP, DHCP, DNS, and DDNS. It records and plays back video in resolutions from 8MP down to CIF using H.265, H.264, and MJPEG decoding. Connectivity includes front and rear USB 2.0 ports, one Gigabit RJ45 WAN port, and four PoE RJ45 ports. The system is powered by a 48V/53V DC supply and consumes less than 10W without an HDD installed.

Installation Notes

Measures 260 × 233.2 × 43.7 mm and weighs 1.9 kg without the HDD. It includes four PoE ports with a total 36W power budget for camera connectivity and power, plus a pre-installed 2TB HDD and HDMI/VGA outputs for local monitoring. The system operates in temperatures from -10°C to 55°C with 10–93% humidity. Included cameras are 5MP turret models with 2.8 mm fixed lenses and LumiLuxLite full-color technology. The cameras are compatible exclusively with R3 recorders and fully integrate within the Luminys ecosystem.
