Luminys - K54-4L1A2 - 4 Channel 5MP LumiLuxLite IP Bundle

Product Overview

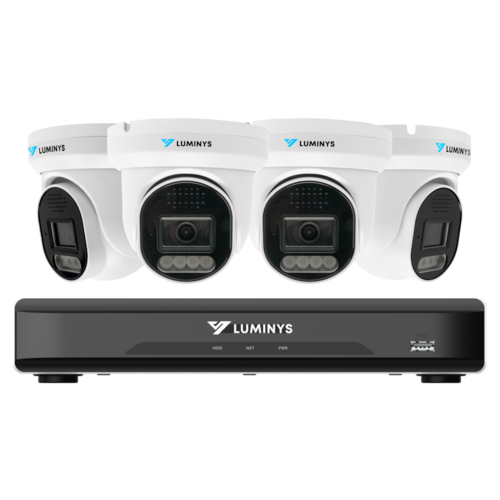

The Luminys K54-4L1A2 is a complete surveillance system consisting of one R3 Starter Series 4K NVR and four 5MP turret cameras with 2.8 mm fixed lenses. The NVR includes 4 PoE plug-and-play ports, a 2TB pre-installed SATA HDD (up to 10TB), HDMI/VGA outputs, support for H.265/H.264/MJPEG decoding, and up to 80 Mbps recording bandwidth. The cameras use LumiLuxLite technology for automatic IR and white-light switching to provide full-color video day and night, along with Intelligent Motion Detection (iMD) for improved motion accuracy. The cameras are designed to work exclusively with R3 recorders.

Key Configuration

• NVR channels: 4 IP camera inputs. PoE ports: 4 × RJ45 (10/100 Mbps, IEEE 802.3af/at), 36W total PoE budget (25.5W max per port).
• HDD: 1 × SATA bay, 2TB pre-installed (up to 10TB max per HDD).
• Recording bandwidth: 80 Mbps incoming/recording, 60 Mbps outgoing.
• Decoding capability: 2 channels at 8MP (30 fps) or 4 channels at 1080p (30 fps).
• Cameras: 4 × 5MP turret housing, 2.8 mm fixed lens, LumiLuxLite (IR and white-light LEDs).

Key Features

Supports recording from 8MP to CIF, with HDMI output up to 4K (3840×2160) and VGA output, plus synchronous playback in 1 or 4 views. It is compatible with ONVIF and RTSP and works with the LumiViewer desktop and mobile app. The cameras feature LumiLuxLite technology, automatically switching from IR to white-light LEDs when motion is detected for full-color video, then returning to IR mode afterward. Intelligent Motion Detection (iMD) reduces false alarms by accurately filtering humans and vehicles, while Smart Search enables fast retrieval by target type and time. The system also includes audio support via 1 RCA input and 1 RCA output.

Technical Context

Protocols include HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, SNMP, DHCP, DNS, DDNS, UPnP, SMTP, UDP, and NTP. It records and displays video from 8MP down to CIF with matching live view and playback resolutions, using H.265, H.264, and MJPEG decoding formats. Connectivity includes front and rear USB 2.0 ports, one Gigabit RJ45 WAN port, and four 10/100 Mbps PoE ports for cameras. The system is powered via 48V/53V DC and consumes less than 10W without an HDD installed. It is FCC certified and NDAA compliant.

Installation Notes

Measures 260 × 233.2 × 43.7 mm and weighs 1.9 kg. It features 4 PoE ports with a total 36W power budget for camera connectivity, a pre-installed 2TB HDD, and HDMI/VGA outputs for local monitoring. The system operates in temperatures from -10°C to 55°C with 10–93% humidity tolerance. It includes four 5MP turret cameras with 2.8 mm fixed lenses and LumiLuxLite technology and is fully integrated within the Luminys ecosystem.
