Luminys - K56-8L1A2 - 8 Channel 5MP LumiLuxLite IP Kit

Product Overview

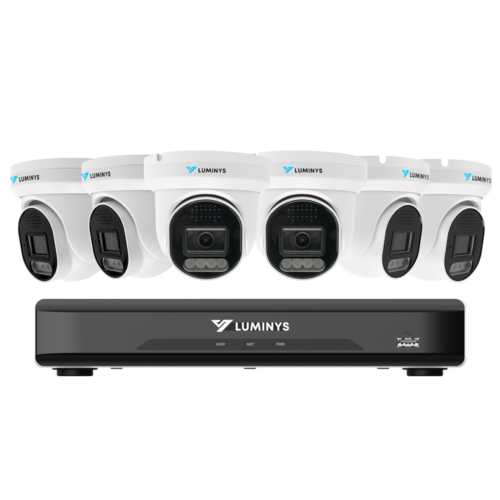

The Luminys K56-8L1A2 is a surveillance system that combines one R3 Series 4K NVR with six 5MP turret cameras featuring 2.8 mm fixed lenses. The NVR includes 8 PoE plug-and-play ports, a 2TB pre-installed SATA HDD (up to 10TB), HDMI/VGA outputs, H.265/H.264/MJPEG decoding, and up to 80 Mbps recording bandwidth. The cameras use LumiLuxLite technology for automatic IR and white-light switching to deliver full-color video day and night, along with Intelligent Motion Detection (iMD) for improved motion accuracy. All cameras are compatible exclusively with R3 recorders.

Key Configuration

• NVR channels: 8 IP camera inputs. PoE ports: 8 × RJ45 (10/100 Mbps, IEEE 802.3af/at), 72W total PoE budget (25.5W max per port).
• HDD: 1 × SATA bay, 2TB pre-installed (up to 10TB max per HDD).
• Recording bandwidth: 80 Mbps incoming/recording, 60 Mbps outgoing.
• Decoding capability: 2 channels at 8MP (30 fps) or 8 channels at 1080p (30 fps).
• Cameras: 6 × 5MP turret housing, 2.8 mm fixed lens, LumiLuxLite (IR and white-light LEDs).

Key Features

Supports recording from 8MP to CIF, with HDMI output up to 4K (3840×2160) and VGA output, plus synchronous playback in 1, 4, or 8 views. It supports ONVIF and RTSP interoperability and works with the LumiViewer desktop and mobile app. The cameras use LumiLuxLite technology, automatically switching between IR and white-light LEDs for full-color video when motion is detected, then returning to IR mode afterward. Intelligent Motion Detection (iMD) reduces false alarms by accurately detecting humans and vehicles, while Smart Search enables filtering by target classification and event type. The system also includes audio support via 1 RCA input and 1 RCA output.

Technical Context

Protocols include HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, SNMP, DHCP, DNS, DDNS, UPnP, SMTP, UDP, and NTP. It records and displays video from 8MP down to CIF with matching live view and playback resolutions, using H.265, H.264/H.264H/H.264B, and MJPEG decoding formats. Connectivity includes front and rear USB 2.0 ports, one Gigabit RJ45 WAN port, and eight 10/100 Mbps PoE ports for cameras. The system is powered by a 48V/53V DC supply and consumes less than 10W without an HDD installed. It is FCC certified and NDAA compliant.

Installation Notes

Measures 260 × 233.2 × 43.7 mm and weighs 2.1 kg. It features 8 PoE ports with a total 72W power budget, a pre-installed 2TB HDD, and HDMI/VGA outputs for local monitoring. The system operates in temperatures from -10°C to 55°C with 10–93% humidity tolerance. It includes six 5MP turret cameras with 2.8 mm fixed lenses and LumiLuxLite technology and is fully integrated within the Luminys ecosystem.
