Luminys - K5T-16D2A4 - 16 Channel LumiDeterrent 12 x 5MP Cameras

Product Overview

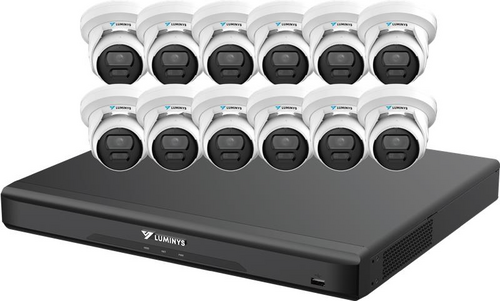

The Luminys K5T-16D2A4 is a complete security kit combining a 16-channel 4K NVR with twelve 5MP turret cameras featuring 2.8mm fixed lenses. The plug-and-play recorder simplifies installation with 16 built-in PoE ports, handles up to 160 Mbps recording bandwidth, and uses efficient H.265/H.264/MJPEG decoding. It provides HDMI and VGA outputs for local monitoring and comes with 4TB of storage pre-installed across two SATA bays, expandable to 40TB total.

Key Configuration

• PoE Ports: 16 channels, 130W total budget (25.5W max per port).
• Storage: 2 SATA bays, 4TB pre-installed (supports up to 40TB total).
• Bandwidth (AI On / Off): 80 Mbps / 160 Mbps incoming; 60 Mbps / 80 Mbps outgoing.
• Decoding (AI On): 1CH @12MP, 1CH @8MP, 3CH @4MP, or 7CH @1080p (all 30 fps).
• Decoding (AI Off): 1CH @12MP, 2CH @8MP, 4CH @4MP, or 8CH @1080p (all 30 fps).

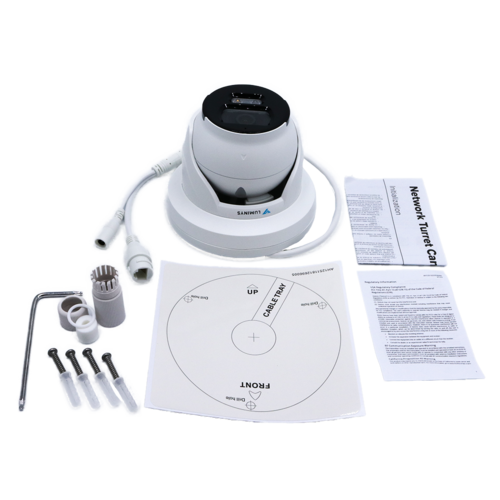

• Included Cameras: 12 × 5MP turrets, 2.8mm fixed lens, flashing lights, and speaker.

Key Features

This NDAA and FCC-compliant NVR supports video resolutions from ultra-HD 12MP down to CIF, outputting local video via VGA and 4K HDMI with 1 to 16-channel simultaneous playback. It includes 4 alarm inputs, 2 alarm outputs, dual RCA audio connections, and 4 channels of smart detection for quick human and vehicle searches. The system supports ONVIF/RTSP protocols and remote monitoring via LumiViewer desktop and mobile apps. The included cameras utilize built-in AI to eliminate false alarms, combining full-color video with active deterrence features like flashing white lights and enhanced audio alerts.

Technical Context

Built in a standard 1U form factor, this NVR includes a Gigabit WAN port, front/rear USB 2.0 connections, and 16 built-in PoE ports. Powered by a universal 100-240V supply, it consumes under 10W without hard drives and supports standard network protocols like HTTPS, IPv6, RTSP, and DDNS. For video processing, the unit handles recording, live view, and playback resolutions from ultra-HD 12MP down to CIF.

Installation Notes

Measuring 372 × 325.8 × 43.7 mm (14.7" × 12.8" × 1.7") and weighing 3.8 kg (8.4 lb) without hard drives, this 1U recorder features dual SATA bays with 4TB pre-installed and operates within a temperature range of -10°C to 55°C (14°F to 131°F). The integrated unit features 16 built-in PoE ports to deliver network and power to the matching 5MP, 2.8mm turret cameras within a 130W total power budget, ensuring seamless plug-and-play setup within the Luminys ecosystem. Local monitoring is supported via standard HDMI and VGA outputs.
