Luminys - K5T-16L2A4 - 16 Channel 5MP LumiLuxLite IP Kit

Product Overview

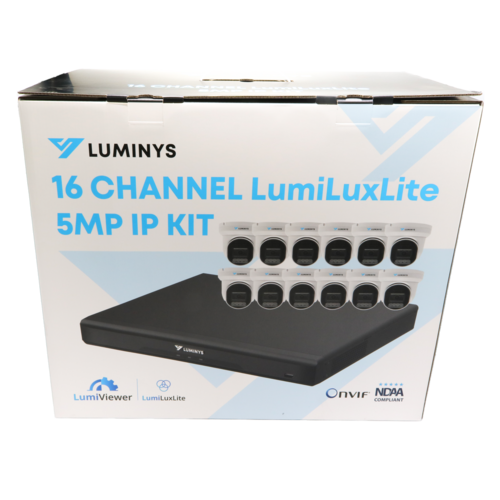

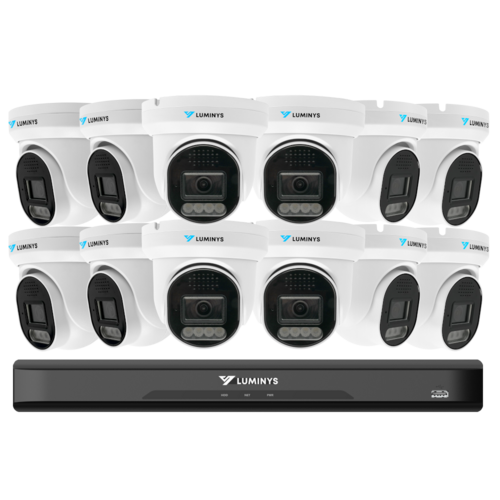

The Luminys K5T-16L2A4 is a complete surveillance system combining one R3 Series 4K NVR with twelve 5MP turret cameras and a 2.8 mm fixed lens. The NVR includes 16 PoE plug-and-play ports, dual SATA HDD bays with 4TB pre-installed storage up to 10TB per drive, 20TB total, HDMI/VGA outputs, H.265/H.264/MJPEG decoding, and up to 160 Mbps recording bandwidth. It also supports 4 alarm inputs and 2 alarm outputs. The cameras feature LumiLuxLite technology for automatic IR and white-light switching for full-color day/night video, along with Intelligent Motion Detection (iMD) for improved accuracy. All cameras are compatible exclusively with R3 recorders.

Key Configuration

• • NVR channels: 16 IP camera inputs; PoE ports: 16 × RJ45 (10/100 Mbps, IEEE 802.3af/at), 115W total PoE budget (25.5W max per port)
• • HDD bays: 2 × SATA, 4TB pre-installed (up to 10TB per HDD, 20TB max total)
• • Recording bandwidth: 160 Mbps incoming/recording, 60 Mbps outgoing
• • Decoding capability: 2 channels at 8MP (30 fps) or 8 channels at 1080p (30 fps)
• • Cameras: 12 × 5MP turret housing, 2.8mm fixed lens, LumiLuxLite (IR and white-light LEDs)

Key Features

Supports recording from 8MP to CIF with HDMI output up to 4K (3840×2160) and VGA output, plus synchronous playback in 1, 4, 8, 9, or 16 views. It is ONVIF and RTSP compatible and works with the LumiViewer desktop and mobile app. The system includes 4 alarm inputs and 2 alarm outputs, along with 1 RCA audio input and 1 RCA output. The cameras use LumiLuxLite technology, switching between IR and white-light LEDs for full-color video when motion is detected, then returning to IR mode afterward. Intelligent Motion Detection (iMD) reduces false alarms by accurately detecting humans and vehicles, while Smart Search enables filtering by target classification and event type.

Technical Context

Protocols include HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, SNMP, DHCP, DNS, DDNS, UPnP, SMTP, UDP, and NTP. It records and displays video from 8MP down to CIF with matching live view and playback resolutions, using H.265, H.264/H.264H/H.264B, and MJPEG decoding formats. Connectivity includes front and rear USB 2.0 ports, one Gigabit RJ45 WAN port, and sixteen 10/100 Mbps PoE ports. The system is powered by a 100–240 V AC supply (47–63 Hz) and consumes less than 10W without an HDD installed. It is FCC certified and NDAA compliant.

Installation Notes

Measures 372 × 325.8 × 43.7 mm and weighs 2.6 kg without HDD. It features 16 PoE ports with a total 115W power budget, dual SATA HDD bays with 4TB pre-installed storage, and HDMI/VGA outputs for local monitoring. The system operates in temperatures from -10°C to 55°C with 10–93% humidity tolerance. It includes twelve 5MP turret cameras with 2.8 mm fixed lenses and LumiLuxLite technology and is fully integrated within the Luminys ecosystem.
