Luminys - LCE-MAXV - LumiCenter Max Video Channel License
Product Overview
Luminys LCE-MAXV is a video channel license for LumiCenter Max VMS, enabling capture, display, recording, transmission, and playback of one video channel from an IP camera or IP device. LumiCenter Max supports unlimited servers, unlimited cameras, real-time analytics (object tracker), edge analytics (camera metadata), and edge storage playback.
Key Configuration
• License type: One (1) video channel for LumiCenter Max VMS
• Maximum servers in a distributed system: Unlimited (Max version)
• Maximum cameras per server: Unlimited
• Maximum simultaneous client connections: Unlimited
• Maximum video input channels per server: Unlimited
Key Features
Automated device discovery with simultaneous live monitoring and recording, including pre-event recording and separate streams for display and storage. Supports synchronous multi-camera playback, fast/slow motion review, and event-based archive search. Compatible with 3,000+ IP devices (ONVIF and proprietary) plus analog via encoders, supporting up to 8MP resolution. Includes deep learning analytics (fire/smoke, human/vehicle detection), forensic multi-criteria search, face/LPR search, and bandwidth optimization via AutoStream. Uses SolidStore storage, cloud remote access, LDAP authentication, and supports redundancy 1+1, N+1, N+M. Available on web, desktop, and mobile with multilingual interface support.
Technical Context

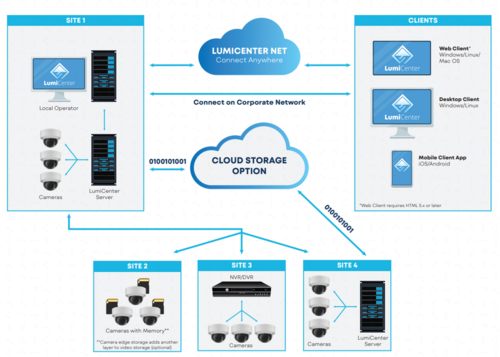

Micromodule-based decentralized architecture enables high system reliability and horizontal scalability across distributed deployments. SolidStore optimizes video storage efficiency, while AutoStream dynamically adjusts bandwidth based on network conditions. Supports unlimited distributed servers, cameras, and client connections. Macros allow automated event responses such as PTZ control, relay actions, recording, and notifications. Includes GPU acceleration and failover mechanisms for continuous operation.
Installation Notes

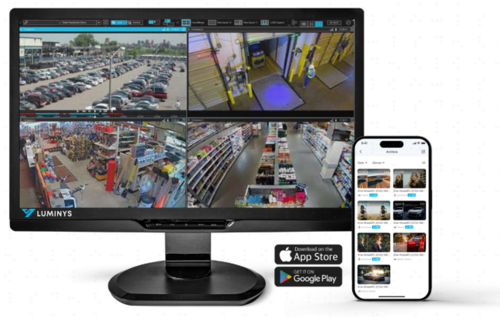

Software license only, no hardware included. Supports Windows 10/11 and Windows Server 2019/2022, plus Linux (Ubuntu and Debian versions on request). Access available via Windows desktop client, Chrome web browser, and iOS/Android mobile apps. Runs on x86/x64 architectures with Intel Quick Sync hardware decoding. Includes per-channel support for I/O and audio.
| Maximum Number of | |
| Servers in the distributed system | Up to 30 for Basic and Plus; Unlimited for Max |
| Clients which support simultaneous connection to the server | Unlimited |
| Servers which simultaneously transmit video images to a client | Unlimited |
| Camera views displayed simultaneously on a clients screen | Unlimited |
| Video input channels per server | Unlimited |
| Simultaneously processed signals from microphones | Unlimited |
| Audio output channels (speakers, headphones, etc.) | Refer to your sound card specifications |
| PTZ devices used | Unlimited |
| Event sources (POS devices) | Unlimited |
| Objects simultaneously tracked by the Object tracker | Unlimited |
| License plate recognition channels | Unlimited |
| Face recognition channels | Unlimited |
| Device Support | |
| IP Devices | More than 3,000 models supported including proprietary protocols and ONVIF profiles G, M, S and T |
| Analog Devices | Supported via DVRs and encoders |
| CPU | 32-bit (x86), 64-bit (x64) |
| Video | |
| Video compression algorithms | MJPEG, MPEG-2, MPEG-4, MxPEG, H.264, H.265, Motion Wavelet |
| Maximum resolution support | 8MP (4K) |
| Embedded video camera video analytics | Supported |
| Touch-sensitive monitors | Supported |
| Core Functions | |
• Automated device discovery • Pre-event video recording • Simultaneous recording to storage and real-time surveillance • Capability to use different streams from a camera for recording and display • Capability to choose the write location and recording parameters for various cameras events • Synchronous playback of video footage recorded by several cameras • Playback with fast- or slow-motion in forward or reverse • Audio and video analytics • Archive navigation through events recognized by video analytics or tagged by operators • Event-driven response scenarios: recording, alarm generation, activation of relays and starting PTZ camera through user defined presets, notifications via SMS, e-mail, or through camera speaker output. Continuous or alarm, recording (including initiated by an operator) • Multi-level user rights • Support for widescreen displays and cameras, and touch screen displays • Interface Languages: English, French, Spanish | |
| Special Features | |
• Cloud service for remote monitoring and situational awareness • Deep learning video analytics (fire and smoke detection, human and vehicle detection). • Multiple criteria forensic search of recorded video • Face and license plate search • Motion events summary • AutoStream™ bandwidth optimization technology • Support for Intel Quick Sync hardware video decoding • UDP and multicast video streaming • Motion detection recording by default • Bulk configuration of cameras • Support for LDAP authentication • SolidStore a proprietary highly-efficient file system for video storage • Micromodule-based and decentralized architecture for unprecedented reliability • Supported failover redundancy types: 1+1, N+1, N+M | |
| System Requirements Servers | |
| Windows OS | Windows 11³: Home, Pro, Education, Pro Education, Pro for Workstations, Enterprise, Windows 10: Pro, Enterprise, Education, Home Edition, Windows 10 |
| Windows Server OS | Windows Server 2022³: Standard, Essentials, Datacenter, Azure Datacenter, Windows Server 2019³: Essentials¹, Standard, Datacenter, Windows |
| Linux OS (Available Upon Request) | Ubuntu: (22, 20, 19, 18), Debian: (12, 11, 10) |
| Clients | |
| Desktop Client | Windows 10, Windows 11 |
| Web Client | Google Chrome, Latest version of Windows 10 and 11 |
| Mobile Application | iOS 15.0 or higher, Android OS 5.0 or higher |
