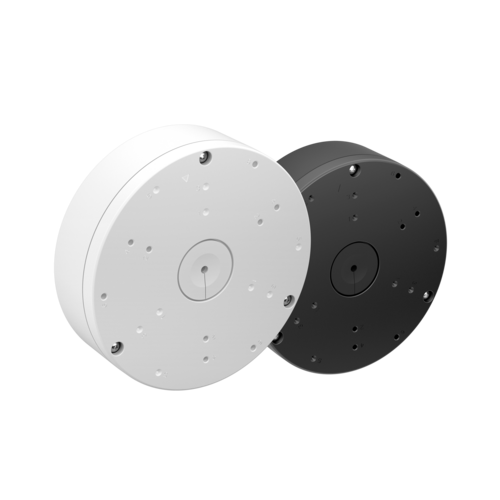

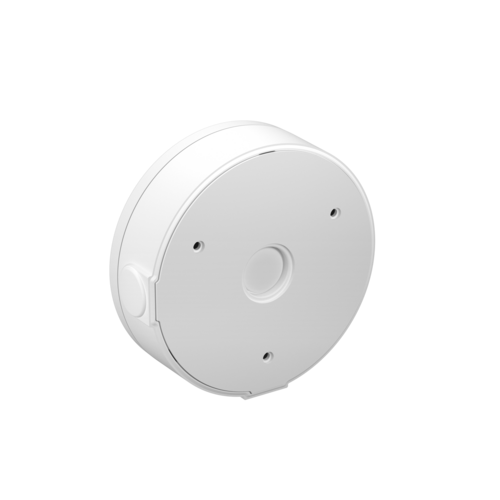

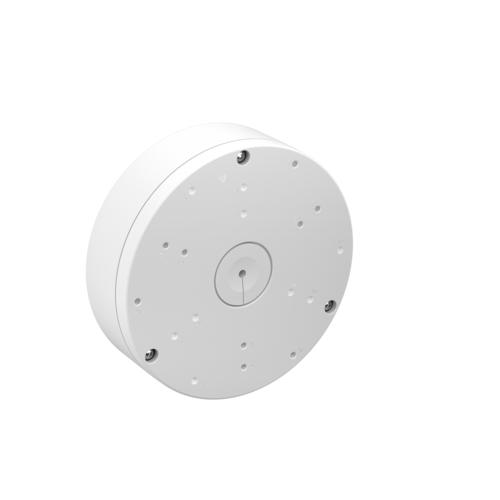

Luminys - LUM-CJ11 - Mini Turret Size Outdoor Junction Box
Part number:
Price:
Product Overview
The Luminys LUM-CJ11 is an outdoor junction box designed for mini turret-size IP surveillance cameras. This commercial-grade weatherproof junction box features aluminum construction, a white finish, dimensions of Φ124.0 x 41.0mm, G3/4 pipe thread, IP66 and IK10 certifications, with a maximum load capacity of 3.0 kg.
Key Configuration
• Dimensions: Φ124.0 x 41.0 mm (Φ4.88 x 1.61 in.)
• Weight: 0.4 kg (0.8 lb)
• Maximum load capacity: 3.0 kg (6.6 lb)
• Pipe thread: G3/4
• Material: Aluminum
• Color: White

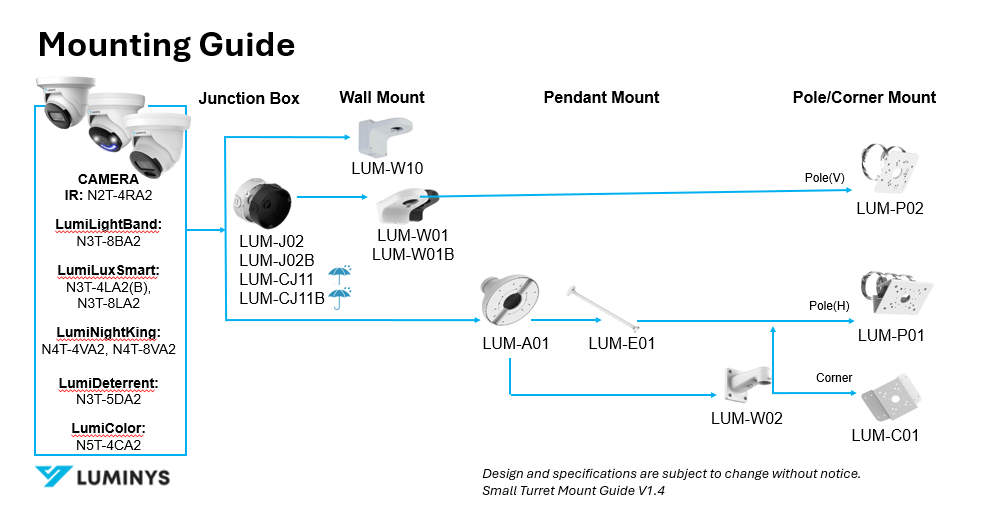

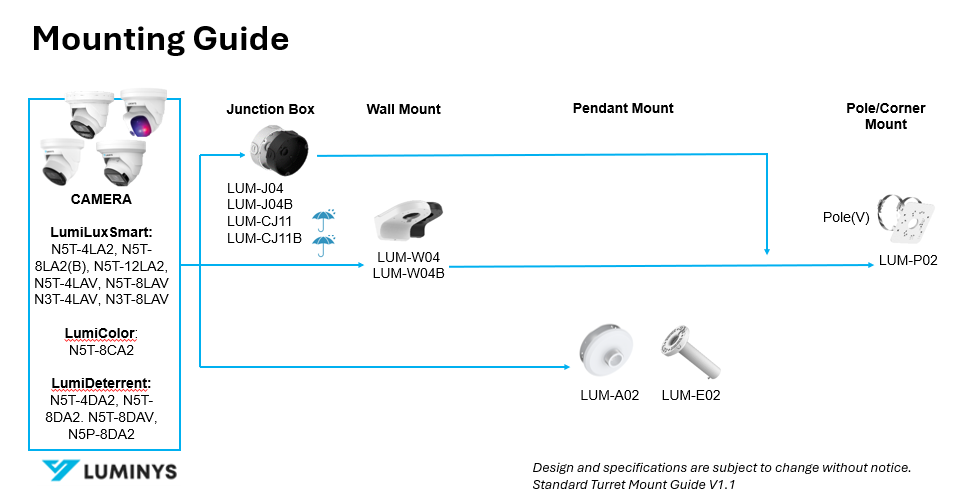

• Compatible camera series: N2T-4RA2, N3T-8BA2, N5T-4LA2, N5T-8LA2(B), N5T-12LA2, N5T-4LAV, N5T-8LAV, N3T-4LAV, N3T-8LAV, N5T-4DA2, N5T-8DA2, N5T-8DAV, N5P-8DA2, N5T-4CA2, N3T-4LA2(B), N3T-8LA2, N4T-4VA2, N4T-8VA2, N3T-5DA2, N5T-8CA2
| Weight | 0.4 kg (0.8 lb) |
| Load Bearing Capacity | 3.0 kg (6.6 lb) |
| Material | Aluminum |
| Color | White |
| Dimensions | Φ 124.0 mm x 41.0 mm (Φ 4.88 in. x 1.61 in.) |
| Pipe Thread | G3/4 |
| Certifications | IP66, IK10 |
| Compatible camera series | N2T-4RA2, N3T-8BA2, N5T-4LA2, N5T-8LA2(B), N5T-12LA2, N5T-4LAV, N5T-8LAV, N3T-4LAV, N3T-8LAV, N5T-4DA2, N5T-8DA2, N5T-8DAV, N5P-8DA2, N5T-4CA2, N3T-4LA2(B), N3T-8LA2, N4T-4VA2, N4T-8VA2, N3T-5DA2, N5T-8CA2 |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
