Luminys - N3D-4LA2 - 4MP Network LumiLuxSmart Dome Camera with 2.8 mm Lens, White-light LEDs, and Dual-mode IR
Product Overview

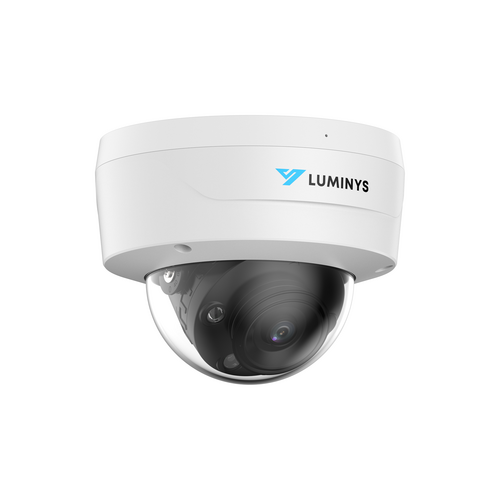

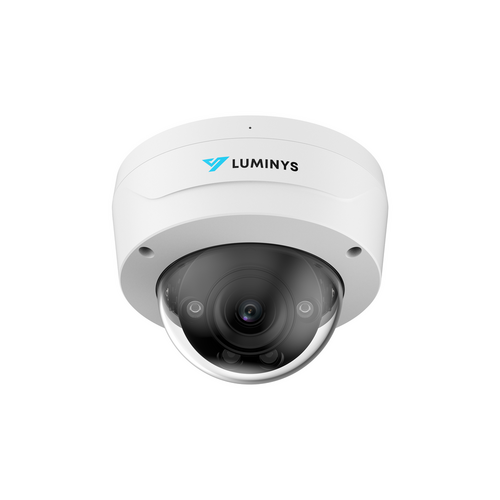

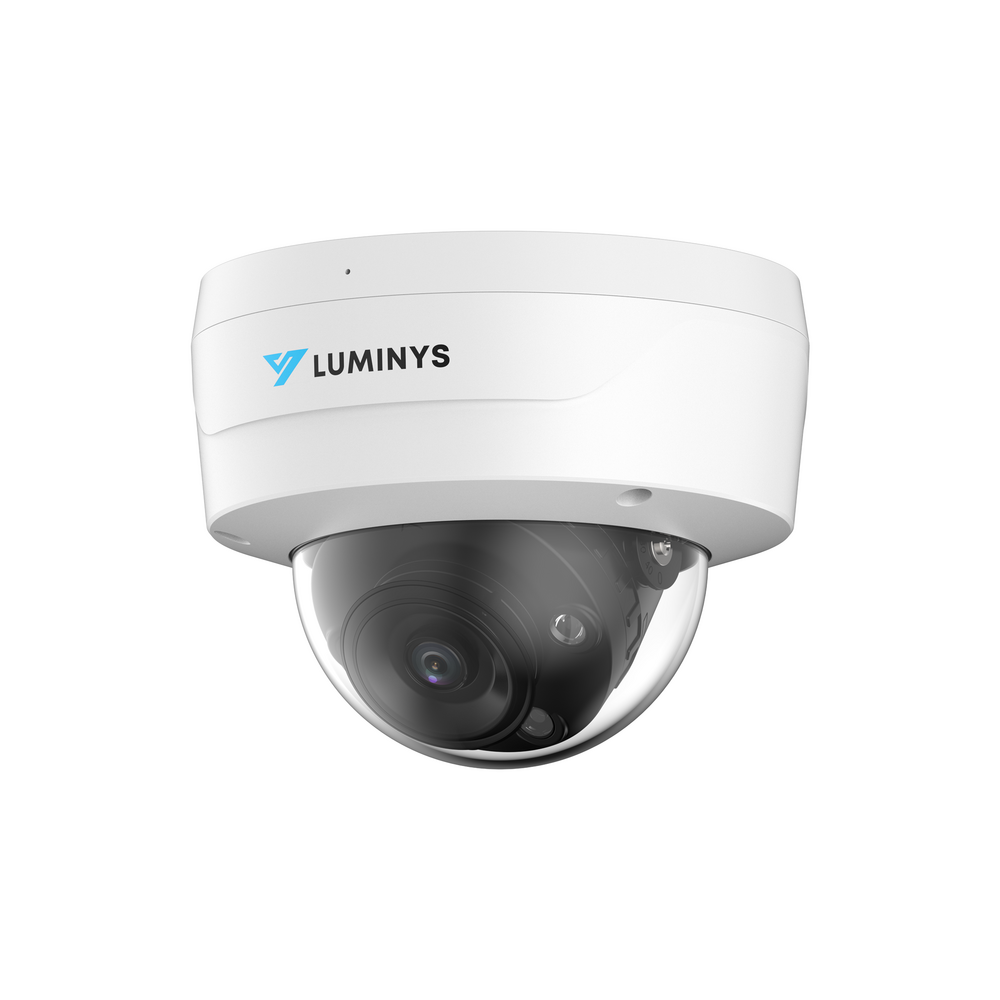

Luminys N3D-4LA2 is a 4MP IP standard size dome camera with LumiLuxSmart dual-mode illumination, IR and white-light LEDs, delivering 2688x1520 resolution at up to 20 fps. This dome camera features a fixed 2.8mm lens F1.6 with 95° horizontal field of view, 120dB WDR, and 30.5m illumination distance for both IR and white-light modes. The IP67/IK10 ratings, and starter series design for small to mid-sized applications.
Key Configuration
• Resolution: 4MP (2688 × 1520) up to 20fps (main stream)
• Lens: Fixed 2.8mm, F1.6 aperture, 95° / 52° / 114° FOV
• Power: PoE (IEEE 802.3af) or 12VDC; PoE max 7.9W / normal 3.0W; 12VDC max 6.6W / normal 2.4W
• Storage: MicroSD slot supporting up to 256GB edge storage
Key Features
4MP camera with a 1/2.9" CMOS sensor, 120dB WDR, and LumiLuxSmart dual illumination with IR and white-light LEDs reaching 30.5m. Supports Smart H.265+/H.264+ compression, dual streams, intelligent motion detection with human/vehicle classification, line crossing, intrusion detection, and built-in audio recording. Features ONVIF Profile S/G/T compatibility, DORI distances up to 63.4m detection.
Technical Context
Features adaptive low-light operation with IR-only, full-color white-light, or motion-activated illumination modes, including remote brightness adjustment. Designed for small to mid-sized deployments, with flexible mounting adjustments up to 355° pan/rotation and 80° tilt.
Installation Notes
Compact dome camera with metal housing, IP67 and IK10 protection for outdoor and vandal resistance. Operates in -40°C to 60°C environments with 12VDC or PoE (IEEE 802.3af) power support. Includes built-in microphone for audio capture.
| Camera | |
| Luminys Series | N3 Series (Starter) |
| Image Sensor | 1/2.9-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | Color: 0.005 Lux at F1.6 Black/White: 0.0005 Lux at F1.6 0 Lux With IR Light On |
| Number of Illuminators | Two (2) White-Light LEDs, Two (2) IR LEDs, Supports LumiLuxSmart |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR: Up to 30.5 m (100.0 ft) White Light: Up to 30.5 m (100.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle | Pan/Rotation: 0° to 355° Tilt: 0° to 80° |
| S/N Ratio | > 56 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperature | F1.6 |
| Field of View | Horizontal: 95° Vertical: 52° Diagonal: 114° |
| Close Focus Range | 1.1 m (3.6 ft) |
| DORI Distance | Detect: 63.4 m (208.0 ft) Observe: 25.2 m (82.4 ft) Recognize: 12.5 m (41.0 ft) Identify: 6.3 m (20.7 ft) |
| Video | |
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Standard Codec | Supported |
| Stream Capability | Two (2) |
| Resolution | 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate | Main Stream: 2688 x 1520 at 20 fps Sub Stream 1: D1 at 30 fps |
| Video Bit Rate | H.264: 2,304 kbps to 6,144 kbps H.265: 764 kbps to 6,144kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° |
| Mirror Rotation | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |
| Interface | Input: Built-in Microphone |
| Alarm Event | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, Micro SD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE (802.3af) |
| Power Consumption | 12 VDC • Maximum: 6.6 W • Normal: 2.4 W PoE • Maximum: 7.9 W • Normal: 3.0 W |
| Construction | |
| Net Weight | 0.5 kg (1.2 lb) |
| Gross Weight | 0.7 kg (1.6 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67, IK10 |
| Product Dimensions | Φ 126.0 mm × 100.0 mm (Φ 5.0 in. × 4.0 in.) |
| Packaging Dimensions (L x W x H) | 148.0 mm x 139.0 mm x 137.0 mm (5.8 in. x 5.5 in. x 5.4 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA |
