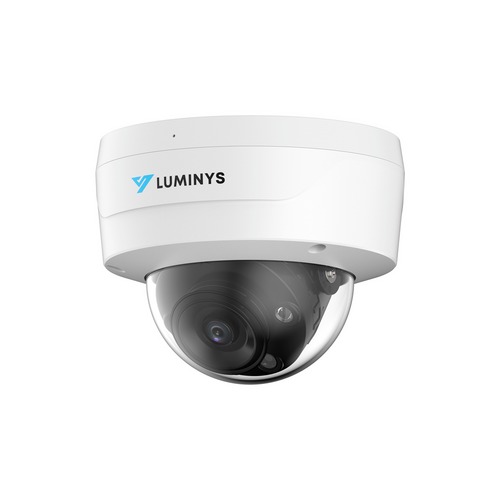

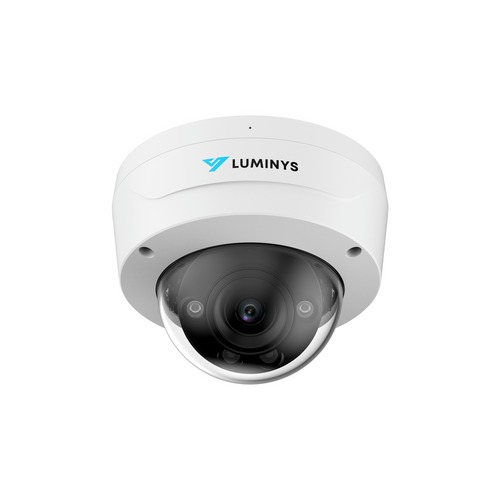

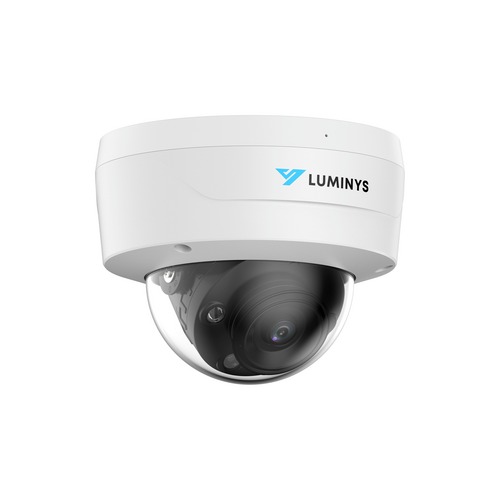

Luminys - N3D-8LA2 - N3-L Starter Series 8MP LumiLuxSmart IP Standard Size Dome 2.8 mm, IR, White-light LEDs, and Dual-mode
| Luminys Series | N3 Series (Starter) |
| Image Sensor | 1/2.7-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 x 2160 |
| Minimum Illumination | Color: 0.007 Lux at F1.6 Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On |
| Number of Illuminators | Two (2) White-Light LED, Two (2) IR LEDs, Supports LumiLuxSmart |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR: Up to 30.5 m (100.0 ft) White Light: Up to 30.5 m (100.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle | Pan/Rotation: 0° to 355° Tilt: 0° to 80° |
| S/N Ratio | > 56 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperature | F1.6 |
| Field of View | Horizontal: 110° Vertical: 58° Diagonal: 132° |
| Close Focus Range` | 1.5 m (4.9 ft) |
| DORI Distance | Detect: 84.5 m (277.2 ft) Observe: 33.6 m (110.3 ft) Recognize: 16.6 m (54.5 ft) Identify: 8.3 m (27.2 ft) |
| Video | |
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Standard Codec | Supported |
| Stream Capability | Two (2) |
| Resolution | 8MP (3840 x 2160), 6MP (3072 x 2048), 5MP (3072 x 1728), 5MP (2880 x 1620), 4MP (2688 x 1520), 3MP (2048 x 1536), 3MP (2304 x 1296), 1080P (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate | Main Stream: 3840 x 2160 at 20 fps Sub Stream 1: D1 at 30 fps |
| Video Bit Rate | H.264: 3 kbps to 8,192 kbps H.265: 3 kbps to 8,192 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° (Only 90°/270° Available for 2688 × 1520 Resolution or Lower) |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |
| Interface | Input: Built-in Microphone |
| Alarm | |
| Event | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
| Network | |
| Protocol | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Strorage | FTP, NAS, SFTP, Micro SD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE (802.3af) |
| Power Consumption | 12 VDC • Maximum: 6.9 W • Normal: 2.6 W PoE • Maximum: 8.3 W • Normal: 3.3 W |
| Construction | |
| Net Weight | 0.5 kg (1.2 lb) |
| Gross Weight | 0.7 kg (1.6 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67, IK10 |
| Product Dimensions | Φ 126.0 mm × 100.0 mm (Φ 5.0 in. × 4.0 in.) |
| Packaging Dimensions (L x W x H) | 148.0 mm x 139.0 mm x 137.0 mm (5.3 in. x 5.5 in. x 5.4 in.) |
| Material | Metal |
