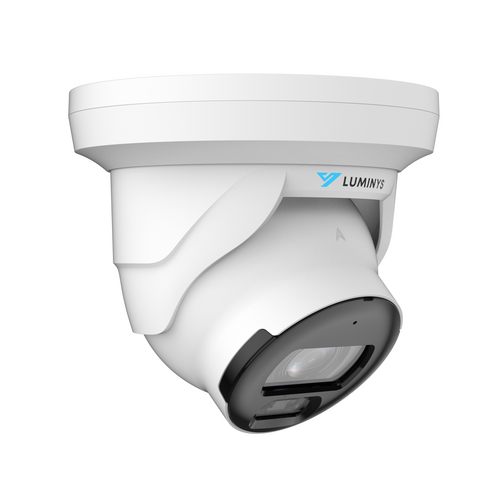

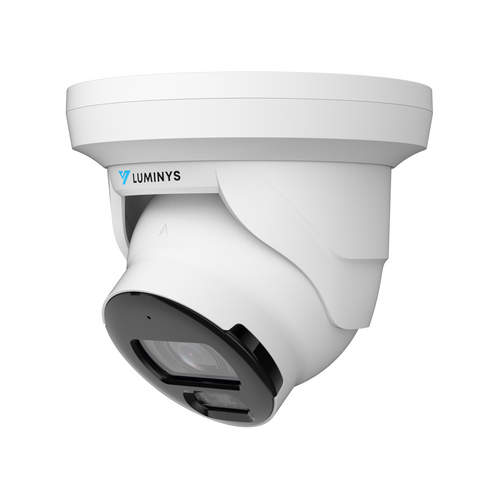

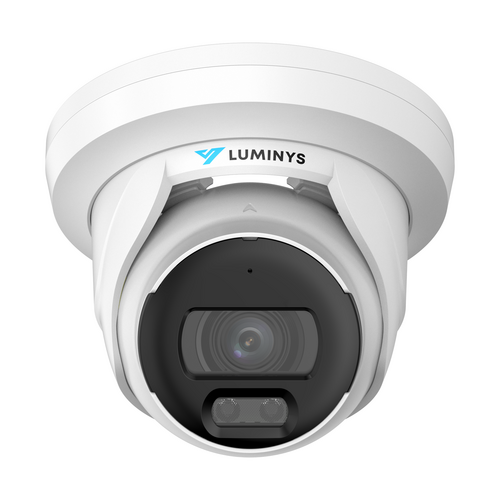

Luminys - N3T-5DA2 - 5MP Network LumiDeterrent Flashing White-light Turret Camera with 2.8 mm

Product Overview

The Luminys N3T-5DA2 is a Starter series 5MP turret network camera equipped with a 1/2.7-inch progressive CMOS sensor and a wide-angle 2.8mm fixed lens, offering a bright F1.6 aperture and an expansive 111-degree horizontal field of view. The camera delivers crisp 5MP video at up to 20 frames per second, utilizing advanced H.265, H.264, and MJPEG compression alongside smart encoding technology to significantly optimize network bandwidth and storage efficiency.

Key Configuration

• Image Sensor: 1/2.7-in. 5MP progressive CMOS; max 2960×1668 @ 20 fps.
• Lens & FOV: 2.8mm fixed (F1.6); 111° (H) × 58° (V) × 132° (D).
• Illumination: Dual IR and white-light LEDs (1 each); up to 30.5m (100 ft) range.
• Min. Illumination: Color: 0.007 lux; B/W: 0.0007 lux; 0 lux with LEDs active.
• Power: 12V DC or PoE (802.3af); max consumption 6.9W (DC) / 8.2W (PoE).

Key Features

This camera features 120dB WDR and 3D noise reduction for high-contrast lighting, utilizing dual streams and smart encoding. It includes a built-in microphone and speaker for two-way audio, plus 4-zone configurations for both privacy masking and Region of Interest. Security analytics include line crossing, intrusion detection, and vehicle/human iMD filtering, paired with flashing white lights for active deterrence. Fully ONVIF-compliant, it supports a 256GB microSD card slot and flexible 3-axis adjustment (0–360° pan/rotation, 0–78° tilt).

Technical Context

Constructed from durable metal with IP67 weather-proof and IK10 vandal-resistant ratings, this NDAA, FCC, and IC-compliant camera features an automatic/manual electronic shutter speed of 1/3 s to 1/100,000 s, a >56 dB S/N ratio, and a 1.1m (3.6 ft) close focus range that delivers exact DORI distances up to 63.4m for detection and 6.2m for identification. The system supports a robust suite of network protocols, including IPv6, HTTPS, 802.1X, RTSP, and P2P, accessible via Chrome, Firefox, and Edge browsers, while offering flexible storage options to an onboard microSD card or over the network via FTP, SFTP, and NFS.

Installation Notes

Measuring 122 × 111.8 mm (4.8" × 4.4") and weighing 0.5 kg (1.2 lb), this durable, 3-axis adjustable turret camera features an IP67/IK10-rated housing engineered with LumiPolarPro and LumiDesertPro technologies to withstand extreme environments from -40°C to 60°C. It powers via 12V DC or PoE, supports up to a 256GB microSD card, and provides dual IR/white-light illumination with flashing active deterrence lights. Complete with an integrated microphone and speaker for two-way audio, the unit seamlessly connects to the LumiViewer desktop and mobile apps.
