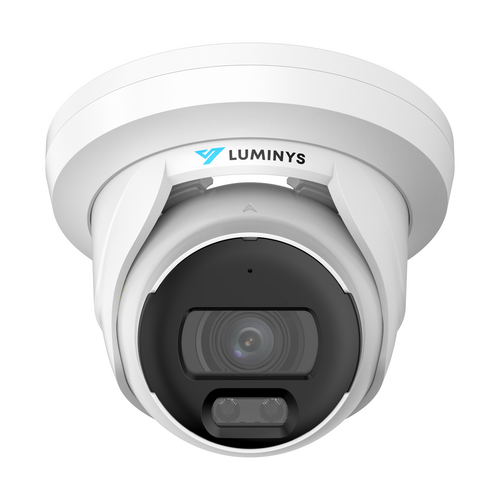

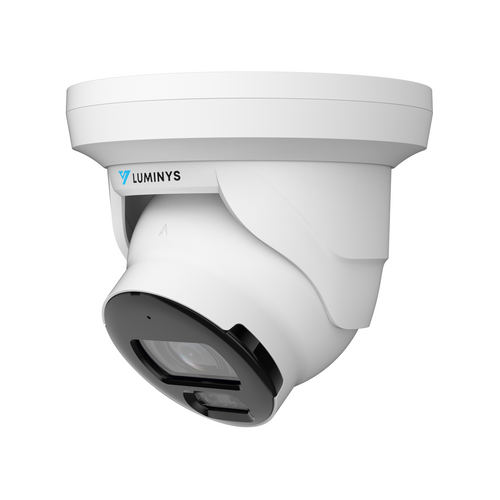

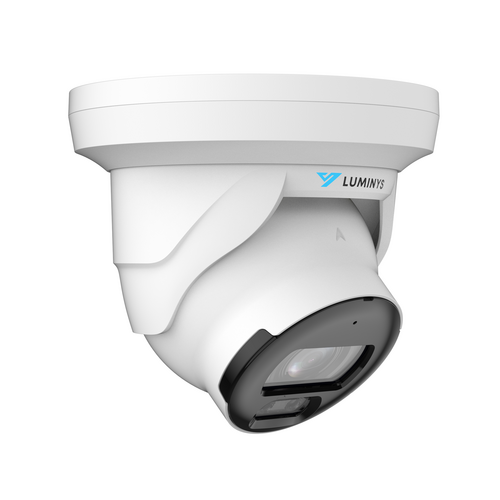

Luminys - N3T-5DA2 - 5MP Network LumiDeterrent Flashing White-light Turret Camera, 2.8mm Lens

Product Overview

The Luminys N3T-5DA2 is a Starter series 5MP turret camera featuring a 1/2.7" progressive CMOS sensor paired with a 2.8mm fixed F1.6 lens, delivering a wide 111° horizontal FOV. It outputs a native 2960x1668 resolution at up to 20 fps, utilizing efficient H.265/H.264/MJPEG video compression and optimized H.265+/H.264+ smart encoding to minimize bandwidth and storage requirements.

Key Configuration

• • Image sensor: 1/2.7-in. 5MP progressive CMOS; max resolution: 2960×1668 (5MP) at 20 fps
• • Lens: 2.8mm fixed, F1.6; horizontal FOV: 111°, vertical: 58°, diagonal: 132°
• • Dual illumination: 1 IR LED, 1 white-light LED; maximum distance: 30.5m (100 ft)
• • Minimum illumination: color 0.007 lux, B/W 0.0007 lux, 0 lux with IR/white light
• • Power: 12V DC or PoE (IEEE 802.3af); max consumption: 6.9W (12VDC), 8.2W (PoE)

Key Features

This high-performance ONVIF-compliant Profiles S/G/T IP camera features 120dB WDR, 3D NR, and efficient H.265+/H.264+ dual-streaming with up to 256GB microSD edge storage. It integrates edge intelligence for line crossing, intrusion, and human/vehicle iMD, backed by two-way audio (G.711/PCM) and flashing white lights for active deterrence. Designed for flexible deployment, it offers 3-axis mechanical adjustment alongside customizable 4-zone Privacy Masking and Region of Interest (RoI) configurations.

Technical Context

Enclosed in a durable metal housing with IP67/IK10 weather and vandal resistance, this NDAA-compliant IP camera features an agile 1/3 s to 1/100,000 s electronic shutter and a clean >56 dB S/N ratio. Its optical design provides a 1.1m close focus and a standardized DORI range spanning 63.4m detection down to 6.2m precise identification. Built for secure enterprise integration and mainstream browser compatibility, it combines a robust networking framework (IPv4/IPv6, HTTPS, 802.1X) with flexible streaming (RTSP, RTMP, P2P) and versatile storage options (SFTP, NFS, FTP).

Installation Notes

Dimensions 122 × 111.8 mm (4.8" × 4.4"), and weighing 0.5 kg (1.2 lb), is powered via 12V DC or PoE (802.3af) and engineered for extreme environments (-40°C to 60°C) via LumiPolarPro/LumiDesertPro technologies. It features built-in two-way audio, up to 256GB microSD edge storage, and dual IR/white light illumination with active flashing deterrents, all managed natively via the LumiViewer ecosystem.
