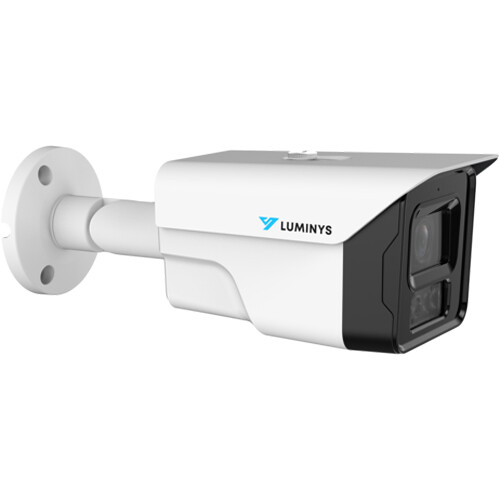

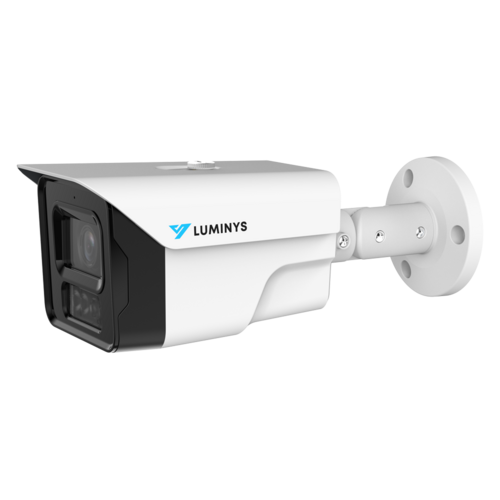

Luminys - N4B-4VA2 - 4MP Network LumiNightKing Bullet Camera with 2.8 mm Lens, White-light LEDs
Product Overview
The Luminys N4B-4VA2 is a 4MP network bullet camera featuring LumiNightKing technology and 2688 × 1520 resolution. It includes a fixed 2.8 mm F1.0 lens with a 112° horizontal field of view, AI-ISP low-light enhancement, and integrated white-light LEDs providing illumination up to 45.7 m (150 ft). The camera supports H.265+ and H.264+ video compression for efficient bandwidth and storage usage.
Key Configuration
• Resolution: 4MP (2688 × 1520) at up to 30 fps
• Lens: Fixed 2.8 mm, F1.0 aperture, H: 112° / V: 60° / D: 134° field of view
• Power: PoE (IEEE802.3af) or 12VDC; PoE max 7.2W (3.0W typical), 12VDC max 5.5W (2.0W typical)
• Storage: MicroSD card slot supporting up to 256 GB edge storage
Key Features
Features a 1/1.8" 4MP progressive CMOS sensor with ultra-low-light performance down to 0.0006 lux and 120 dB WDR. Includes built-in microphone, 3D noise reduction, intelligent motion detection with human/vehicle filtering, line crossing, and intrusion analytics. Supports ONVIF S/G/T profiles and extensive network protocol compatibility. Rated IP67 and NDAA compliant, using LumiPolarPro and LumiDesertPro technologies.
Technical Context
LumiNightKing technology combines a large 1/1.8" sensor, AI-ISP processing, and an F1.0 aperture to deliver full-color imaging in extremely low-light environments without requiring IR illumination. White-light LEDs can be configured for visible deterrence or disabled for discreet monitoring. Intelligent motion detection distinguishes people and vehicles from other motion sources, helping reduce false alarms. Designed for extreme environments, the camera incorporates LumiPolarPro and LumiDesertPro technologies for reliable operation in harsh temperature conditions.
Installation Notes
Metal bullet housing measuring 220.1 × 87.4 × 78.8 mm (8.7" × 3.4" × 3.1") and weighing 0.6 kg (1.3 lb). Supports 12VDC or PoE (IEEE802.3af) power input and provides flexible installation with 360° pan, 90° tilt, and 360° rotation adjustment. Rated IP67 for outdoor protection and designed to operate in temperatures from -40°C to +60°C with up to 95% non-condensing humidity.
| Camera | |
|---|---|
| Model Series | Luminys Series N4 Series (Mainstream) |
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 x 1520 |
| Minimum Illumination | Color: 0.0006 lux at F1.0 |
| Illuminator | |
| Number of Illuminators | White Light: Four (4) |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | 45.7 m (150.0 ft) |
| Electronic Shutter Speed | Automatic, Manual · 1/3 s to 1/100,000 s |
| Installation Angle | Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
| S/N Ratio | > 50 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.0 |
| Field of View | Horizontal: 112° Vertical: 60° Diagonal: 134° |
| Close Focus Range | 2.0 m (6.6 ft) |
| DORI Distance | |
| Detect | 57.7 m (189.3 ft) |
| Observe | 23.0 m (75.5 ft) |
| Recognize | 11.4 m (37.4 ft) |
| Identify | 5.6 m (18.4 ft) |
| Video | |
| Smart Encoding | H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Two (2) Streams |
| Resolution | 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate | Main Stream: 4MP at 30 fps Sub Stream 1: D1 at 30 fps |
| Video Bit Rate | H.264: 3 to 6,144 kbps H.265: 3 to 6,144 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° |
| Mirror Image | Supported |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion |
| Intelligent Motion Detection | Supported With Alarms for Vehicles and Humans |
| Audio | |
| Compression | PCM, G.711a, G.711Mu |
| Interface | Input: Built-In Microphone |
| Alarm | |
| Event Triggers | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP Conflict, Voltage Detection, Security Warning |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, Micro SD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption - 12 VDC | Maximum: 5.5 W · Normal: 2.0 W |
| Power Consumption - PoE | Maximum: 7.2 W · Normal: 3.0 W |
| Construction | |
| Net Weight | 0.6 kg (1.3 lb) |
| Gross Weight | 0.8 kg (1.8 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) · < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions (L x W x H) | 220.1 mm x 87.4 mm x 78.8 mm (8.7 in. x 3.4 in. x 3.1 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA |
