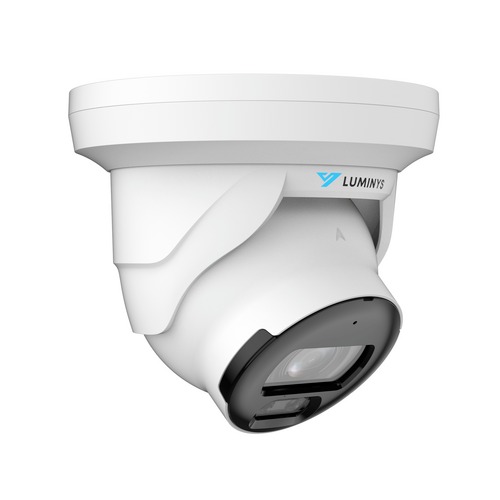

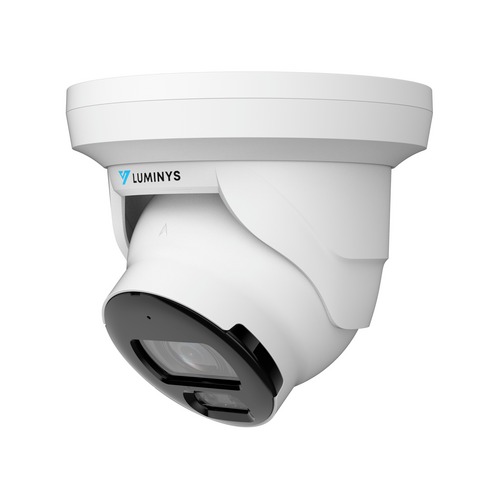

Luminys - N4T-4VA2 - 4MP Network LumiNightKing Turret Camera with 2.8 mm Lens, White-light LEDs
Product Overview
The Luminys N4T-4VA2 is a 4MP network mini turret camera featuring LumiNightKing technology and 2688 × 1520 resolution. It includes a fixed 2.8 mm F1.0 lens with a 112° horizontal field of view, AI-ISP low-light enhancement, and integrated white-light LEDs providing illumination up to 30.5 m (100 ft).
Key Configuration
• Resolution: 4MP (2688 × 1520) at up to 30 fps
• Lens: Fixed 2.8 mm, F1.0 aperture, H: 112° / V: 60° / D: 134° field of view
• Power: PoE (IEEE802.3af) or 12VDC; PoE max 6.4W (2.5W typical), 12VDC max 5.3W (2.0W typical)
• Storage: MicroSD card slot supporting up to 256 GB edge storage
Key Features
Features a 1/1.8" 4MP CMOS sensor with 0.0006 lux low-light performance, 120 dB WDR, and 3D noise reduction. Includes a built-in microphone, intelligent motion detection with human/vehicle classification, line crossing and intrusion analytics. Supports dual-stream H.265/H.264 compression, ONVIF S/G/T profiles, and IP67 weather protection.
Technical Context
LumiNightKing technology delivers full-color imaging in near-dark environments without requiring IR illumination. White-light LEDs can be configured for visible deterrence or covert operation. AI-ISP enhances image quality in challenging lighting conditions, while VCA analytics provide line crossing and intrusion detection for proactive monitoring.
Installation Notes
Compact metal mini turret housing measuring Φ122.0 × 111.8 mm (Φ4.8" × 4.4") and weighing 0.5 kg (1.2 lb). Supports 12VDC or PoE (IEEE802.3af) power and offers flexible installation with 360° pan, 78° tilt, and 360° rotation adjustment. Designed for operation in temperatures from -40°C to +60°C with up to 95% non-condensing humidity.
| Camera | |
|---|---|
| Model Series | Luminys Series N4 Series (Mainstream) |
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 x 1520 |
| Minimum Illumination | Color: 0.0006 lux at F1.0 |
| Illuminator | |
| Number of Illuminators | White Light: Two (2) |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | 100.0 ft (30.48 m) |
| Electronic Shutter Speed | Automatic, Manual · 1/3 s to 1/100,000 s |
| Installation Angle | Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360° |
| S/N Ratio | > 50 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.0 |
| Field of View | Horizontal: 112° Vertical: 60° Diagonal: 134° |
| Close Focus Range | 2.0 m (6.6 ft) |
| DORI Distance | |
| Detect | 46.9 m (153.9 ft) |
| Observe | 17.9 m (58.7 ft) |
| Recognize | 9.3 m (30.5 ft) |
| Identify | 4.5 m (14.8 ft) |
| Video | |
| Smart Encoding | H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Two (2) Streams |
| Resolution | 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate | Main Stream: 4MP at 30 fps Sub Stream 1: D1 at 30 fps |
| Video Bit Rate | H.264: 3 to 6144 kbps H.265: 3 to 6144 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower) |
| Mirror Image | Supported |
| Region of Interest (ROI) | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion |
| Intelligent Motion Detection | Supported With Alarms for Vehicles and Humans |
| Audio | |
| Compression | PCM, G.711a, G.711Mu |
| Sampling Rates | PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz |
| Interface | Input: Built-In Microphone |
| Alarm | |
| Event Triggers | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP Conflict, Voltage Detection, Security Warning |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, Micro SD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption - 12 VDC | Maximum: 5.3 W · Normal: 2.0 W |
| Power Consumption - PoE | Maximum: 6.4 W · Normal: 2.5 W |
| Construction | |
| Net Weight | 0.5 kg (1.2 lb) |
| Gross Weight | 0.7 kg (1.6 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) · < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions | Φ122.0 mm x 111.8 mm (Φ4.8 in. x 4.4 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA |
