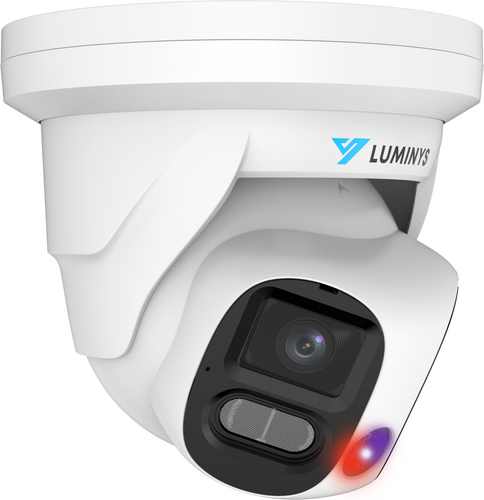

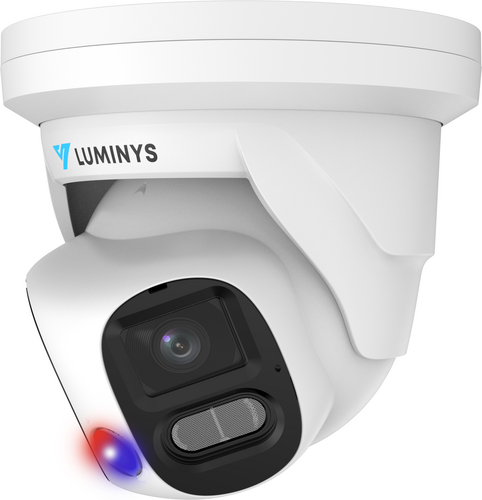

Luminys - N5P-8DA2 - 2 x 4MP Network LumiDeterrent Stitched Turret Camera, 2.8 mm Lens

Product Overview

The Luminys N5P-8DA2 is a Mainstream series 180° stitched multi-sensor turret camera equipped with dual 1/2.7-inch 4MP progressive CMOS sensors that combine to deliver a seamless 8MP total resolution at up to 20 fps. It features dual 2.8mm fixed lenses with a bright F1.4 aperture, providing an ultra-wide 180° horizontal field of view that eliminates blind spots in expansive areas. For maximum efficiency, the unit utilizes standard H.265, H.264, and MJPEG compression alongside advanced H.265+ and H.264+ smart encoding to significantly reduce bandwidth usage and storage requirements

Key Configuration

• • Image sensors: 2 × 1/2.7-in. 4MP progressive CMOS; max resolution: 4096×1860 (8MP stitched) at 20 fps
• • Lenses: 2 × 2.8mm fixed, F1.4; horizontal FOV: 180°, vertical: 86°
• • IR LEDs: 2 units; white-light LEDs: 2 units; IR distance up to 25m (82 ft), white light up to 20m (66 ft)
• • Triple streams (Main, Sub 1, Sub 2)
• • Power: 12V DC or PoE (IEEE 802.3af); max consumption: 8.7W (12VDC), 10.9W (PoE)

Key Features

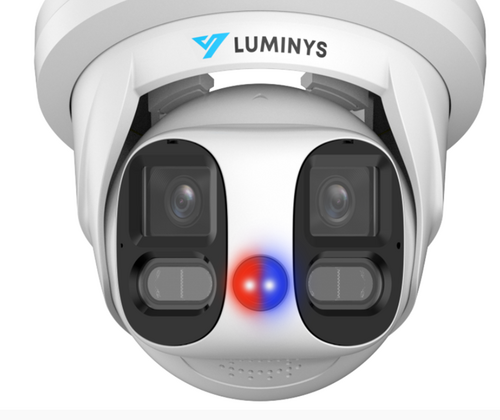

The camera features 120dB WDR, 3D noise reduction, and defog support for clear video while utilizing smart encoding H.265+/H.264+ and triple-stream capability to optimize bandwidth efficiency. Advanced security automation is driven by Video Content Analytics+ for line crossing, intrusion, and loitering detection alongside iMD and LumiTracking-E for electronic zoom and tracking of humans and vehicles. For active deterrence, the unit integrates flashing red and blue lights with enhanced sound alarms, supported by built-in dual microphones, a speaker, and physical RCA audio ports. System customization includes 4-zone ROI, 4-zone privacy masking, a 256GB microSD slot for edge storage, and hardware connections for 1 alarm input and 1 alarm output. Fully ONVIF Profiles S/G/T compliant, the hardware is finished with a flexible 3-axis adjustment design supporting a 0–360° pan, 0–77° tilt, and 0–360° rotation for exact positioning

Technical Context

Operating down to 0.002 lux in color, 0.0002 lux in black-and-white, and 0 lux with active infrared or white light, the camera utilizes an electronic shutter from 1/3 to 1/100,000 seconds with an S/N ratio greater than 56 dB. Optical precision offers a 0.8m close focus alongside standardized DORI metrics of 50.6m detection, 20.2m observation, 10.1m recognition, and 5.1m identification. Robust backend architecture allows flexible data transmission to FTP, SFTP, NAS, or microSD destinations via Chrome, Firefox, and Edge browsers using IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, and 802.1x protocols. Built for resilient and secure commercial applications, it is certified to FCC, IC, and strict NDAA compliance standards

Installation Notes

Metal dual-sensor turret camera providing 180° stitched panoramic coverage measures 140.6 × Φ142.5 mm (5.5" × Φ5.6") and weighs 1.0 kg (2.2 lb) with an IP67 rating for extreme environments from -40°C to 60°C (-40°F to 140°F) via LumiPolarPro and LumiDesertPro technologies. Power options include 12V DC or PoE (IEEE 802.3af), while edge storage supports up to a 256GB microSD card alongside full compatibility with the LumiViewer desktop and mobile app. Integrated physical hardware features dual microphones and a speaker for two-way audio with RCA input/output ports, flashing red and blue lights for active deterrence, and LumiTracking-E firmware for automated electronic tracking
