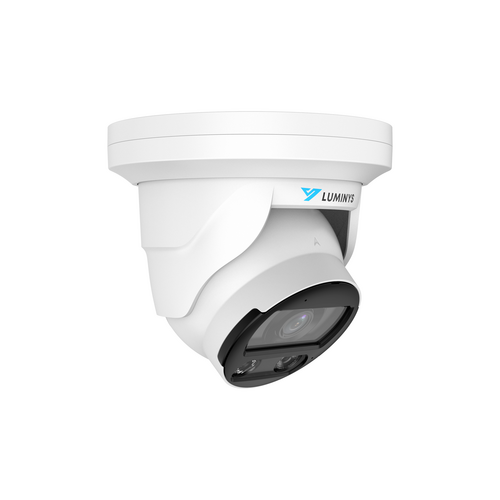

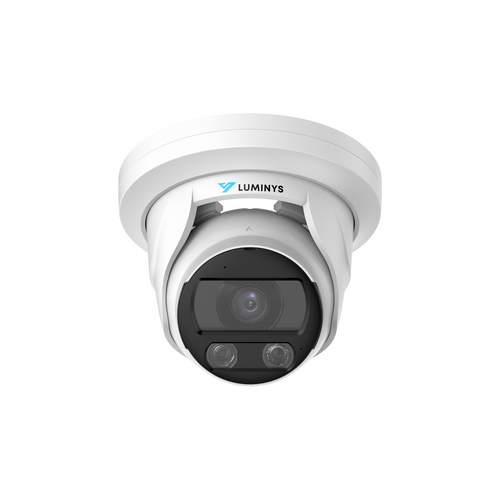

Luminys - N5T-12LA2 - 12MP Network LumiLuxSmart Series Turret Camera with 2.8 mm Lens, IR, White-light LEDs, Dual-mode
Product Overview
The Luminys N5T-12LA2 is a 12MP turret IP camera with LumiLuxSmart dual IR and white-light illumination, supporting 4512 × 2512 resolution. It features a fixed 2.8 mm F1.6 lens with a 112° field of view, DWDR, and up to 30 m illumination range. Supports H.265/H.264 compression with triple-stream output.
Key Configuration
• 12MP (4512 × 2512) resolution at up to 15 fps
• Fixed 2.8 mm lens, F1.6 aperture, H: 112° / V: 58° / D: 139° field of view
• Power: PoE (IEEE802.3at), 12VDC, or LumiPower support; PoE max 10.7W (6.1W typical), 12VDC max 8.5W (4.6W typical)
• MicroSD card slot supporting up to 512 GB edge storage
Key Features
12MP sensor with ultra-low-light performance (down to 0.0008 lux) and dual IR/white-light LumiLuxSmart illumination up to 30 m. Supports 3 video streams with H.265/H.264/MJPEG compression and DWDR with 3D noise reduction. Advanced analytics include motion detection, line crossing, intrusion, loitering, parking, face detection, heat map, and people counting features. Also supports built-in audio I/O, alarm I/O, and wide protocol compatibility (ONVIF, RTSP, API/SDK). IP67, NDAA, FCC, UL, and IC certified for professional outdoor surveillance.
Technical Context
LumiLuxSmart supports IR-only covert mode, white-light illumination, and motion-triggered switching between IR and white light, with adjustable LED brightness. LumiSearch+ identifies targets using body shape and clothing attributes via reference image search (requires compatible NVR). LumiAnalytics enables people counting, queue tracking, heat mapping, and behavior analysis. LumiPower extends PoE transmission up to 3,000 ft (≈914 m) with compatible equipment.
Installation Notes
Metal turret housing measuring Φ142.0 × 130.1 mm (Φ5.6" × 5.1") with 0.8 kg net weight. Supports 12VDC, PoE (IEEE802.3at), or LumiPower. Designed for -40°C to +60°C operation with up to 95% RH non-condensing. Provides flexible mounting with 360° pan, 78° tilt, and 360° zoom adjustment.
| Camera | |
|---|---|
| Model Series | Luminys Series N5 Series (Mainstream) |
| Image Sensor | 1/2.5-in. 12MP Progressive CMOS |
| Maximum Resolution | 4512 × 2512 |
| Minimum Illumination | |
| Color | 0.0085 Lux at F1.6 |
| Black/White | 0.0008 Lux at F1.6 |
| With IR Light On | 0 Lux |
| Illuminator | |
| Number of Illuminators | Two (2) Dual-Core (IR and White Light) LEDs, Supports LumiLuxSmart |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance - IR | Up to 30.0 m (98.4 ft) |
| Maximum Illumination Distance - White Light | Up to 30.0 m (98.4 ft) |
| Electronic Shutter Speed | Automatic, Manual · 1/3 s to 1/100,000 s |
| Pan/Tilt/Zoom | |
| Pan | 0° to 360° |
| Tilt | 0° to 78° |
| Zoom | 0° to 360° |
| S/N Ratio | > 50 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Field of View | Horizontal: 112° Vertical: 58° Diagonal: 139° |
| Close Focus Range | 1.8 m (5.9 ft) |
| DORI Distance | |
| Detect | 98.9 m (324.2 ft) |
| Observe | 39.6 m (129.9 ft) |
| Recognize | 19.8 m (65.0 ft) |
| Identify | 9.9 m (32.5 ft) |
| Video | |
| Compression | H.265, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Resolution | 12MP (4512 × 2512), 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728/2592 × 1944), 4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2048 × 1536), 2MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
| Maximum Frame Rate | Main Stream: 4512 × 2512 at 1–15 fps Sub Stream 1: D1 at 1–15 fps Sub Stream 2: 1080p at 1–15 fps |
| Video Bit Rate | H.265: 12 kbps to 14436 kbps H.264: 32 kbps to 14436 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Digital Wide Dynamic Range (DWDR) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower) |
| Mirroring | Supported |
| Defog | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion, Loitering Detection, Parking Detection |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |
| Heat Map | Supported |
| People Counting | Tripwire and In-Area People Counting, Queue Management With Report |
| LumiSearch+ | Supported When Used With LumiSearch+-Enabled NVRs |
| LumiAnalytics | Supported |
| Object Monitoring | Supported |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |
| Interface | Input: Built-in Microphone and 1-channel RCA Input Output: Built-in Speaker and 1-channel RCA Output |
| Alarm | |
| Event Triggers | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Line Crossing, Intrusion, Abandoned Object, Missing Object, Loitering Detection, Parking Detection, Scene Changing, Audio Detection, Voltage Detection, External Alarm, Face Detection, iMD, Security Exception, Area People Counting, Stay Alarm, People Counting, People Number Exception Detection |
| Interface Input | One (1) Channel (Max. 5 VDC, 5 mA) |
| Interface Output | One (1) Channel (Max. 12 VDC, 300 mA) |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, NAS, Micro SD Card (Max. 512 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE (802.3at), LumiPower |
| Power Consumption - 12 VDC | Maximum: 8.5 W · Normal: 4.6 W |
| Power Consumption - PoE | Maximum: 10.7 W · Normal: 6.1 W |
| Construction | |
| Net Weight | 0.8 kg (1.7 lb) |
| Gross Weight | 1.0 kg (2.1 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) · < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions | Φ 142.0 mm × 130.1 mm (Φ 5.6 in. × 5.1 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, UL, IC |
| Compliance | NDAA |
