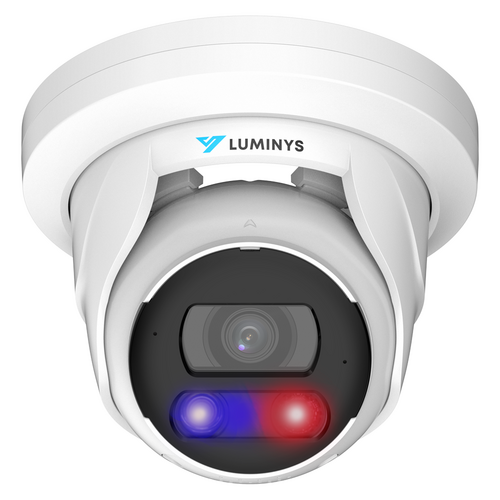

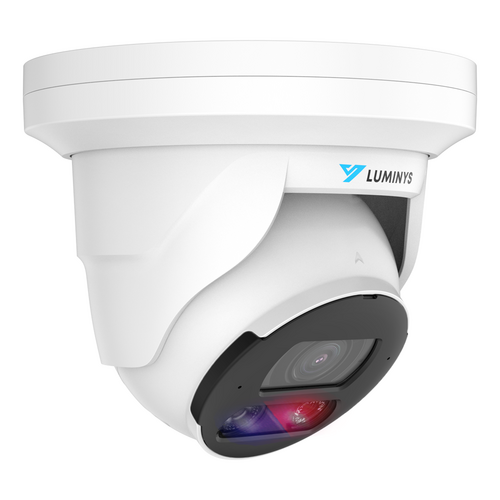

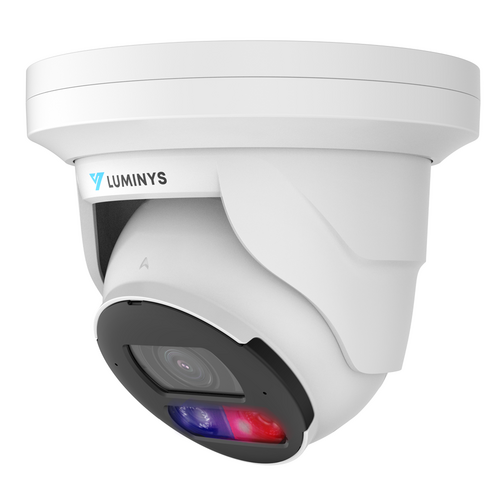

Luminys - N5T-4DA2 - 4MP Network LumiDeterrent Turret Camera with 2.8 mm Lens, IR, White-lights, Dual-mode
Product Overview
The Luminys N5T-4DA2 is a Mainstream series 4MP turret camera featuring a 1/2.7-inch progressive CMOS sensor, a 2.8mm fixed lens (F1.0, 101° horizontal FOV), and up to 30 fps recording using efficient H.265+/H.264+ smart encoding. It includes 120dB WDR, LumiLuxSmart dual-core IR/white-light LEDs up to 30m, and LumiDeterrent flashing red/blue lights with a built-in speaker for active defense. Equipped with advanced analytics, including loitering, line crossing, intrusion detection, human/vehicle iMD, and LumiSearch target filtering. This IP67-rated metal camera utilizes LumiPolarPro and LumiDesertPro technologies to operate reliably in extreme climates from -40°C to 60°C.
Key Configuration
• Image Sensor: 1/2.7-in. 4MP progressive CMOS; max 2688×1520 @ 30 fps.
• Lens & FOV: 2.8mm fixed (F1.0); 101° (H) × 53° (V) × 120° (D).
• Illumination: LumiLuxSmart dual-core LED (IR and white light); up to 30m (98.4 ft).
• Video Streams: Triple-stream capability (Main, Sub 1, Sub 2).
• Power: 12V DC or PoE (802.3af); max consumption 8.3W (DC) / 8.8W (PoE).
Key Features
This camera adds 3D noise reduction and expands system flexibility with triple-stream capability, 8 privacy masking zones (alongside 4 Region of Interest zones), and physical alarm I/O ports (1 input at 3V–5V DC, 5mA; 1 output at 12V DC, 300mA). Audio capabilities are upgraded to built-in dual microphones with an additional physical RCA input/output, supporting G.726 and G.723 audio compression standards. It is built on an ONVIF Profiles S/G/T compliant framework and utilizes a microSD card slot for edge storage up to 256GB.
Technical Context
It brings minimum illumination levels down to 0.001 lux in color (F1.0) and 0.0001 lux in black-and-white, alongside a 1.5m (4.9 ft) close focus range. Precision optics provide adjusted DORI distances of 66.0m for detection, 26.4m for observation, 13.2m for recognition, and 6.6m for identification. Network capabilities include expanded protocol support for QoS and PPPoE, as well as direct network storage integration via NAS appliances.
Installation Notes
Dimensions of 123.5 × Φ142.0 mm (4.9" × Φ5.6") and a net weight of 0.8 kg (1.9 lb). Built with a heavier metal construction, its 3-axis physical adjustment is specified at pan 0°, tilt 0°, and 0–360° rotation.
| Camera | |
|---|---|
| Model Series | Luminys Series Mainstream |
| Image Sensor | 1/2.7-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | |
| Color | 0.001 Lux (F1.0) |
| Black/White | 0.0001 Lux (F1.0) |
| With IR Light On | 0 Lux |
| Illuminator | |
| Number of Illuminators | One (1) Dual-Core (IR and White Light) LED |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance - IR | Up to 30.0 m (98.4 ft) |
| Maximum Illumination Distance - White Light | Up to 30.0 m (98.4 ft) |
| Electronic Shutter Speed | |
| Shutter Speed Range | Automatic, Manual · 1/3 s to 1/100,000 s |
| Installation Angle | |
| Pan | 0° |
| Tilt | 0° |
| Rotation | 0° to 360° |
| S/N Ratio | > 56 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.0 |
| Field of View | Horizontal: 101° · Vertical: 53° · Diagonal: 120° |
| Close Focus Range | 1.5 m (4.9 ft) |
| DORI Distance | |
| Detect | 66.0 m (216.5 ft) |
| Observe | 26.4 m (86.6 ft) |
| Recognize | 13.2 m (43.3 ft) |
| Identify | 6.6 m (21.7 ft) |
| Video Compression | |
| Smart Encoding | H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Resolution | |
| Supported Resolutions | 2688 × 1520 (4MP), 2560 × 1440 (4MP), 2304 × 1296 (3MP), 2048 × 1536 (3MP), 1920 × 1080 (1080p), 1280 × 960 (1.3MP), 1280 × 720 (720P), 704 × 576 (D1), 704 × 480 (D1), VGA 640 × 480 (480p), 352 × 288 (CIF), 352 × 240 (CIF) |
| Maximum Frame Rate | |
| Main Stream | 2688 × 1520 at 30 fps |
| Sub Stream 1 | 704 × 576 at 30 fps, 704 × 480 at 30 fps |
| Sub Stream 2 | 1920 × 1080 at 30 fps |
| Video Bit Rate | |
| H.264 | 32 to 8192 kbps |
| H.265 | 12 to 8192 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night & Image Processing | |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower) |
| Mirroring | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Eight (8) Zones |
| Analytics | |
| Video Content Analytics+1 | Line Crossing, Intrusion, and Loitering Detection |
| Intelligent Motion Detection | Supported With Alarms for Vehicles and Humans |
| LumiSearch | Supported When Used With LumiSearch-Enabled NVRs |
| Audio | |
| Compression | PCM, G.711a, G.711Mu, G.726, G.723 |
| Interface | Input: Built-in Dual Microphones and One (1) RCA Port Output: Built-in Speaker and One (1) RCA Port |
| Alarm Event | |
| Event Triggers | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Scene Changing, Audio Detection, External Alarm, iMD |
| Alarm Interface | |
| Input | One (1) Channel (3V-5VDC, 5 mA) |
| Output | One (1) Channel (12 VDC, 300 mA) |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, Micro SD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption - 12 VDC | Maximum: 8.3 W · Normal: 3.7 W |
| Power Consumption - PoE | Maximum: 8.8 W · Normal: 4.8 W |
| Construction | |
| Net Weight | 0.8 kg (1.9 lb) |
| Gross Weight | 1.0 kg (2.2 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) · < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions | 123.5 mm × Φ 142.0 mm (4.9 in. × Φ 5.6 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA |
