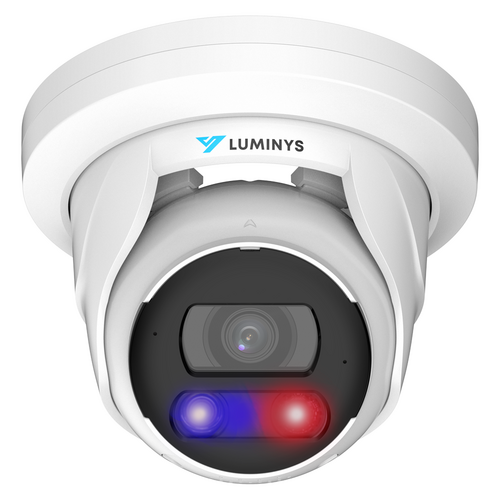

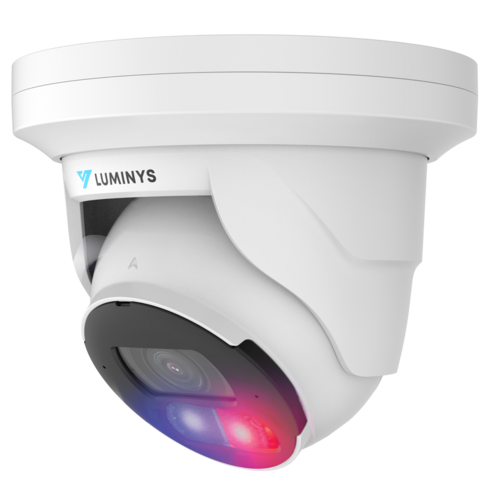

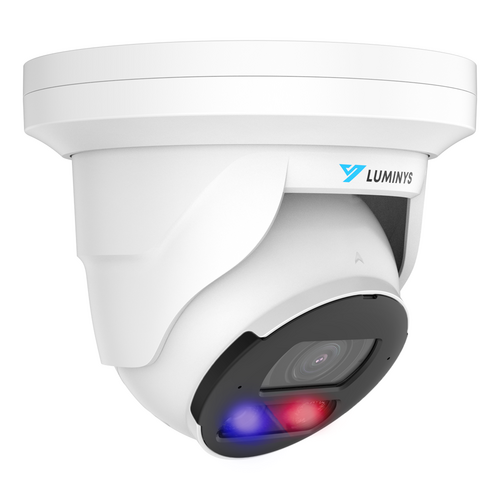

Luminys - N5T-8DA2 - 8MP Network LumiDeterrent Turret Camera, 2.8 mm Lens

Product Overview

Luminys N5T-8DA2 is a Mainstream series 8MP turret camera featuring a 1/2.8-in. progressive CMOS sensor, a 2.8mm fixed lens with an F1.2 aperture and 106° horizontal FOV, and sharp 3840×2160 video delivery at up to 30 fps using efficient H.265+/H.264+ smart encoding alongside standard H.265, H.264, and MJPEG compression options.

Key Configuration

• Image Sensor: 1/2.8" 8MP progressive CMOS delivering 3840×2160 resolution at a smooth 30 fps.
• Lens & FOV: Fixed 2.8mm (F1.2) lens providing a wide 106° horizontal, 55° vertical, and 125° diagonal view.
• Night Vision: 2 infrared LEDs (up to 164 ft / 50m) and 2 white-light LEDs (up to 131 ft / 40m) for long-range darkness visibility.
• Video Streams: Triple-stream support (Main, Sub 1, Sub 2) to optimize simultaneous bandwidth and recording.
• Power Supply: Versatile 12V DC or PoE operation with a low maximum power consumption of 8.7W to 10.9W.

Key Features

The camera integrates 120dB WDR, 3D noise reduction, triple-streaming, 4 ROI zones, and 8 privacy masking zones. It features Video Content Analytics+ (line crossing, intrusion, loitering), human/vehicle iMD, and image-based LumiSearch target tracking via a compatible NVR. For active deterrence and physical integration, it utilizes flashing red/blue lights, sound alarms, and 1-in/1-out alarm ports. Complete with built-in dual microphones, a speaker, and RCA audio I/O with multi-codec support, the unit is ONVIF Profiles S/G/T compliant and includes an onboard microSD slot supporting up to 256GB.

Technical Context

This weatherproof camera is engineered for low-light performance, capturing clear color video down to 0.001 lux and utilizing built-in infrared or white spotlights to see in total darkness. Its lens features a 6.6-foot close focus distance, providing DORI ranges that detect movement up to 298 feet (91m) and identify specific details at 30 feet (9.1m). Fully NDAA compliant for strict government security regulations, the device supports secure network protocols for direct viewing through standard browsers like Chrome, Edge, or Firefox, with video storage compatibility across local microSD cards and network drives.

Installation Notes

Built with a durable metal housing, this turret camera measures 123.5 × Φ142.0 mm, weighs 0.8 kg, and features a flexible 3-axis adjustment mechanism. It is engineered for extreme environments from -40°C to 60°C, utilizing LumiPolarPro and LumiDesertPro climate technologies to ensure reliable operation in harsh cold or heat. The unit is powered via a standard 12V DC connection or Power over Ethernet (PoE), supports local edge storage through a built-in microSD slot up to 256GB, and integrates with the LumiViewer desktop and mobile applications for system management.
