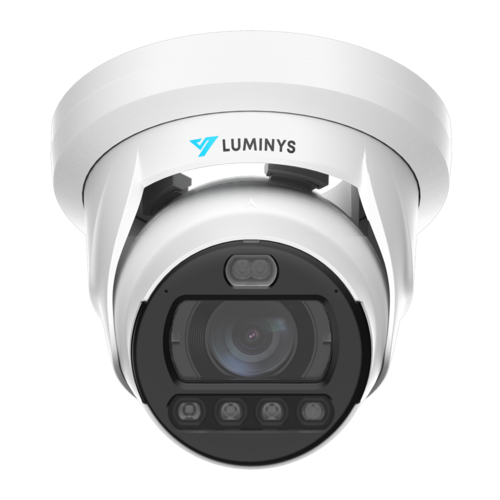

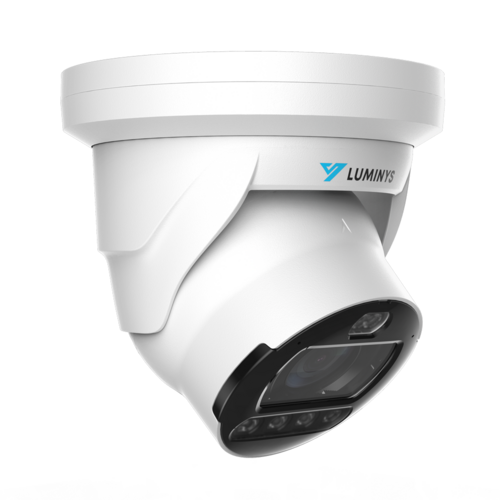

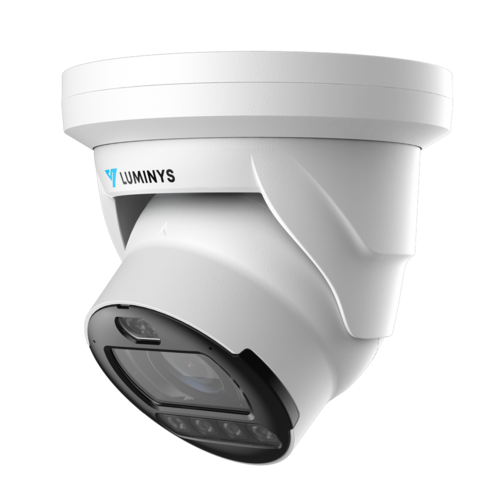

Luminys - N5T-8DAV - 8MP Network LumiDeterrent Turret Camera 2.7-13.5mm, IR White-lights, Dual-mode

Product Overview

The Luminys N5T-8DAV is a Mainstream series 8MP turret camera featuring a 1/2.8" progressive CMOS sensor and a 2.7–13.5 mm motorized varifocal lens (F1.0) with a 108°–34° horizontal field of view. It delivers 8MP resolution (3840×2160) at up to 30 fps with H.265/H.264/MJPEG compression and smart encoding H.265+/H.264+. The camera includes LumiLuxSmart with IR illumination up to 50 m and white-light illumination up to 40 m, LumiDeterrent with red/blue warning lights and a built-in speaker, and Video Content Analytics+ (line crossing, intrusion, and loitering detection). It also supports Intelligent Motion Detection (iMD), LumiSearch, and LumiPolarPro/LumiDesertPro environmental optimization technologies.

Key Configuration

• • Image sensor: 1/2.8-in. 8MP progressive CMOS; max resolution: 3840×2160 (8MP) at 30 fps
• • Lens: 2.7–13.5mm motorized varifocal, F1.0; horizontal FOV: 108° (wide) to 34° (tele)
• • IR LEDs: 2 units, up to 50m (164 ft); white-light LEDs: 2 units, up to 40m (131 ft)
• • Triple streams (Main, Sub 1, Sub 2)
• • Power: 12V DC or PoE (IEEE 802.3af); max consumption: 10.3W (12VDC), 12.1W (PoE)

Key Features

Features 120 dB WDR and 3D noise reduction, with H.265+/H.264+ smart encoding and triple-stream support. It includes Video Content Analytics+ (line crossing, intrusion, loitering) and Intelligent Motion Detection (iMD) for human and vehicle alerts, plus LumiSearch for reference-based target identification (requires compatible NVR). The camera has built-in dual mics and a speaker with RCA audio support, red/blue deterrent lights with sound alarm, 4 ROI zones, 8 privacy zones, and microSD storage up to 256GB. It also supports 1 alarm input/output, ONVIF S/G/T, and 3-axis adjustment.

Technical Context

Delivers ultra-low-light performance with 0.002 lux in color (F1.0) and 0.0002 lux in B/W, with 0 lux operation using IR or white light. It supports an electronic shutter range from 1/3 s to 1/100,000 s and maintains a signal-to-noise ratio above 56 dB. The camera has a close focus distance of 1.5 m and DORI coverage up to 257 m (detect) and 25.7 m (identify). It supports a wide range of network protocols, including IPv4/IPv6, HTTP/HTTPS, RTSP, RTP/RTCP/RTMP, FTP/SFTP, SMTP, DHCP, DNS, NTP, QoS, UPnP, and more, with compatibility for Chrome, Firefox, and Edge browsers. Storage options include FTP/SFTP, NAS, and microSD. Built with a metal housing and IP67 protection, it is FCC, IC, and NDAA compliant.

Installation Notes

Measuring 141.6 × Φ142.0 mm and weighing 0.9 kg. It operates in extreme environments from -40°C to 60°C with humidity tolerance below 95% RH. Power is supplied via 12V DC or PoE (IEEE 802.3af), with edge storage support through a microSD slot up to 256GB. The camera features a motorized varifocal lens and LumiPolarPro/LumiDesertPro climate optimization for cold and hot conditions. It also includes dual microphones and a speaker for two-way audio (with RCA input/output), red/blue deterrent lights, and compatibility with the LumiViewer desktop and mobile app.
