Luminys - N9L-4RAL - 4MP Vari-Focal Network License Plate Recognition Camera, IR LEDs
Product Overview

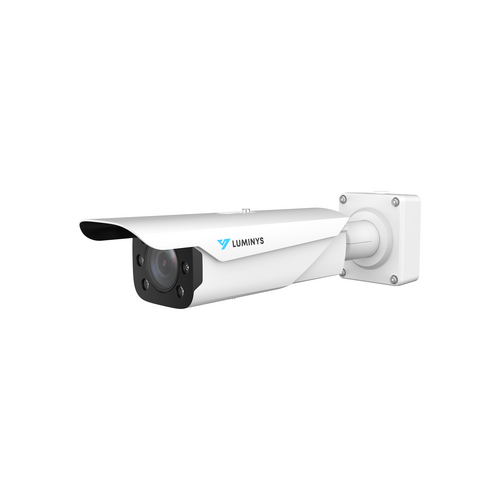

The Luminys N9L-4RAL is a 4MP LPR bullet camera with a 10–50 mm motorized varifocal lens (40.55°–9.33° FOV). It uses six adjustable IR LEDs for up to 30 m night capture and supports vehicle detection speeds up to 60 km/h (37 mph). Includes dual-stream H.265/H.264 compression.
Key Configuration
• 4MP (2688 × 1520) resolution at up to 30 fps (OSD black strip excluded)
• 10–50 mm motorized varifocal lens with auto iris; 40.55°–9.33° horizontal FOV
• Power: PoE+ or 12VDC; power consumption <20W
• Capture range: 8–30 m with 6–7 m detection width
• TF card slot supporting up to 128 GB edge storage
Key Features
4MP LPR camera with 1/1.8" CMOS sensor and IR illumination up to 30 m for low-light plate capture. Supports vehicle speeds up to 60 km/h with WDR (96 dB) and 3D noise reduction. Includes advanced vehicle analytics (type, color, passenger detection, license status) and OSD overlays such as plate, time, and direction. Provides alarm I/O, RS-485, Wiegand, and Ethernet connectivity with secure protocols (HTTPS, 802.1X). IP67 rated with 99% ANPR accuracy for US/Canada plates.
Technical Context
Optimized for license plate capture with precise framing using a 10–50 mm motorized lens (8–30 m range). Supports adjustable IR illumination to reduce glare during night capture. Classifies vehicles into 12 types and detects up to 12 colors. LumiTrajectory visualizes plate data and vehicle movement through the monitored area. Includes ANR edge recording to TF card during network loss and supports both video-based and I/O coil trigger modes for flexible deployment.
Installation Notes
Bullet housing with metal/plastic construction, designed for wall, pole, or ceiling installation. Supports operation in -30°C to 65°C and 10–90% RH tolerance. Powered by 12VDC or PoE+ (IEEE 802.3at). Optimized capture range of 8–30 m with 6–7 m detection width and 0.002 lux low-light performance.
| Camera | |
|---|---|
| Luminys Series | N9 Series (Specialty) |
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 (OSD Black Strip Excluded) |
| Minimum Illumination | 0.002 Lux (Built-In Illuminator On) |

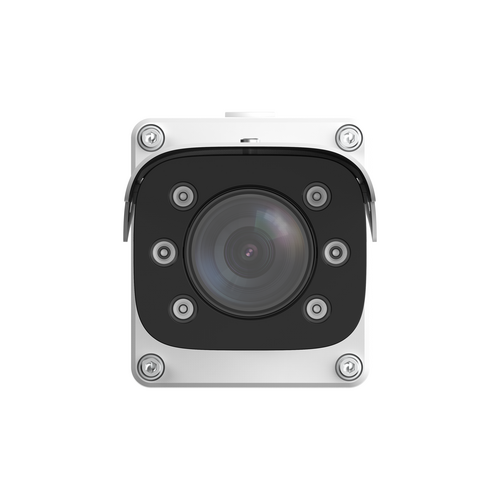

| Number of Illuminators | Six (6) IR Illuminators With Adjustable Brightness |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | Up to 30.0 m (98.4 ft) |
| Maximum Detection Speed | 60.0 km/h (196850.4 ft/h) |
| Detection Width | 6 to 7 m (19.7 to 23.0 ft) |
| Capture Distance | 8.0 to 30.0 m (26.3 to 98.4 ft) |
| Trigger Mode | Video Detection, I/O Coil |
| Shutter Mode | Single Shutter |
| Electronic Shutter Speed | Automatic, Manual 1/25 s–1/10,000 s |
| Lens | |
| Lens Mount | Module |
| Iris Type | Automatic (W:1.33—T:1.34) |
| Lens Type | Motorized Vari-Focal |
| Focal Length | 10 to 50 mm (0.4 to 2.0 in.) |
| Field of View | Horizontal: 40.55° (W) – 9.33° (T) Vertical: 22.7° (W) – 5.3° (T) Diagonal: 46.6° (W) – 10.63° (T) |
| Video | |
| Compression | H.265, H.264M, H.264H, MJPEG |
| Image Encoding Format | JPEG |
| Stream Capability | Two (2) Streams |
| Resolution | Main Stream: 4MP (2688×1520), UXGA (1600×1200), 1080p (1920×1080), 720p (1280 × 720) Sub Stream: 720p (1280 × 720), 960H (960×480), D1 (704 × 480), CIF (352 × 240) |
| Maximum Frame Rate | Main Stream: 2688 x 1520/1600 x 1200/1920 x 1080/1280 x 720 at 1–30 fps Sub Stream: 1280 × 720/960 x 480/704 x 408/352 x 240 at 1–30 fps |
| Video Bit Rate | H.264/H.265: 2615 to 15689 kbps MJPEG: 7845 to 47068 kbps |
| Light Balancing | Wide Dynamic Range (96 dB) |
| White Balancing | Automatic, Regional Custom, Manual, Outdoor, Natural Lighting, Street Lamp |
| Exposure Mode | Fully Automatic, Customized Automatic, Manual |
| Noise Reduction | 3D NR |
| Edge Enhancement | Supported |
| OSD Overlay | Time, Address, Plate, Vehicle (Color, Type), Vehicle Position, Counterfeit, Checkpoint Direction, Trigger Source, Custom |
| Image Tampering Prevention | Watermark, Verification Function |
| Analytics | |
| Vehicle Recognition Attributes | Vehicle Type/Color, Front-Seat Passenger, Licensed/Unlicensed |
| LumiAnalytics | Supported |
| Smart Track Frame | Displays Plate and Vehicle Path |
| Audio | |
| Interface | Output: One (1) Channel (RCA port) |
| Alarm | |
| Event Triggers | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access |
| Interface Input | 2-Channel Optocoupler (On/Off) |
| Interface Output | 2-Channel Relay (Can Be Used to Connect Other Devices) |
| Network | |
| Interface | One (1) RJ-45 (100/1000 Mbps Ethernet) Port, Two (2) RS-485 Ports, One (1) Wiegand Channel |
| Auto Registration | Supported |
| Security | Username/Password, MAC Address Binding, HTTPS Encryption, IEEE 802.1×, Network Access Control |
| Automatic Network Replenishment (ANR) | Supported via Platform/FTP |
| Storage | Built-In 1 TF Card Port (Max. 128 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE+ |
| Power Consumption | < 20 W |
| Construction | |
| Net Weight | 3.2 kg (7.05 lb) |
| Gross Weight | 5.2 kg (11.46 lb) |
| Operating Temperature | -30 to 65 °C (-22 to 149 °F) · 10 to 90% RH (Non-Condensing) |
| Protection Ratings | IP67 |
| Product Dimensions (L × W × H) | 497.4 × 121.6 × 130.0 mm (19.6 × 4.8 × 5.1 in.) |
| Packaging Dimensions (L × W × H) | 625.0 × 305.0 × 270.0 mm (24.6 × 12.0 × 10.6 in.) |
| Installation | Wall, Pole, or Ceiling Mount |
| Material | Metal and Plastic |
