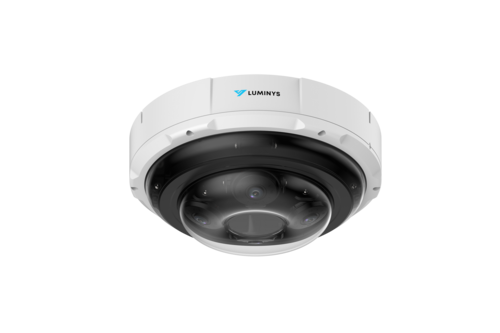

Product Overview

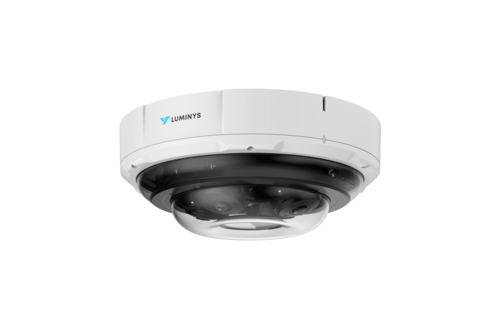

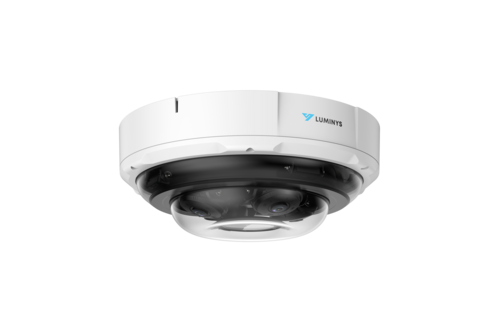

Luminys N9P-20RAV is a 4 x 5MP multi-sensor directional camera with four 1/2.7-in. progressive CMOS sensors, each delivering 2592x1944 resolution at 30fps. This specialty dome camera features individual 2.8-12mm motorized varifocal lenses per sensor (100° to 42° horizontal FOV per sensor), 30m IR illumination (98ft) with 8 IR LEDs, and LumiFlex unstitched multi-sensor technology for 180°, 270°, or 360° coverage. H.265/H.264 compression with three streams per sensor, IP67/IK10 ratings, and LumiDesertPro for high-temperature operation up to 60°C.
Key Configuration
• Four 5MP sensors (2592 × 1944) at up to 30 fps per sensor
• Four motorized varifocal lenses (2.8–12 mm), F1.7, H 100° to 42° per sensor
• PoE+ (IEEE802.3at) or 12VDC input; max power <24.7W
• MicroSD slot supporting up to 256 GB edge storage
Key Features
Four 1/2.7-in. 5MP progressive CMOS sensors with IR illumination up to 30m and low-light performance down to 0.0005 Lux. Supports 360° multi-sensor positioning with wide installation flexibility. Features Smart H.265+/H.264+ compression, up to 3 streams per sensor, DWDR, 3D noise reduction, ROI, and privacy masking. Analytics include line crossing, intrusion, loitering, parking detection, face detection, people counting, queue management, and smart object detection with audio and alarm I/O support. Connectivity includes Gigabit Ethernet, RS-485, ONVIF S/G/T, API/P2P, and LumiViewer support. Certified IP67, IK10, NDAA compliant with LumiFlex panoramic coverage and LumiDesertPro high-temperature operation up to 60°C.
Technical Context

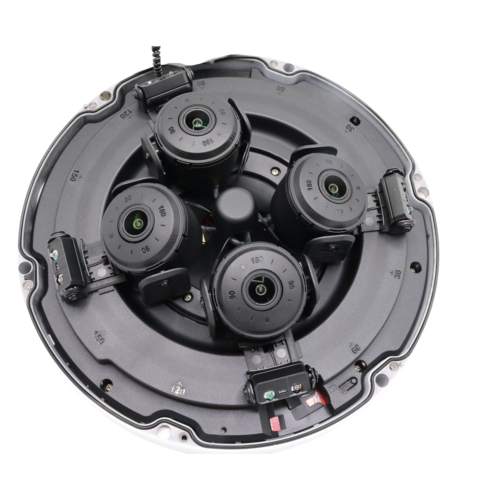

The N9P-20RAV uses four independently movable sensors with a LumiFlex multi-sensor design for non-stitched wide coverage and flexible streaming (separate or consolidated). Each sensor includes a 2.8–12mm motorized varifocal lens with remote zoom/focus control. VCA+ enables human/vehicle classification for line crossing and intrusion, while LumiAnalytics adds AI-based face detection, people counting, and object recognition with optimized bandwidth management.

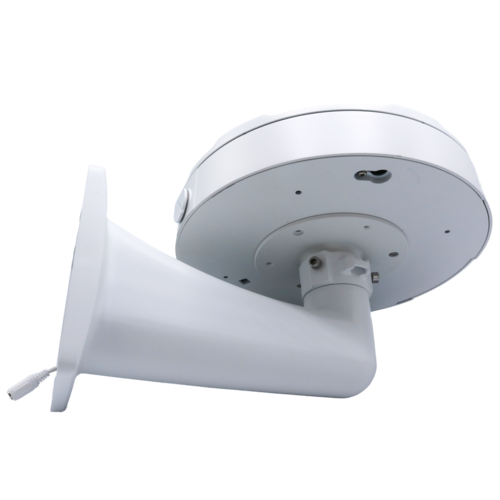

Installation Notes

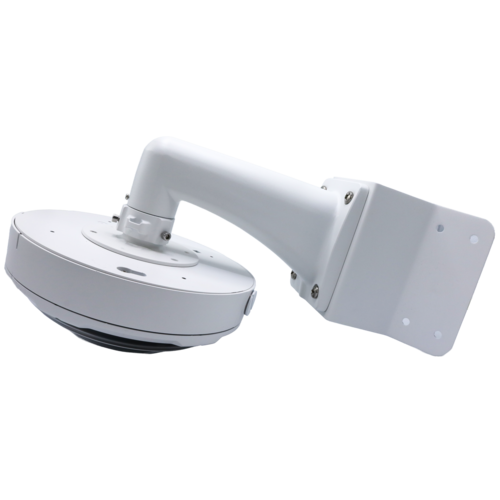

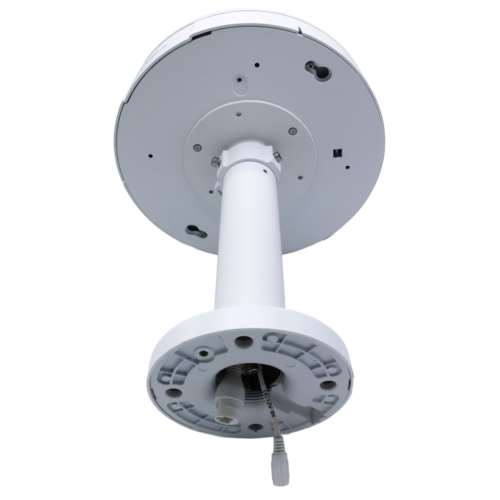

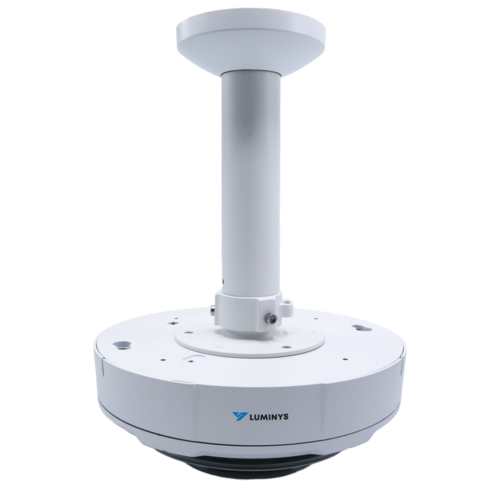

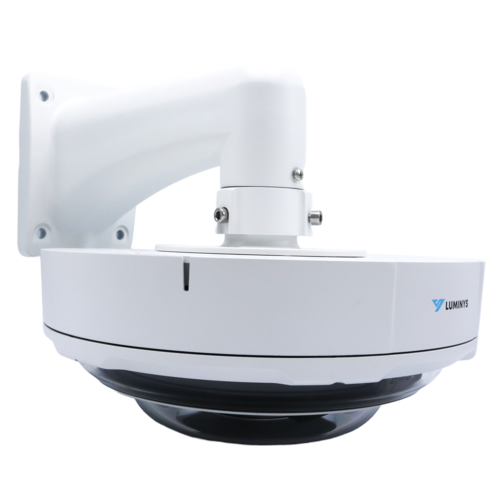

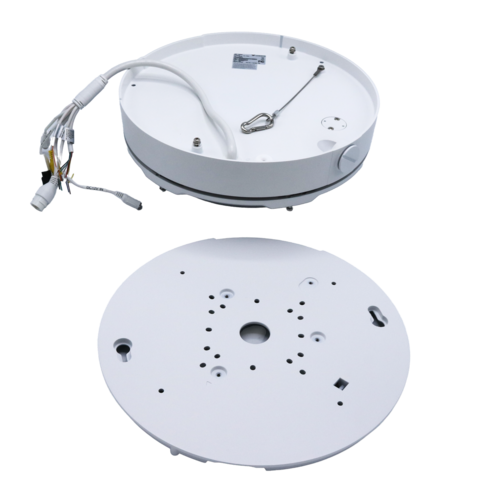

Multi-sensor dome housing with metal and plastic construction. Operating temperature -30°C to 60°C with IP67 weatherproof and IK10 vandal resistance. Power options include 12VDC or PoE+ (IEEE802.3at). Each sensor supports independent adjustment. Includes RS-485 PTZ control interface and RCA audio input/output support.
| Camera | |
|---|---|
| Luminys Series | N9 Series (Specialty) |
| Image Sensor | Four (4) 1/2.7-in. 5MP Progressive CMOS |
| Maximum Resolution | 2592 × 1944 per sensor |
| Minimum Illumination | |
| Color | 0.005 Lux at F1.7 |
| Black and White | 0.0005 Lux at F1.7 |
| With IR Illumination On | 0 Lux |
| Illuminator | |
| Number of Illuminators | Eight (8) IR LEDs |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | Up to 30.0 m (98.4 ft) |
| Electronic Shutter Speed | Automatic, Manual · 1/30 s to 1/100,000 s |
| Installation Angle | |
| Pan | 0° to 360° |
| Tilt | 0° to 75° |
| Rotation | 0° to 355° |
| S/N Ratio | > 56 dB |
| Lens | |
| Iris Type | Fixed |
| Focal Length | 2.8 mm to 12.0 mm |
| Maximum Aperture | F1.7 |
| Field of View | Horizontal: 100° to 42° Vertical: 74° to 32° Diagonal: 133° to 53° |
| Close Focus Range | 0.8 m (2.6 ft) |
| DORI Distance | |
| Detect | 66.0 m to 140.4 m (216.5 ft to 460.6 ft) |
| Observe | 26.4 m to 56.1 m (86.6 ft to 184.1 ft) |
| Recognize | 13.2 m to 28.8 m (43.3 ft to 94.5 ft) |
| Identify | 6.6 m to 14.0 m (21.7 ft to 45.9 ft) |
| Video | |
| Smart Encoding | H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Resolution - Single Stream | 5MP (2592×1944), 4MP (2560×1440), 3MP (2304×1296/2048×1536), 1080p (1920×1080), 1.3MP (1280×960), 720p (1280×720), D1 (704×480), VGA (640×480), CIF (352×240) |
| Resolution - Consolidated Stream | 8MP (3296×2472), 5MP (2592×1944), 1080p (1920×1080) |
| Maximum Frame Rate - Single Stream | Main Stream: 5MP at 30 fps Sub Stream 1: D1 at 30 fps Sub Stream 2: 1080p at 30 fps |
| Maximum Frame Rate - Consolidated Stream | Main Stream: 2MP at 30 fps Sub Stream 1: D1 at 30 fps Sub Stream 2: 8MP at 30 fps |
| Video Bit Rate | H.264: 3 kbps to 19,712 kbps H.265: 3 kbps to 19,712 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Auto (ICR), Color, Black and White |
| Light Balancing | Digital Wide Dynamic Range (DWDR) |
| Noise Reduction | 3D NR |
| Image Rotation | Supported |
| Mirroring | Supported |
| Region of Interest | Four (4) Areas |
| Privacy Masking | Eight (8) Areas |
| Analytics | |
| Video Content Analytics+ | Line Crossing (Human/Vehicle), Intrusion (Human/Vehicle), Loitering Detection, Parking Detection |
| Face Detection | Capture Snapshots and Facial Attributes |
| LumiAnalytics | Face Detection, People Counting, Smart Object Detection |
| People Counting | Tripwire and In-Area People Counting, Queue Management With Report |
| Audio | |
| Compression | PCM, G.711, G.726, MPEG-2 AAC-LC |
| Interface | Input: One-Channel RCA Port Output: One-Channel RCA Port |
| Alarm | |
| Event Triggers | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Abandoned Object, Missing Object, Loitering Detection, People Gathering, Parking Detection, Scene Changing, Audio Detection, External Alarm, Face Detection, People Counting In Area, Abnormal Number of People Detection, People Counting, People Stay Detection |
| Interface Input | Three (3) Channels (Max. 5 VDC, 5 mA) |
| Interface Output | Two (2) Channels (Max. 12 VDC, 300 mA) |
| Network | |
| Network Interface | RJ-45 (10/100/1000 Base-T) |
| RS-485 Interface | One (1) Channel (Baud Rate Range: 1,200 bps to 115,200 bps) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Interoperability | ONVIF (Profile S/G/T), API, P2P |
| Browser | Firefox, Chrome, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | MicroSD Card (Max. 256 GB), FTP, SFTP, NAS |
| Electrical | |
| Power Supply | 12 VDC, PoE+ (802.3at) |
| Power Consumption | < 24.7 W |
| Construction | |
| Net Weight | 2.8 kg (6.1 lb) |
| Gross Weight | 4.5 kg (9.9 lb) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) · < 95% RH (Non-Condensing) |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) |
| Protection Ratings | IP67, IK10 |
| Dimensions | 111.3 mm × Φ286.1 mm (4.4 in. × Φ11.3 in.) |
| Material | Metal, Plastic |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA |
