Luminys - P44-8DB25 - 8MP Network 25x LumiDeterrent PTZ Camera
Product Overview

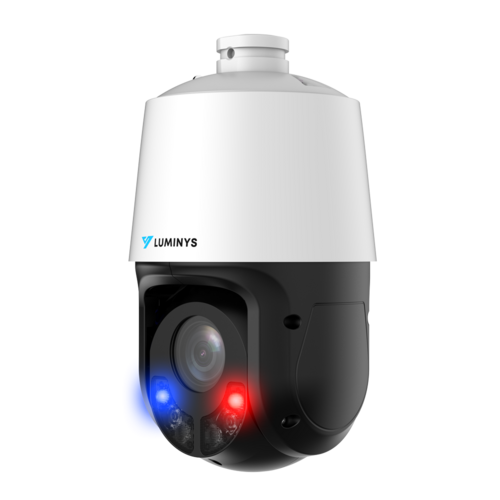

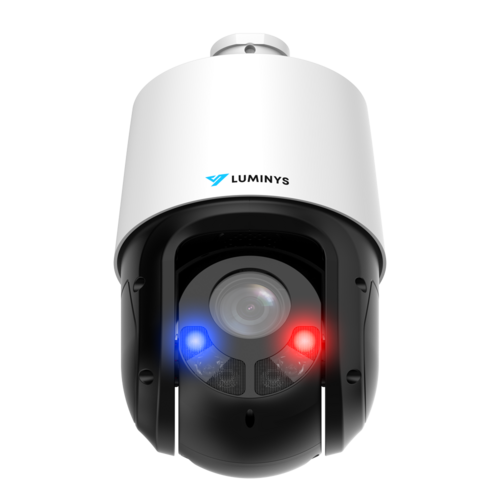

The Luminys P44-8DB25 is a Mainstream series 8MP dome PTZ camera featuring a 1/2.8" progressive CMOS sensor and a 25x optical zoom lens, 5–125mm. It upgrades resolution output to a native 8MP (3840x2160) at up to 30 fps, utilizing efficient H.265+/H.264+ smart encoding and standard compression H.265, H.264, MJPEG. This model includes the LumiFocus focus-retention system, LumiTracking, Face Detection, and advanced Video Content Analytics+ (VCA+ / iMD) intelligence, all backed by LumiPolarPro/LumiDesertPro climate optimization and the LumiDeterrent active defense suite (red/blue lights and built-in speaker).
Key Configuration
- • Image sensor: 1/2.8-in. progressive CMOS; max resolution: 3840×2160 (8MP) at 30 fps
- • Lens: 5–125mm (25x optical zoom), F1.6–F3.6; horizontal FOV: 53.1° (wide) to 3.4° (tele)
- • IR LEDs: 2 units, up to 100m (330 ft); white-light LEDs: 2 units, up to 50m (165 ft)
- • Triple streams (Main, Sub 1, Sub 2)
- • Power: 12V DC or PoE+ (IEEE 802.3at); consumption: 8W standard, 12W max
Key Features
Its onboard intelligence includes Face Detection alongside comprehensive VCA+ and iMD suites for precision vehicle, human, and behavioral tracking. For deployment and security, it includes a red/blue light and speaker active deterrence system, 8 RoI zones, 8 privacy masks, a 512GB microSD slot, and a physical 2-in/1-out alarm I/O. Mechanically, its agile 0–360° endless pan and -15° to 90° tilt chassis drives presets at up to 240°/s, supporting 300 presets, 3D positioning, and full ONVIF Profiles S/G/T integration.
Technical Context
This camera delivers ultra-low-light performance with minimum illumination of 0.006 lux in color and 0.0006 lux in B/W mode, plus 0 lux operation with built-in illuminators. It supports shutter speeds from 1 s to 1/30,000 s, S/N ratio above 56 dB, and DORI distances up to 3448 m detection and 345 m identification. The camera supports major network protocols, Chrome/Firefox/Safari/Edge browsers, FTP/SFTP, NAS, and microSD storage. Its IP66-rated housing ensures outdoor durability, and it is FCC, IC, and NDAA compliant.
Installation Notes
Measuring Φ160 × 280.5 mm and weighing 2.7 kg. It operates in extreme temperatures from -40°C to 65°C with humidity below 95% RH and supports both 12V DC and PoE+ (IEEE 802.3at) power. Edge storage is available via a microSD card slot supporting up to 512GB. Designed for harsh environments, it includes LumiPolarPro for cold climates and LumiDesertPro for hot climates, along with built-in speakers, red/blue warning lights for active deterrence, and LumiTracking for automatic target tracking. The camera is also compatible with the LumiViewer desktop and mobile app.
| Camera | |
|---|---|
| Model Series | Luminys Series Mainstream |
| Zoom | 25x |
| Image Sensor | 1/2.8-in. Progressive CMOS |
| Maximum Resolution | 3840 x 2160 |
| Minimum Illumination | |
| Color | 0.006 Lux at F1.6 |
| Black/White | 0.0006 Lux at F1.6 |
| With Illuminators On | 0 Lux |
| Illuminator | |
| Number of Illuminators | Two (2) IR LEDs, Two (2) White-Light LEDs |
| Illumination Range | IR: 100.1 m (330.0 ft) White Light: 50.3 m (165.0 ft) |
| Illuminator Control | Zoom Priority, Manual, Automatic, Off |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Control Speed | Manual |
| Power Off Memory | Supported |
| S/N Ratio | > 56 dB |
| Lens | |
| Focal Length | 5.0 mm (F1.6) to 125.0 mm (F3.6) |
| Aperture | F1.6 to F3.6 |
| Field of View | Horizontal: 53.1° to 3.4° Vertical: 30.4° to 1.9° Diagonal: 59.3° to 3.9° |
| Close Focus Range | 0.1 m to 1.5 m (0.3 ft to 4.9 ft) |
| DORI Distance | |
| Detect | 137.9 m to 3,448.3 m (452.5 ft to 11,313.1 ft) |
| Observe | 55.2 m to 1,379.3 m (181.0 ft to 4,525.2 ft) |
| Recognize | 27.6 m to 689.7 m (90.5 ft to 2,262.6 ft) |
| Identify | 13.8 m to 344.8 m (45.3 ft to 1,131.3 ft) |
| Pan/Tilt/Zoom | |
| Range | Pan: 0° to 360° Endless Tilt: -15° to 90° Auto Flip: 180° |
| Pan Speed | Manual Control: 0.1°/s to 120°/s Preset: 0.1°/s to 240°/s |
| Tilt Speed | Manual Control: 0.1°/s to 120°/s Preset: 0.1°/s to 240°/s |
| Preset | 300 |
| Tour | 8 (Up to 32 Presets per Tour) |
| Pattern | 5 |
| Scan | 5 |
| Scheduled Modes | Preset, Pattern, Tour, Scan |
| Preset Freezing | Freezes Images Between Presets |
| 3D Positioning | Automatically Pans, Tilts, and Zooms to a Selected Area |
| LumiFocus | Images Maintain Focus When Zooming In or Out |
| Video Compression | |
| Smart Encoding | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream 1 Only) |
| Standard Codec Supported | H.265, H.264, MJPEG |
| Stream Capability | Three (3) Streams |
| Resolution | |
| Supported Resolutions | 8MP (3840 x 2160), 4MP (2560 x 1440), 3MP (2304 x 1296), 3MP (2048 x 1536), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate | |
| Main Stream | 8MP (3840 x 2160) at 30 fps |
| Sub Stream 1 | D1 (704 x 480), 720p (1280 x 720) at 30 fps |
| Sub Stream 2 | 1080p (1920 x 1080) at 30 fps |
| Video Bit Rate | |
| H.265 | 1,280 kbps to 10,240 kbps |
| H.264 | 4,096 kbps to 16,384 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night & Image Processing | |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB), BLC, HLC |
| Noise Reduction | 3D NR |
| Visual Angle | 0°, 180° |
| Privacy Mask | Eight (8) Zones |
| Region of Interest | Eight (8) Regions |
| Analytics | |
| Video Content Analytics+ | Line Crossing, Intrusion, Loitering Detection, Parking Detection, Crossing Virtual Fence, Abandoned/Missing Object, Aggregate Detection, Vehicle/Human Alarm Classification, Linkage Tracking |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |

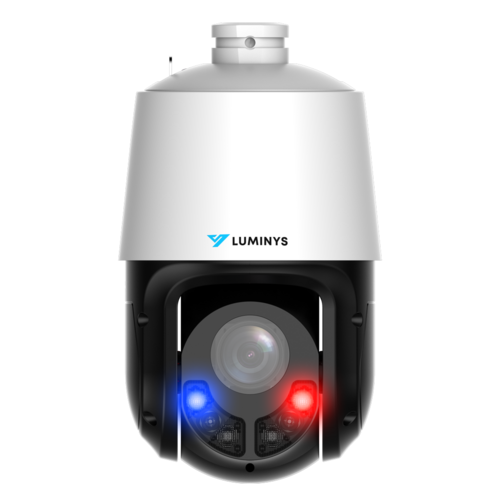

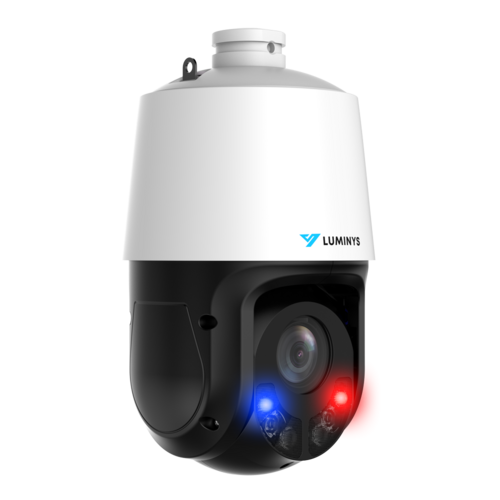

| LumiDeterrent | Built-In Speaker and Flashing Red and Blue Lights |
| LumiTracking | Automatically Tracks a Target in Motion for an Allotted Amount of Time or Until the Object Exits the Scene |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |
| Sampling Bitrate | PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz |
| Interface | Input: One (1) Channel Output: Built-In Speaker and One (1) Channel |
| Alarm | |
| Event Triggers | Motion Detection, Audio Detection, Video Tampering, Scene Changing, Disk Full, Disk Error, Security Warning, External Alarm, AI Event |
| Interface Input | Two (2) Channels |
| Interface Output | One (1) Channel |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI, SDK, P2P |
| Browser | Chrome, Firefox, Safari, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP/SFTP, NAS, Micro SD Card (Max. 512 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE+ (802.3at) |
| Power Consumption | 8 W (Standard), 12 W (Max.) |
| Construction | |
| Net Weight | 2.7 kg (6.0 lb) |
| Gross Weight | 4.5 kg (9.9 lb) |
| Operating Temperature | -40 °F to 149 °F (-40 °C to 65 °C) |
| Operating Humidity | Less than 95% RH |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Protection Ratings | IP66 |
| Product Dimensions | Φ160.0 mm x 280.5 mm (Φ6.3 in. x 11.0 in.) |
| Packaging Dimensions (L x W x H) | 267.0 mm x 267.0 mm x 437.0 mm (10.5 in. x 10.5 in. x 9.3 in.) |
| Material | Metal Cover With Plastic Dome |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA |
