Luminys - P54-4DA25 - 4MP Network 25x LumiDeterrent + Dual-stitched Lens Camera

Product Overview

The Luminys P54-4DA25 is a Mainstream series 4MP PTZ camera combining a dual-stitched panoramic module 1/2.7" CMOS, 4096x1860 at 30 fps with a high-speed 25x optical zoom PTZ module 1/2.8" CMOS, 2560x1440 at 30 fps. It integrates LumiFocus for rapid focus retention during Zoom, LumiTracking, and advanced Video Content Analytics+ (VCA+) including line crossing, intrusion, loitering, parking detection, and iMD. Active security is managed through dual IR/white-light illumination and the LumiDeterrent system, which deploys flashing red/blue lights and an integrated speaker for real-time intervention.

Key Configuration

• • Panoramic sensor: 1/2.7-in. 4MP progressive CMOS; max resolution: 4096×1860 (8MP stitched) at 30 fps
• • PTZ sensor: 1/2.8-in. progressive CMOS; max resolution: 2560×1440 (4MP) at 30 fps; 25x optical zoom (5–125mm)
• • Panoramic FOV: 180° horizontal, 86° vertical; PTZ FOV: 51.9°–3.0° horizontal
• • Illumination: Panoramic – IR/white light 30m (98 ft); PTZ – IR up to 100m (328 ft), white light up to 40m (131 ft)
• • Power: 12V DC (3A) or PoE+ (IEEE 802.3at); max consumption: 25W

Key Features

This PTZ unit adds 120dB WDR, Electronic Image Stabilization (EIS), Electronic Defog, and 2D/3D NR alongside an upgraded triple-stream capability and 512GB microSD edge storage. The expanded VCA+ suite adds crossing virtual fence, abandoned/missing objects, aggregate detection, linkage tracking, and 8 Region of Interest (RoI) zones, supported by hardware alarm I/O (2 in/1 out). The mechanical PTZ chassis delivers 0–360° endless pan up to 180° and a -15° to 90° tilt range with auto-flip, managed via 300 presets, 8 tours, 5 patterns, 5 scans, 3D positioning, and preset freezing.

Technical Context

Engineered with a >55 dB S/N ratio and an agile 1/1 s to 1/300,000 s electronic shutter, this NDAA-compliant camera delivers premium starlight sensitivity, capturing clear footage down to 0.005 lux in color and 0.0005 lux in black-and-white. Its high-powered lens yields an extensive DORI profile, detecting targets up to 2,549.5m and identifying them at 249.5m. Highly secure and multi-browser compatible, its enterprise network stack supports advanced protocols, such as HTTPS, 802.1x, QoS, RTMP, alongside unified NAS, NFS, and SFTP storage integration.

Installation Notes

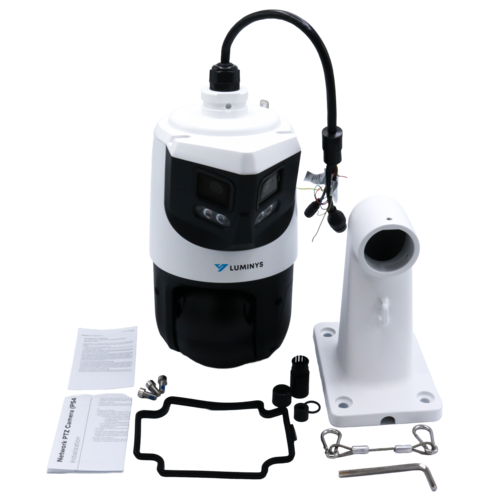

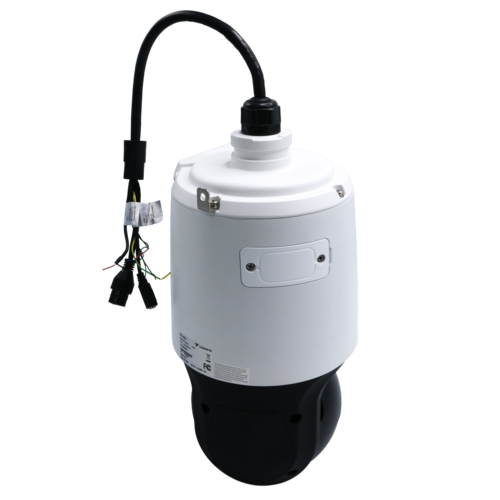

Enclosed in a 194.2x160x311mm housing weighing 3.1 kg, this dual-sensor camera integrates a panoramic wide-area module with a precision PTZ zoom module utilizing LumiTracking for automatic target tracking. Powered via 12V DC (3A) or PoE+ (802.3at), it features an expanded edge storage capacity up to 512GB via microSD. Built for environmental extremes, it operates from -40°C to 65°C via proprietary LumiPolarPro and LumiDesertPro thermal optimization, while employing a built-in speaker and flashing red/blue lights for active deterrence within the LumiViewer ecosystem.
